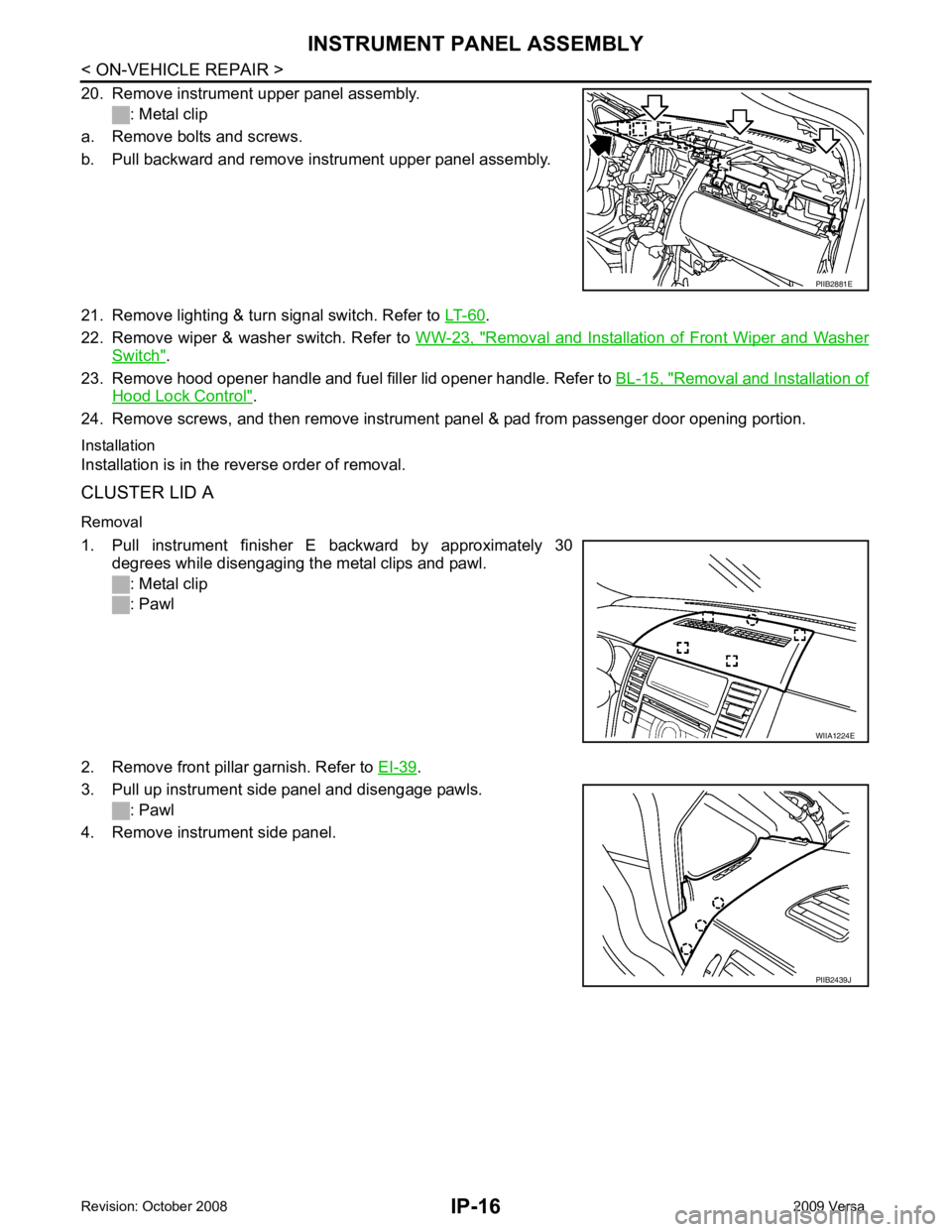

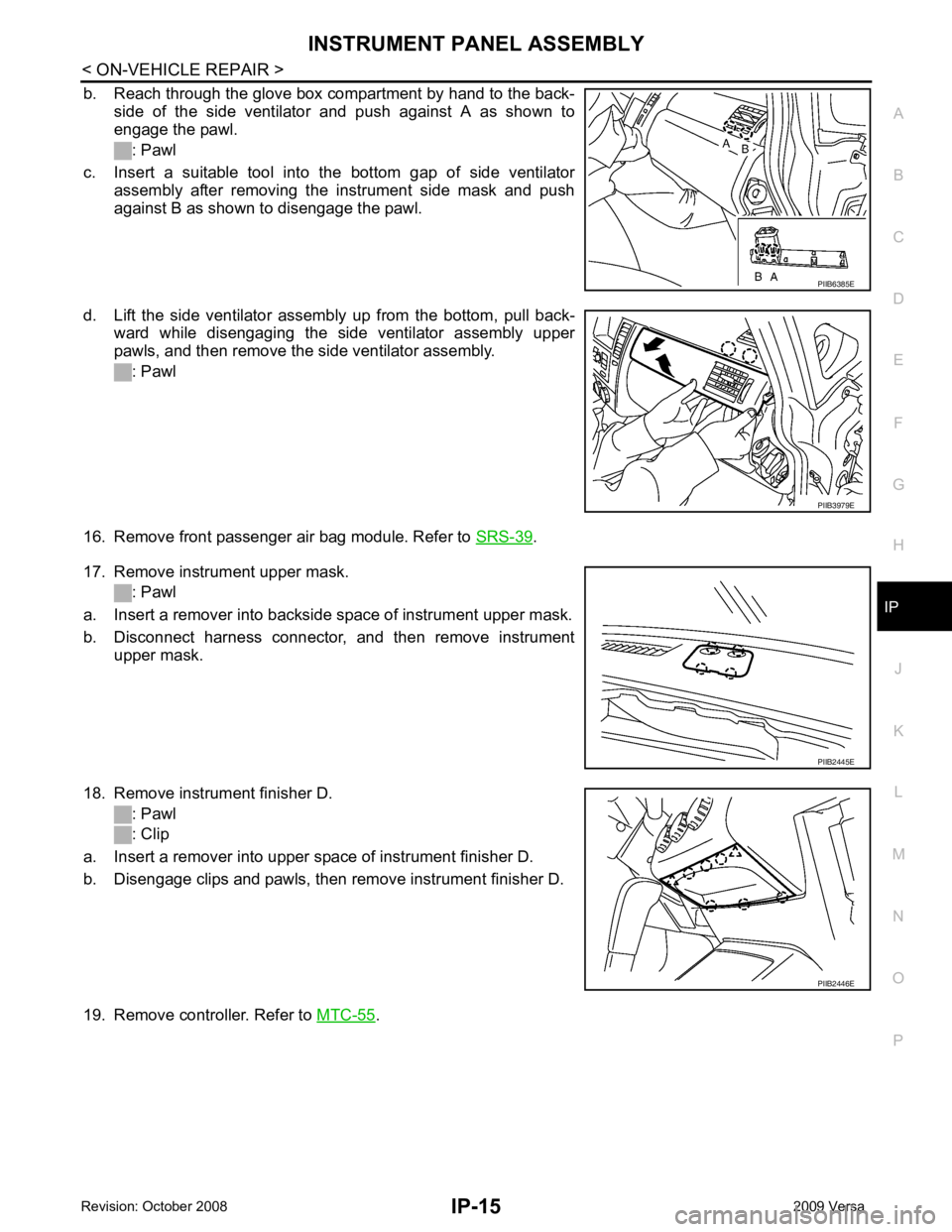

Page 3385 of 4331

NISSAN LATIO 2009 Service Repair Manual IP N O P b. Reach through the glove box compartment by hand to the back- side of the side ventilator and push against A as shown to engage the pawl. : Pawl c. Insert a suitable tool int

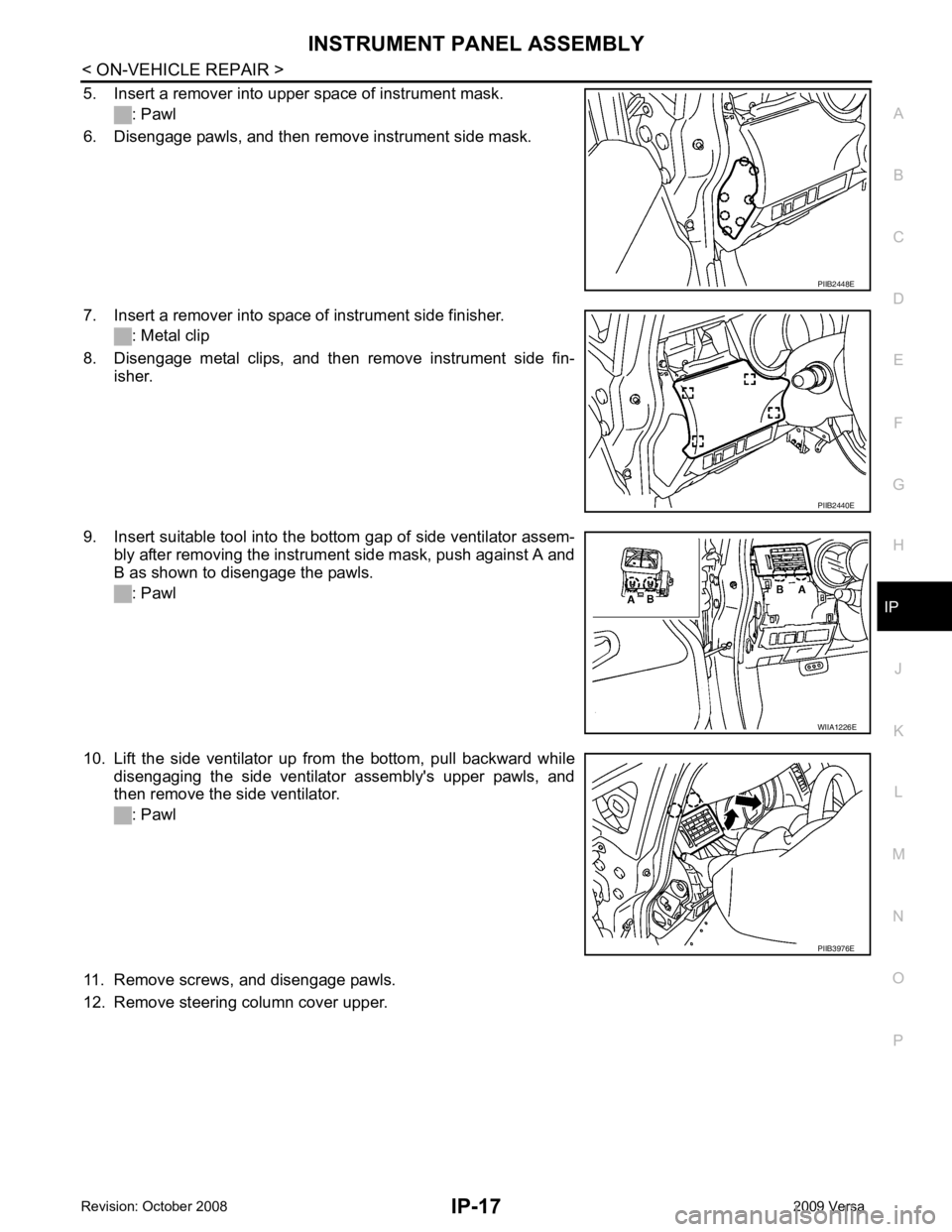

Page 3386 of 4331

NISSAN LATIO 2009 Service Repair Manual . 22. Remove wiper & washer switch. Refer to WW-23, " Removal and Installation of Front Wiper and Washer Switch " . 23. Remove hood opener handle and fuel filler lid opener handle. Ref

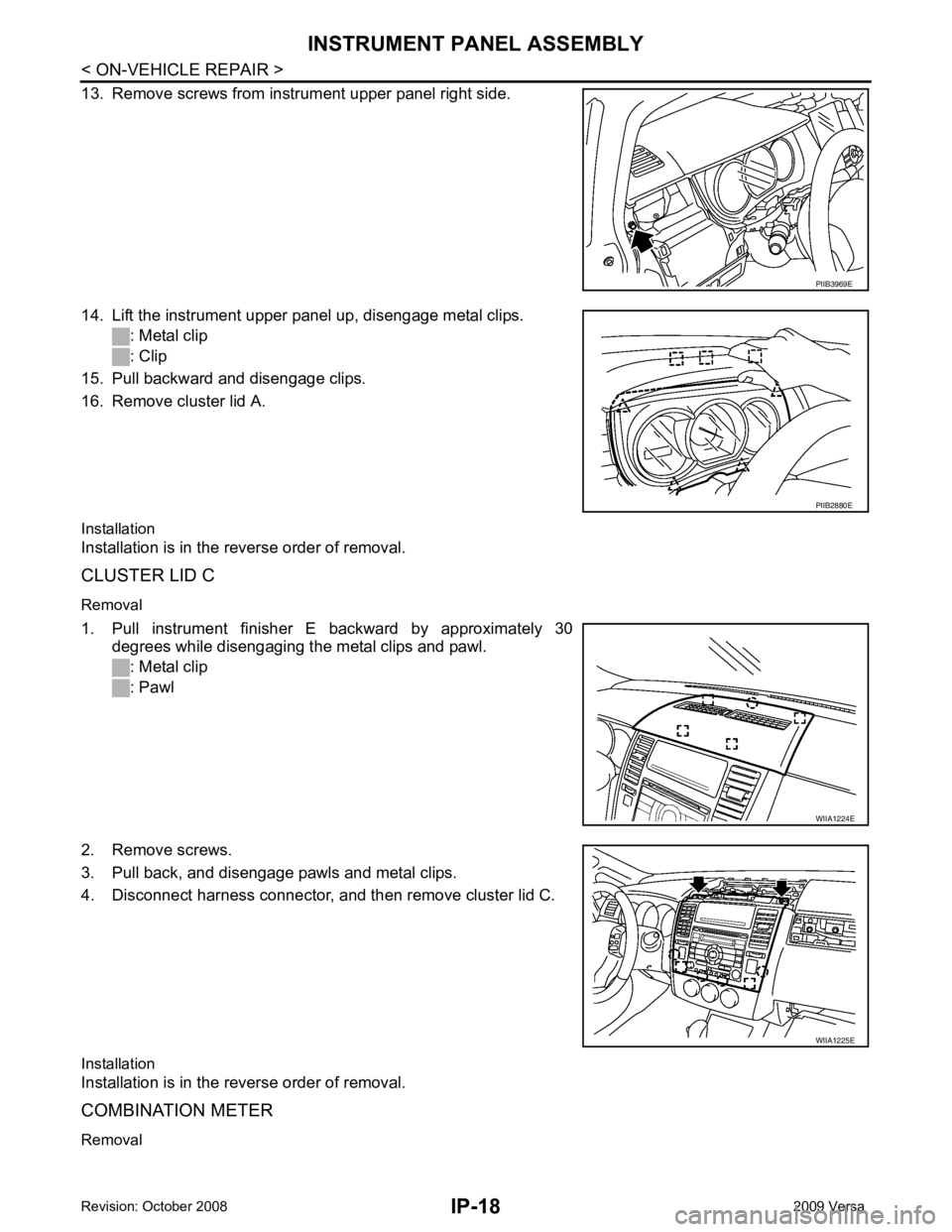

Page 3387 of 4331

NISSAN LATIO 2009 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-17 < ON-VEHICLE REPAIR > C D E F G H J K L M A B IP N O P 5. Insert a remover into upper space of instrument mask. : Pawl 6. Disengage pawls, and then remove instrument si

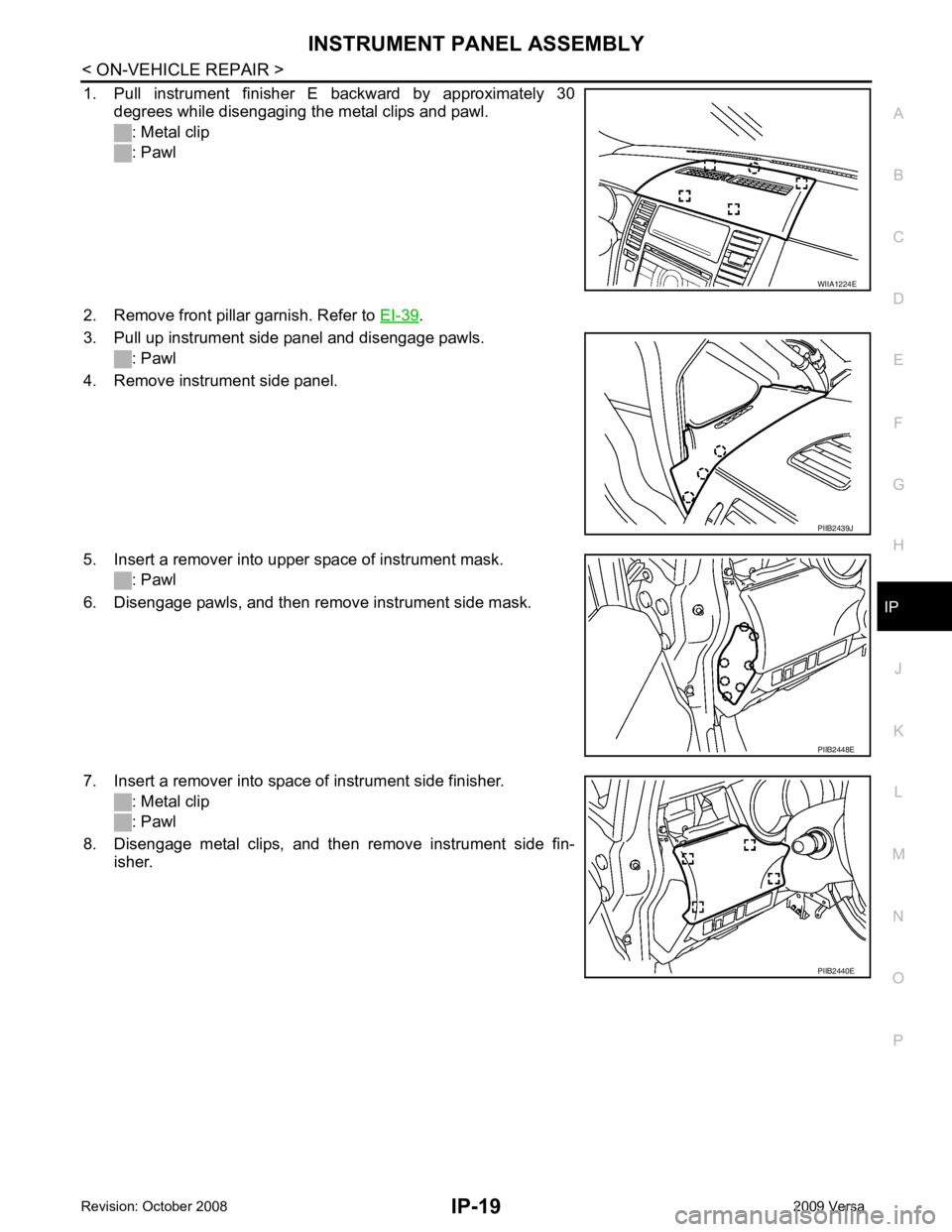

Page 3388 of 4331

NISSAN LATIO 2009 Service Repair Manual IP-18< ON-VEHICLE REPAIR > INSTRUMENT PANEL ASSEMBLY 13. Remove screws from instrument upper panel right side. 14. Lift the instrument upper panel up, disengage metal clips. : Metal clip : Clip 15. Pu

Page 3389 of 4331

NISSAN LATIO 2009 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-19 < ON-VEHICLE REPAIR > C D E F G H J K L M A B IP N O P 1. Pull instrument finisher E backward by approximately 30 degrees while disengaging the metal clips and p

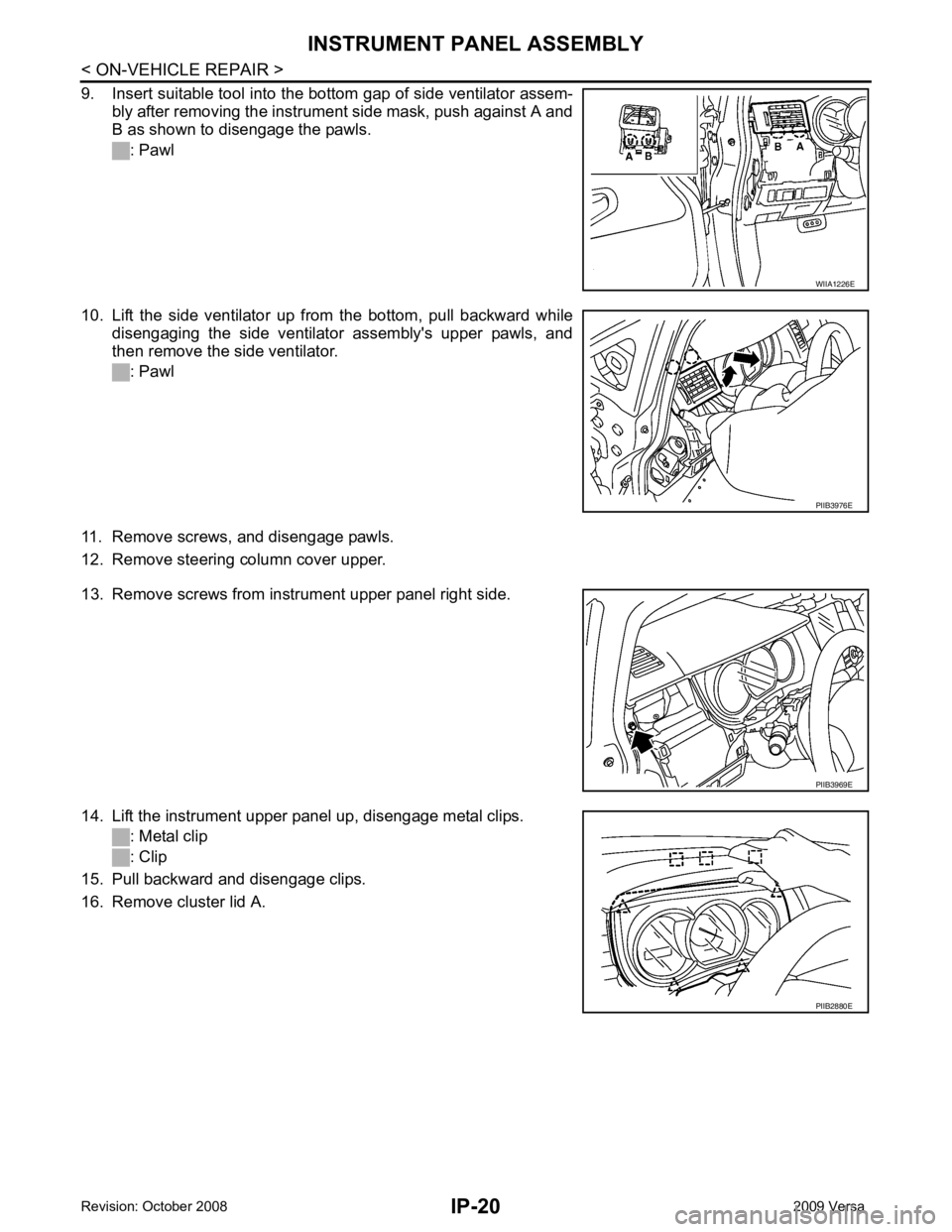

Page 3390 of 4331

NISSAN LATIO 2009 Service Repair Manual IP-20< ON-VEHICLE REPAIR > INSTRUMENT PANEL ASSEMBLY 9. Insert suitable tool into the bottom gap of side ventilator assem- bly after removing the instrument side mask, push against A and B as shown to

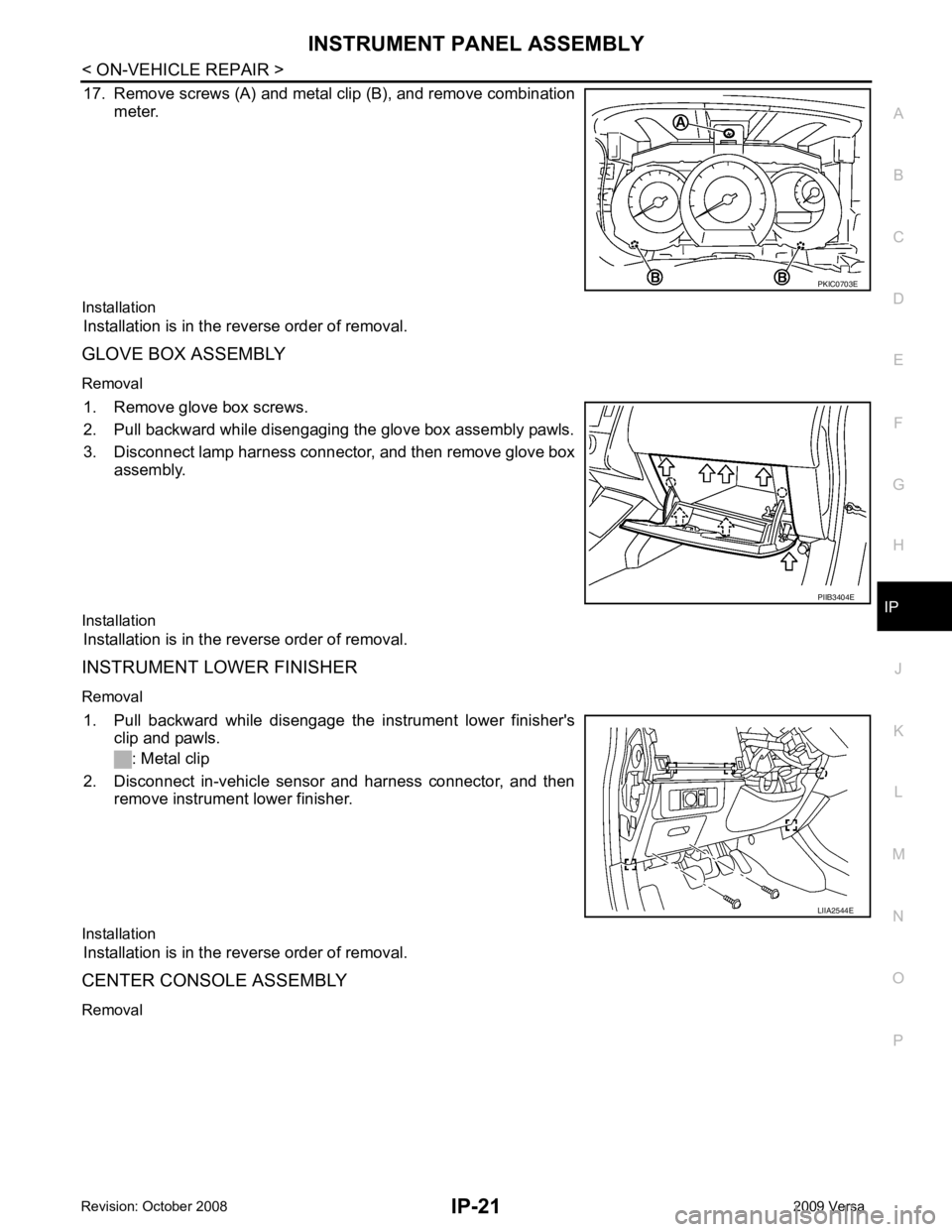

Page 3391 of 4331

NISSAN LATIO 2009 Service Repair Manual IP N O P 17. Remove screws (A) and metal clip (B), and remove combination meter. Installation Installation is in the reverse order of removal. GLOVE BOX ASSEMBLY Removal 1. Remove glove box screws. 2.

Page 3392 of 4331

NISSAN LATIO 2009 Service Repair Manual 341, " Removal and Installation " (CVT), AT-212, " Control Device Removal and Installation " (A/T). 5. Pull up and disengage A/T and CVT console finisher metal clips (A/T and CVT only). 6. Remove A
