NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Is 1st trip DTC detected? YES >> Go to
EC-270, " Diagnosis Procedure " .
NO >> GO TO 3. YES >> Go to
EC-270, " Diagnosis Procedure " .
NO >> INSPECTION END

Page 1626 of 4331

Page 1627 of 4331

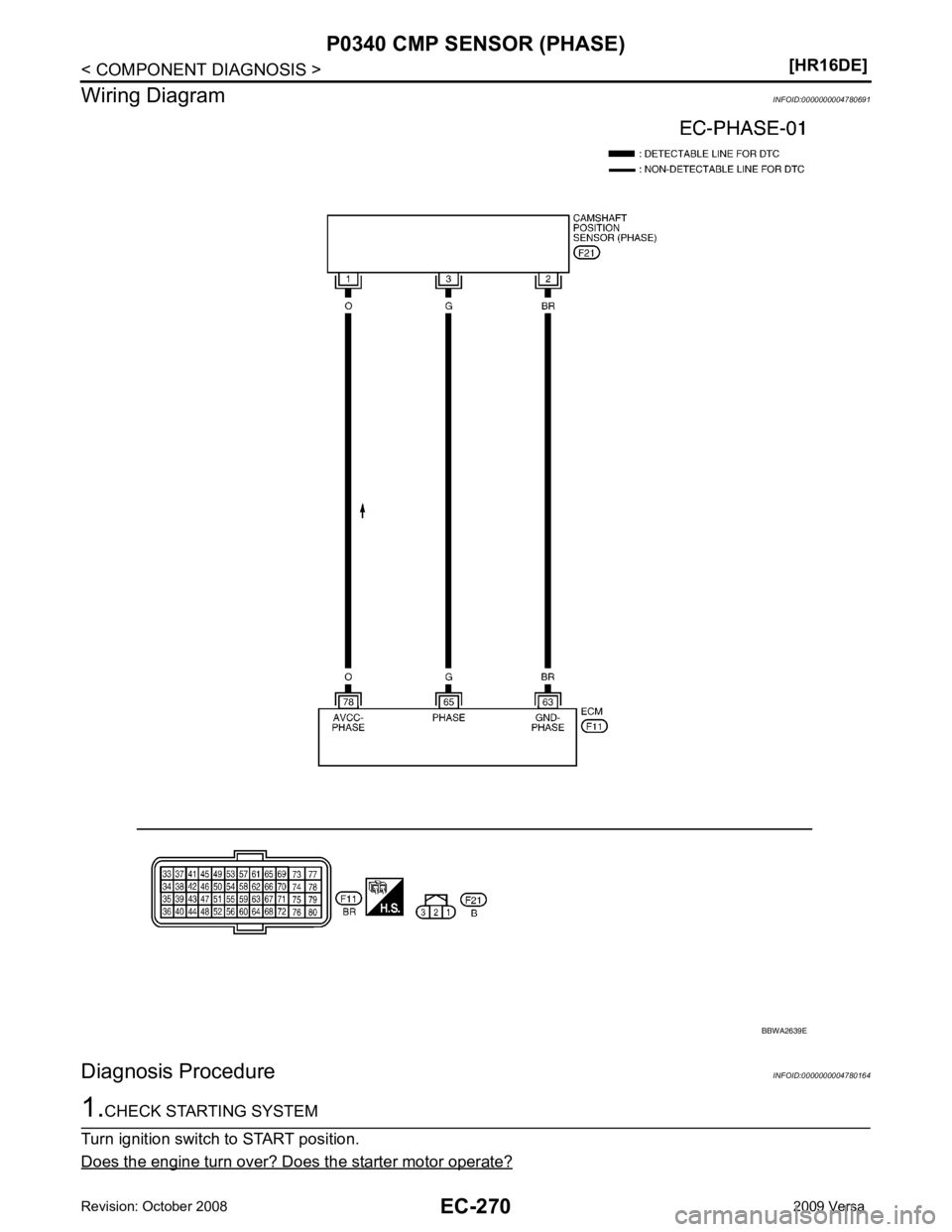

NISSAN LATIO 2009 Service Repair Manual P0340 CMP SENSOR (PHASE)
EC-271
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
YES >> GO TO 2.
NO >> Check starting system (Refer to SC-16, " Trouble Diagnosis with Multita

P0340 CMP SENSOR (PHASE)
EC-271
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
YES >> GO TO 2.
NO >> Check starting system (Refer to SC-16, " Trouble Diagnosis with Multitasking Battery Diagnostic
Station " .).
2.
CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connections E15, E24. Refer to EC-125, " Ground Inspection " .
Is the inspection result normal? YES >> GO TO 3.
NO >> Repair or replace ground connection. 3.
CHECK CAMSHAFT POSITION (CMP) SEN SOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness connector.
2. Turn ignition switch ON.
3. Check the voltage between CMP sensor (PHASE) harness con-
nector and ground.
Is the inspection result normal? YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors. 4.
CHECK CMP SENSOR (PHASE) GRO UND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.
3. Also check harness for short to power.
Is the inspection result normal? YES >> GO TO 5.
NO >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK CMP SENSOR (PHASE) INPUT SI GNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check the continuity between CMP sensor (PHASE) harness connector and ECM harness connector.
3. Also check harness for short to ground and short to power.
Is the inspection result normal? YES >> GO TO 6.
NO >> Repair open circuit or short to ground or short to power in harness or connectors. 6.
CHECK CAMSHAFT POSITI ON SENSOR (PHASE)
Refer to EC-272, " Component Inspection " .
Is the inspection result normal? YES >> GO TO 7.
NO >> Replace camshaft position sensor (PHASE). CMP sensor (PHASE)
Ground Voltage
Connector Terminal
F21 1 Ground Approx. 5 V PBIB3312E
CMP sensor (PHASE) ECM
Continuity
Connector Terminal Connector Terminal
F21 2 F11 63 Existed CMP sensor (PHASE) ECM
Continuity
Connector Terminal Connector Terminal
F21 3 F11 65 Existed

Page 1628 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-272< COMPONENT DIAGNOSIS >
[HR16DE]
P0340 CMP SENSOR (PHASE) 7.
CHECK CAMSHAFT (INT)
Check the following.
• Accumulation of debris to the si gnal plate of camshaft (1) rear end
• Chipping signa

Page 1629 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
P0420 THREE WAY CATALYST FUNCTION
DTC Logic INFOID:0000000004780166
DTC DETECTION LOGIC The ECM monitors the switching frequency ratio of air fuel ratio (A/F)
sensor 1 and heated oxygen sensor

Page 1630 of 4331

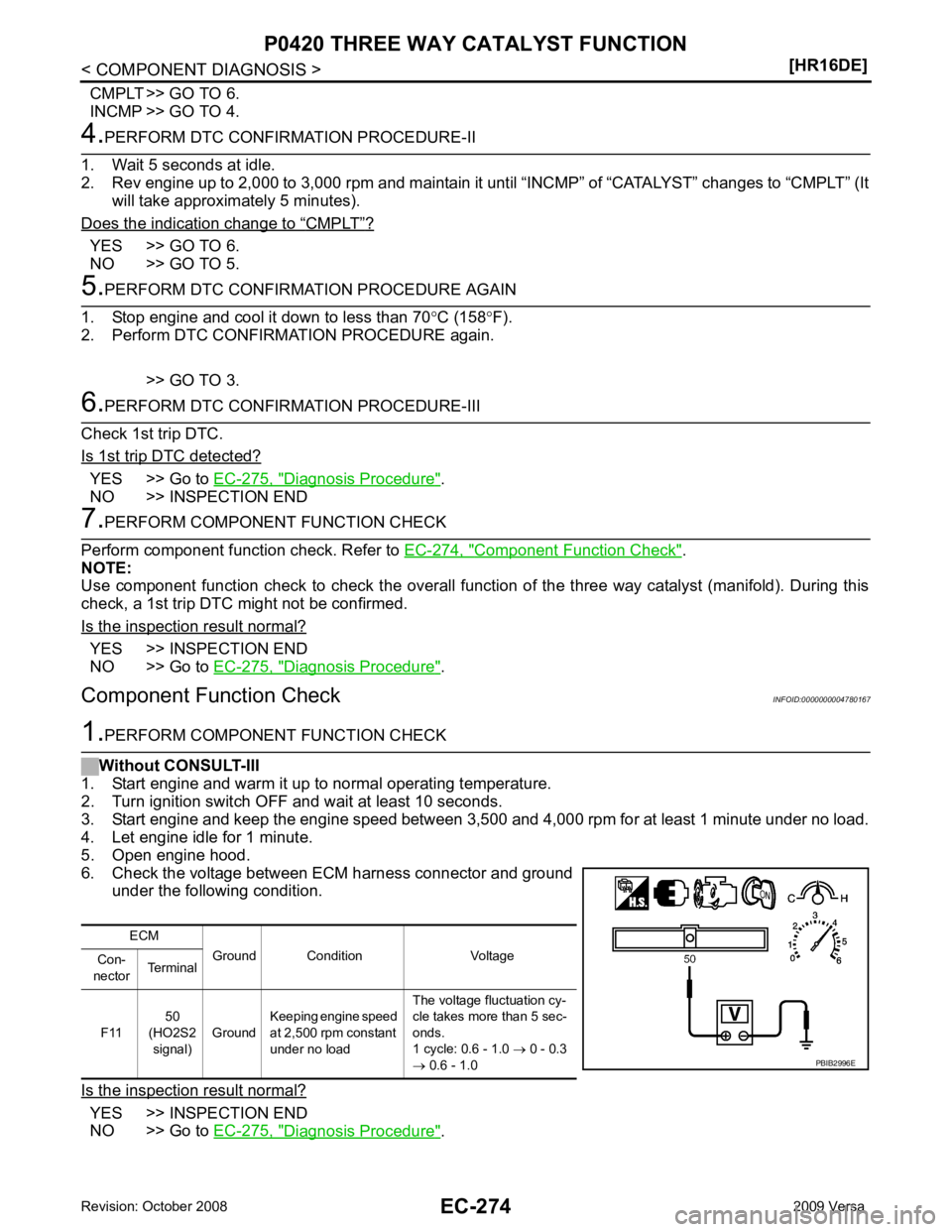

NISSAN LATIO 2009 Service Repair Manual EC-274< COMPONENT DIAGNOSIS >
[HR16DE]
P0420 THREE WAY CATALYST FUNCTION
CMPLT >> GO TO 6.
INCMP >> GO TO 4. 4.
PERFORM DTC CONFIRMATION PROCEDURE-II
1. Wait 5 seconds at idle.
2. Rev engine up to 2,0

Page 1631 of 4331

NISSAN LATIO 2009 Service Repair Manual P0420 THREE WAY CATALYST FUNCTION
EC-275
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000047801681.
CHECK EXHAUST SYSTEM
Visually check exhaust tube

Page 1632 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-276< COMPONENT DIAGNOSIS >
[HR16DE]
P0420 THREE WAY CATALYST FUNCTION
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Rem

EC-276< COMPONENT DIAGNOSIS >
[HR16DE]
P0420 THREE WAY CATALYST FUNCTION
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoi d the electrical discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 - 0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is
generated between the spark plug and the grounded metal por-
tion.
CAUTION:
• During the operation, always stay 0.5 m (19.7 in) away from the spark plug and the ig nition coil. Be careful not to
get an electrical shock wh ile checking, because the elec-
trical discharge voltage becomes 20 kV or more.
• It might cause to damage the igni tion coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the sp ark might be generated even if the coil is mal-
functioning.
Is the inspection result normal? YES >> GO TO 10.
NO >> GO TO 7. 7.
CHECK FUNCTION OF IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a known-good spark plug.
3. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded metal portion.
Is the inspection result normal? YES >> GO TO 8.
NO >> Check ignition coil, power transistor and their circuits. Refer to EC-441, " Diagnosis Procedure " .
8.
CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal? YES >> Replace spark plug(s) with standard type one(s). For
spark plug type, refer to EM-117, " Spark Plug " .
NO >> Repair or clean spark plug. Then GO TO 9. 9.
CHECK FUNCTION OF IGNITION COIL-III Spark should be generated. JMBIA0066GB
Spark should be generated.
SEF156I
