Page 1193 of 4331

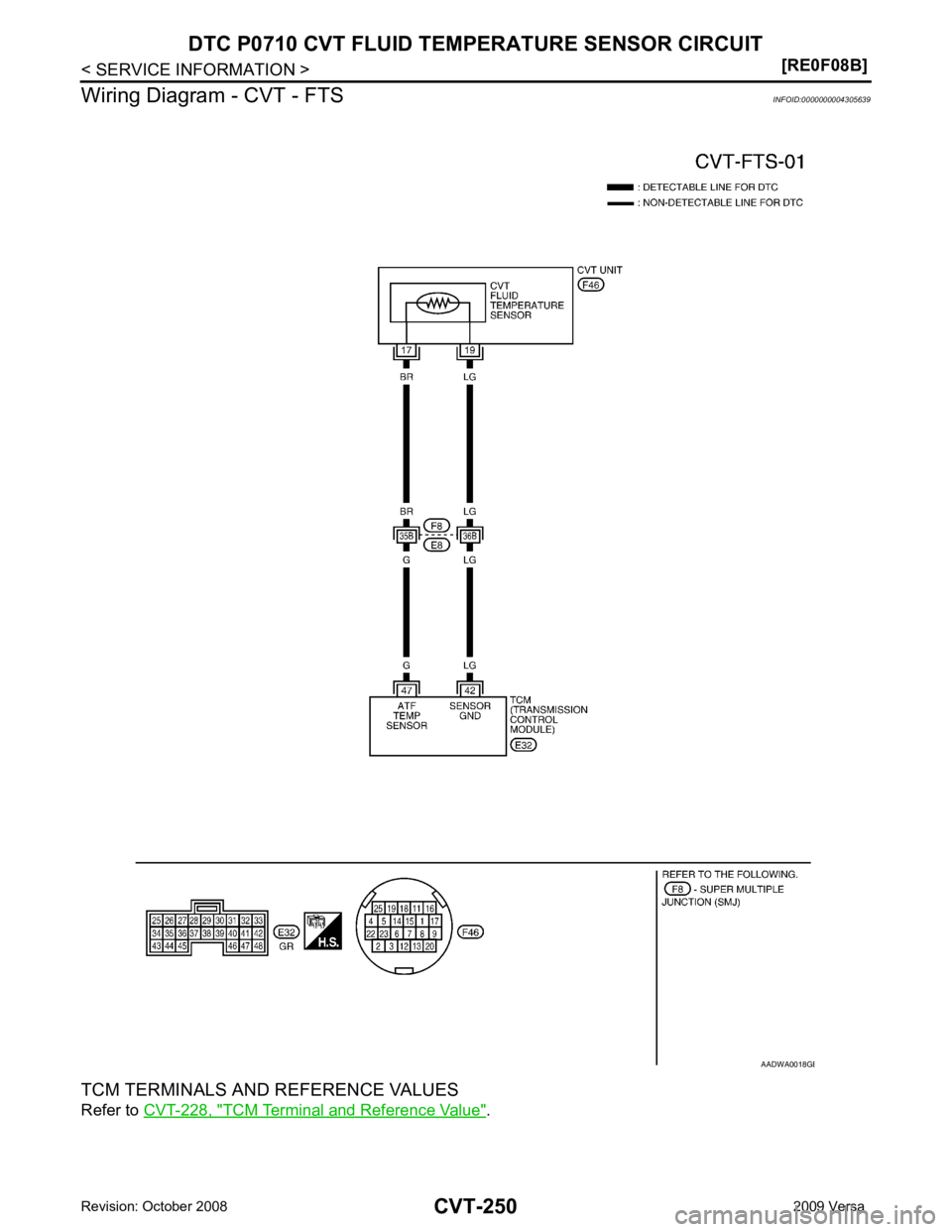

NISSAN LATIO 2009 Service Repair Manual CVT N O P DTC P0710 CVT FLUID TEMPER ATURE SENSOR CIRCUIT Description INFOID:0000000004305634 • The CVT fluid temperature sensor is included in the control valve assembly. • The CVT fluid temperat

Page 1194 of 4331

NISSAN LATIO 2009 Service Repair Manual TCM Terminal and Reference Value " . B

Page 1195 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0710 CVT FLUID TEMP ERATURE SENSOR CIRCUIT CVT-251 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P Diagnosis Procedure INFOID:00000000043056401. CHECK CVT FLUID TEMP ERATURE

Page 1196 of 4331

NISSAN LATIO 2009 Service Repair Manual CVT-252< SERVICE INFORMATION > [RE0F08B] DTC P0710 CVT FLUID TEMPERATURE SENSOR CIRCUIT 3. Check resistance between CVT unit harness connector termi- nals. 4. Reinstall any part removed. OK or

Page 1197 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0710 CVT FLUID TEMP ERATURE SENSOR CIRCUIT CVT-253 < SERVICE INFORMATION > [RE0F08B] D E F G H I J K L M A B CVT N O P 3. Check resistance between CVT unit harness connector termi- nals. 4

Page 1198 of 4331

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " . WITH GST Follow the procedure “WITH CONSULT-III”. Item name Condition Display value ENG SPEED SIG Engine running Closely matches the tachometer reading. PRI SPEED SEN Du

Page 1199 of 4331

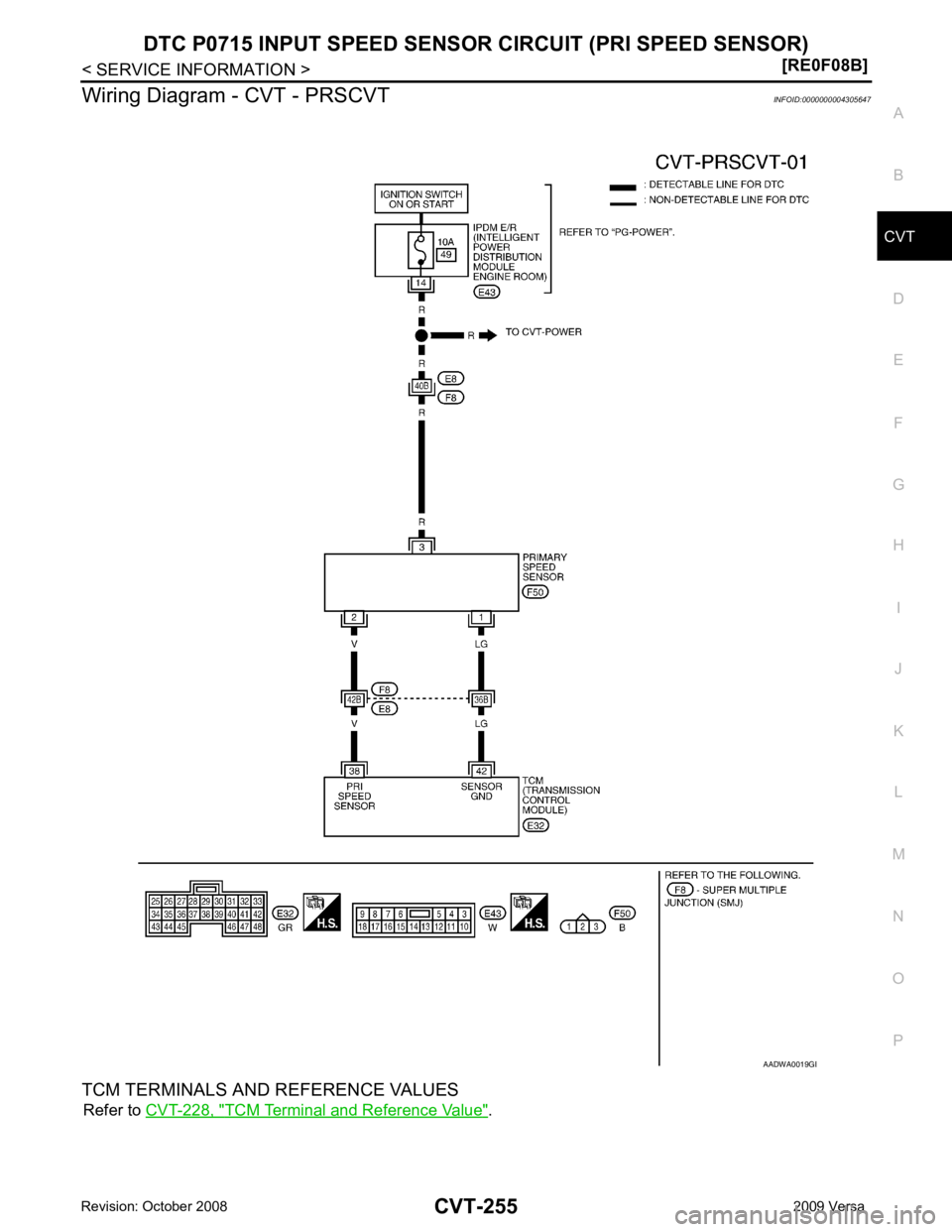

NISSAN LATIO 2009 Service Repair Manual CVT N O P Wiring Diagram - CVT - PRSCVT INFOID:0000000004305647 TCM TERMINALS AND REFERENCE VALUES Refer to CVT-228, " TCM Terminal and Reference Value " . B

Page 1200 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 6. NG >> GO TO 2. OK >> GO TO 6. NG - 1 >> Battery voltage is not supplied: GO TO 3. NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4. 3. CHE
