Page 2905 of 4331

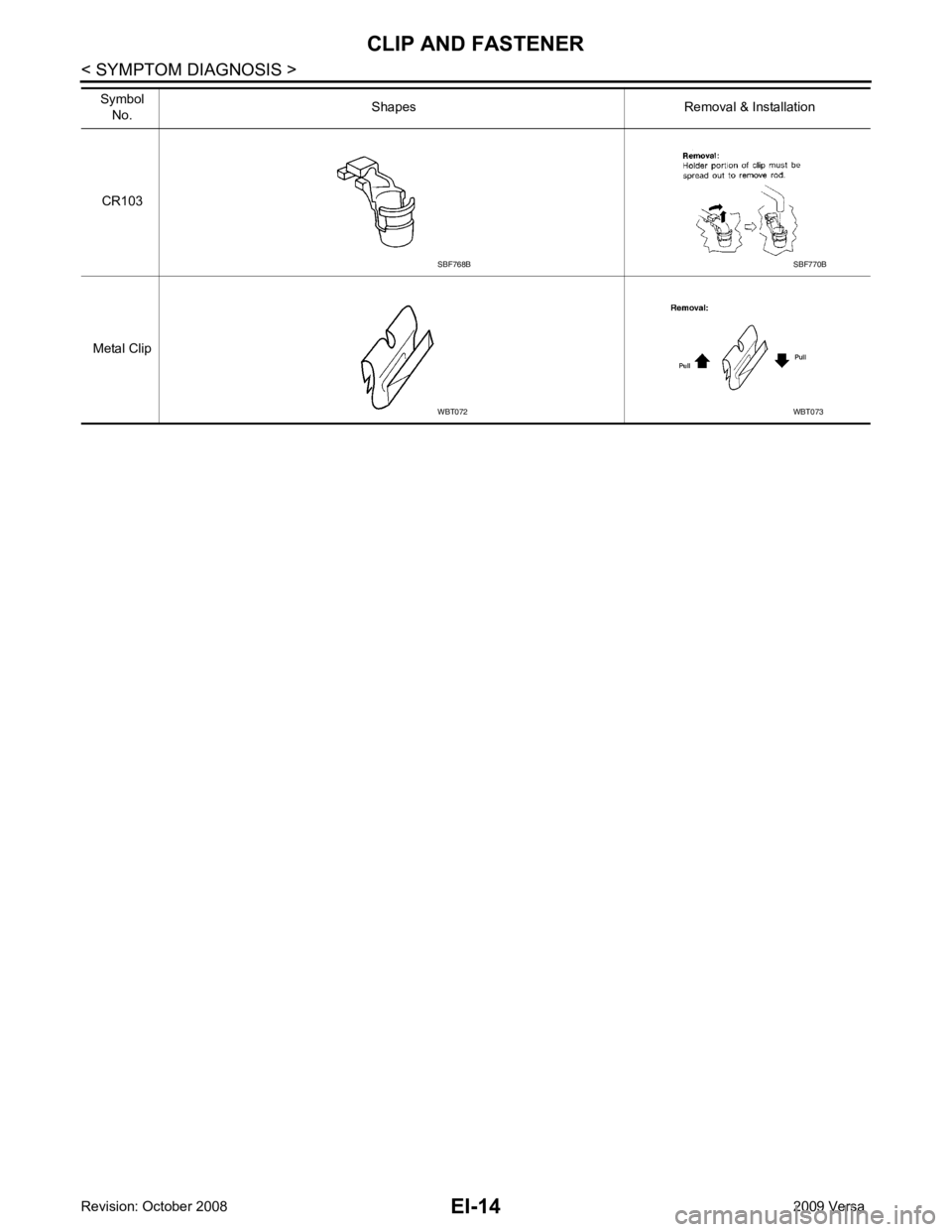

NISSAN LATIO 2009 Service Repair Manual WBT072

Page 2906 of 4331

NISSAN LATIO 2009 Service Repair Manual EI N O P ON-VEHICLE REPAIR FRONT BUMPER Removal and Installation INFOID:0000000004307214 1. Bumper stay RH 2. Bumper reinforcement (production) 3. Bumper energy absorber 4. Engine undercover 5. Front

Page 2907 of 4331

NISSAN LATIO 2009 Service Repair Manual . 4. Remove front fender protectors RH/LH. Refer to EI-24 . 5. Remove front valance and engine undercover. 6. Remove screws of front bumper fascia RH/LH. 7. Pull the outboard edge of front bumper

Page 2908 of 4331

NISSAN LATIO 2009 Service Repair Manual EI N O P REAR BUMPER Component INFOID:0000000004307215 Hatchback Models

Page 2909 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation " . 5. Remove rear bumper fascia spring nuts and screws RH/LH. 6. Remove rear fender protector. Refer to EI-24, " Removal and Installation " .

Page 2910 of 4331

NISSAN LATIO 2009 Service Repair Manual EI N O P 7. Pull the rear bumper fascia side outward and release the bumper side bracket. 8. Remove rear bumper fascia upper clips and screws. 9. Release rear bumper upper retainer (1),

Page 2911 of 4331

NISSAN LATIO 2009 Service Repair Manual EI-20< ON-VEHICLE REPAIR > REAR BUMPER 7. Release rear bumper upper retainer (1), then pull rear bumper fascia outward away from rear of vehicle. 8. Release the clips and remove the rea

Page 2912 of 4331

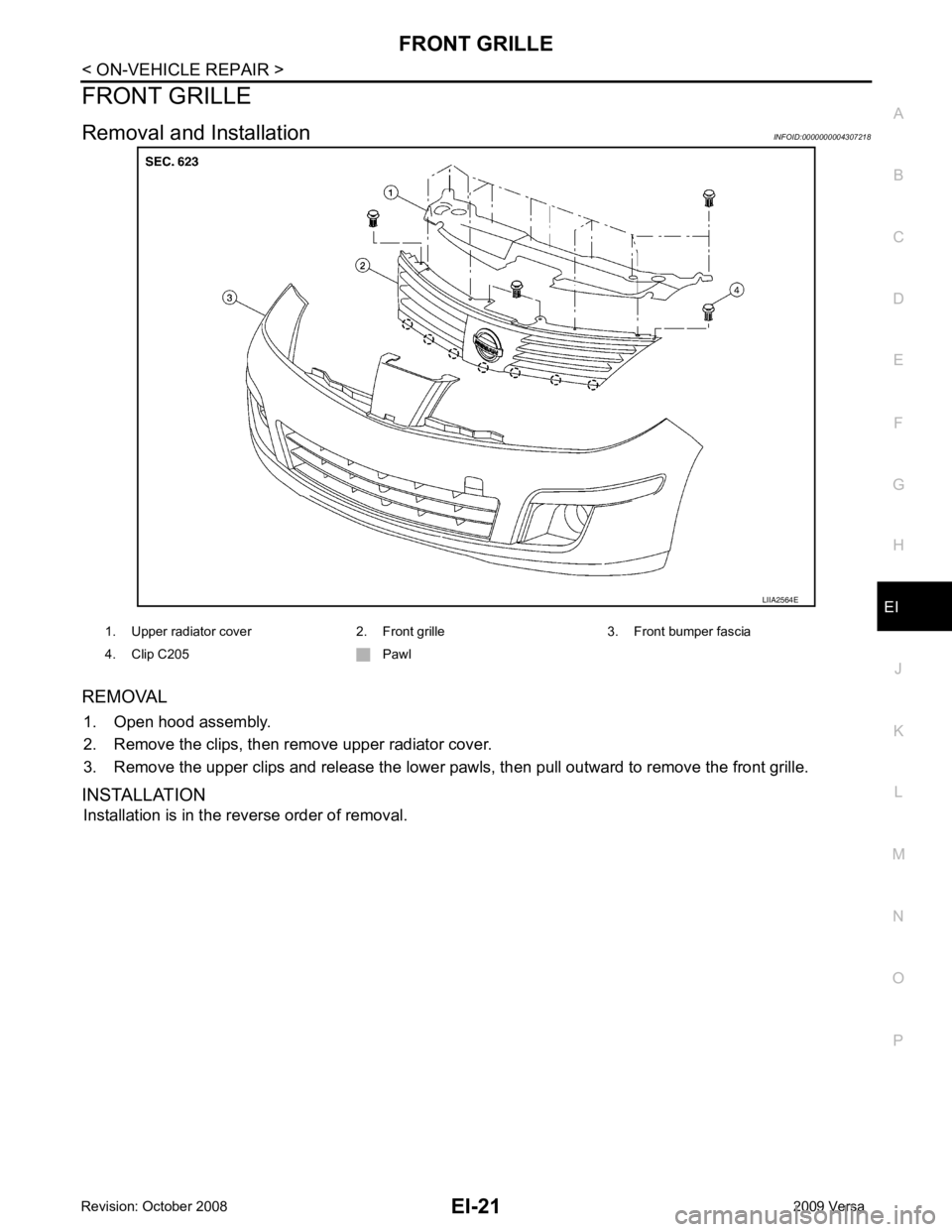

NISSAN LATIO 2009 Service Repair Manual EI N O P FRONT GRILLE Removal and Installation INFOID:0000000004307218 REMOVAL 1. Open hood assembly. 2. Remove the clips, then remove upper radiator cover. 3. Remove the upper clips and release the l
