Page 2049 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
2. Let engine idle for 2 minutes.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-695, " Diagnosis Procedure " .
PROCEDURE FOR MALFUNCTION B CAUTION:
Always drive vehicle at a

EC
NP
O
2. Let engine idle for 2 minutes.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-695, " Diagnosis Procedure " .
PROCEDURE FOR MALFUNCTION B CAUTION:
Always drive vehicle at a safe speed.
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “DAT A MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
If the indication is constantly approx . 2.2V and does not fluctuates, go to EC-695, " Diagnosis Procedure " .
If the indication fluctuates around 2.2V, go to next step.
4. Select “A/F SEN1 (B1) P1276” (for DTC P0130) of “A/F SEN1” in “DTC WORK SUPPORT” mode with
CONSULT-III.
5. Touch “START”.
6. When the following conditions are met, “TESTIN G” will be displayed on the CONSULT-III screen.
If “TESTING” is not displayed after 20 seconds, retry from step 2.
7. Release accelerator pedal fully.
NOTE:
Never apply brake during releasing the accelerator pedal.
8. Make sure that “TESTING” changes to “COMPLETED”.
If “TESTING” changed to “OUT OF CONDITION”, retry from step 6.
9. Make sure that “OK” is display ed after touching “SELF-DIAG RESULT”.
If “NG” is displayed, go to EC-695, " Diagnosis Procedure " .
Overall Function Check INFOID:0000000004537172
PROCEDURE MALFUNCTION B Use this procedure to check the overall function of the A/F sensor 1 circuit. During this check, a 1st trip DTC
might not be confirmed.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Drive the vehicle at a speed of 80 km/h (50 MPH) for a few minutes in the suitable gear position.
3. Set shift lever to D position with OD ON (A/T), D position (CVT) or 5th position (M/T), then release the
accelerator pedal fully until the vehicle speed decreases to 50 km/h (30 MPH).
NOTE:
Never apply brake during releasing the accelerator pedal.
4. Repeat steps 2 and 3 for five times.
5. Stop the vehicle and turn ignition switch OFF.
6. Wait at least 10 seconds and restart engine.
7. Repeat steps 2 and 3 for five times.
8. Stop the vehicle and connect GST to the vehicle.
9. Make sure that no 1st trip DTC is displayed. If the 1st trip DTC is displayed, go to EC-695, " Diagnosis Procedure " .

Page 2050 of 4331

NISSAN LATIO 2009 Service Repair Manual B

Page 2051 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0130 A/F SENSOR 1
EC-695
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age t

Page 2052 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-696< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0130 A/F SENSOR 1
3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 4.
NG >> GO TO 3. 3.
DETECT

Page 2053 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Removal and Installation
INFOID:0000000004537175
AIR FUEL RATIO SENSOR Refer to EM-144 .

Page 2054 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-698< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0131 A/F SENSOR 1
DTC P0131 A/F SENSOR 1
Component Description INFOID:0000000004537176
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit curren

EC-698< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0131 A/F SENSOR 1
DTC P0131 A/F SENSOR 1
Component Description INFOID:0000000004537176
The air fuel ratio (A/F) sensor 1 is a planar one-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is composed an elec-
trode layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusion layer at
the sensor cell. An electrode layer is applied voltage, and this current
relative oxygen density in lean. Also this current relative hydrocar-
bon density in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In addition, a heater is integrated in the
sensor to ensure the required operating temperature of about 800 °C
(1,472 °F).
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004537177
Specification data are reference values.
On Board Diagn osis Logic INFOID:0000000004537178
To judge the malfunction, the diagnosis c hecks that the A/F signal computed by ECM from the air fuel ratio (A/
F) sensor 1 signal is not inordinately low.
DTC Confirmation Procedure INFOID:0000000004537179
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” in “D ATA MONITOR” mode with CONSULT-III.
3. Check “A/F SEN1 (B1)” indication.
If the indication is constantly approx. 0V, go to EC-701, " Diagnosis Procedure " . PBIB3353E
PBIB3354E
MONITOR ITEM CONDITION SPECIFICATION
A/F SEN1 (B1) • Engine: After warming up Maintaining engine speed at
2,000 rpm Fluctuates around 2.2VDTC No.
Trouble diagnosis
name DTC detecting condition Possible Cause
P0131
0131 Air fuel ratio (A/F) sen-
sor 1 circuit low voltage The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 0V. • Harness or connectors
[Air fuel ratio (A/F) sensor circuit is open
or shorted.]
• Air fuel ratio (A/F) sensor 1

Page 2055 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
If the indication is not constantly approx. 0V, go to next step.
4. Turn ignition switch OFF, wait at least 10 seconds and then restart engine.
5. Drive and accelerate vehicle to more than 40

Page 2056 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-700< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0131 A/F SENSOR 1

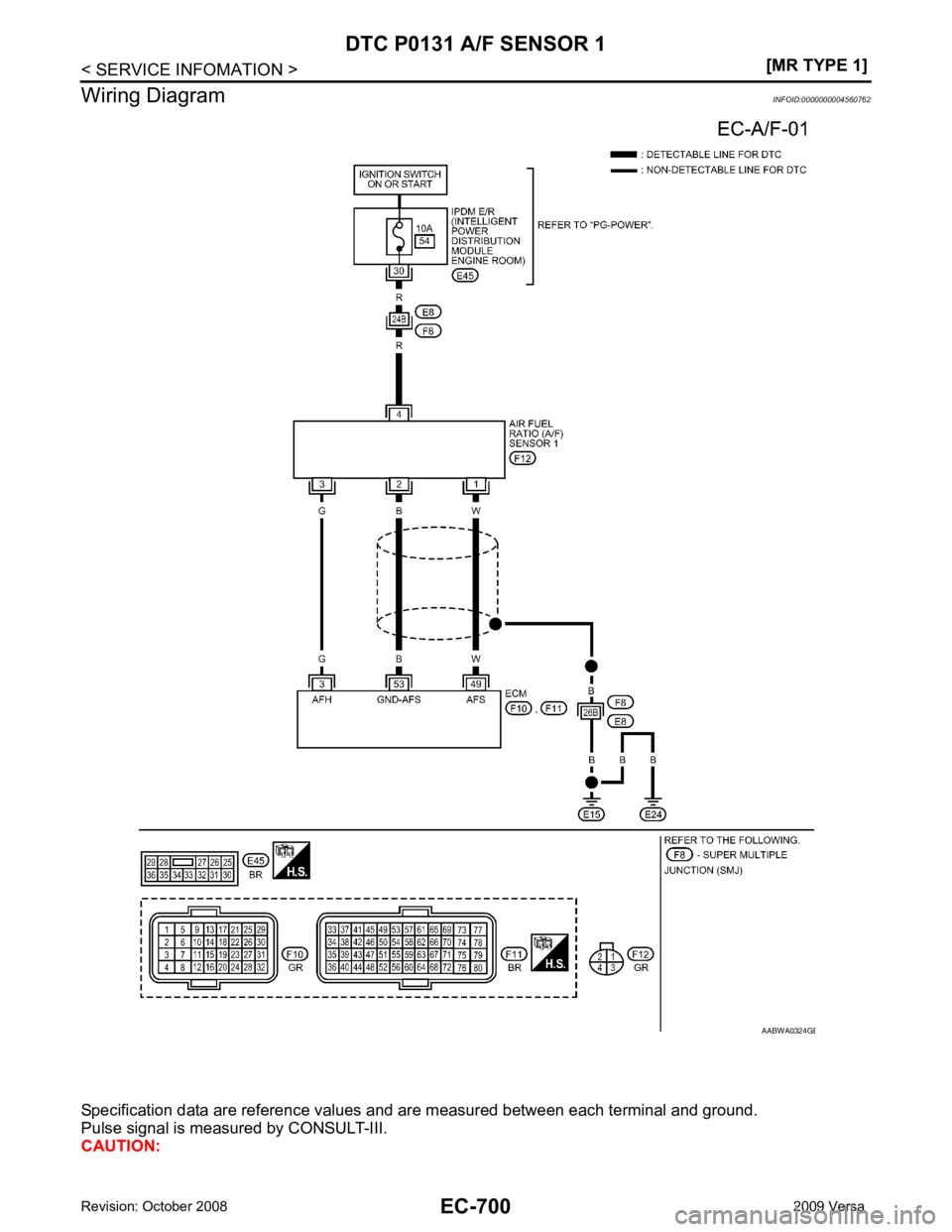

Wiring Diagram INFOID:0000000004560762
Specification data are reference values and are measured between each terminal and ground.
Pulse
