NISSAN LATIO 2009 Service Repair Manual AT-276< SERVICE INFORMATION > REPAIR FOR COMPONENT PARTS 1. Drive manual shaft oil seal into transaxle case using a drift [com- mercial service tool: 22 mm (0.87 in) dia.]. CAUTION: • Do not reuse m

Page 282 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P 9. Install detent spring on transaxle case. 10. Tighten detent spring bolt to the specified torque. Refer to AT-274, " Manual Shaft " . Oil Pump INFOID:0000000004305516 COMPONENTS

Page 283 of 4331

NISSAN LATIO 2009 Service Repair Manual SAT092D SCIA2840E

Page 284 of 4331

NISSAN LATIO 2009 Service Repair Manual AT N O P • Measure side clearance of inner gear and outer gear in at least four places around each outside edge. Clearances measured val- ues should be within the specified cleara

Page 285 of 4331

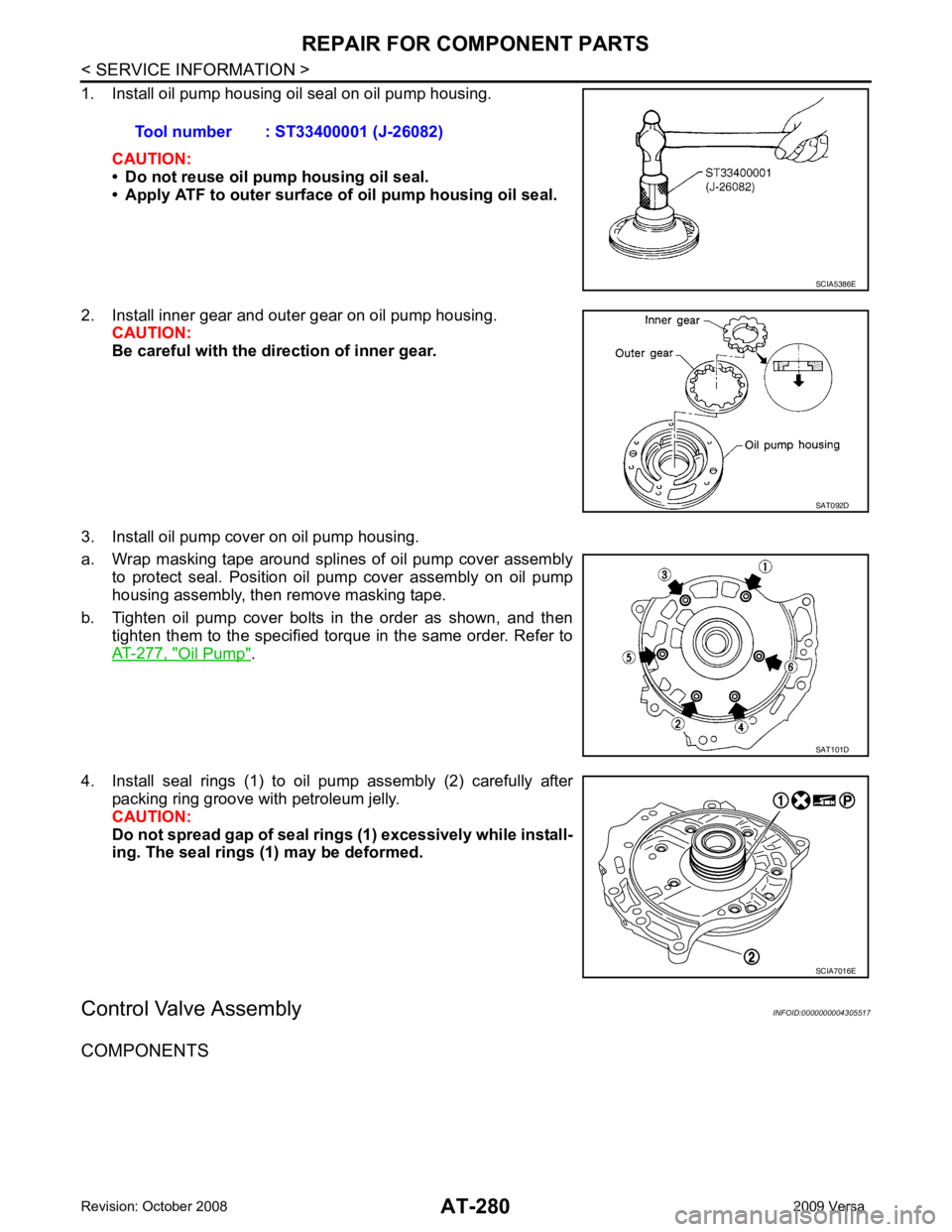

NISSAN LATIO 2009 Service Repair Manual AT-280< SERVICE INFORMATION > REPAIR FOR COMPONENT PARTS 1. Install oil pump housing oil seal on oil pump housing. CAUTION: • Do not reuse oil pump housing oil seal. • Apply ATF to outer surface o

Page 286 of 4331

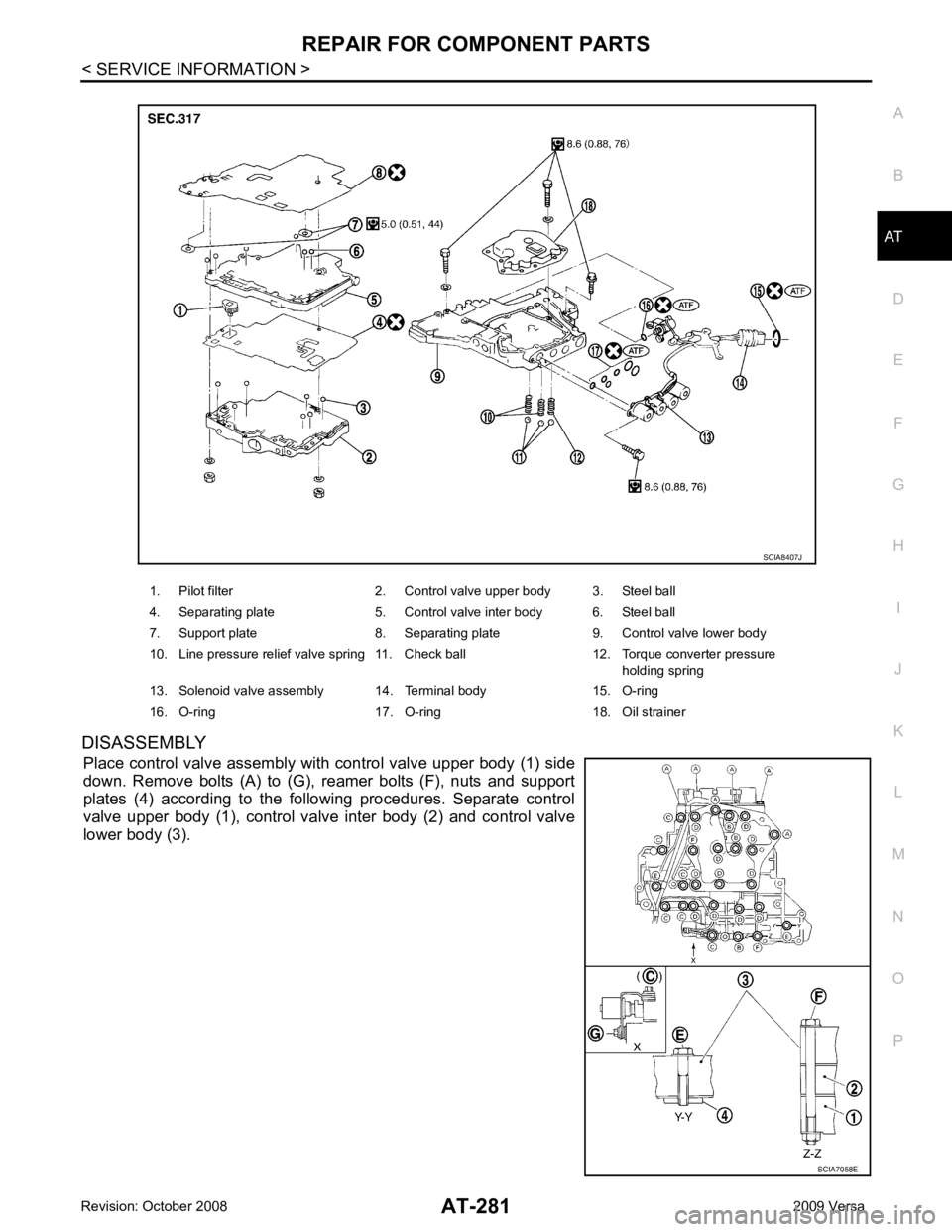

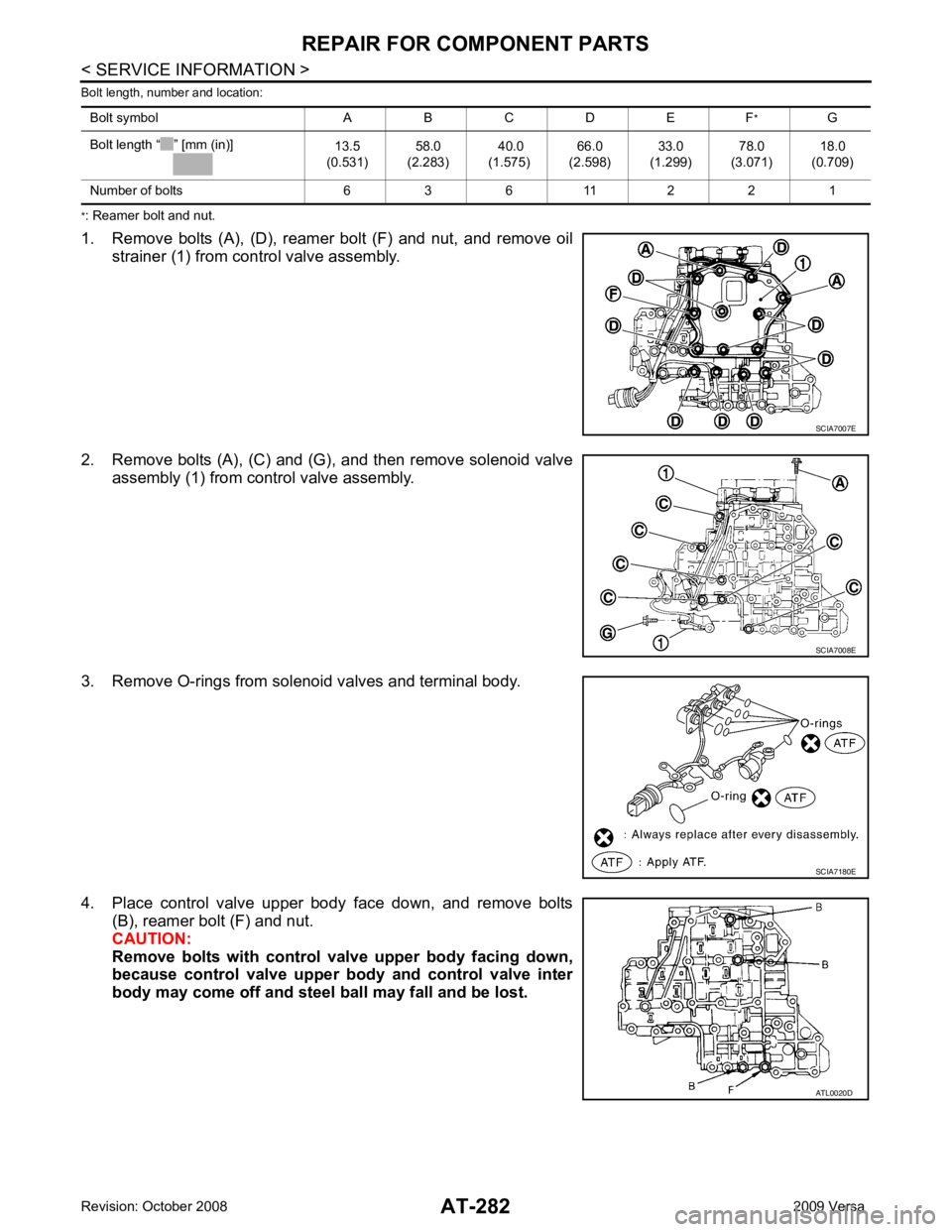

NISSAN LATIO 2009 Service Repair Manual AT N O P DISASSEMBLY Place control valve assembly with control valve upper body (1) side down. Remove bolts (A) to (G), reamer bolts (F), nuts and support plates (4) according to the f

Page 287 of 4331

NISSAN LATIO 2009 Service Repair Manual SCIA7008E ATL0020D

Page 288 of 4331

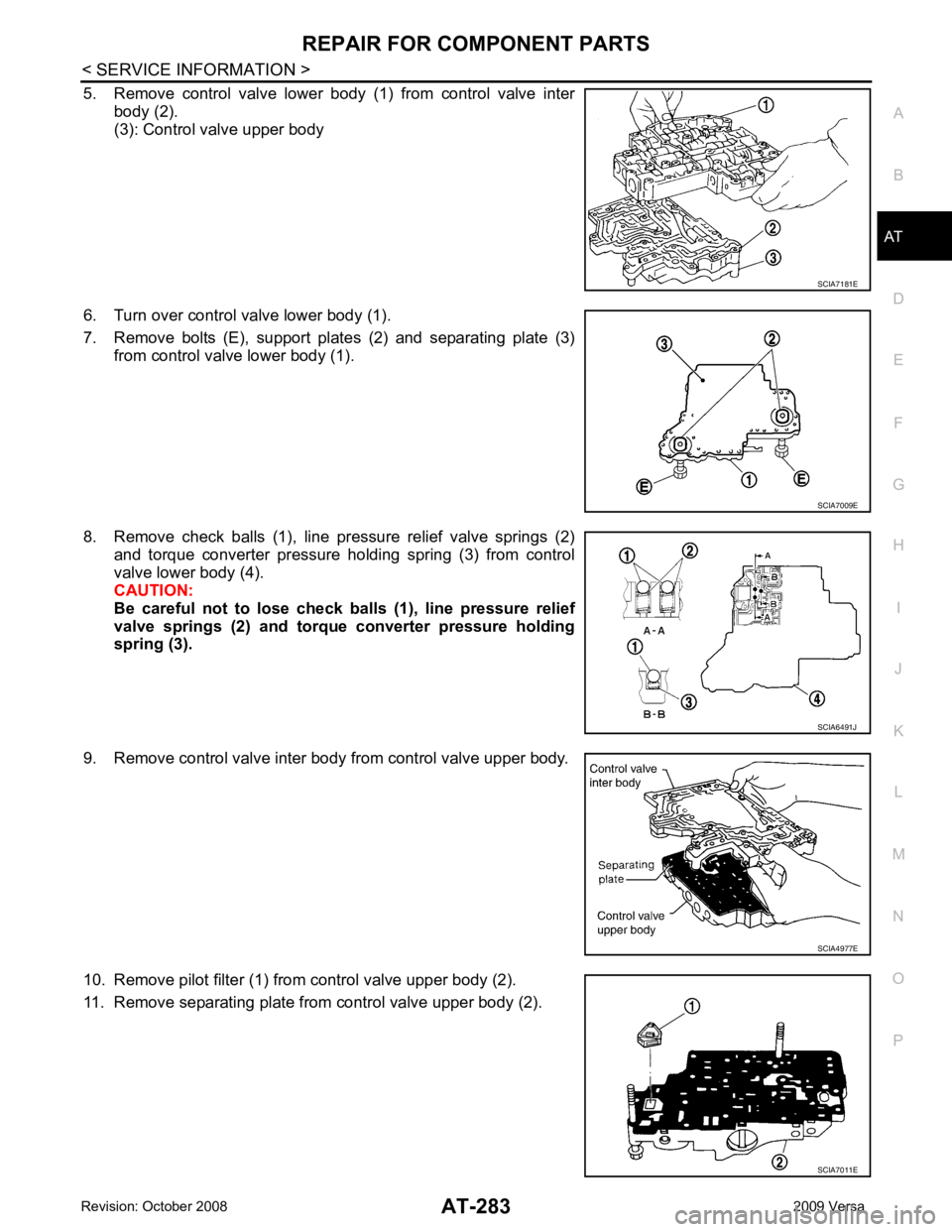

NISSAN LATIO 2009 Service Repair Manual AT N O P 5. Remove control valve lower body (1) from control valve inter body (2). (3): Control valve upper body 6. Turn over control valve lower body (1). 7. Remove bolts (E), support pl
