Page 3657 of 4331

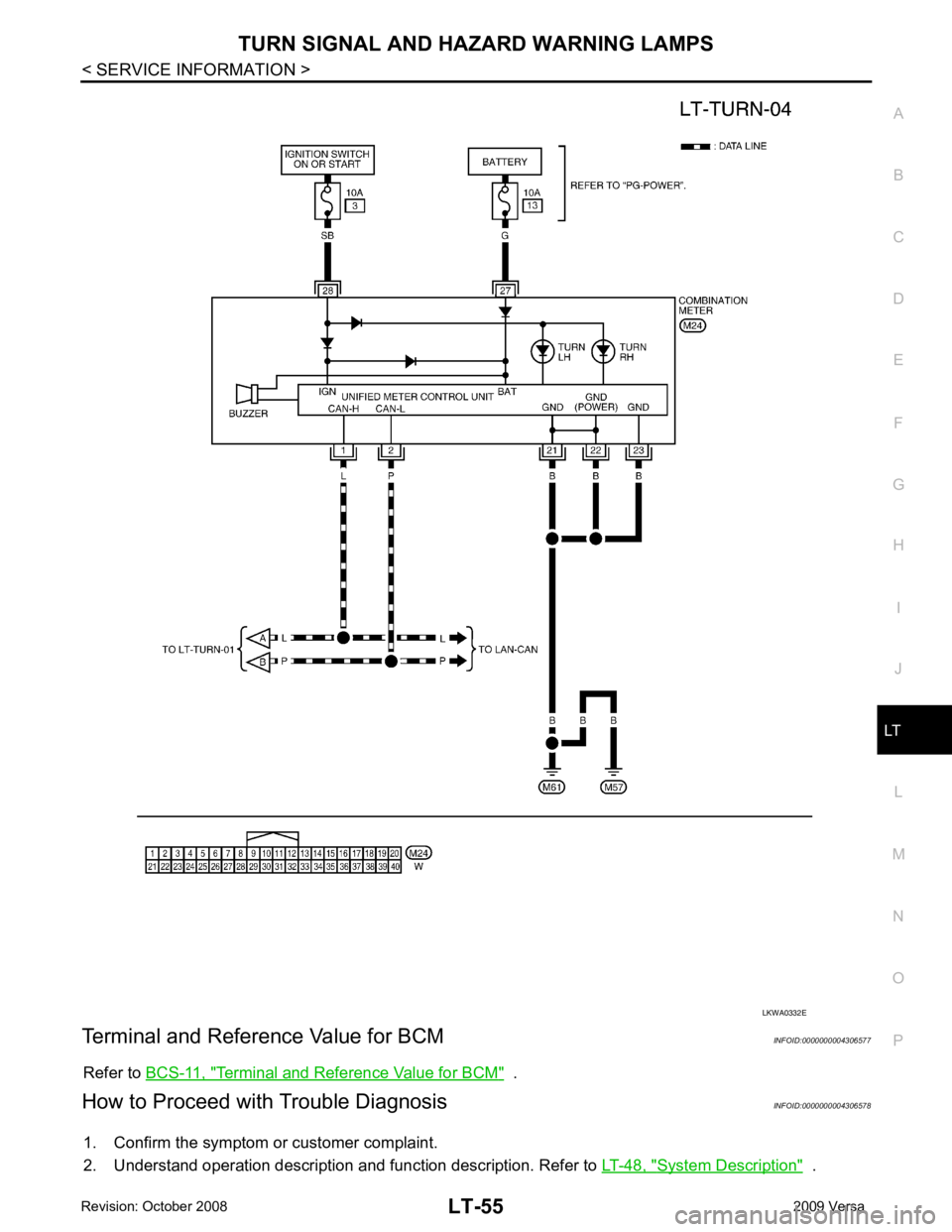

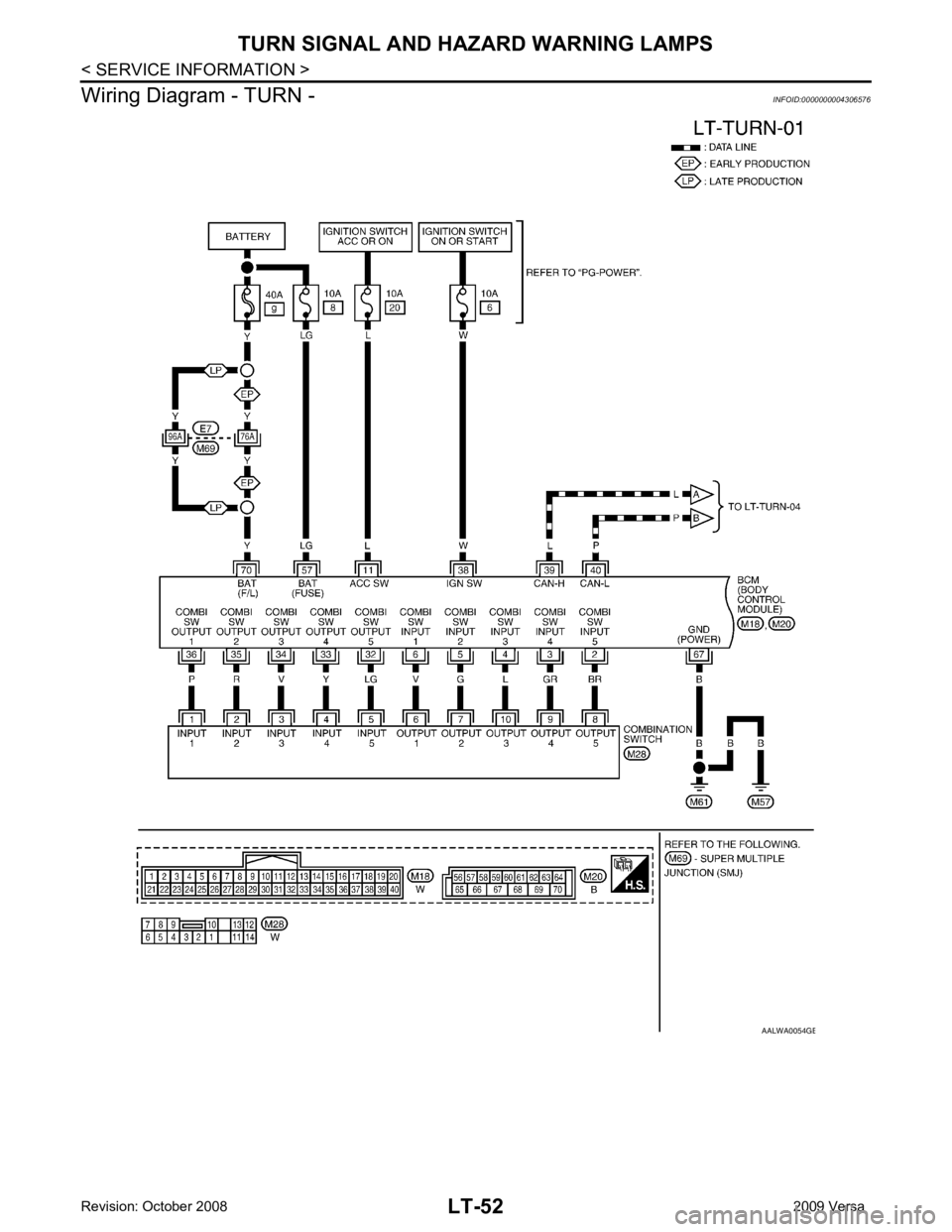

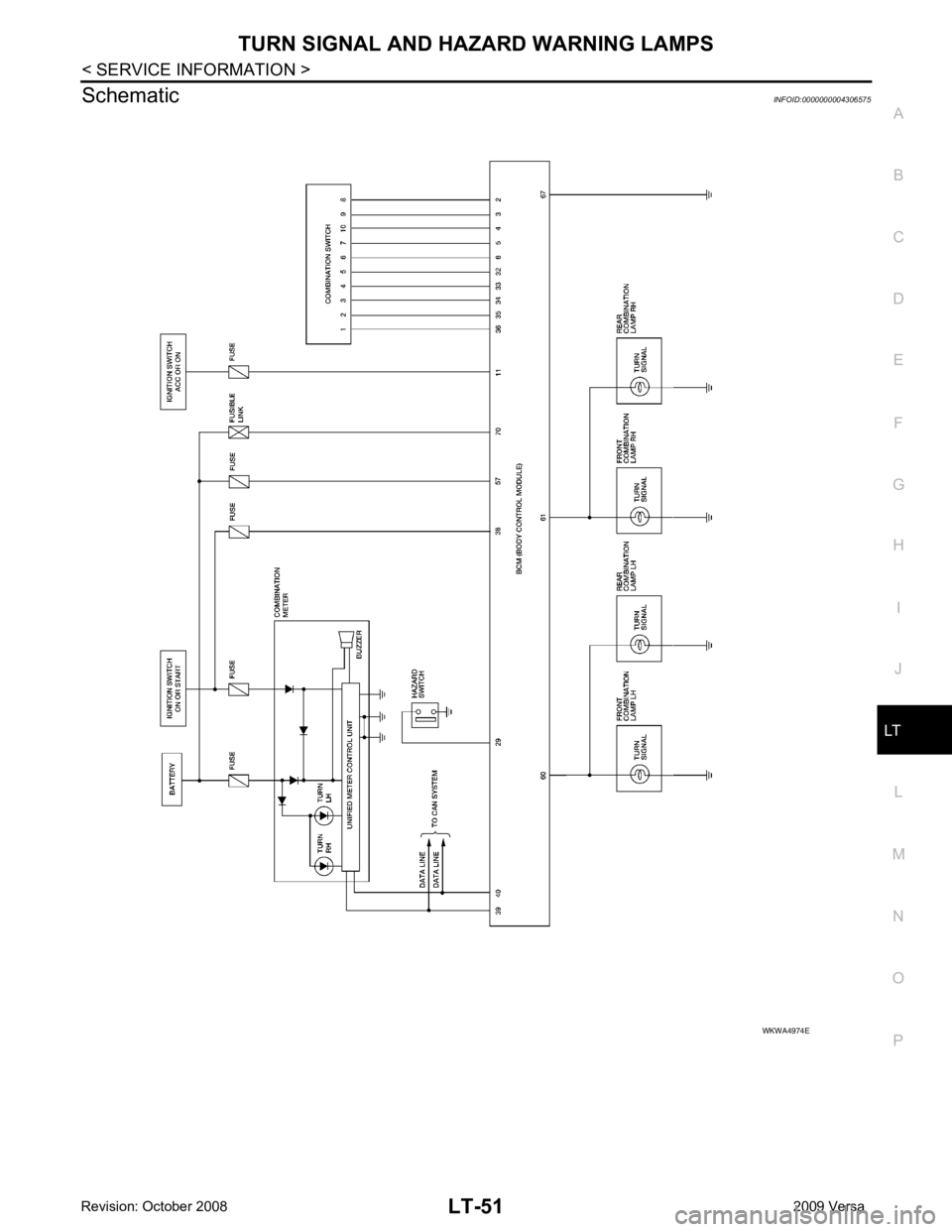

NISSAN LATIO 2009 Service Repair Manual LT N O P Schematic INFOID:0000000004306575

Page 3658 of 4331

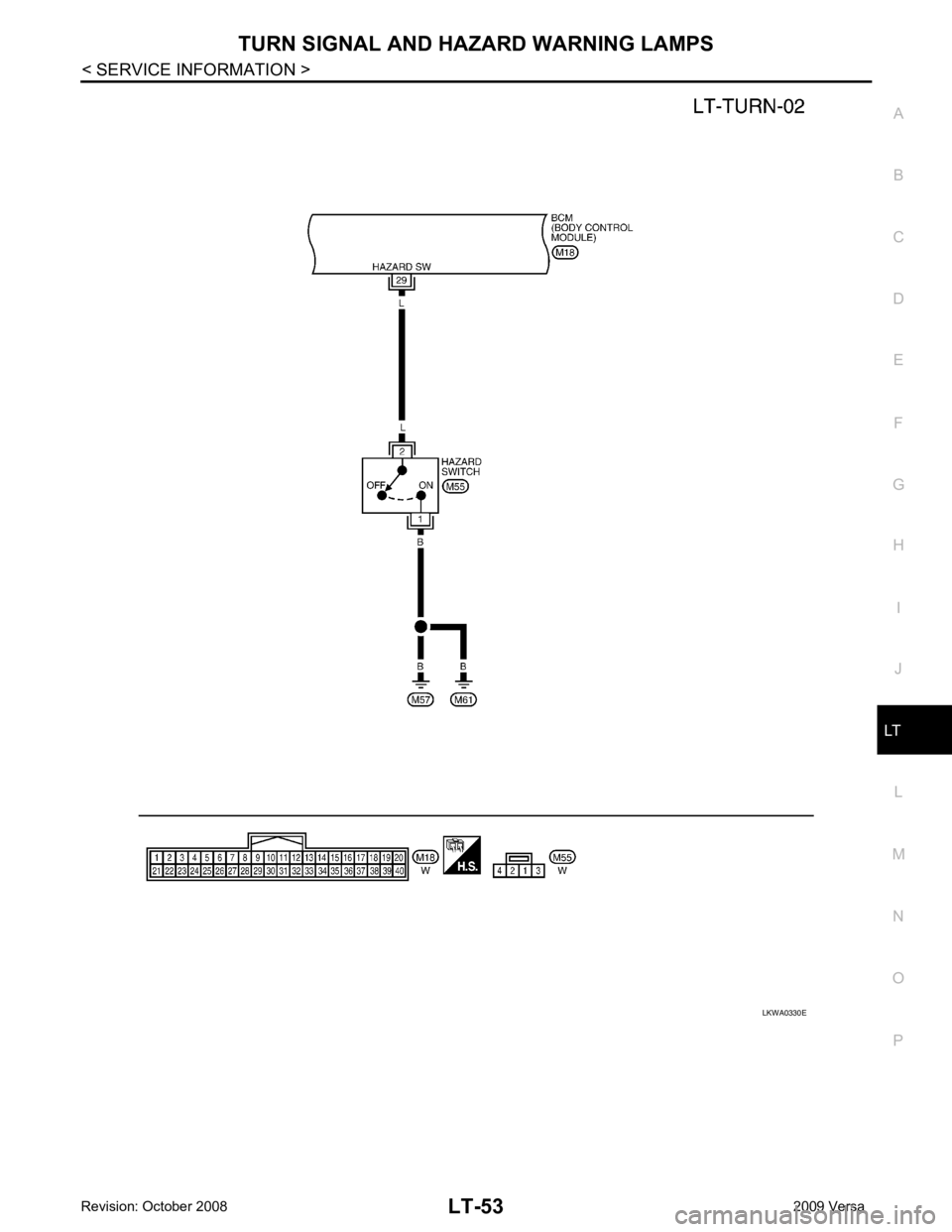

NISSAN LATIO 2009 Service Repair Manual B

Page 3659 of 4331

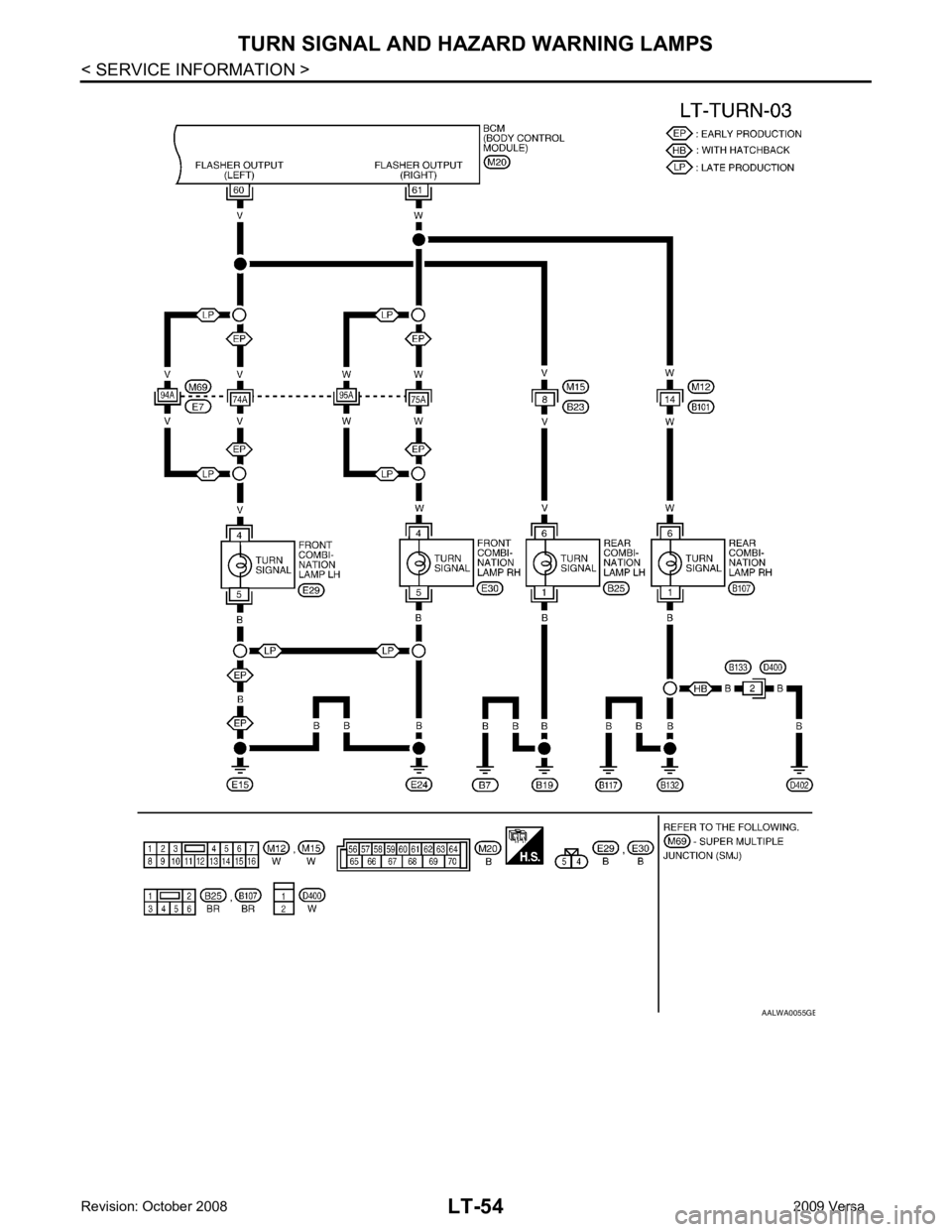

NISSAN LATIO 2009 Service Repair Manual LT N O P

Page 3660 of 4331

NISSAN LATIO 2009 Service Repair Manual B

Page 3661 of 4331

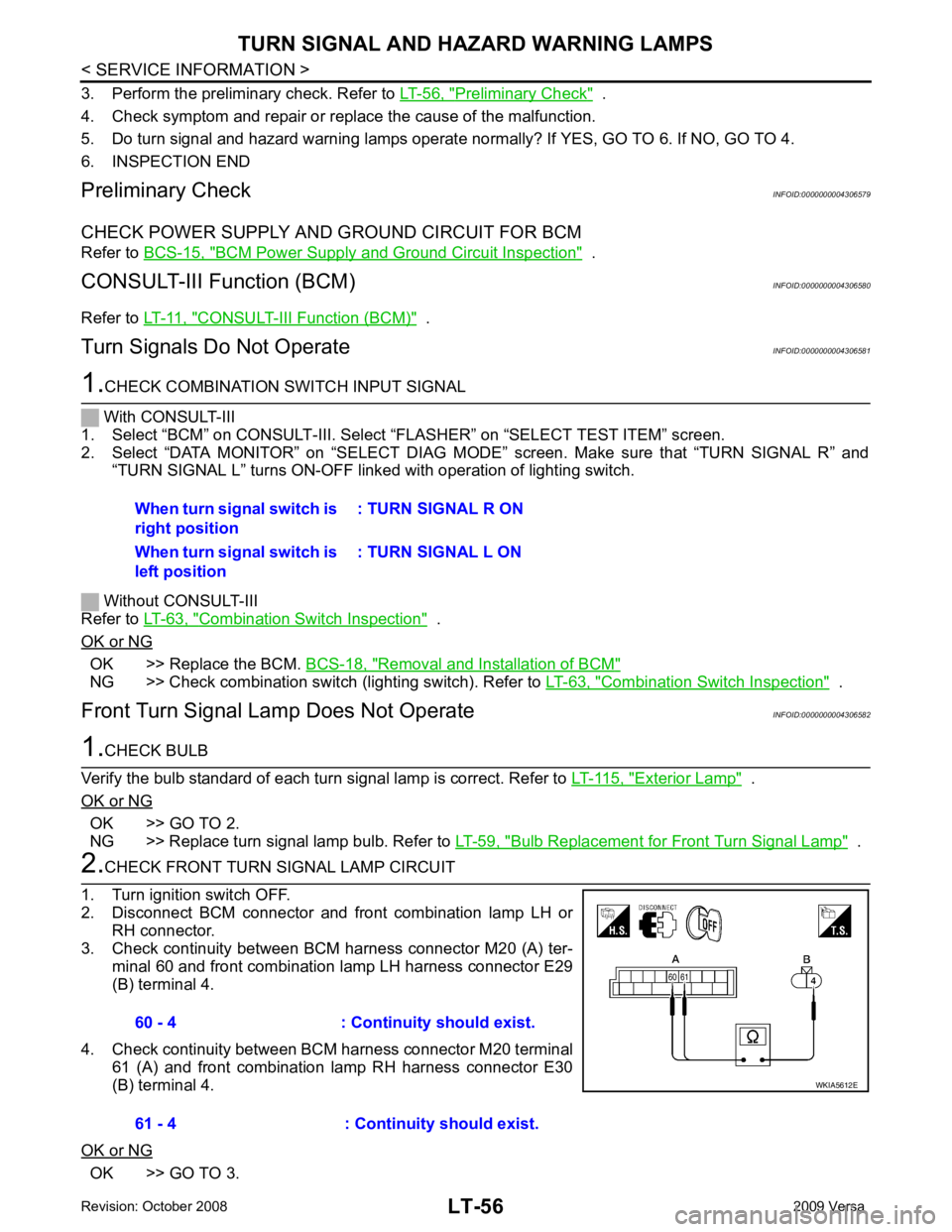

NISSAN LATIO 2009 Service Repair Manual LT N O P Terminal and Reference Value for BCM INFOID:0000000004306577 Refer to BCS-11, " Terminal and Reference Value for BCM " . How to Proceed with Trouble Diagnosis INFOID:0000000004306578 1. Co

Page 3662 of 4331

NISSAN LATIO 2009 Service Repair Manual Preliminary Check " . 4. Check symptom and repair or repl ace the cause of the malfunction. 5. Do turn signal and hazard warning lamps operate no rmally? If YES, GO TO 6. If NO, GO TO 4. 6. INSPECTI

Page 3663 of 4331

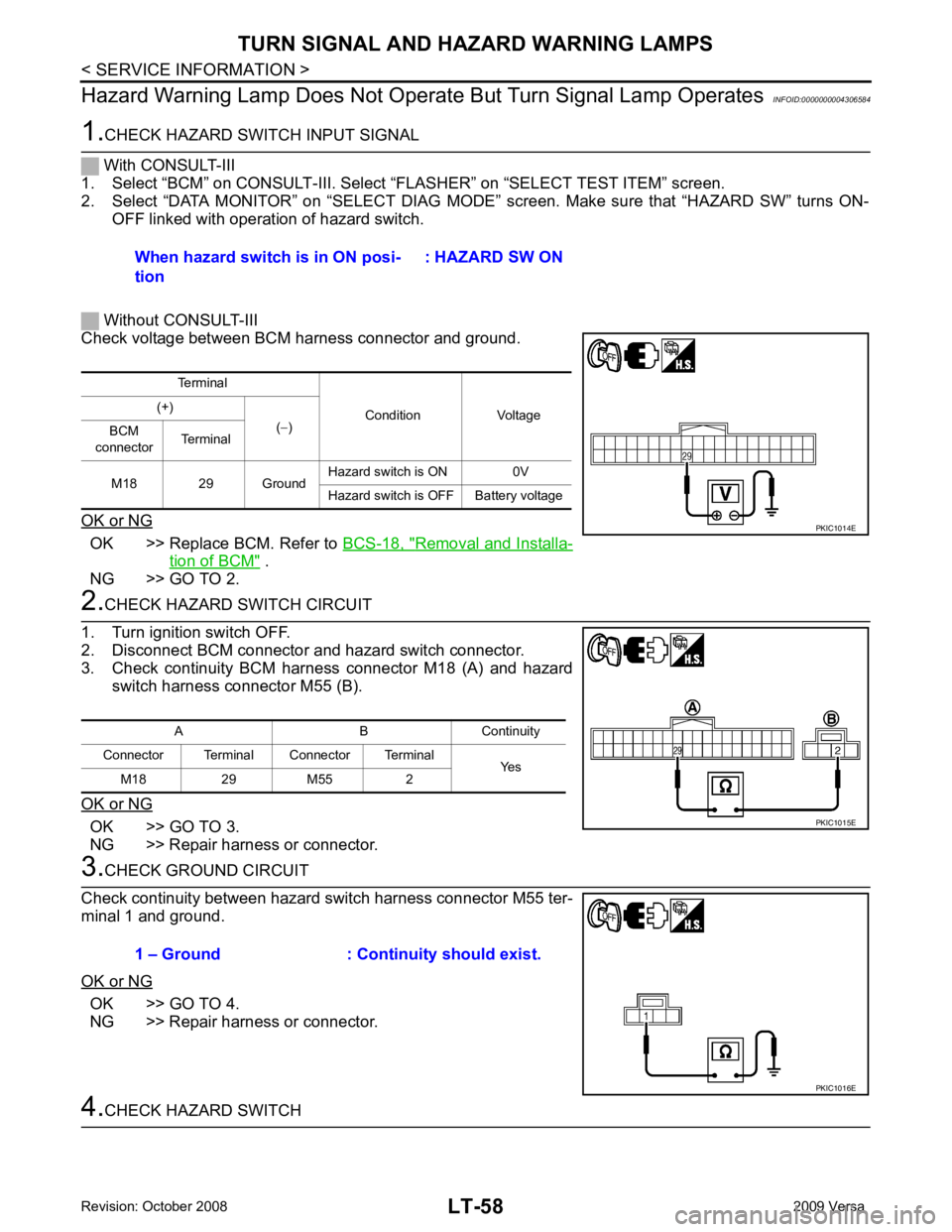

NISSAN LATIO 2009 Service Repair Manual LT N O P NG >> Repair harness or connector. OK >> Inspect connection at front combination lamp. NG >> Repair harness. Rear Turn Signal Lamp Does Not Operate INFOID:0000000004306583Exterior Lamp " . O

Page 3664 of 4331

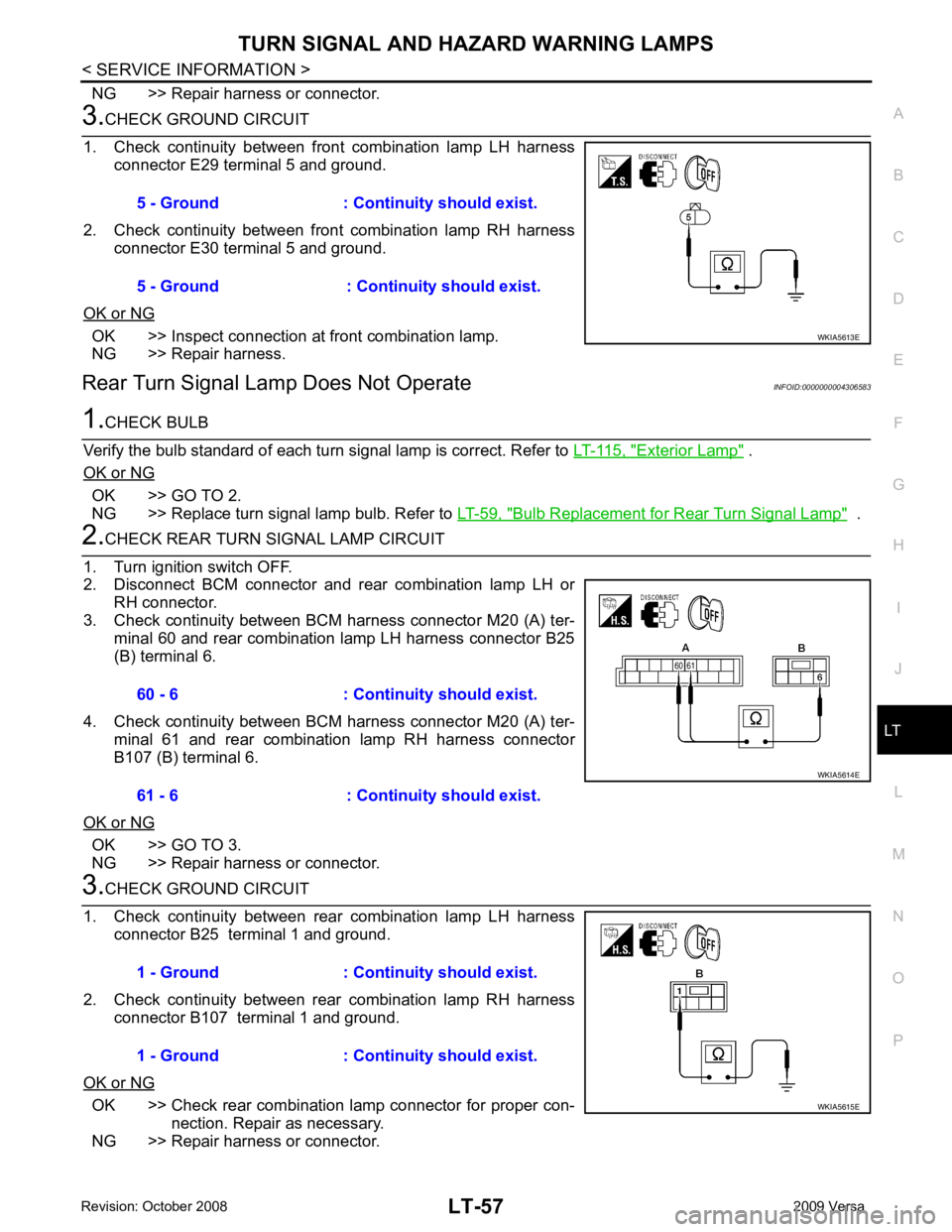

NISSAN LATIO 2009 Service Repair Manual OK >> Replace BCM. Refer to BCS-18, " Removal and Installa- tion of BCM " . NG >> GO TO 2. OK >> GO TO 3. NG >> Repair harness or connector. OK >> GO TO 4. NG >> Repair harness or connector.
Load next 8 pages
