Page 2993 of 4331

NISSAN LATIO 2009 Service Repair Manual Exploded View " . 2. Remove ignition coil. CAUTION: • Handle ignition coil car efully and avoid impacts. • Never disassemble. 1. Ignition coil 2. Spark plug 3. PCV hose 4. Oil filler cap 5. Rocker

Page 2994 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O 3. Remove spark plug using suitable tool. CAUTION: Never drop or shock it. 4. Remove ground cable (RH). 5. Support the bottom surface of engine using a trans mission jack, and then

Page 2995 of 4331

NISSAN LATIO 2009 Service Repair Manual Recommended Chemical Product and Sealant " KBIA3331J

Page 2996 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O TIMING CHAIN Exploded View INFOID:0000000004784296 Removal and Installation INFOID:0000000004784297 CAUTION: The rotation direction indicated in the text indicates all directions seen from th

Page 2997 of 4331

NISSAN LATIO 2009 Service Repair Manual EM-50< ON-VEHICLE REPAIR > [HR16DE] TIMING CHAIN 4. Remove the following parts. • Intake manifold: Refer to EM-28, " Exploded View " . • Drive belt: Refer to EM-15, " Removal and Installation "

Page 2998 of 4331

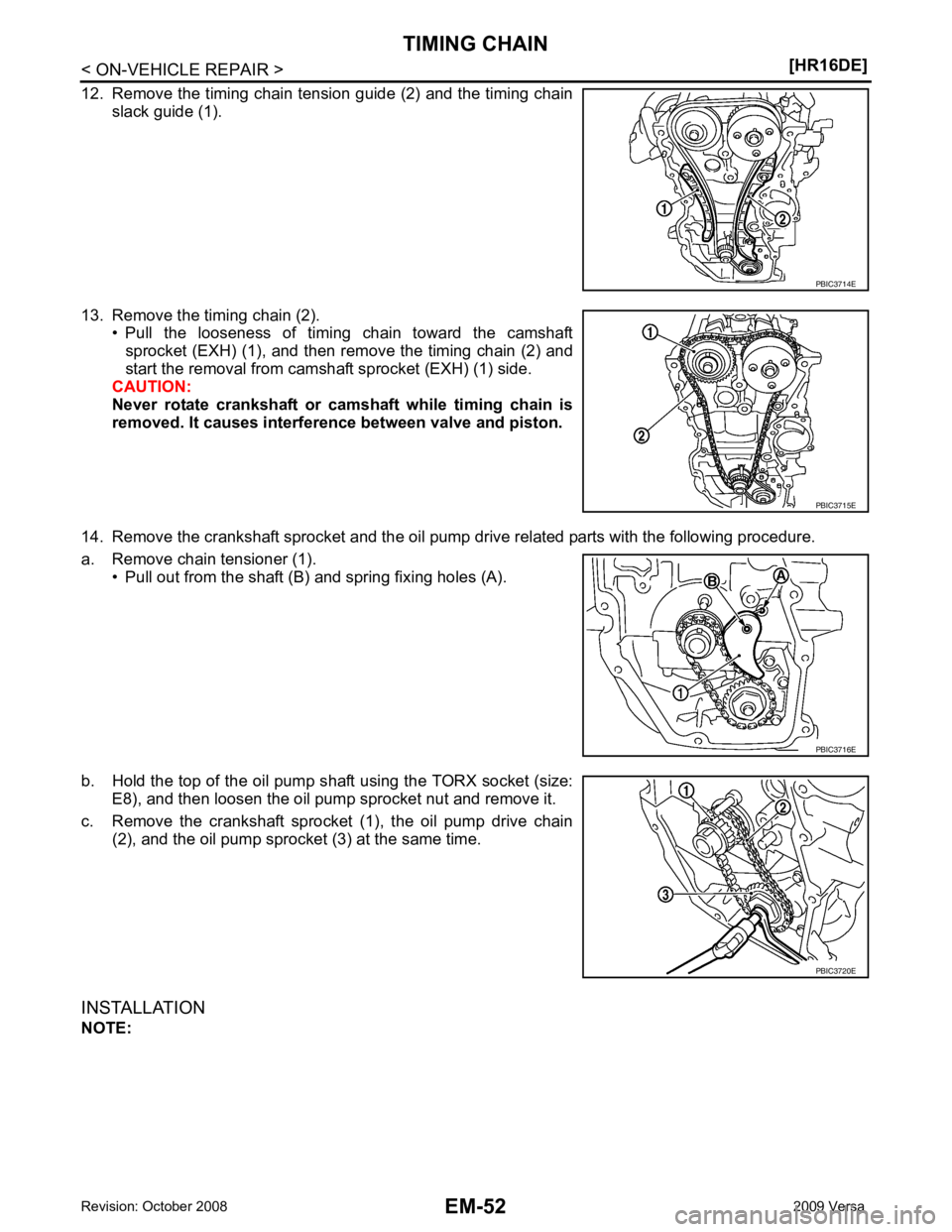

NISSAN LATIO 2009 Service Repair Manual EM NP O 9. Remove front cover with the following procedure: a. Loosen bolts in the reverse of the order shown. b. Cut liquid gasket by prying the position ( ) shown, and then remove the fron

Page 2999 of 4331

NISSAN LATIO 2009 Service Repair Manual PBIC3715E PBIC3716E PBIC3720E

Page 3000 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O The illustration shows the relationship between the matching mark on each timing chain and that on the corresponding sprocket, with the components installed. 1. Install the c
