NISSAN LATIO 2009 Service Repair Manual . 11. Install the center console assembly. Refer to IP-11 . 12. Install the selector lever knob. Refer to AT-215, " Selector Lever Knob Removal and Installation " . 13. Check shift lock syst

Page 226 of 4331

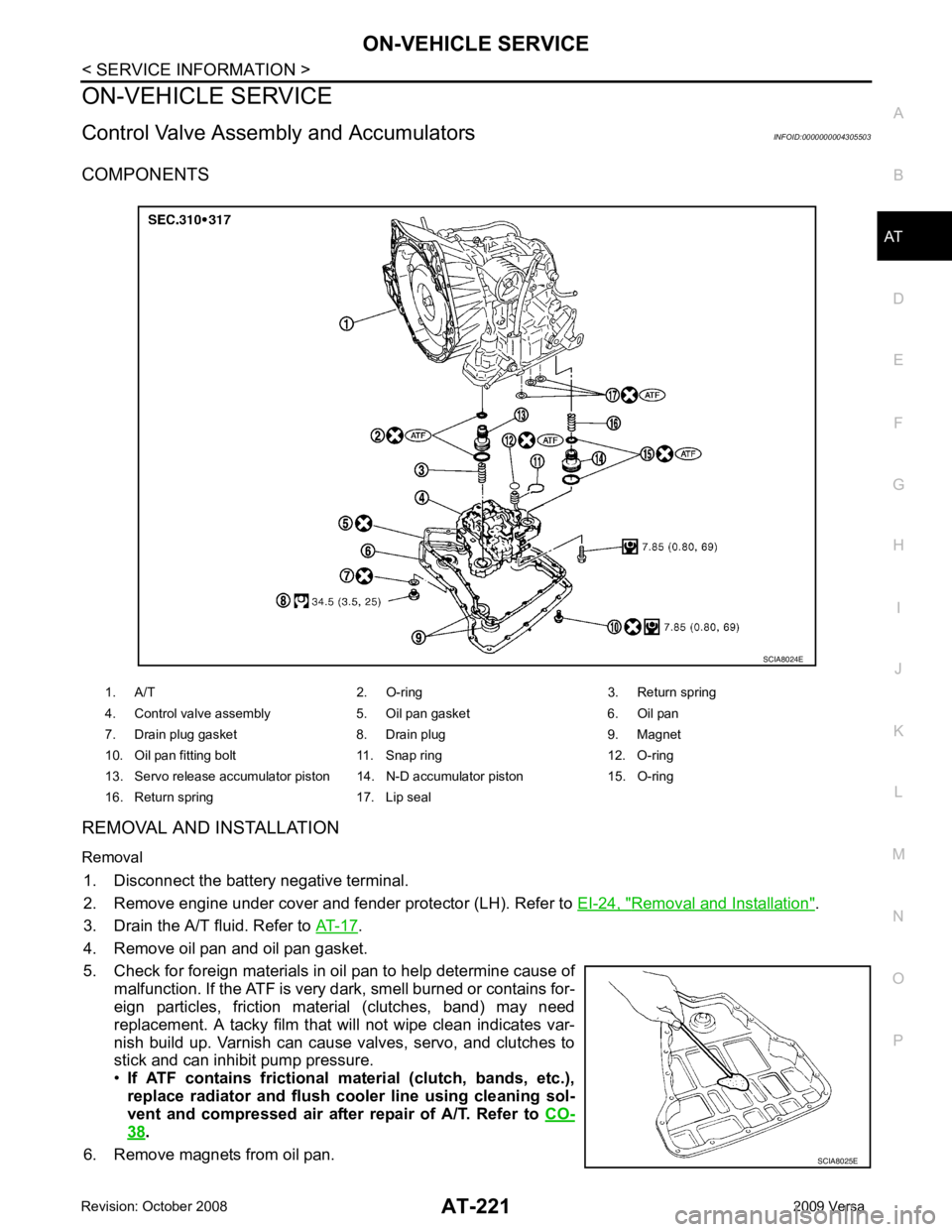

NISSAN LATIO 2009 Service Repair Manual AT N O P ON-VEHICLE SERVICE Control Valve Assembly and Accumulators INFOID:0000000004305503 COMPONENTS REMOVAL AND INSTALLATION Removal 1. Disconnect the battery negative terminal. 2. Remove engine un

Page 227 of 4331

NISSAN LATIO 2009 Service Repair Manual Control Valve Assembly " , AT-289, " Control Valve Upper Body " and AT-293, " Control Valve Lower Body " . 15. Remove servo release accumulator piston and N-D accumulator piston by applying comp

Page 228 of 4331

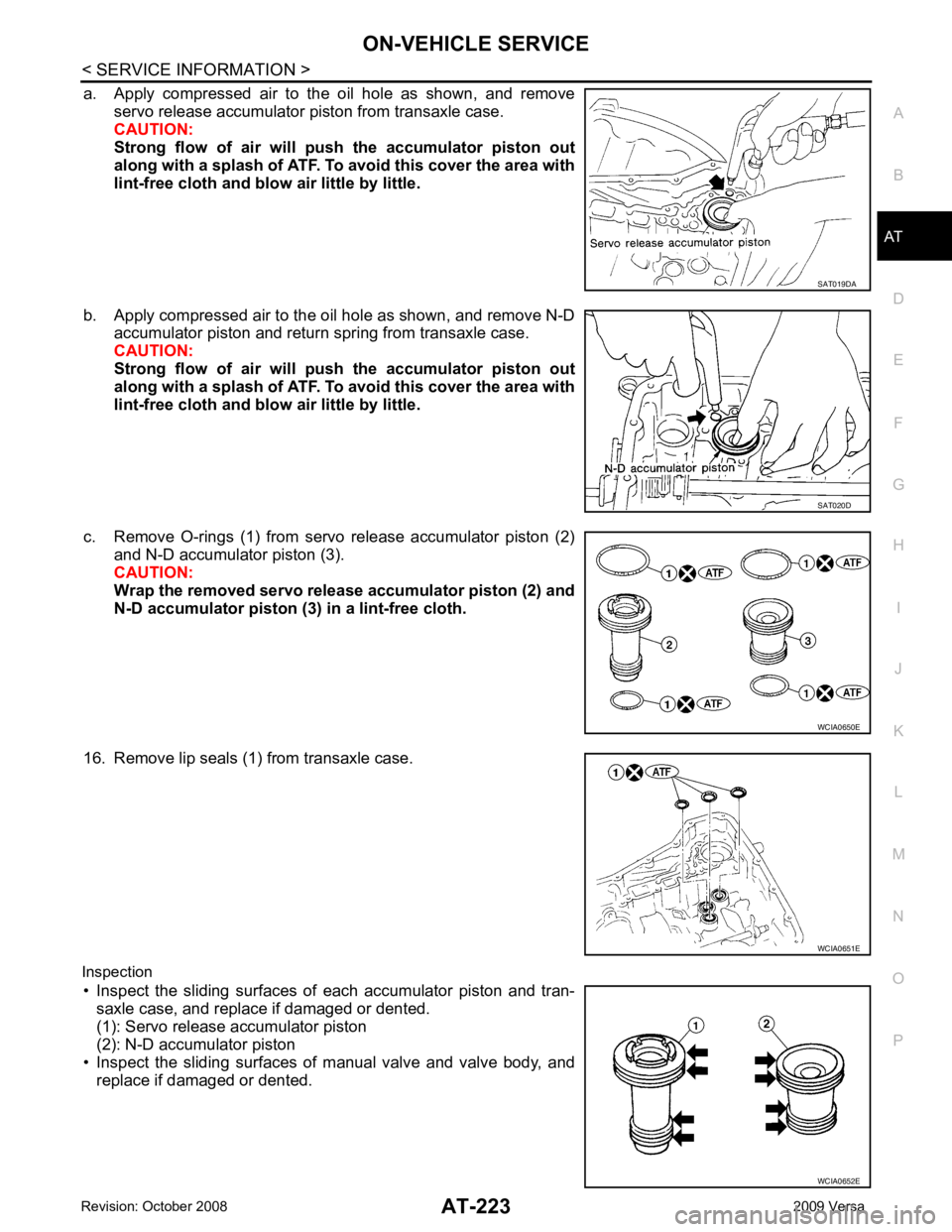

NISSAN LATIO 2009 Service Repair Manual AT N O P a. Apply compressed air to the oil hole as shown, and remove servo release accumulator piston from transaxle case. CAUTION: Strong flow of air will pu sh the accumulator pis

Page 229 of 4331

NISSAN LATIO 2009 Service Repair Manual Accumulator " for free length (L 1) and length (L 2 ). (1): Return spring (Servo release accumulator) (2): Return spring (N-D accumulator) CAUTION: Do not remove spring retainer (3). Installation

Page 230 of 4331

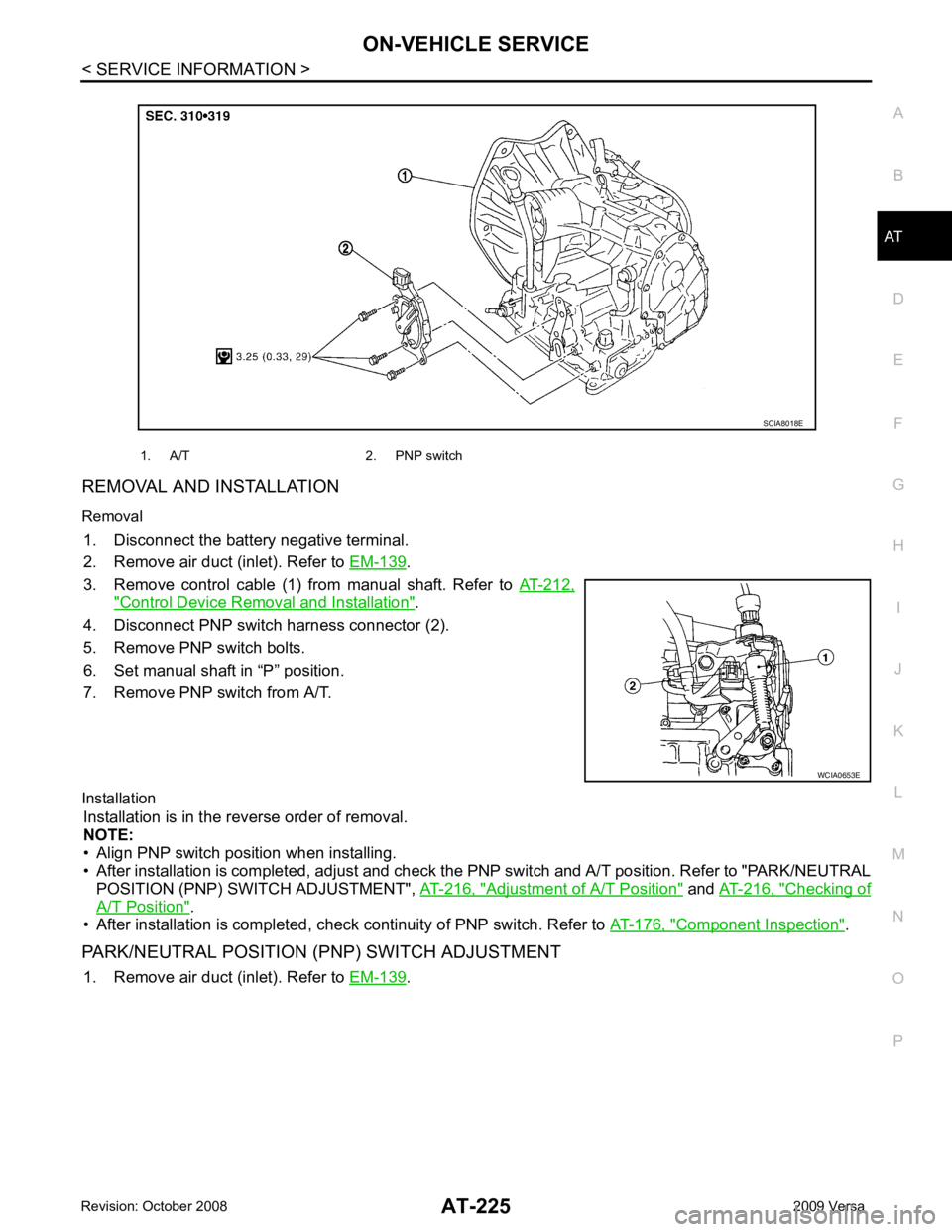

NISSAN LATIO 2009 Service Repair Manual AT N O P REMOVAL AND INSTALLATION Removal 1. Disconnect the battery negative terminal. 2. Remove air duct (inlet). Refer to EM-139 . 3. Remove control cable (1) from manual shaft. Refer to

Page 231 of 4331

NISSAN LATIO 2009 Service Repair Manual " Control Device Removal and Installation " . 4. Loosen PNP switch bolts. :Bolt 5. Insert the pin (3) [4 mm (0.16 in) dia.] straight into manual shaft (1) adjustment hole. 6. Rotate PNP switch (2)

Page 232 of 4331

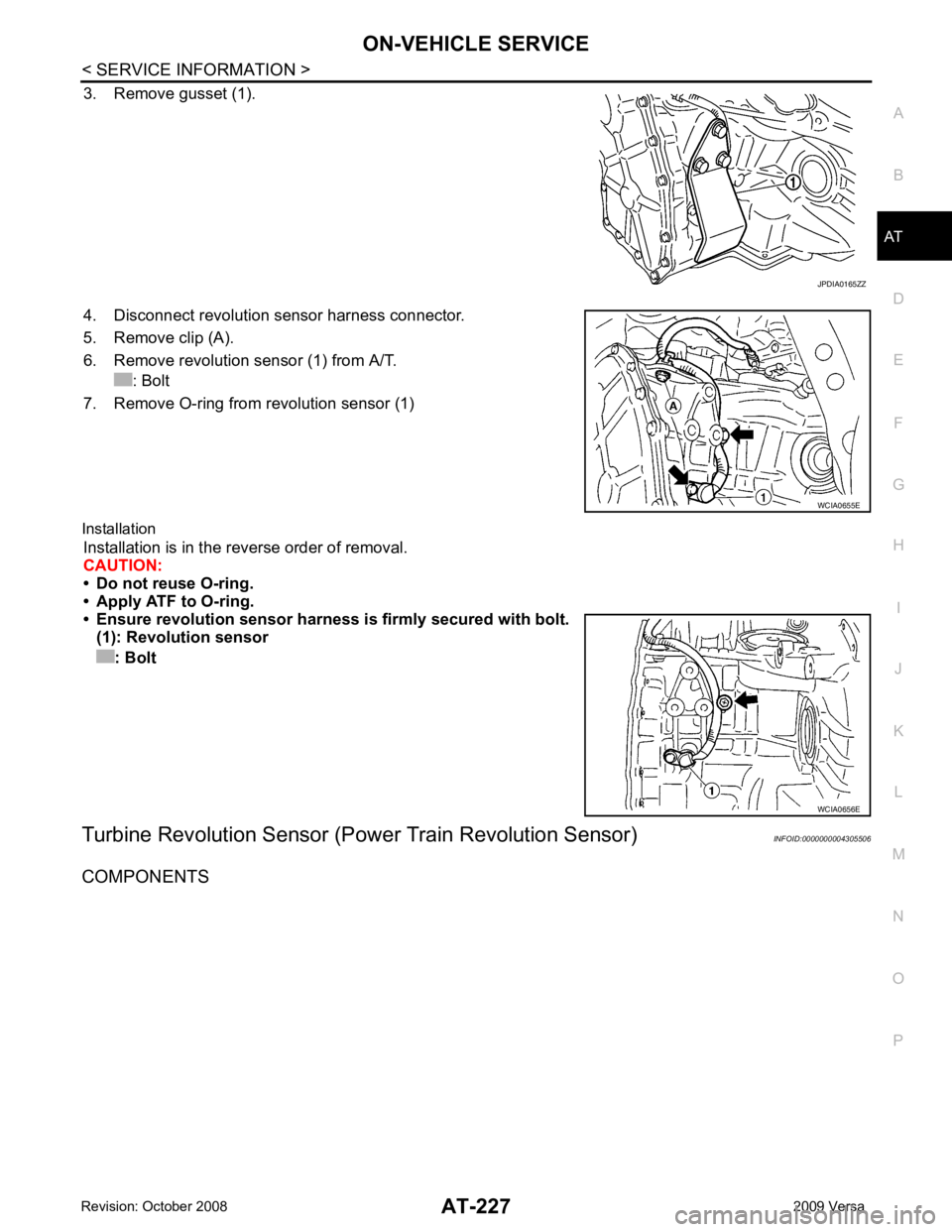

NISSAN LATIO 2009 Service Repair Manual AT N O P 3. Remove gusset (1). 4. Disconnect revolution sensor harness connector. 5. Remove clip (A). 6. Remove revolution sensor (1) from A/T. : Bolt 7. Remove O-ring from revolution sensor (1) Insta
