2009 NISSAN LATIO Service Repair Manual

wheel alignment wiper blades suspension radiator cap deactivate airbag trailer

Load previous 8 pages

Page 1673 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Wiring Diagram
INFOID:0000000004780692
Diagnosis Procedure INFOID:0000000004780197Ground Inspection " .
Is the inspection result normal? B

Page 1674 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-318< COMPONENT DIAGNOSIS >
[HR16DE]
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
YES >> GO TO 2.
NO >> Repair or replace ground connection. 2.
CHECK CONNECTOR
1. Disconnect EVAP control system pressur

Page 1675 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Is the inspection result normal? YES >> GO TO 7.
NO >> Repair short to ground or short to power in harness or connectors. Component Inspection " .)
• Refrigerant pressure sensor (Refer to

Page 1676 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-320< COMPONENT DIAGNOSIS >
[HR16DE]
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
12. CHECK EVAP CONTROL SYSTEM PRESSURE SEN SOR INPUT SIGNAL CIRCUIT FOR OPEN ANDSHORT
1. Check the continuity betwee

EC-320< COMPONENT DIAGNOSIS >
[HR16DE]
P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
12. CHECK EVAP CONTROL SYSTEM PRESSURE SEN SOR INPUT SIGNAL CIRCUIT FOR OPEN ANDSHORT
1. Check the continuity between EVAP control system pressure sensor harness connector and ECM har- ness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal? YES >> GO TO 14.
NO >> GO TO 13. 13.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors B102, M13
• Harness connectors M69, E7
• Harness connectors E8, F8
• Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors. 14.
CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR
Refer to EC-320, " Component Inspection " .
Is the inspection result normal? YES >> GO TO 15.
NO >> Replace EVAP control system pressure sensor. 15.
CHECK INTERMITTENT INCIDENT
Refer to EC-120, " Diagnosis Procedure " .
>> INSPECTION END
Component Inspection INFOID:00000000047804511.
CHECK EVAP CONTROL SY STEM PRESSURE SENSOR
1. Turn ignition switch OFF.
2. Remove EVAP control system pressure sensor wit h its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
3. Install a vacuum pump to EVAP control system pressure sensor.
4. Turn ignition switch ON and check output voltage between ECM harness connector and ground under the following conditions.
CAUTION:
• Always calibrate the vacuum pump gauge when using it.
• Do not apply below -93.3 kPa (-0.952 kg/cm 2
, -13.53 psi) or pressure over 101.3 kPa (1.033 kg/
cm 2
, 14.69 psi).
Is the inspection result normal? EVAP control system pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
B104 2 F11 42 Existed ECM Condition
[Applied vacuum kPa
(kg/cm 2
, psi) Voltage
Connector Terminal
F11 42
(EVAP control system
pressure sensor signal) Not applied 1.8 - 4.8 V
-26.7 (-0.272, -3.87) 2.1 to 2.5 V lower
than above value PBIB3314E

Page 1677 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
YES >> INSPECTION END
NO >> Replace EVAP control system pressure sensor

Page 1678 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-322< COMPONENT DIAGNOSIS >
[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Description INFOID:0000000004780199
The EVAP control system pressure s e

Page 1679 of 4331

NISSAN LATIO 2009 Service Repair Manual P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-323
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
2. Set voltmeter probes to ECM harness connector and ground as
per the following.
3.

Page 1680 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-324< COMPONENT DIAGNOSIS >
[HR16DE]
P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR

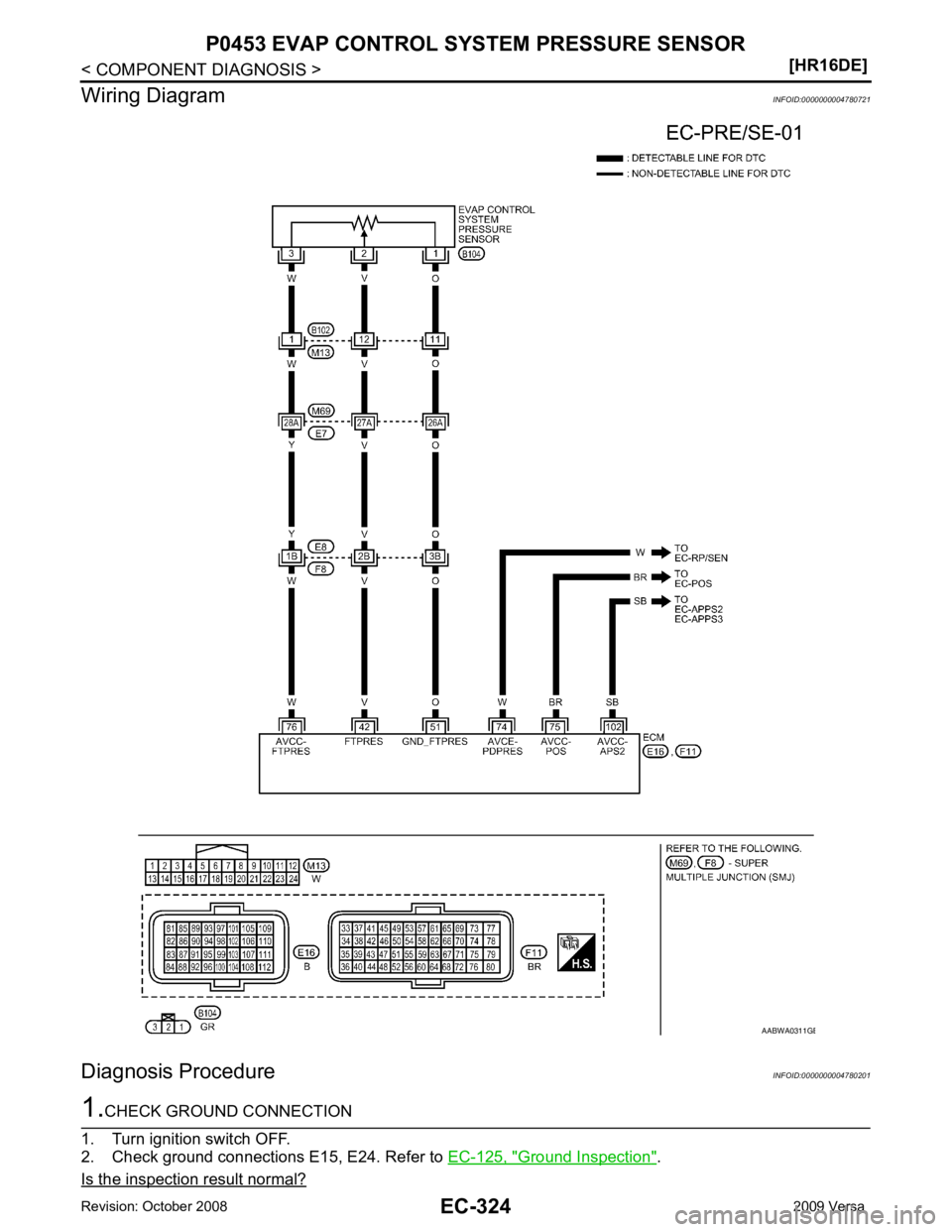

Wiring Diagram INFOID:0000000004780721
Diagnosis Procedure INFOID:00000000047802011.
CHECK GROUND CONNECTION
1. Turn ig
