Page 3065 of 4331

NISSAN LATIO 2009 Service Repair Manual Items Standard Valve lifter outer diameter 29.977 - 29.987 (1.1802 - 1.1806) Valve lifter hole diameter 30.000 - 30.021 (1.1811 - 1.1819) Valve lifter clearance 0.013 - 0.044 (0.0005 - 0.0017) Items C

Page 3066 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O Cylinder Head INFOID:0000000004784327 CYLINDER HEAD Unit: mm (in) VALVE DIMENSIONS Unit: mm (in) 3.34 (0.1315) 334 3.36 (0.1323) 336 3.38 (0.1331) 338 3.40 (0.1339) 340 3.42 (0.1346) 342 3.44

Page 3067 of 4331

NISSAN LATIO 2009 Service Repair Manual Items Standard Oversize (service) [0.2 (0.008)] Valve guide Outer diameter 9.023 - 9.034 (0.3552 - 0.3557) 9.223 - 9.234 (0.3631 - 0.3635) Inner diameter (Finished size) 5.000 - 5.018 (0.1969 - 0.197

Page 3068 of 4331

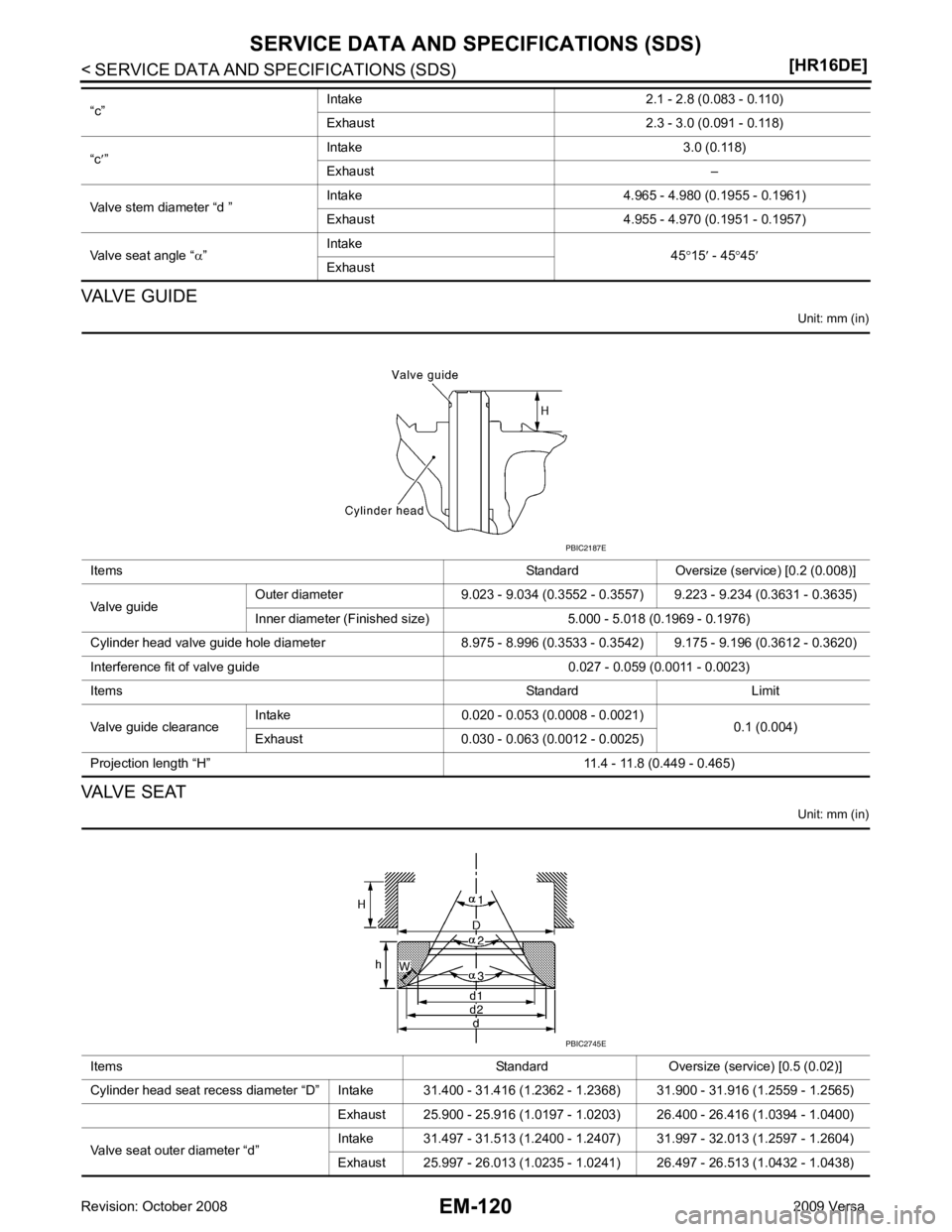

NISSAN LATIO 2009 Service Repair Manual EM NP O * 1 : Diameter made by intersection point of conic angles α1 and α2 * 2 : Diameter made by intersection point of conic angles α2 and α3 * 3 : Machining data VALVE SPRING Cylind

Page 3069 of 4331

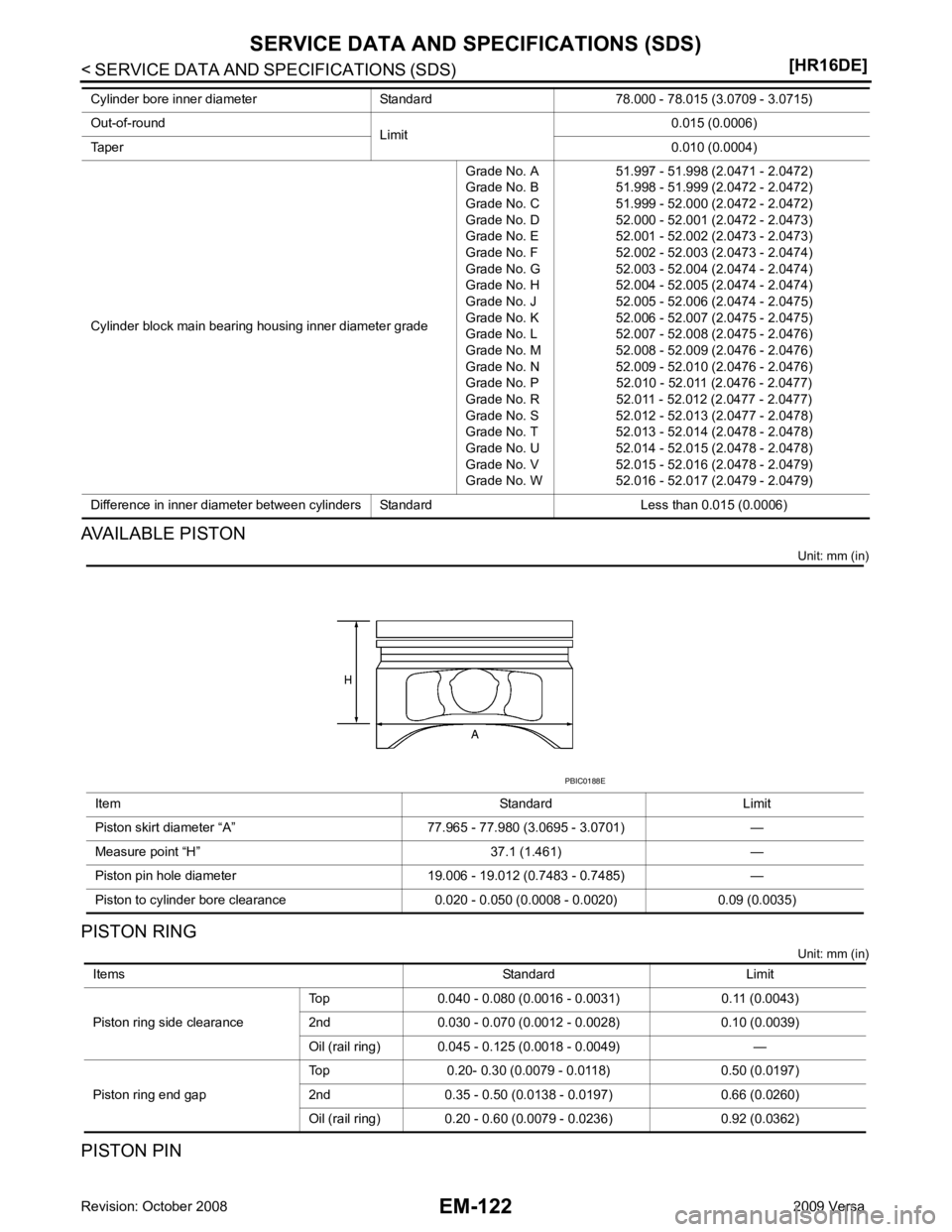

NISSAN LATIO 2009 Service Repair Manual Item Standard Limit Piston skirt diameter “A” 77.965 - 77.980 (3.0695 - 3.0701) — Measure point “H” 37.1 (1.461) — Piston pin hole diameter 19.006 - 19.012 (0.7483 - 0.7485) — Piston to

Page 3070 of 4331

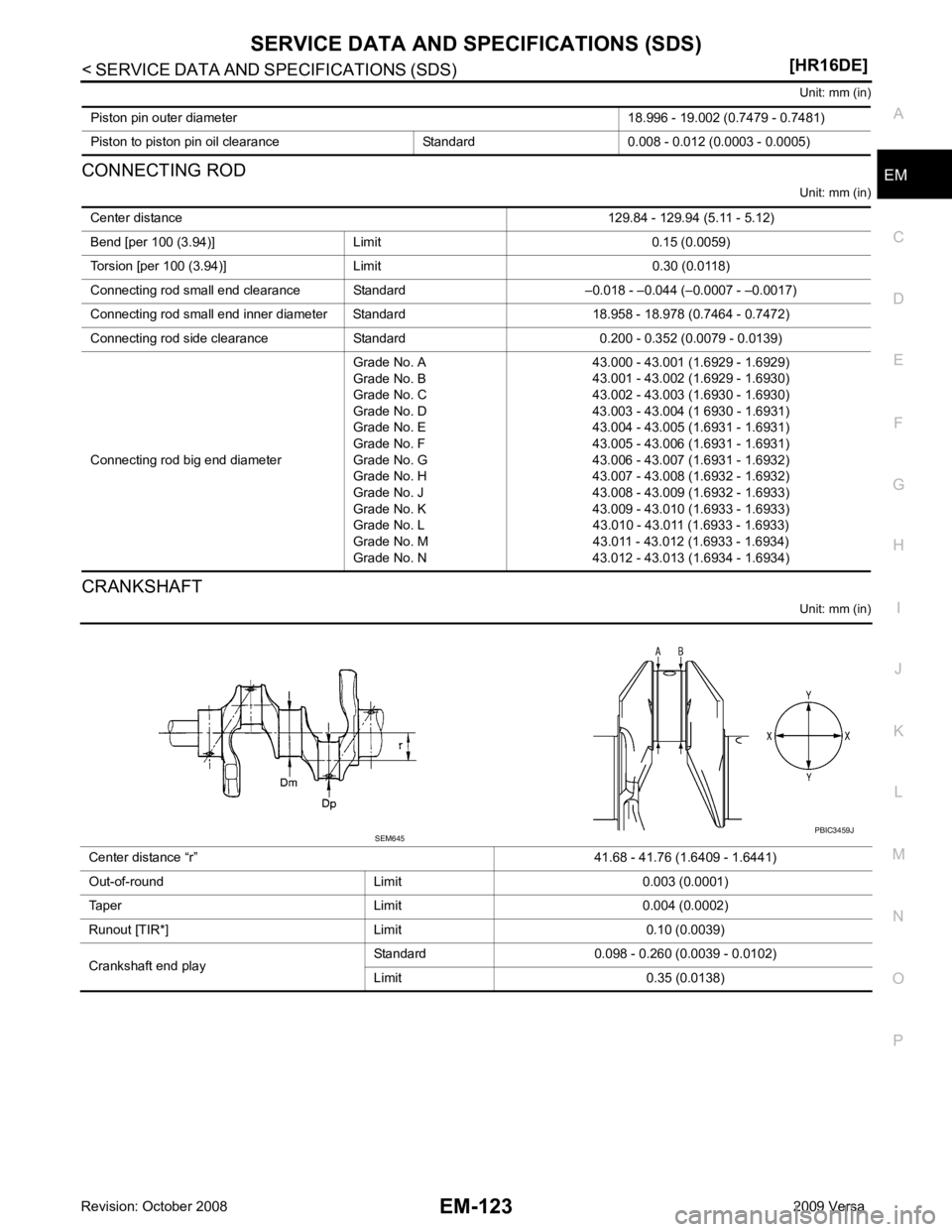

NISSAN LATIO 2009 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS) EM-123 < SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE] C D E F G H I J K L M A EM NP O Unit: mm (in) CONNECTING ROD Unit: mm (in) CRANKSHAFT Unit: mm (in) Pisto

Page 3071 of 4331

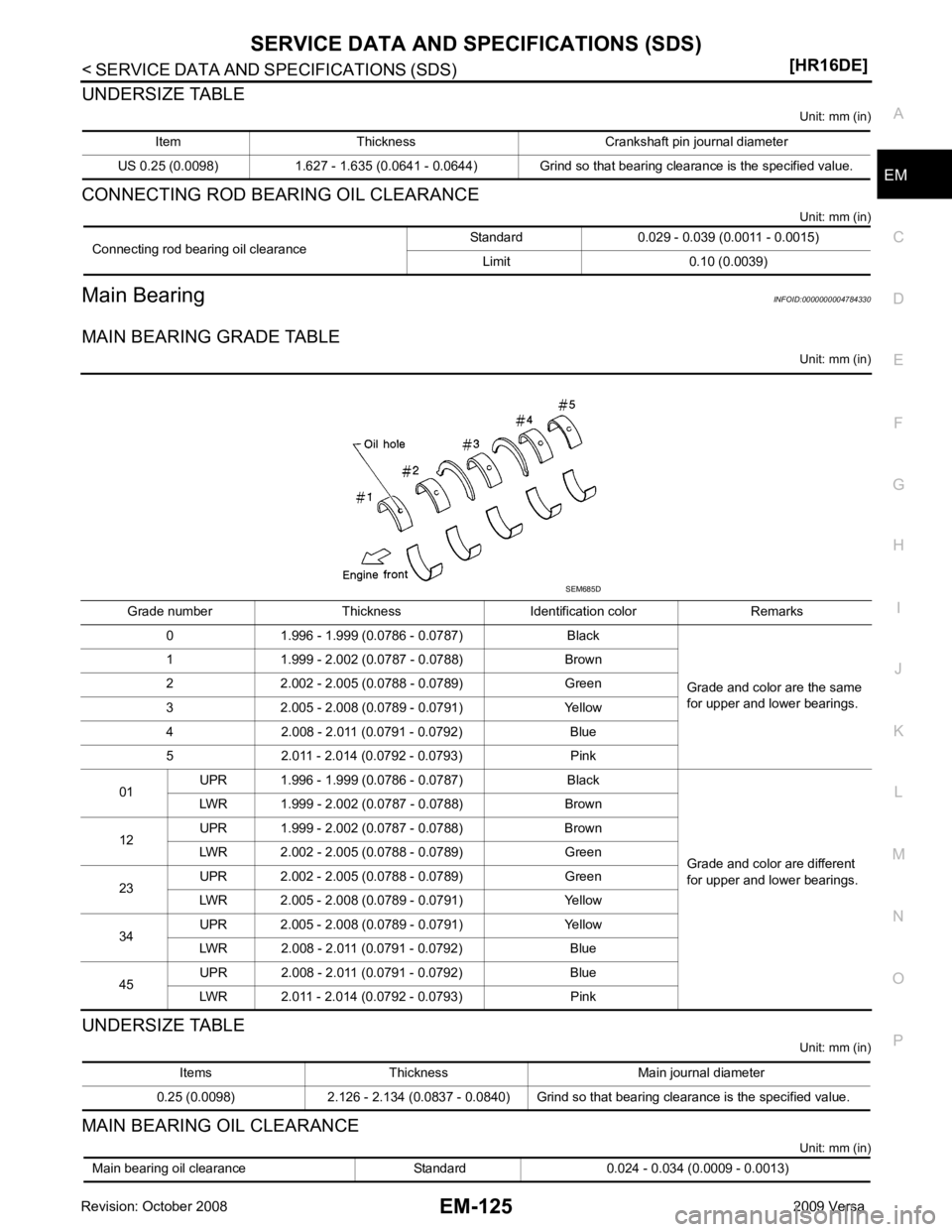

NISSAN LATIO 2009 Service Repair Manual Grade number Thickness Identification color Remarks 0 1.498 - 1.501 (0.0590 - 0.0591) Black Grade and color are the same for upper and lower bearings. 1 1.501 - 1.504 (0.0591 - 0.0592) Brown 2 1.504

Page 3072 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O UNDERSIZE TABLE Unit: mm (in) CONNECTING ROD BEARING OIL CLEARANCE Unit: mm (in) Main Bearing INFOID:0000000004784330 MAIN BEARING GRADE TABLE Unit: mm (in) UNDERSIZE TABLE Unit: mm (in) MAIN
