Electrical Component Inspection
INFOID:0000000004307014
FUEL LEVEL SENSOR UNIT CHECK For removal, refer to FL-5, " Removal and Installation " .

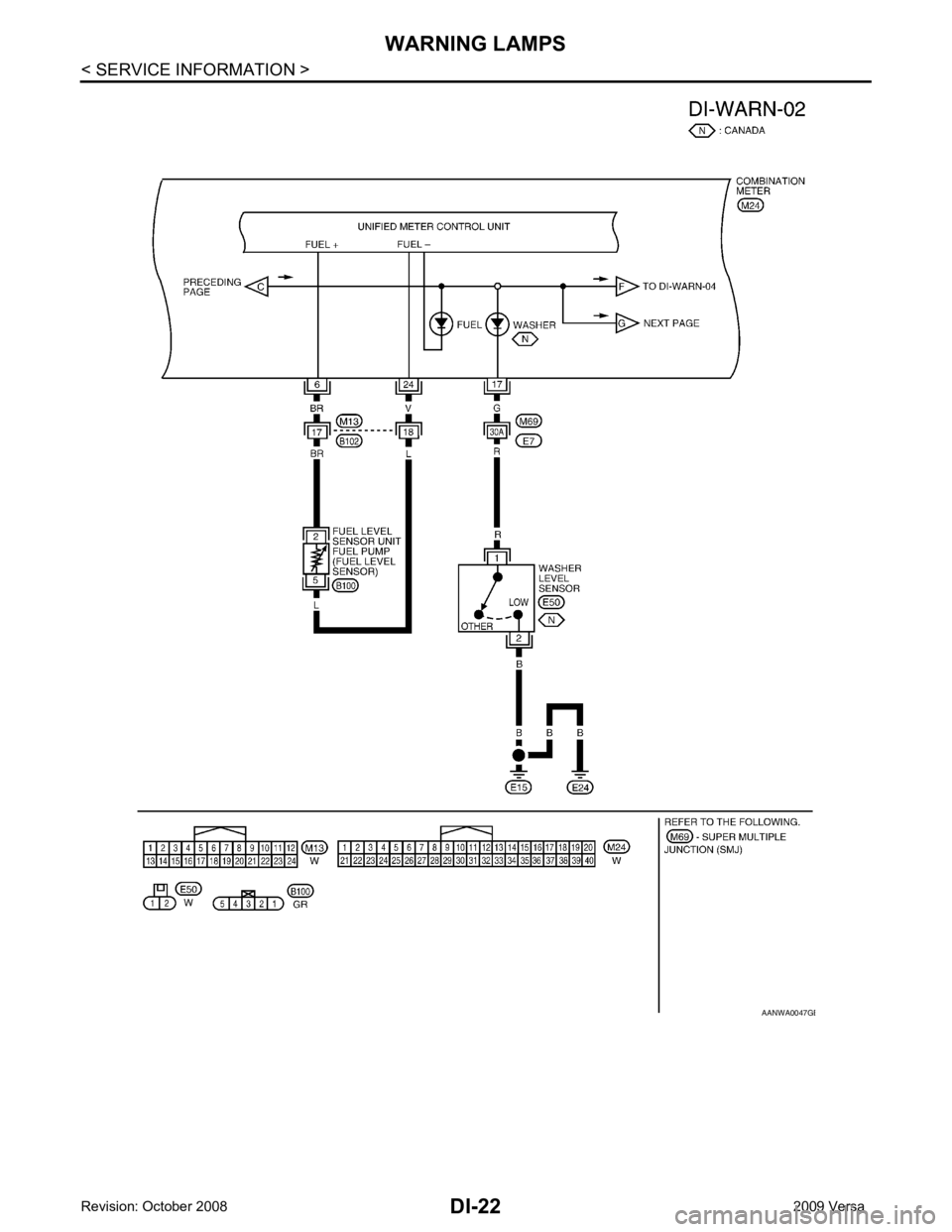

Check Fuel Level Sensor Unit and Fuel Pump Check resistance between terminals 2 and 5.
1* and 2*: When float rod is in contact with stopper.
Check Fuel Level Sensor Unit and Fuel Pump Harness Check continuity at the following terminals.
• If the results of check are NG, replace fuel pump assembly. If the results of check are OK, replace fuel level sensor unit.
Removal and Installation INFOID:0000000004307015
COMBINATION METER Refer to IP-12, " Removal and Installation " .
Terminals Float position mm (in)
Resistance
value ( Ω)
(Approx.)
2 5 1* Full 160 (8.07) 6
2* Empty 20 (1.02) 80
