NISSAN LATIO 2009 Service Repair Manual EC-268< COMPONENT DIAGNOSIS >
[HR16DE]
P0340 CMP SENSOR (PHASE)
P0340 CMP SENSOR (PHASE)
Description INFOID:0000000004780162
The camshaft position sensor (P HASE) senses the retraction of
cams

EC-268< COMPONENT DIAGNOSIS >
[HR16DE]
P0340 CMP SENSOR (PHASE)
P0340 CMP SENSOR (PHASE)
Description INFOID:0000000004780162
The camshaft position sensor (P HASE) senses the retraction of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.

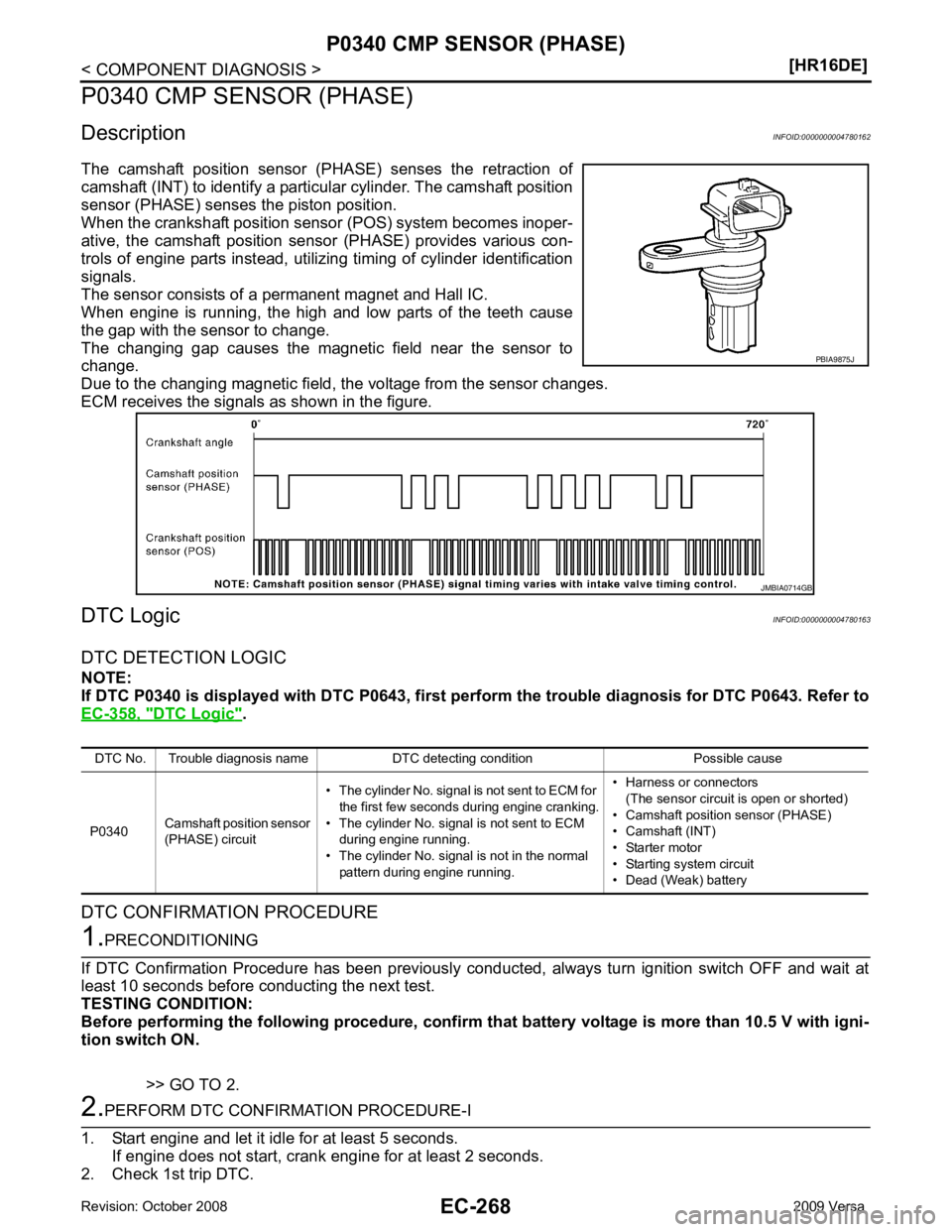

ECM receives the signals as shown in the figure.
DTC Logic INFOID:0000000004780163
DTC DETECTION LOGIC
NOTE:
If DTC P0340 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-358, " DTC Logic " .
DTC CONFIRMATION PROCEDURE 1.
PRECONDITIONING
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5 V with igni-
tion switch ON.
>> GO TO 2. 2.
PERFORM DTC CONFIRMATION PROCEDURE-I
1. Start engine and let it idle for at least 5 seconds. If engine does not start, crank engine for at least 2 seconds.
2. Check 1st trip DTC. PBIA9875J
JMBIA0714GB
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340 Camshaft position sensor
(PHASE) circuit • The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
• The cylinder No. signal is not sent to ECM during engine running.
• The cylinder No. signal is not in the normal pattern during engine running. • Harness or connectors
(The sensor circuit is open or shorted)
• Camshaft position sensor (PHASE)
• Camshaft (INT)
• Starter motor
• Starting system circuit
• Dead (Weak) battery
