DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)
During AT-58, " Cruise Test - Part 1 " .
Does A/T shift from D 3 to D 4 at the specified speed?
YES >> GO TO 10.
NO >> Check control valve again. Repair or replace control valve assembly. 10.
CHECK DTC
Perform AT-129, " DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 11. Check for proper lock-up. 11.
CHECK LOCK-UP
During AT-58, " Cruise Test - Part 1 " .
A/T perform lock-up at the specified speed? YES >> Perform “Cruise test — Part 1” again and return to the
start point of this test group.
NO >> GO TO 12. 12.
CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to AT-221, " Control Valve Assembly and Accumulators " .
- Torque converter clutch solenoid valve
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground. Refer to AT-125, " Wiring Diagram -
AT - TCV " .
OK or NG OK >> GO TO 13.
NG >> Replace solenoid valve assembly. 13.
CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to AT-221, " Control Valve Assembly and Accumulators " .
- Torque converter clutch solenoid valve SCIA7190E
SCIA7191E
Solenoid valve Connectror Terminal Resistance (Approx.)
Torque converter clutch
solenoid valve F30 5 - Ground 5 - 20
Ω SCIA2063E
Page 138 of 4331

DTC P0744 A/T TCC S/
V FUNCTION (LOCK-UP)
AT-133
< SERVICE INFORMATION >
D
E
F
G H
I
J
K L
M A
B AT
N
O P
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground. Refer to AT-125, " Wiring Diagram - AT - TCV " .
OK or NG OK >> GO TO 14.
NG >> Replace solenoid valve assembly. 14.
CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to AT-280, " Control Valve Assembly " .
2. Check control valves for sticking.
- Torque converter clutch control valve
- Torque converter clutch relief valve
OK or NG OK >> GO TO 15.
NG >> Repair control valve. 15.
CHECK LOCK-UP
During AT-58, " Cruise Test - Part 1 " .
A/T perform lock-up at the specified speed? YES >> GO TO 16.
NO >> Check control valve again. Repair or replace control
valve assembly. 16.
CHECK DTC
Perform AT-129, " DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> Perform “Cruise test — Part 1” again and re turn to the start point of this test group. SCIA2066E
SCIA7191E
Page 139 of 4331
Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Start engine.
2. With brake pedal depressed, shift the lever from “P” →“N” →“D” →“N” →“P” positions.
3. Perform self-diagnosis. Refer to AT-83, " Diagnosis Procedure without CONSULT-III " .
4. If the check result is NG, go to AT-136, " Diagnosis Procedure " .
Item name Condition Display value (Approx.)
LINE PRES DTY Small throttle opening (Low line pressure)
⇔ Large
throttle opening (High line pressure) 0%
⇔ 94%
Page 140 of 4331
AT
N
O P

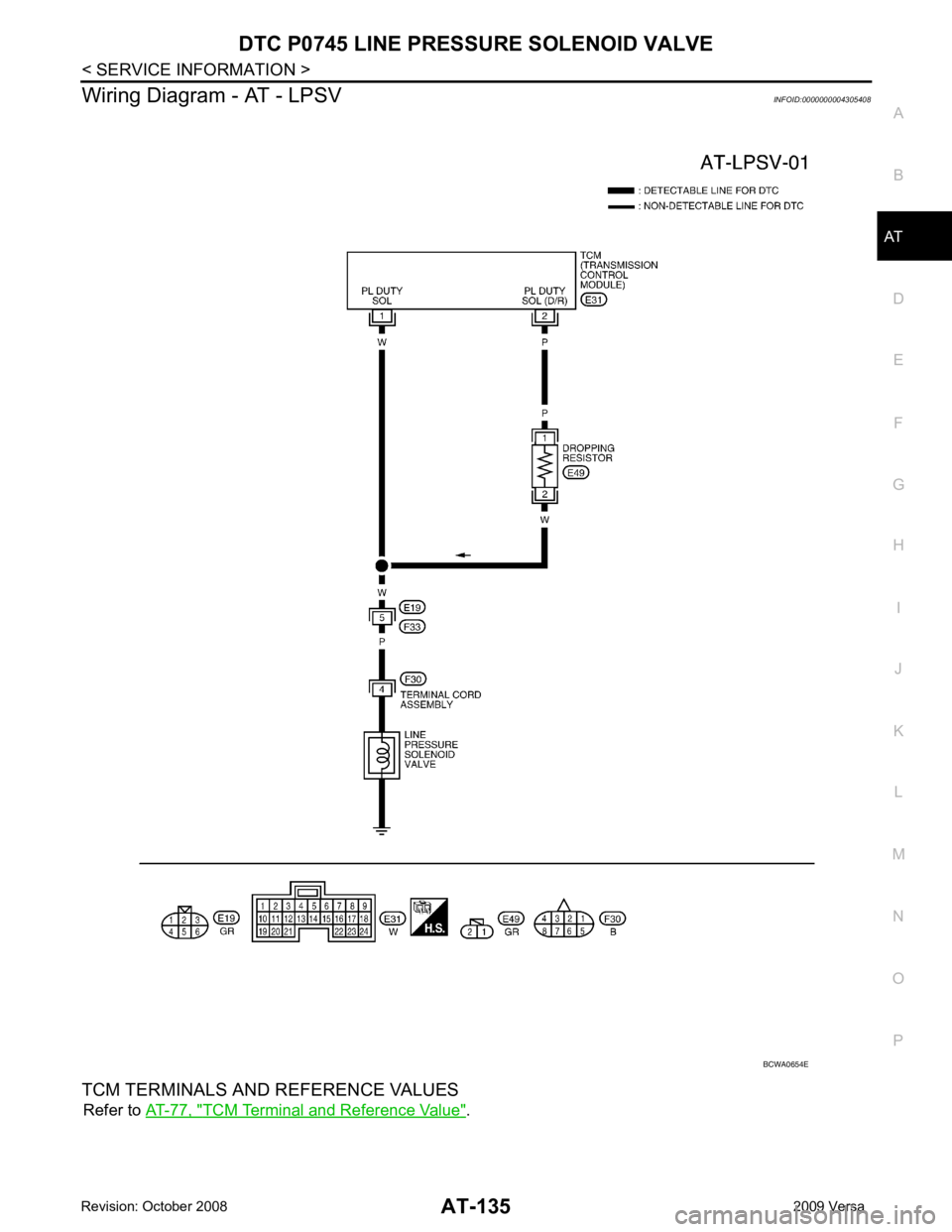

Wiring Diagram - AT - LPSV
INFOID:0000000004305408
TCM TERMINALS AND REFERENCE VALUES Refer to AT-77, " TCM Terminal and Reference Value " .
Page 141 of 4331

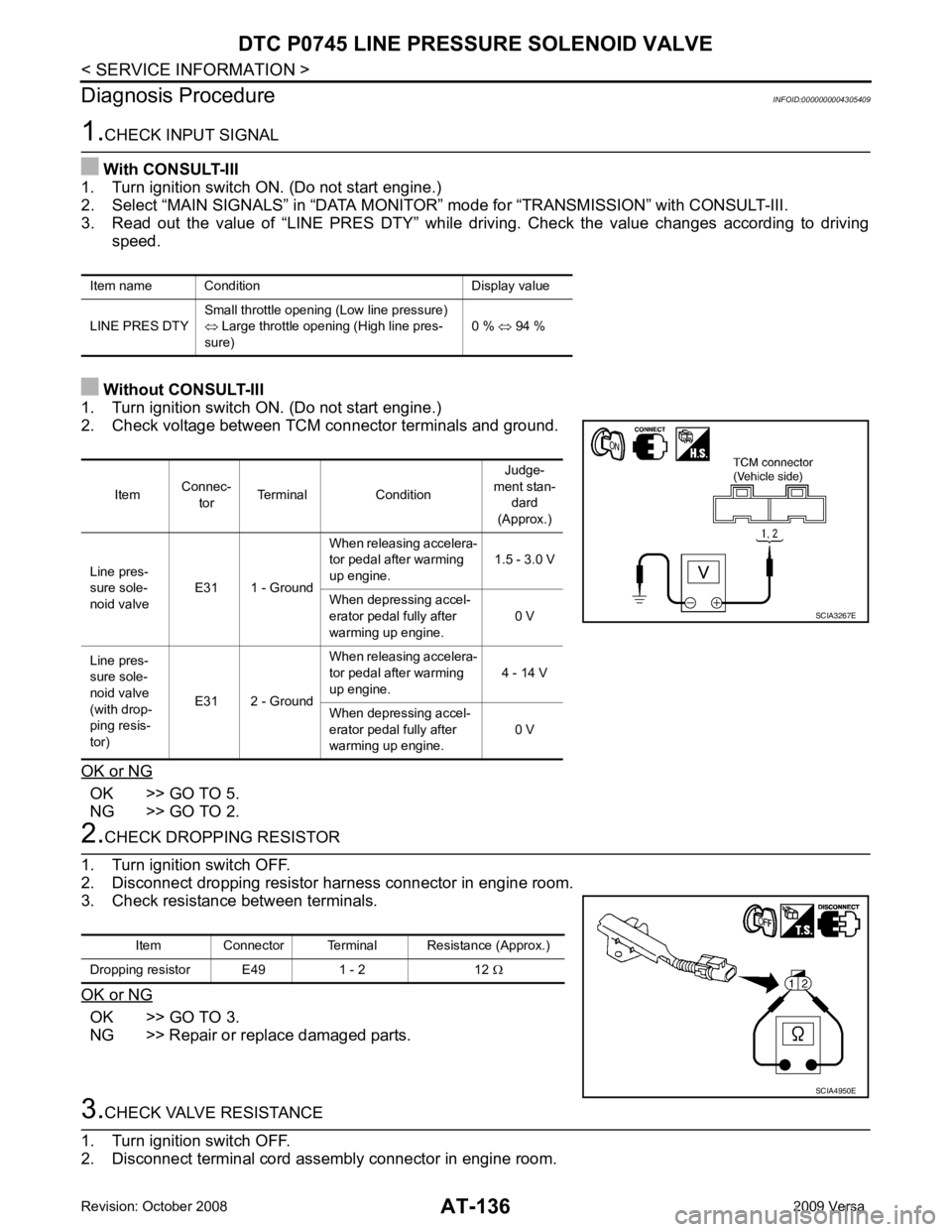

OK >> GO TO 5.
NG >> GO TO 2. OK >> GO TO 3.
NG >> Repair or replace damaged parts. Item
Connec-
tor Terminal Condition Judge-
ment stan- dard
(Approx.)
Line pres-
sure sole-
noid valve E31 1 - Ground When releasing accelera-
tor pedal after warming
up engine. 1.5 - 3.0 V
When depressing accel-
erator pedal fully after
warming up engine. 0 V
Line pres-
sure sole-
noid valve
(with drop-
ping resis-
tor) E31 2 - Ground When releasing accelera-
tor pedal after warming
up engine. 4 - 14 V
When depressing accel-
erator pedal fully after
warming up engine. 0 V
Page 142 of 4331
AT
N
O P
3. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG OK >> GO TO 4.
NG >> Repair or replace damaged parts. OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
Solenoid valve Connector Terminal Resistance (Approx.)
Line pressure solenoid
valve F30 4 - Ground 2.5 - 5.0
Ω
Page 143 of 4331
AT-138< SERVICE INFORMATION >
DTC P0745 LINE PRESS
URE SOLENOID VALVE
NG >> GO TO 6. 6.
CHECK TCM
1. Check TCM input/output signal. Refer to AT-77, " TCM Terminal and Reference Value " .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> Repair or replace damaged parts.
Component Inspection INFOID:0000000004305410
LINE PRESSURE SOLENOID VALVE
• For removal, refer to AT-221, " Control Valve Assembly and Accumulators " .
Resistance Check
• Check resistance between terminal and ground.
Operation Check
• Check solenoid valve by listening for its operating sound while applying battery voltage to the terminal and ground.
DROPPING RESISTOR
• Check resistance between terminals. Solenoid valve Connector Terminal Resistance (Approx.)
Line pressure solenoid
valve F30 4 - Ground 2.5 - 5
Ω SCIA3457E
SCIA3275E
Item Connector Terminal Resistance (Approx.)
Dropping resistor E49 1 - 2 12 Ω SCIA4950E
Page 144 of 4331

AT
N
O P
DTC P0750 SHIFT SOLENOID VALVE A
Description INFOID:0000000004305411
Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP
switch, vehicle speed and ECM (throttle opening). G ears will then be shifted to the optimum position.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004305412
On Board Diagnosis Logic INFOID:0000000004305413
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0750 SHIFT SOLENOID/V A” with CONSULT-III or 4th judgement flicker without
CONSULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid
valve.
Possible Cause INFOID:0000000004305414
• Harness or connector (The solenoid circuit is open or shorted.)
• Shift solenoid valve A
DTC Confirmation Procedure INFOID:0000000004305415
CAUTION:
• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Start engine.
4. Drive vehicle in “D” position and allow the transaxle to shift 1 → 2 (“GEAR”).
5. If the check result is NG, go to AT-141, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”.
WITHOUT CONSULT-III
1. Start engine.
2. Drive vehicle in D 1→ D 2 position.
3. Perform self-diagnosis. Refer to AT-83, " Diagnosis Procedure without CONSULT-III " .
4. If the check result is NG, go to AT-141, " Diagnosis Procedure " .
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open) Item name Condition Display value
SHIFT S/V A When shift solenoid valve A operates.
(When driving in “D 1 ” or “D 4 ”.) ON
When shift solenoid valve A does not operate.
(When driving in “D 2 ” or “D 3 ”.) OFF
