NISSAN LATIO 2009 Service Repair Manual DTC P0182, P0183 FTT SENSOR
EC-757
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O

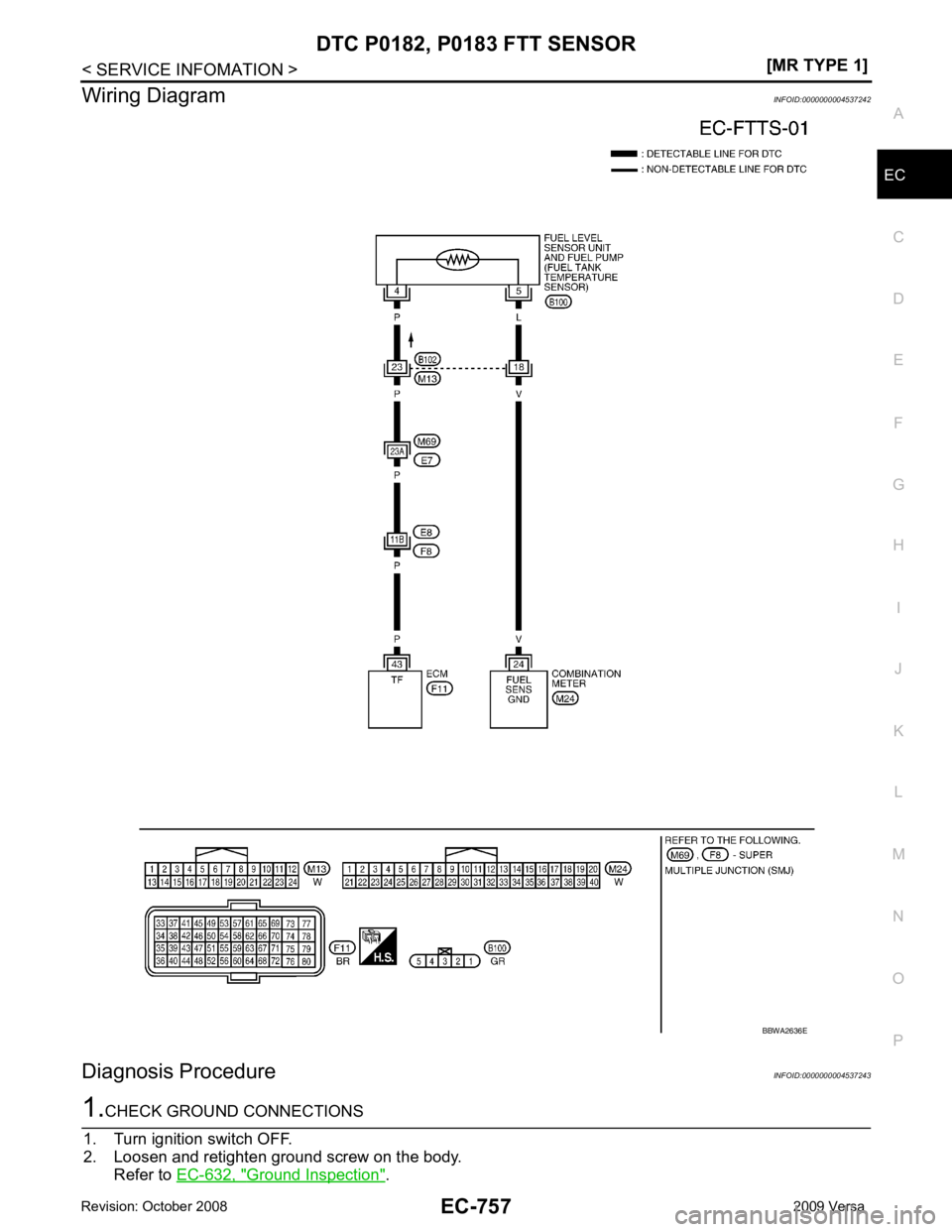

Wiring Diagram
INFOID:0000000004537242
Diagnosis Procedure INFOID:00000000045372431.
CHECK GROUND

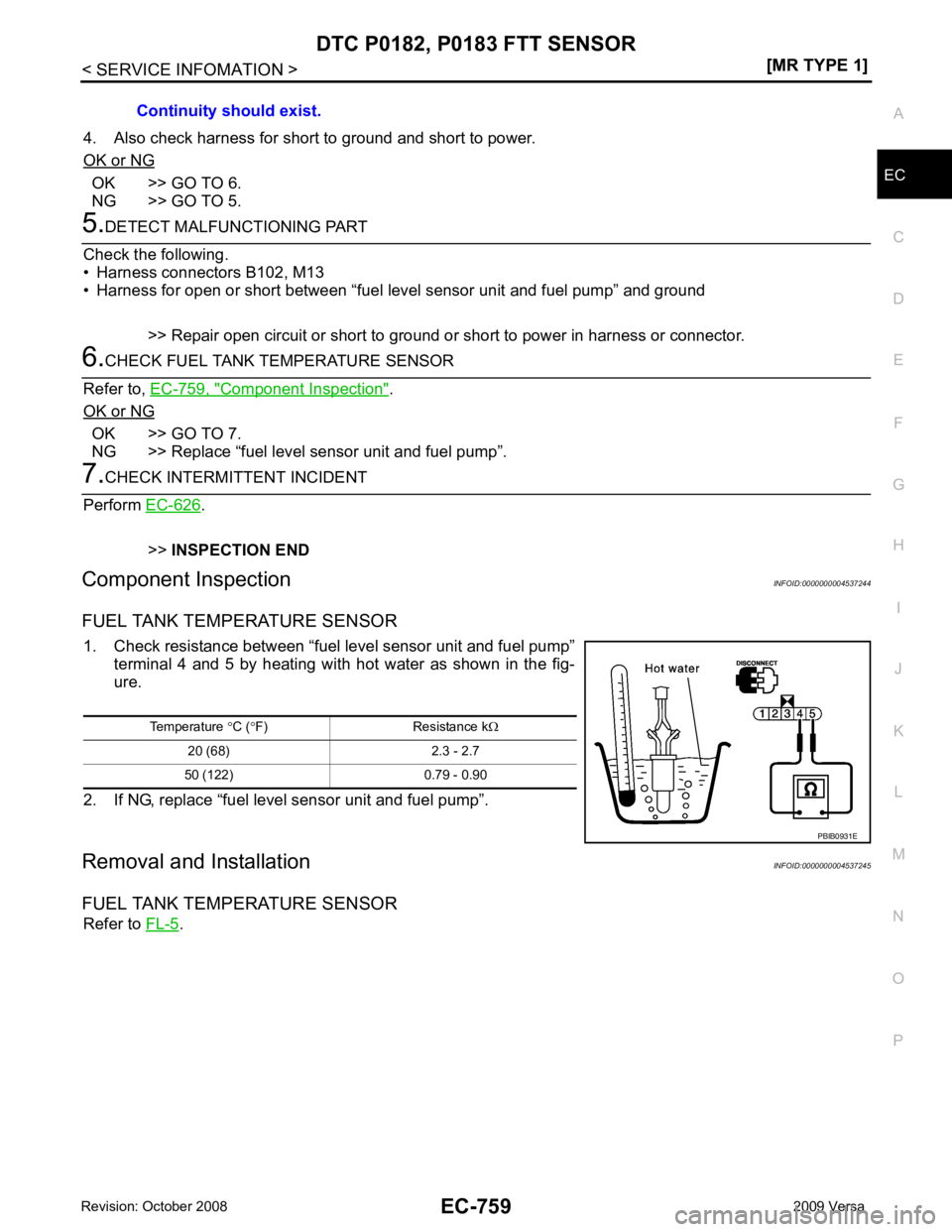

Page 2114 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-758< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0182, P0183 FTT SENSOR
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. D

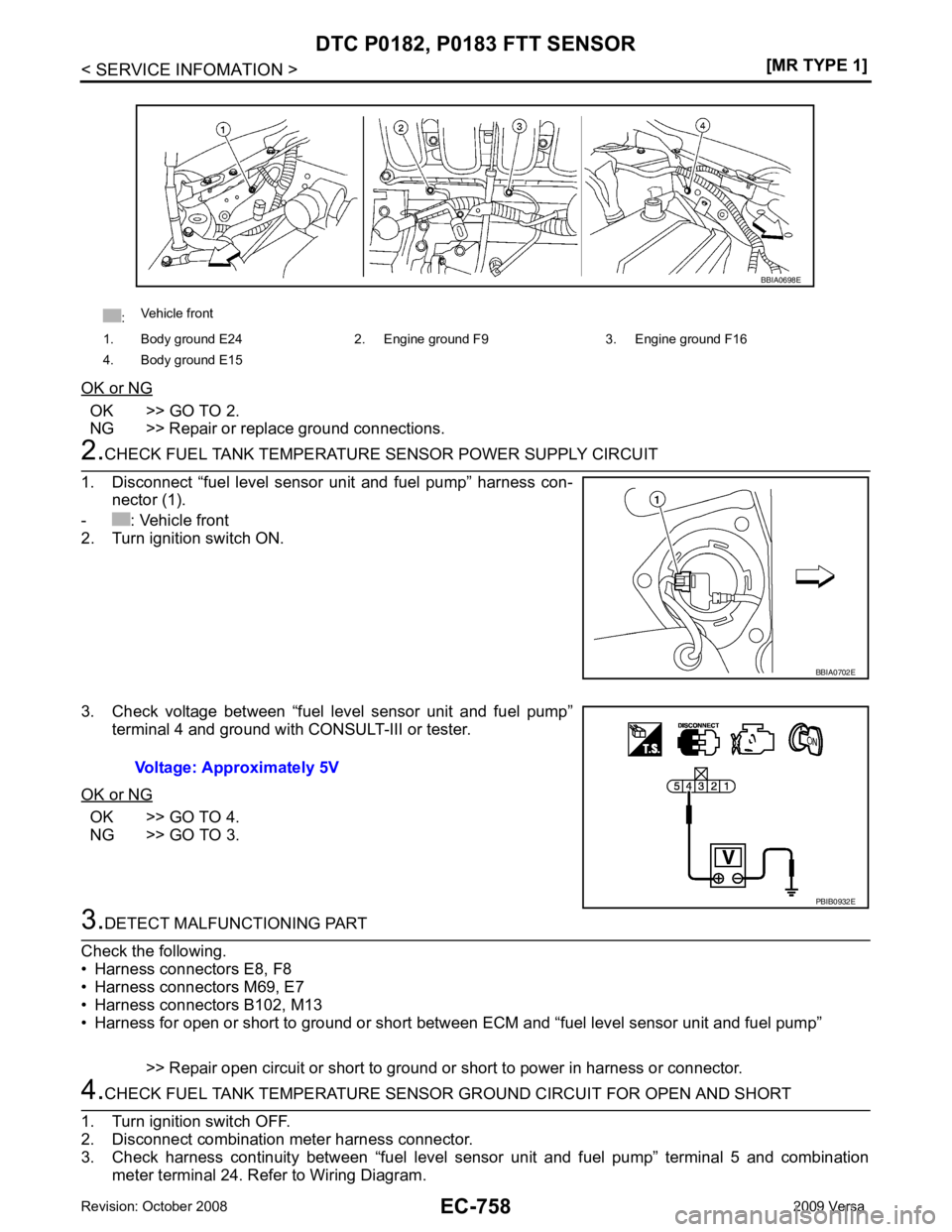

Page 2115 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0182, P0183 FTT SENSOR
EC-759
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 6.
NG >> GO TO

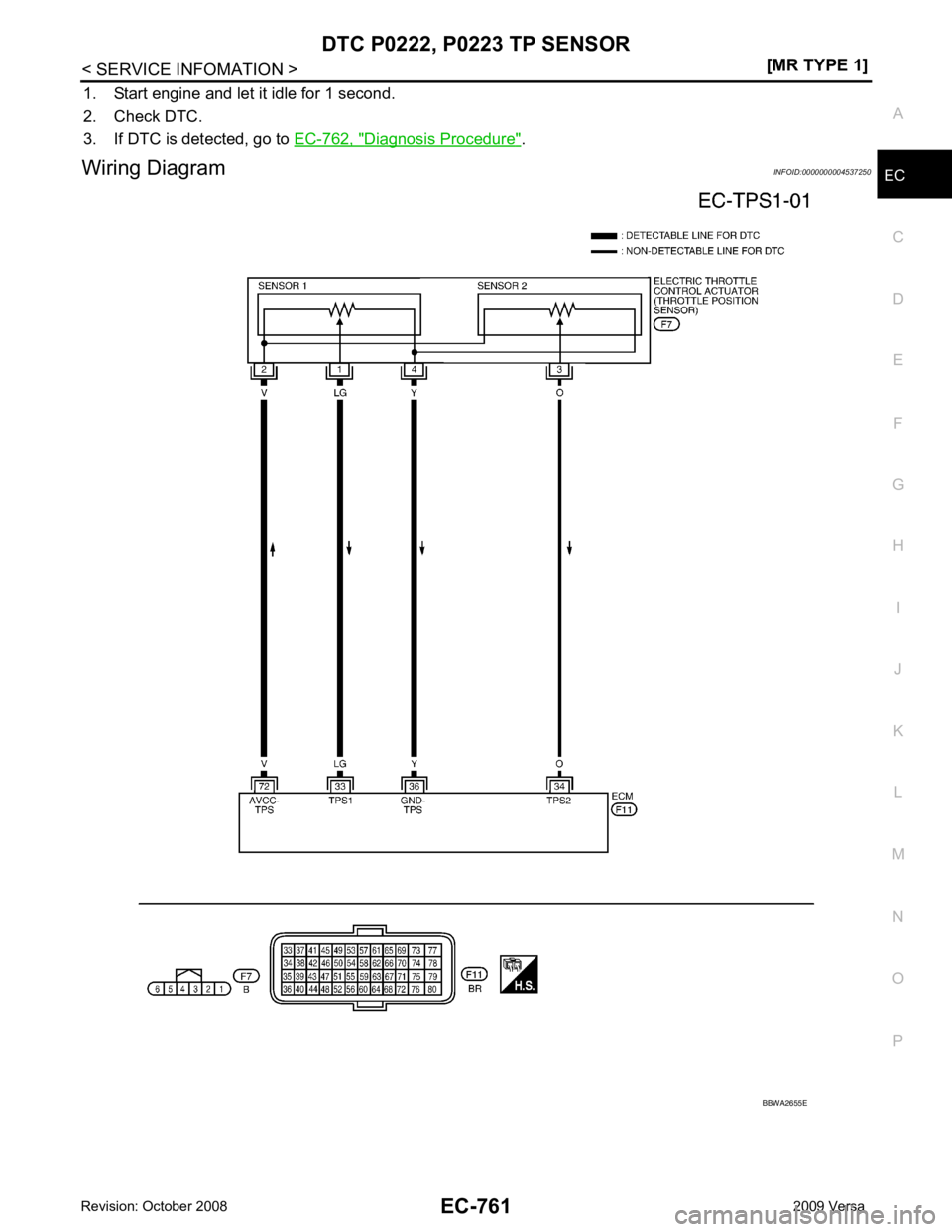

Page 2116 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-760< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0222, P0223 TP SENSOR
DTC P0222, P0223 TP SENSOR
Component Description INFOID:0000000004537246
Electric throttle control actuator consists of thrott

EC-760< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0222, P0223 TP SENSOR
DTC P0222, P0223 TP SENSOR
Component Description INFOID:0000000004537246
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004537247
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis Logic INFOID:0000000004537248
These self-diagnoses have the one trip detection logic.
NOTE:
If DTC P0222 or P0223 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to EC-874 .
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation Procedure INFOID:0000000004537249
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle. PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1* • Ignition switch: ON
(Engine stopped) Accelerator pedal: Fully released More than 0.36V
• Shift lever: D (A/T, CVT), 1st (M/T) Accelerator pedal: Fully depressed Less than 4.75VDTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0222
0222 Throttle position sensor
1 circuit low input An excessively low voltage from the TP sensor
1 is sent to ECM. • Harness or connectors
(TP sensor 1 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
• Electric throttle control actuator (TP sensor 1)
• Accelerator pedal position sensor
(APP sensor 2)
P0223
0223 Throttle position sensor
1 circuit high input An excessively high voltage from the TP sensor
1 is sent to ECM. Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 2117 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0222, P
0223 TP SENSOR
EC-761
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-762,

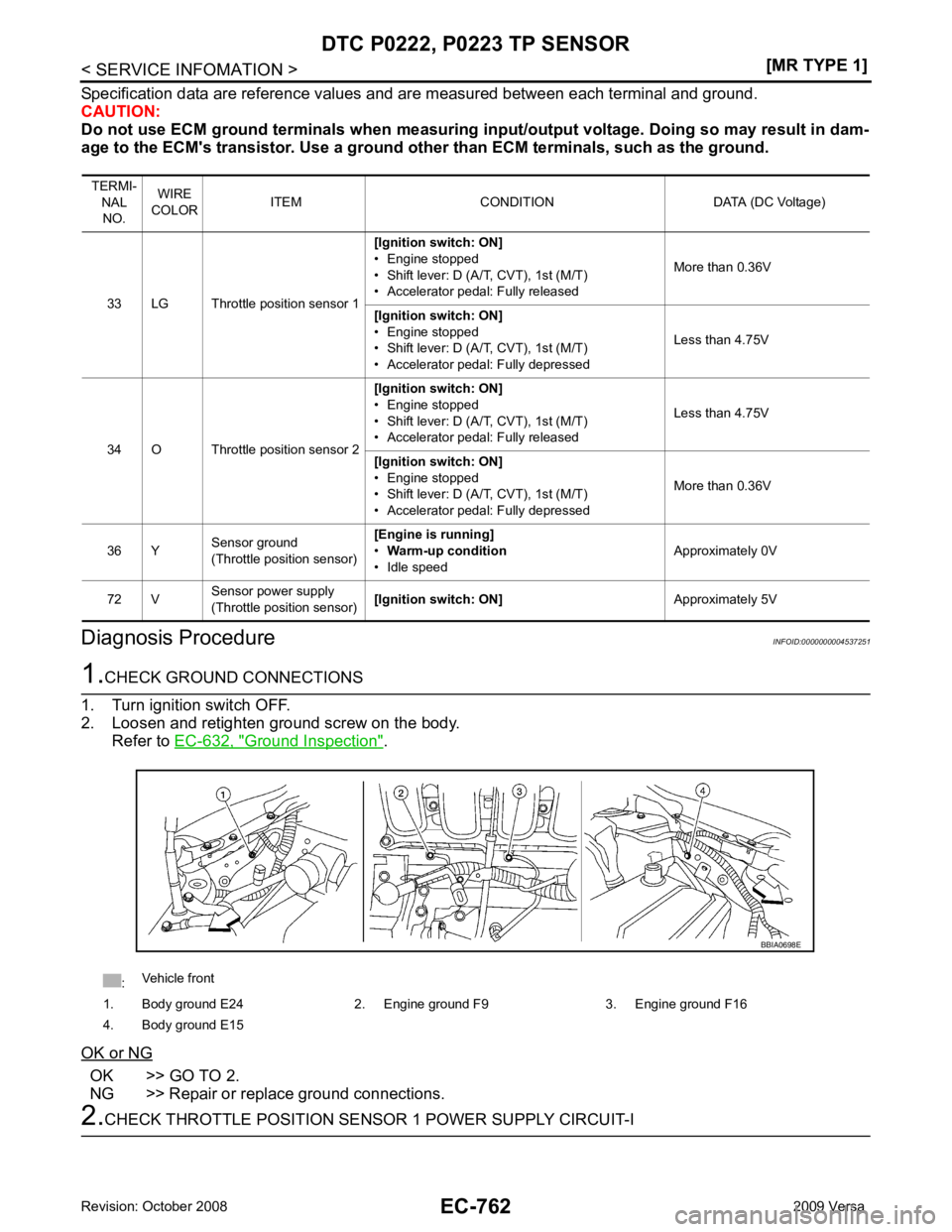

Page 2118 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-762< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0222, P0223 TP SENSOR
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals

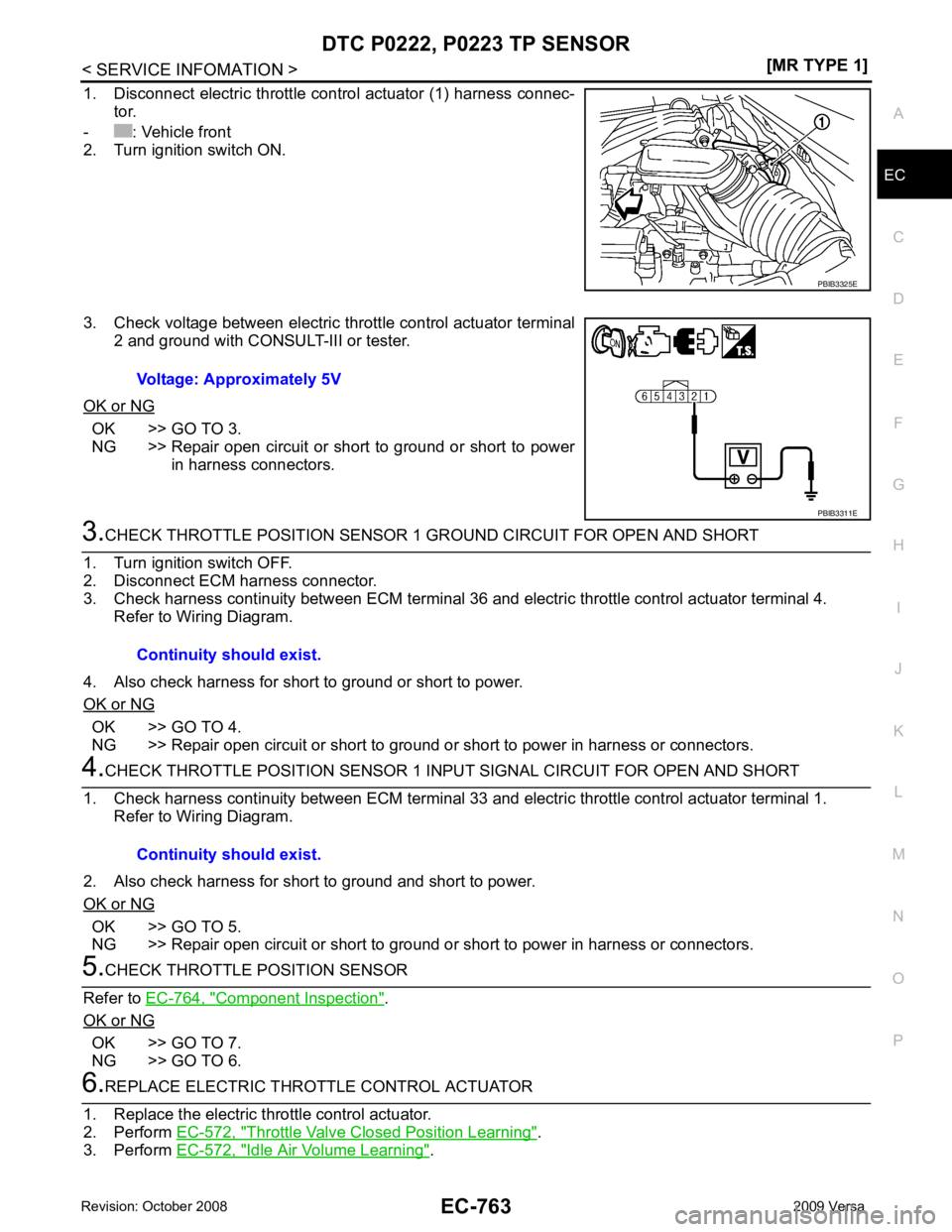

Page 2119 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0222, P
0223 TP SENSOR
EC-763
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
1. Disconnect electric throttle c
ontrol actuator (1) harness connec-
tor.
- : Vehicle front
2. Tu

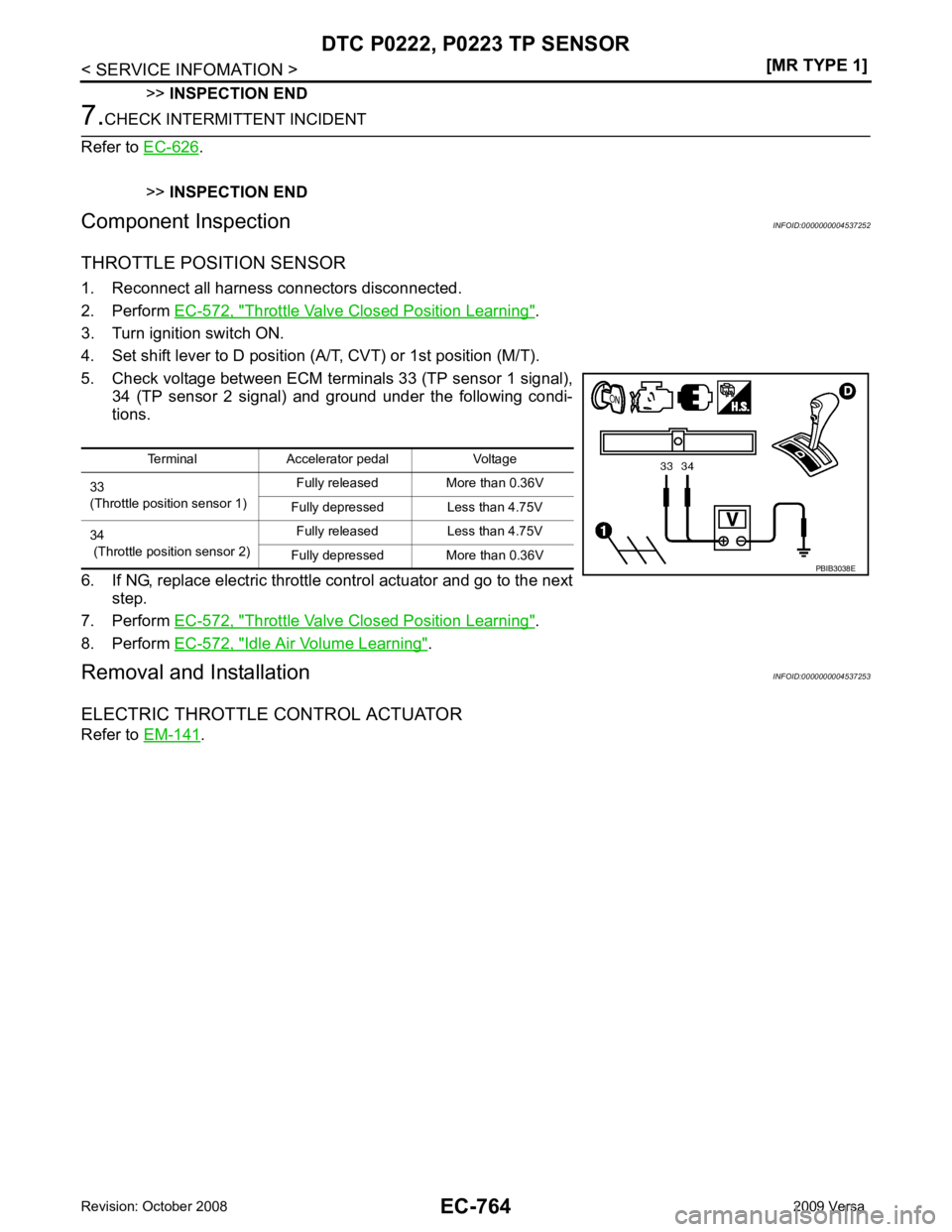

Page 2120 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-764< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0222, P0223 TP SENSOR
>> INSPECTION END 7.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
>> INSPECTION END
Component Inspection INFOID:0000000004537252
T
