NISSAN LATIO 2009 Service Repair Manual DTC P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
EC-1333
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Do not use ECM ground terminals wh
en measuring input/ou

Page 2690 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1334< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0444, P0445 EVAP CANISTER
PURGE VOLUME CONTROL SOLENOID
VALVE
4. Check voltage between EVAP canister purge volume control solenoid valve termi

Page 2691 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0444, P0445 EVAP CANISTER P
URGE VOLUME CONTROL SOLENOID
VALVE
EC-1335
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
With CONSULT-III
Check air passage continuity of EV AP

Page 2692 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1336< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004500194
The EVAP canister vent

EC-1336< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Component Description INFOID:0000000004500194
The EVAP canister vent control valve (3) is located on the EVAP
canister (2) and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
control system diagnoses.
• EVAP control system pressure sensor (1)
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004500195
Specification data are reference values.
On Board Diagn osis Logic INFOID:0000000004500196
DTC Confirmation Procedure INFOID:0000000004500197
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, conf irm battery voltage is more than 11V at idle.
1. Start engine and wait at least 8 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-1338, " Diagnosis Procedure " . PBIB3642E
BBIA0693E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V • Ignition switch: ON OFF DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0447
0447 EVAP canister vent con-
trol valve circuit open An improper voltage signal is sent to ECM
through EVAP canister vent control valve. • Harness or connectors
(EVAP canister vent control valve circuit
is open or shorted.)
• EVAP canister vent control valve
• Drain filter

Page 2693 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O

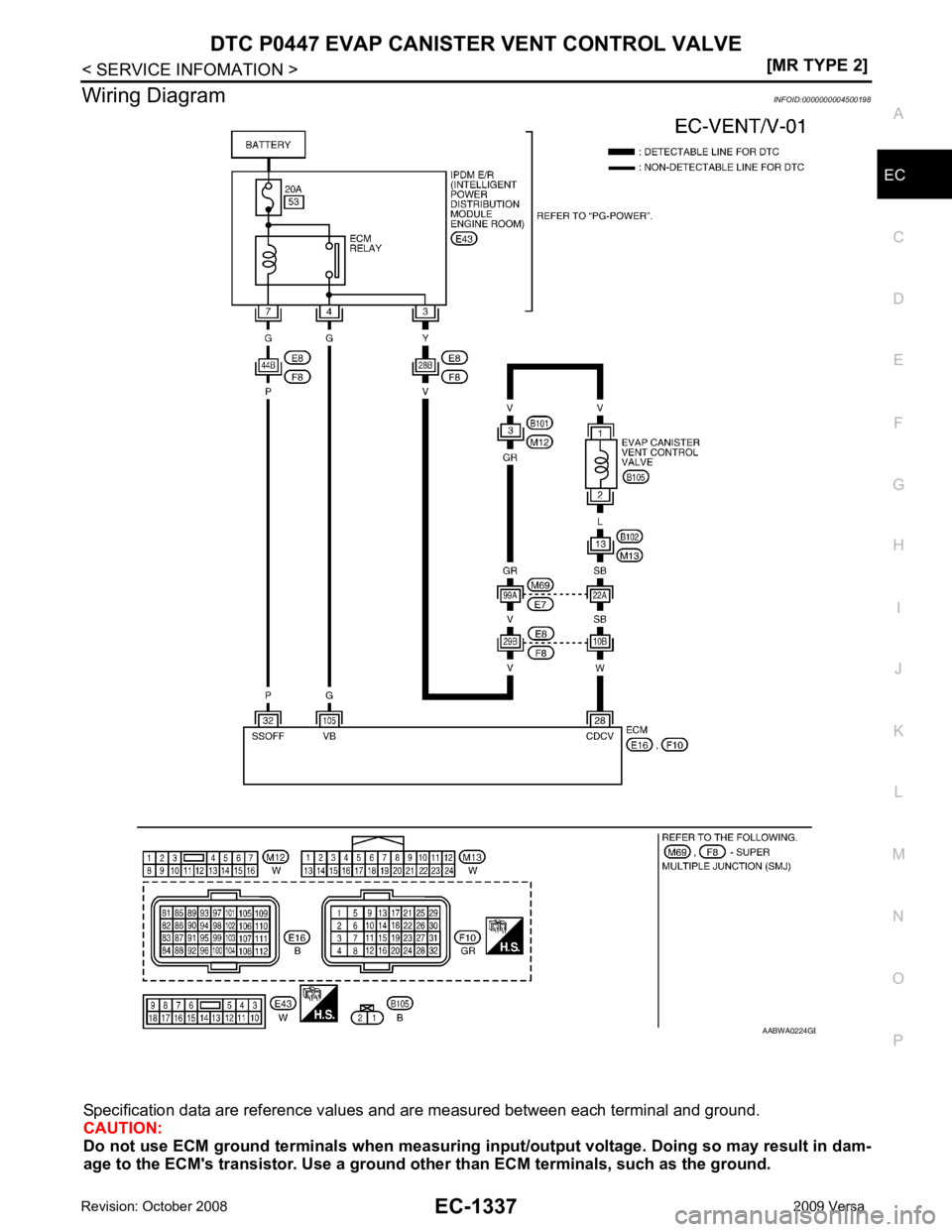

Wiring Diagram
INFOID:0000000004500198
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring inpu

Page 2694 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1338< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Diagnosis Procedure INFOID:00000000045001991.
INSPECTION START
1. Do you have CONSULT-III?
Yes or No Yes >> GO T

Page 2695 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
EC-1339
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
4. Check voltage between EVAP canister vent control valve termi-
nal 1 and ground

Page 2696 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1340< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
OK or NG OK >> GO TO 10.
NG >> Replace EVAP canister vent control valve. 10.
CHECK INTERMITTENT INCIDENT
Refer to
