Page 4177 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4178 of 4331

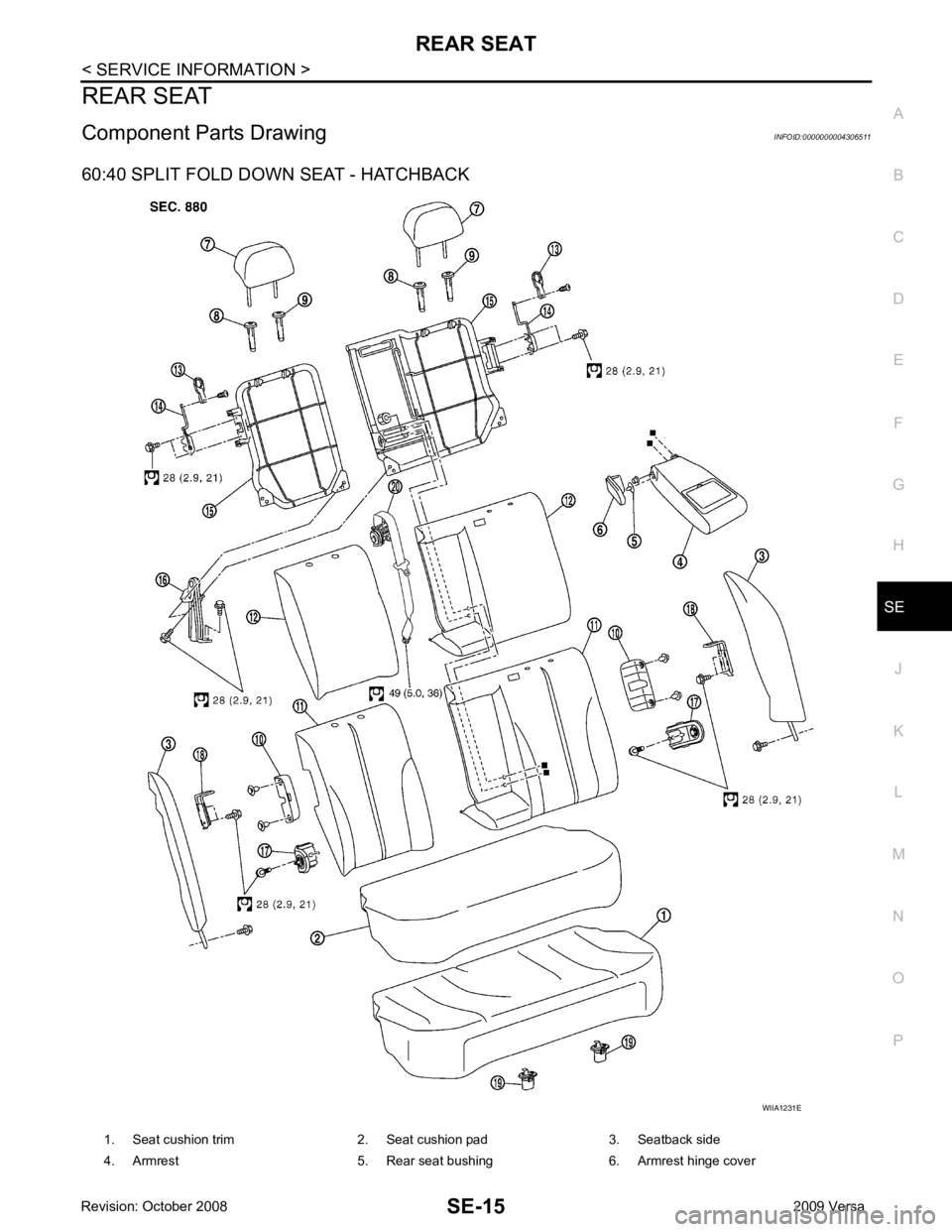

NISSAN LATIO 2009 Service Repair Manual SE N O P REAR SEAT Component Parts Drawing INFOID:0000000004306511 60:40 SPLIT FOLD DOWN SEAT - HATCHBACK

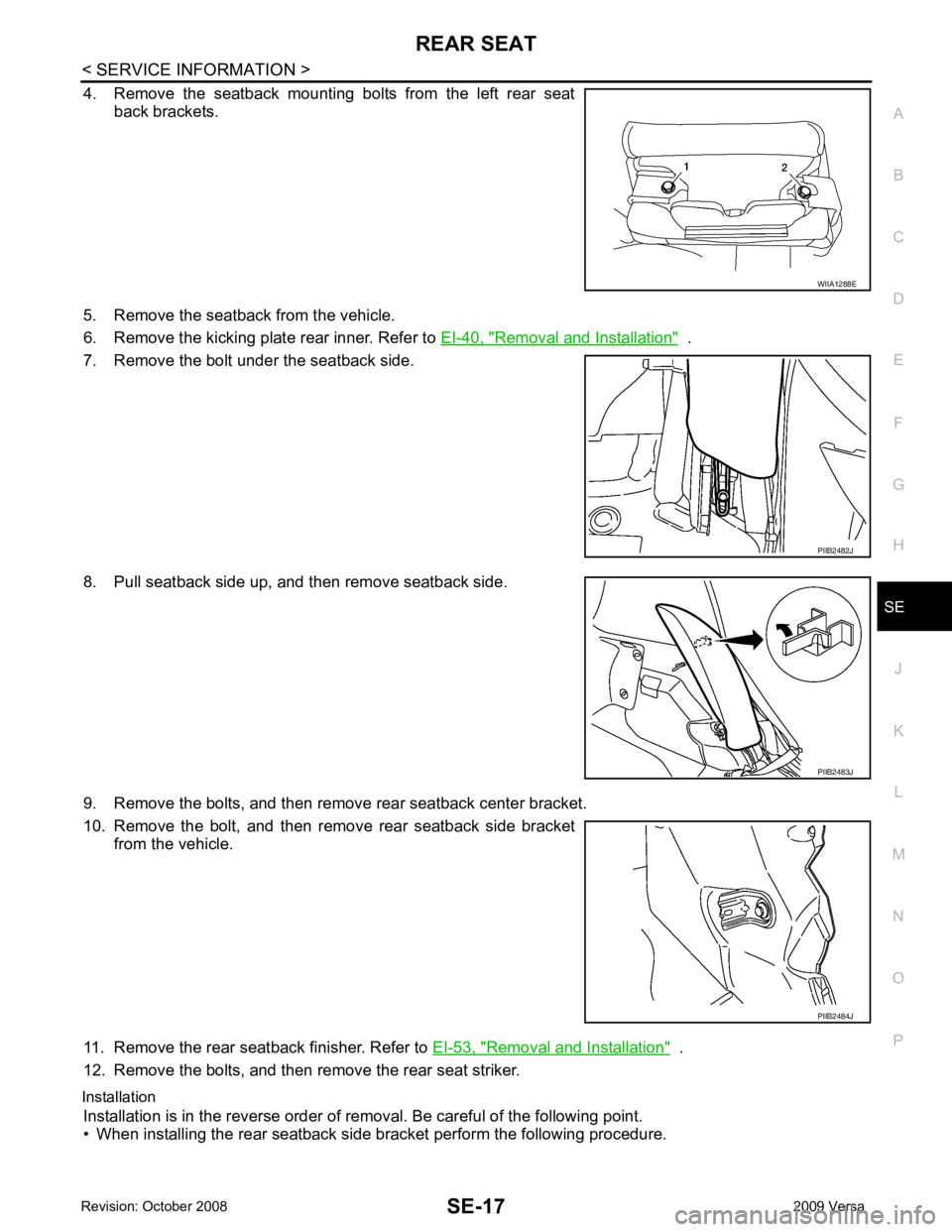

Page 4179 of 4331

NISSAN LATIO 2009 Service Repair Manual WIIA1287E

Page 4180 of 4331

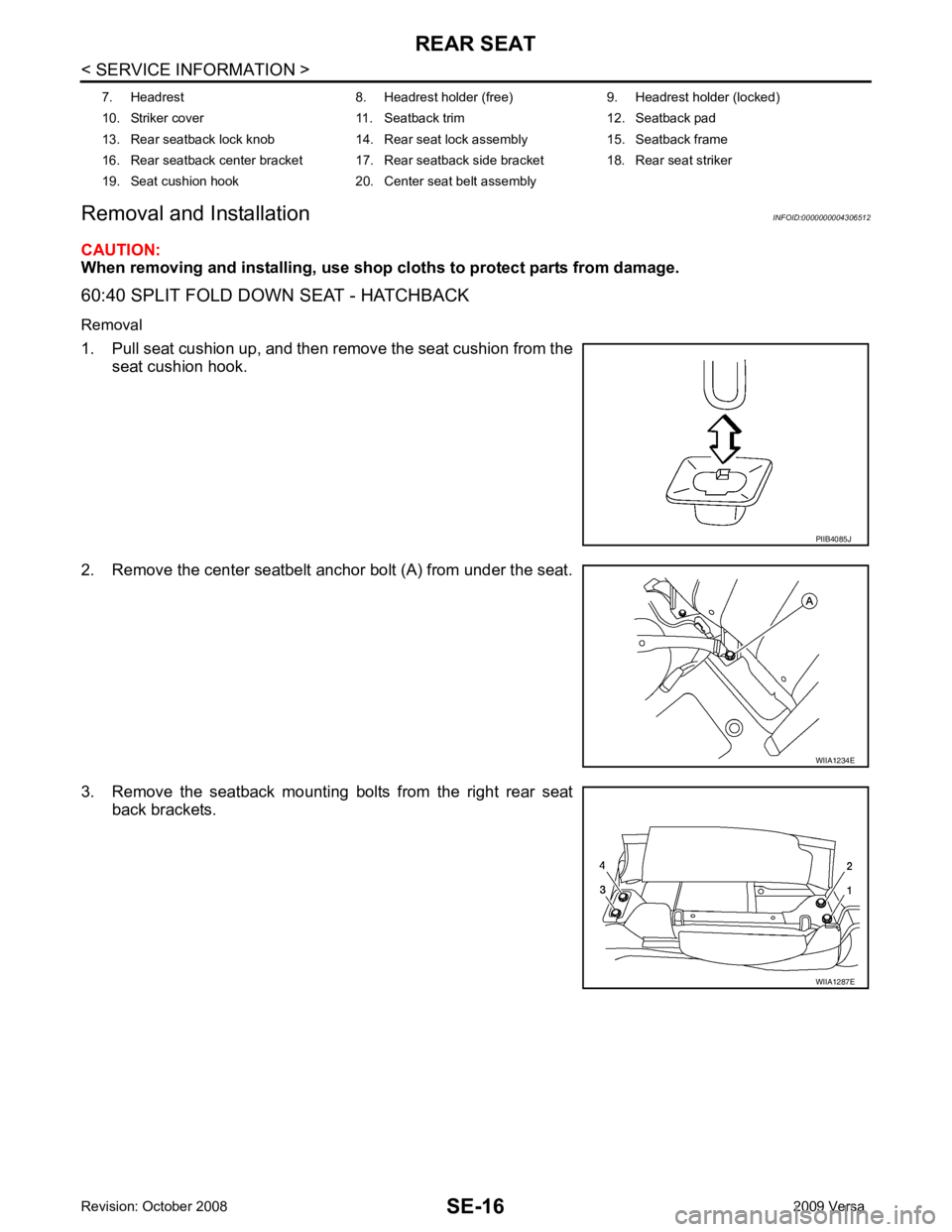

NISSAN LATIO 2009 Service Repair Manual SE N O P 4. Remove the seatback mounting bolts from the left rear seat back brackets. 5. Remove the seatback from the vehicle. 6. Remove the kicking plate rear inner. Refer to EI-40, " Remov

Page 4181 of 4331

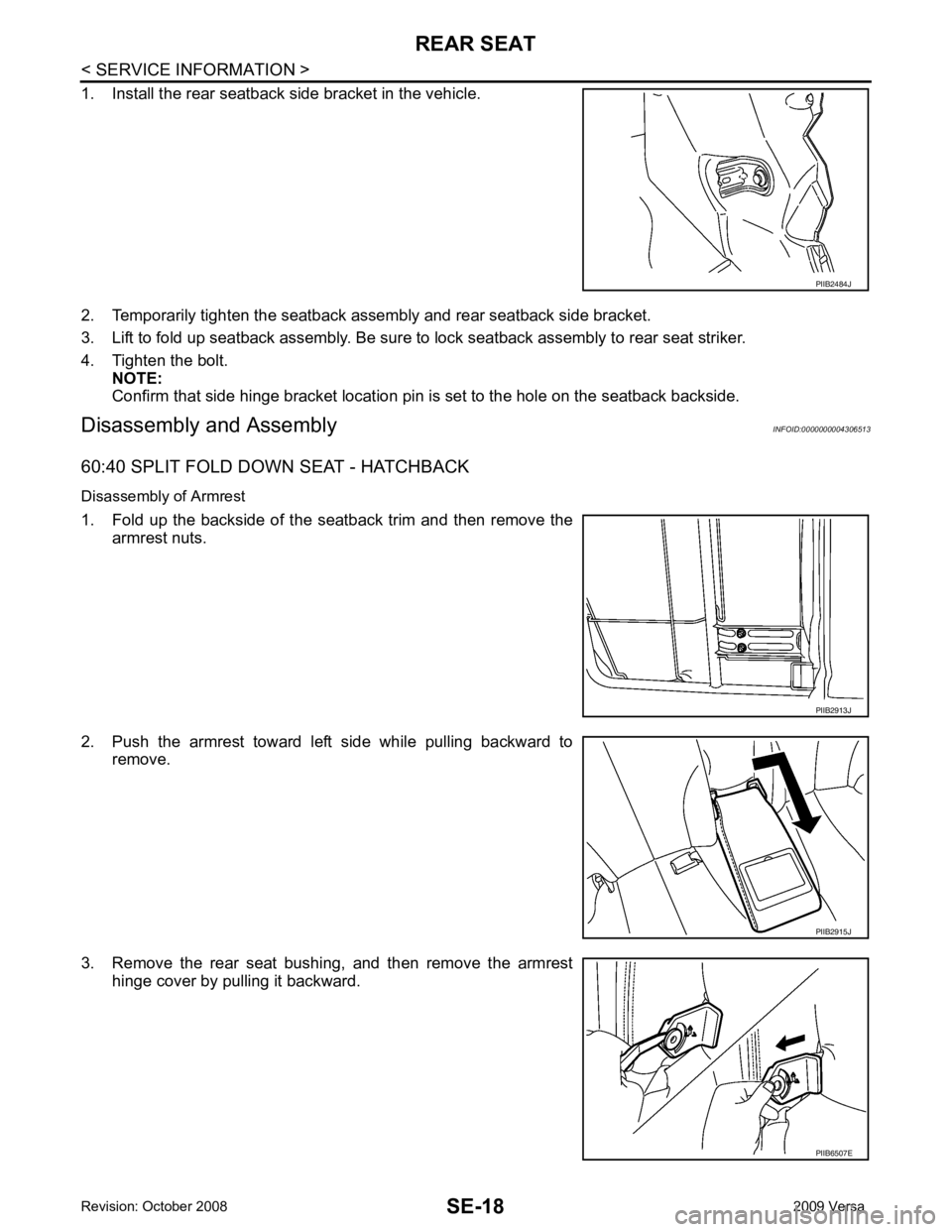

NISSAN LATIO 2009 Service Repair Manual PIIB2913J PIIB6507E

Page 4182 of 4331

NISSAN LATIO 2009 Service Repair Manual SE N O P Assembly of Armrest Assembly is in the reverse order of disassembly. Disassembly of Seatback Trim and Pad 1. Remove the headrest. 2. Remove the retainer under the back of seatback. 3. Remove

Page 4183 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 4184 of 4331

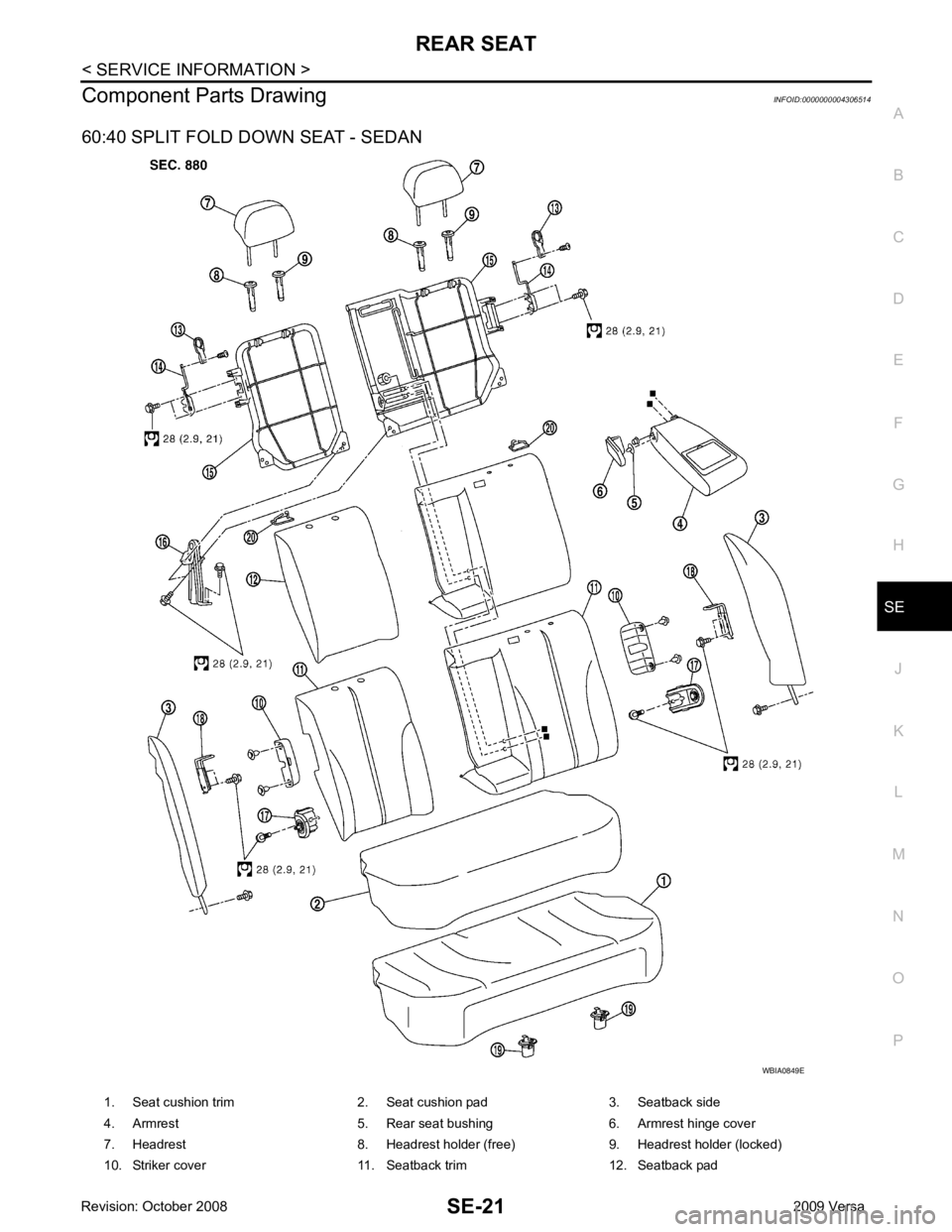

NISSAN LATIO 2009 Service Repair Manual SE N O P Component Parts Drawing INFOID:0000000004306514 60:40 SPLIT FOLD DOWN SEAT - SEDAN
Load next 8 pages
