Page 2849 of 4331
EC
NP
O
• Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors. OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Component Inspection " .
OK or NG OK >> GO TO 10.
NG >> GO TO 11. .
OK or NG OK >> GO TO 11.
NG >> Repair or replace. OK >>
INSPECTION END
NG >> GO TO 13.
Page 2850 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1494< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2A00 A/F SENSOR 1
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON NISSAN LATIO 2009 Service Repair Manual EC-1494< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2A00 A/F SENSOR 1
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CON](/manual-img/5/57359/w960_57359-2849.png)
EC-1494< SERVICE INFOMATION >
[MR TYPE 2]
DTC P2A00 A/F SENSOR 1
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.
3. Clear the self-learning control coefficient by touching “CLEAR”.
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness (1) connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness con- nector.
6. Make sure DTC P0102 is displayed.
7. Erase the DTC memory. Refer to EC-1052, " Emission-related
Diagnostic Information " .
8. Make sure DTC P0000 is displayed.
>> GO TO 14. 14.
CONFIRM A/F ADJUSTMENT DATA
1. Turn ignition switch OFF and then ON.
2. Select “A/F ADJ-B1” in “DAT A MONITOR” mode with CONSULT-III.
3. Make sure that “0.000” is displayed on CONSULT-III screen.
>>INSPECTION END
Removal and Installation INFOID:0000000004501228
AIR FUEL RATIO SENSOR HEATER
Refer to EM-144, " Removal and Installation " . BBIA0701E
Page 2851 of 4331
ASCD BRAKE SWITCH
EC-1495
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
ASCD BRAKE SWITCH
Component Description INFOID:0000000004500398
When depress on the brake pedal, ASCD brake switch (2) is turned
OFF and stop lamp switch (1) is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal)
Refer to EC-1033 for the ASCD function.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004500399
Specification data are reference values. BBIA0708E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch) • Ignition switch: ON• Brake pedal: Fully released (A/T, CVT)
• Brake pedal and clutch pedal: Fully released (M/T) ON
• Brake pedal: Slightly depressed (A/T, CVT)
• Brake pedal and/or clutch pedal: Slightly de- pressed (M/T) OFF
BRAKE SW2
(Stop lamp switch) • Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
Page 2852 of 4331
EC-1496< SERVICE INFOMATION >
[MR TYPE 2]
ASCD BRAKE SWITCH

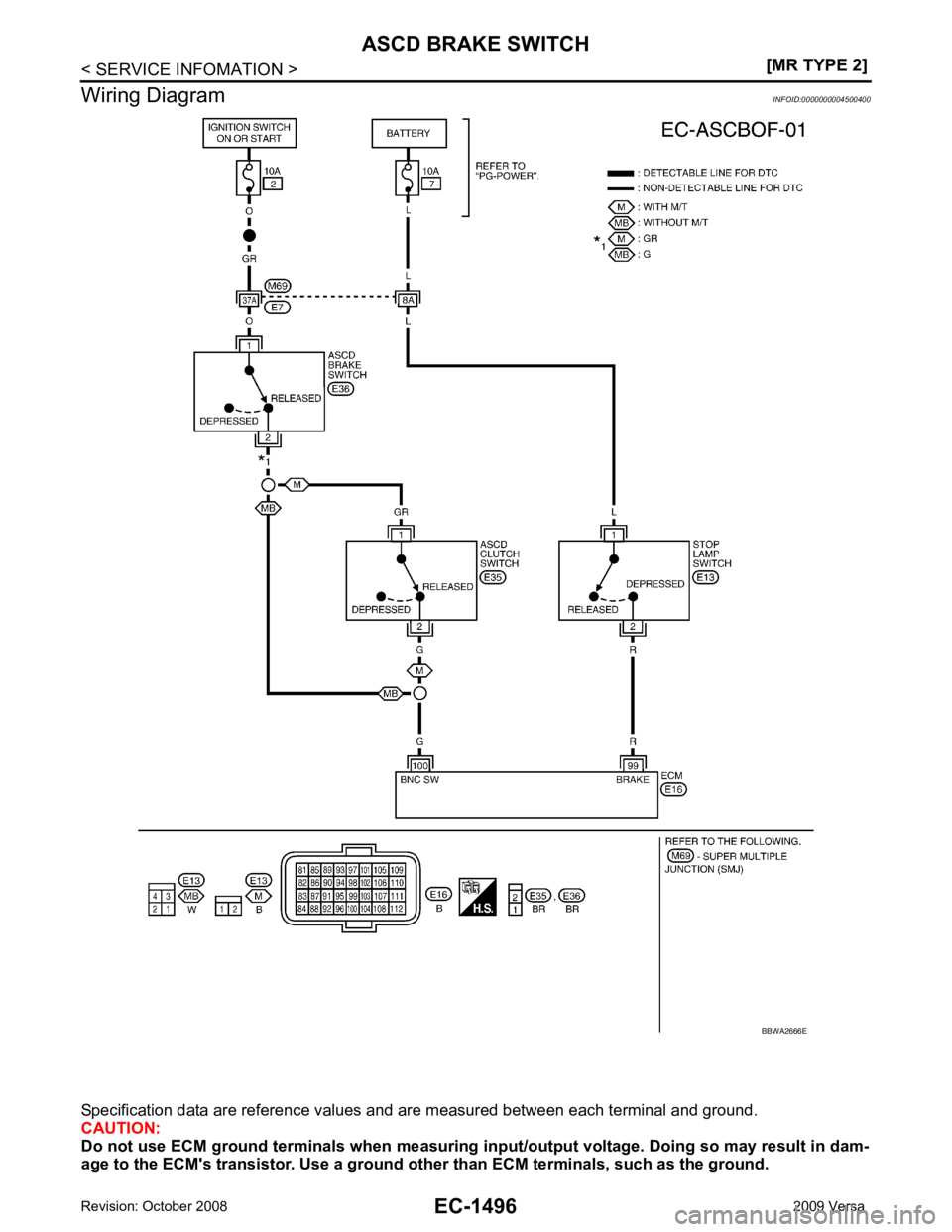

Wiring Diagram INFOID:0000000004500400
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground. BBWA2666E
Page 2853 of 4331
![NISSAN LATIO 2009 Service Repair Manual ASCD BRAKE SWITCH
EC-1497
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045004011.
CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition s NISSAN LATIO 2009 Service Repair Manual ASCD BRAKE SWITCH
EC-1497
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045004011.
CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition s](/manual-img/5/57359/w960_57359-2852.png)

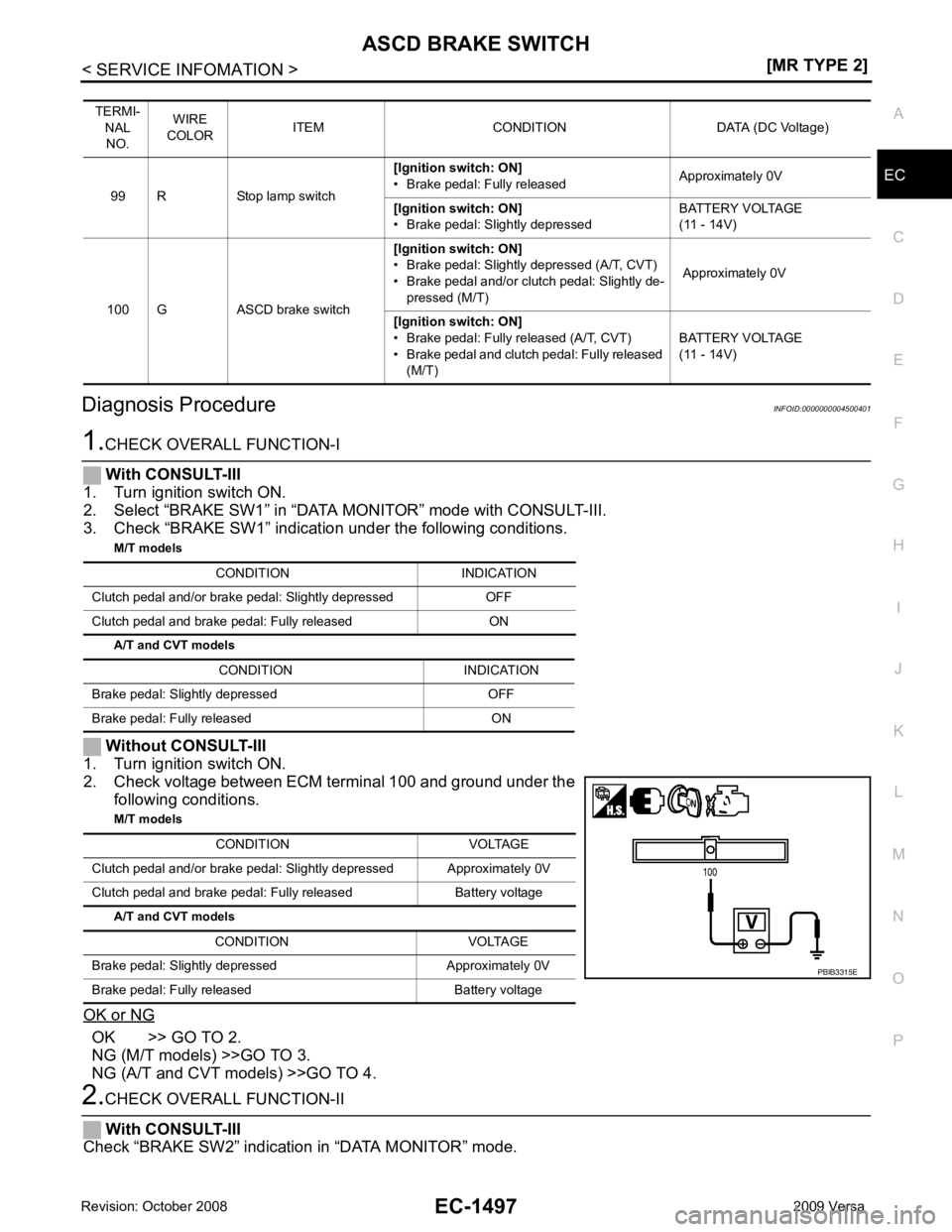

ASCD BRAKE SWITCH
EC-1497
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045004011.
CHECK OVERALL FUNCTION-I
With CONSULT-III
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-III.
3. Check “BRAKE SW1” indication under the following conditions.
M/T models
A/T and CVT models
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 100 and ground under the
following conditions.
M/T models
A/T and CVT models
OK or NG OK >> GO TO 2.
NG (M/T model s) >>GO TO 3.
NG (A/T and CVT models) >>GO TO 4. 2.
CHECK OVERALL FUNCTION-II
With CONSULT-III
Check “BRAKE SW2” indication in “DATA MONITOR” mode. TERMI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
99 R Stop lamp switch [Ignition switch: ON]
• Brake pedal: Fully released Approximately 0V
[Ignition switch: ON]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14V)
100 G ASCD brake switch [Ignition switch: ON]
• Brake pedal: Slightly depressed (A/T, CVT)
• Brake pedal and/or clutch pedal: Slightly de- pressed (M/T) Approximately 0V
[Ignition switch: ON]
• Brake pedal: Fully released (A/T, CVT)
• Brake pedal and clutch pedal: Fully released (M/T) BATTERY VOLTAGE
(11 - 14V) CONDITION INDICATION
Clutch pedal and/or brake pedal: Slightly depressed OFF
Clutch pedal and brake pedal: Fully released ON
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
CONDITION VOLTAGE
Clutch pedal and/or brake pedal: Slightly depressed Approximately 0V
Clutch pedal and brake pedal: Fully released Battery voltage
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage PBIB3315E
Page 2854 of 4331

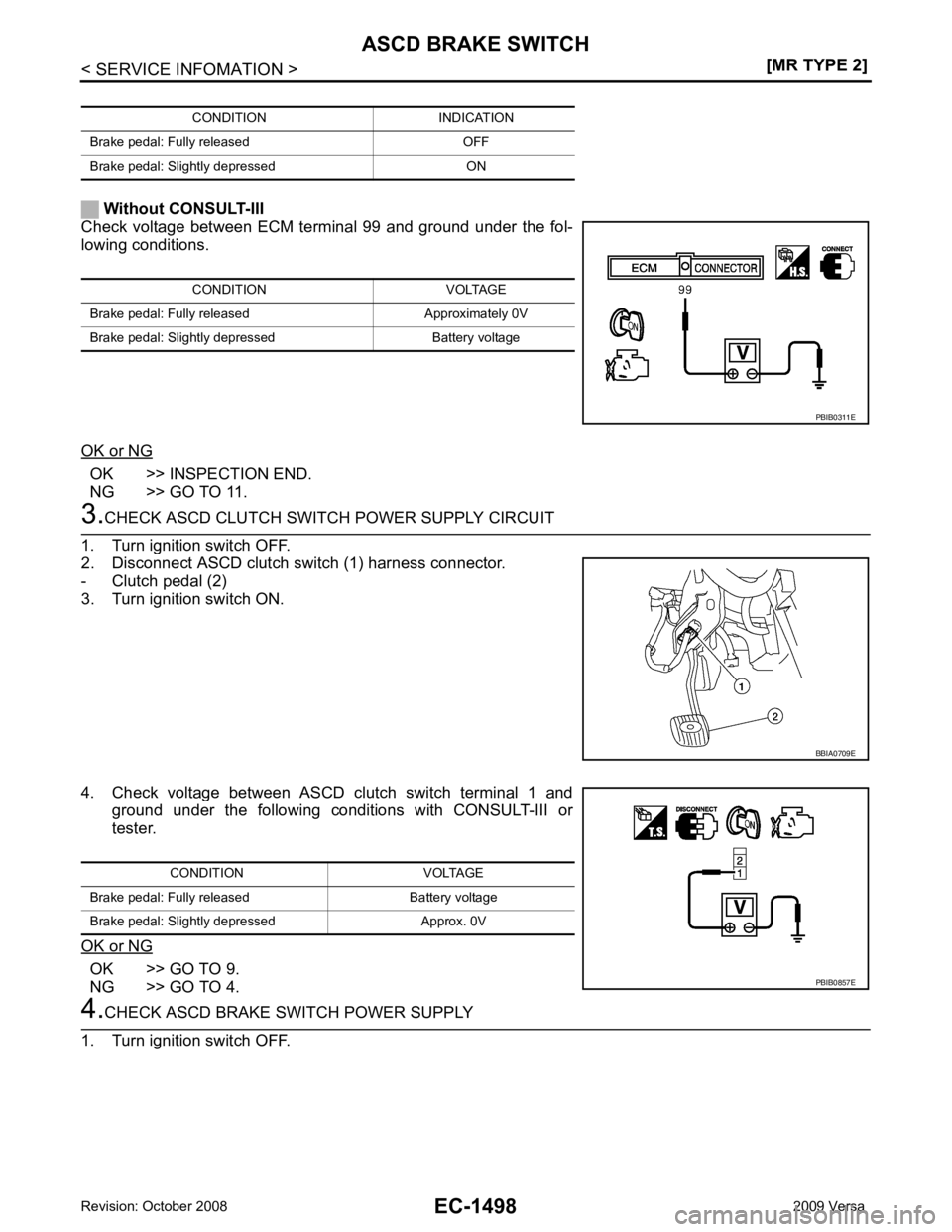

EC-1498< SERVICE INFOMATION >
[MR TYPE 2]
ASCD BRAKE SWITCH
Without CONSULT-III
Check voltage between ECM terminal 99 and ground under the fol-
lowing conditions.
OK or NG OK >> INSPECTION END.
NG >> GO TO 11. 3.
CHECK ASCD CLUTCH SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch (1) harness connector.
- Clutch pedal (2)
3. Turn ignition switch ON.
4. Check voltage between ASCD clutch switch terminal 1 and ground under the following conditions with CONSULT-III or
tester.
OK or NG OK >> GO TO 9.
NG >> GO TO 4. 4.
CHECK ASCD BRAKE SWITCH POWER SUPPLY
1. Turn ignition switch OFF. CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage PBIB0311E
BBIA0709E
CONDITION VOLTAGE
Brake pedal: Fully released Battery voltage
Brake pedal: Slightly depressed Approx. 0V PBIB0857E
Page 2855 of 4331
![NISSAN LATIO 2009 Service Repair Manual ASCD BRAKE SWITCH
EC-1499
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4 NISSAN LATIO 2009 Service Repair Manual ASCD BRAKE SWITCH
EC-1499
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4](/manual-img/5/57359/w960_57359-2854.png)

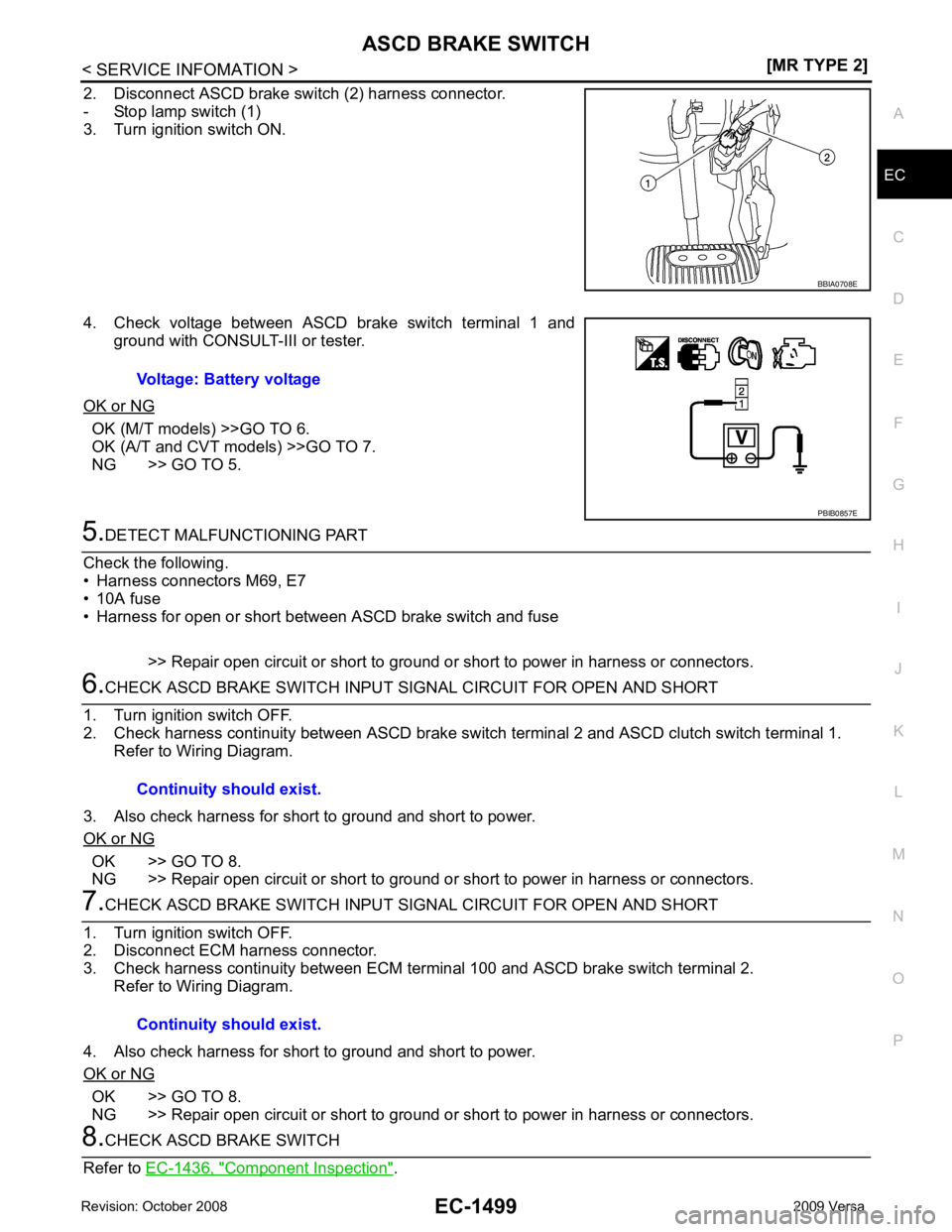

ASCD BRAKE SWITCH
EC-1499
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
2. Disconnect ASCD brake switch (2) harness connector.
- Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK (M/T models) >>GO TO 6.
OK (A/T and CVT models) >>GO TO 7.
NG >> GO TO 5. 5.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse
• Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors. 6.
CHECK ASCD BRAKE SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between ASCD brake switch terminal 2 and ASCD clutch switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 7.
CHECK ASCD BRAKE SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM term inal 100 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 8.
CHECK ASCD BRAKE SWITCH
Refer to EC-1436, " Component Inspection " . BBIA0708E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Continuity should exist.
Page 2856 of 4331
![NISSAN LATIO 2009 Service Repair Manual EC-1500< SERVICE INFOMATION >
[MR TYPE 2]
ASCD BRAKE SWITCH
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignit NISSAN LATIO 2009 Service Repair Manual EC-1500< SERVICE INFOMATION >
[MR TYPE 2]
ASCD BRAKE SWITCH
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignit](/manual-img/5/57359/w960_57359-2855.png)

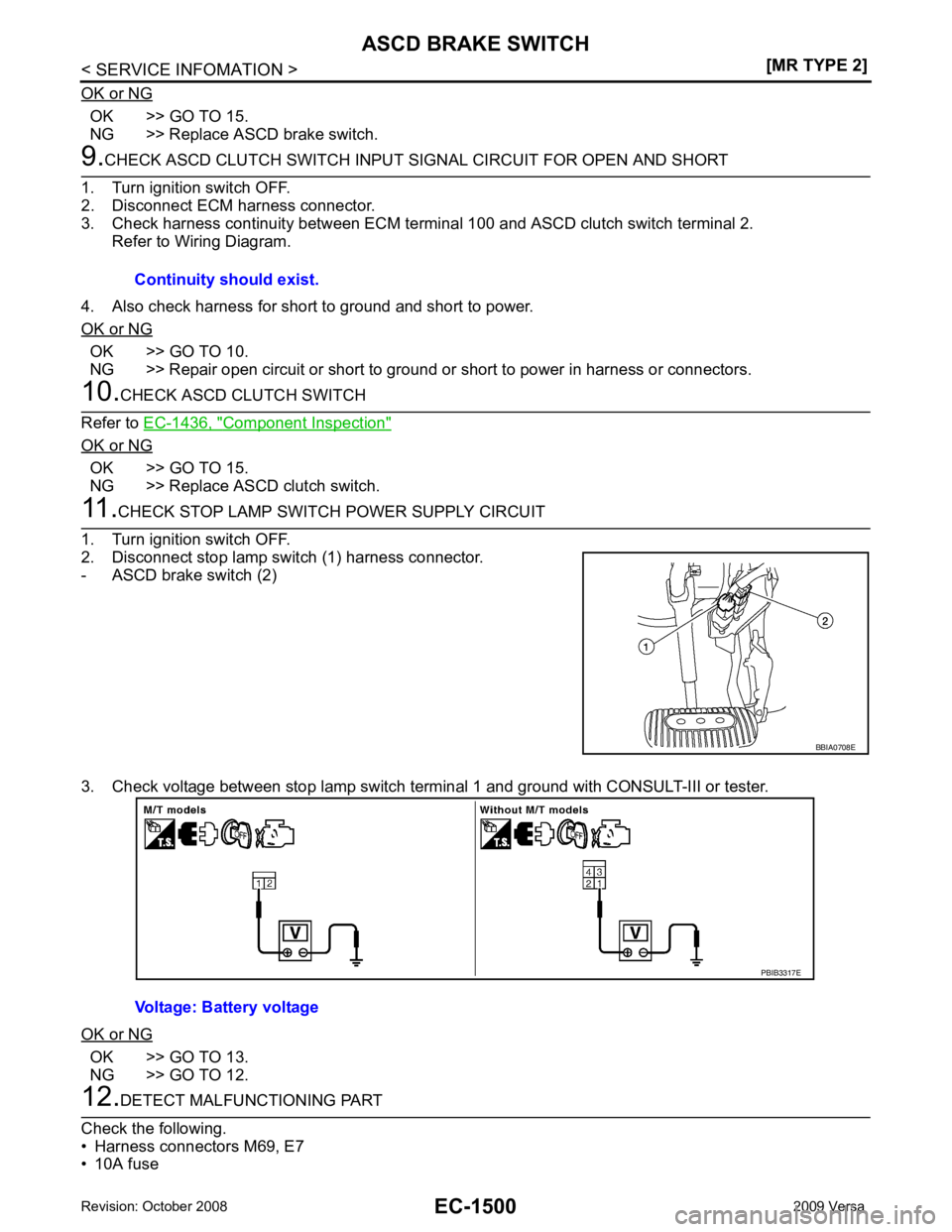

EC-1500< SERVICE INFOMATION >
[MR TYPE 2]
ASCD BRAKE SWITCH
OK or NG OK >> GO TO 15.
NG >> Replace ASCD brake switch. 9.
CHECK ASCD CLUTCH SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 100 and ASCD clutch switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG OK >> GO TO 10.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 10.
CHECK ASCD CLUTCH SWITCH
Refer to EC-1436, " Component Inspection "
OK or NG OK >> GO TO 15.
NG >> Replace ASCD clutch switch. 11.
CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
- ASCD brake switch (2)
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-III or tester.
OK or NG OK >> GO TO 13.
NG >> GO TO 12. 12.
DETECT MALFUNCTIONING PART
Check the following.
• Harness connectors M69, E7
• 10A fuse Continuity should exist.
BBIA0708E
Voltage: Battery voltage PBIB3317E
