NISSAN LATIO 2009 Service Repair Manual P0116 ECT SENSOR
EC-165
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0116 ECT SENSOR
Description INFOID:0000000004780447
The engine coolant temperature sensor is used to detect th

P0116 ECT SENSOR
EC-165
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0116 ECT SENSOR
Description INFOID:0000000004780447
The engine coolant temperature sensor is used to detect the engine
coolant temperature. The sensor modifies a voltage signal from the
ECM. The modified signal returns to the ECM as the engine coolant
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.

*: These data are reference values and are measured between ECM terminal 38
(Engine coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output vo ltage. Doing so may result in damage to the ECM's transis-
tor. Use a ground other than ECM terminals, such as the ground.
DTC Logic INFOID:0000000004780084
DTC DETECTION LOGIC NOTE:
If DTC P0116 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117,
P0118. Refer to EC-167, " DTC Logic " .
DTC CONFIRMATION PROCEDURE 1.
PRECONDITIONING
If DTC confirmation procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2. 2.
PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Rev engine up to 2,000 rpm for more than 10 minutes.
3. Move the vehicle to a cool place, then stop engine and turn ignition switch OFF.
4. Check resistance between “fuel level s ensor unit and fuel pump” terminals 4 and 5. SEF594K
Engine coolant temperature
[° C ( °F)] Voltage* (V) Resistance (k
Ω)
–10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.37 - 2.63
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260 SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0116 Engine coolant temperature
sensor circuit range/perfor-
mance Engine coolant temperature signal from engine
coolant temperature sensor does not fluctuate,
even when some time has passed after starting
the engine with pre-warming up condition. • Harness or connectors
(High or low resistance in the circuit)
• Engine coolant temperature sensor

Page 1522 of 4331

NISSAN LATIO 2009 Service Repair Manual YES >>
EC-166, " Diagnosis Procedure " .
NO >> INSPECTION END
Diagnosis Procedure INFOID:0000000004780085Ground Inspection " .
Is the inspection result normal? YES >> GO TO 2.
NO >> Repair or replace

Page 1523 of 4331

NISSAN LATIO 2009 Service Repair Manual P0117, P0118 ECT SENSOR
EC-167
< COMPONENT DIAGNOSIS >
[HR16DE] C
D E
F
G H
I
J
K L
M A EC
NP
O
P0117, P0118 ECT SENSOR
Description INFOID:0000000004780087
The engine coolant temperature sensor is use

Page 1524 of 4331

NISSAN LATIO 2009 Service Repair Manual Ground Inspection " .
Is the inspection result normal?

Page 1525 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
YES >> GO TO 2.
NO >> Repair or replace ground connection. YES >> GO TO 3.
NO >> Repair open circuit or short to ground or short to power
in harness or connectors. YES >> GO TO 4.
NO >> Repair

Page 1526 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-170< COMPONENT DIAGNOSIS >
[HR16DE]
P0117, P0118 ECT SENSOR
4. Check resistance between engine coolant temperature sensor terminals by heating with hot water as shown in the figure.
Is the in

Page 1527 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O

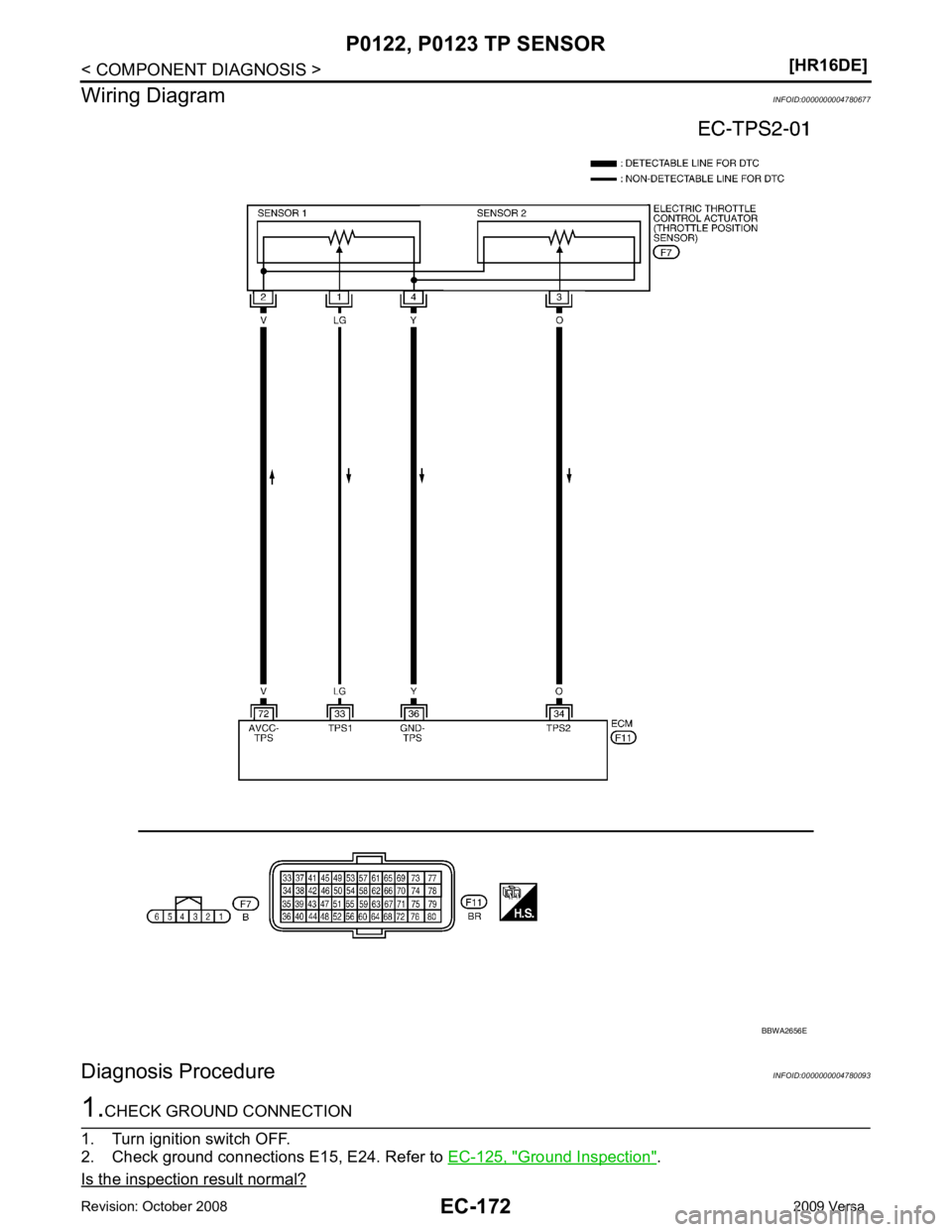

P0122, P0123 TP SENSOR
Description INFOID:0000000004780091
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position

Page 1528 of 4331
