NISSAN LATIO 2009 Service Repair Manual GW-10< SERVICE INFORMATION >
SQUEAK AND RATTLE TROUBLE DIAGNOSES

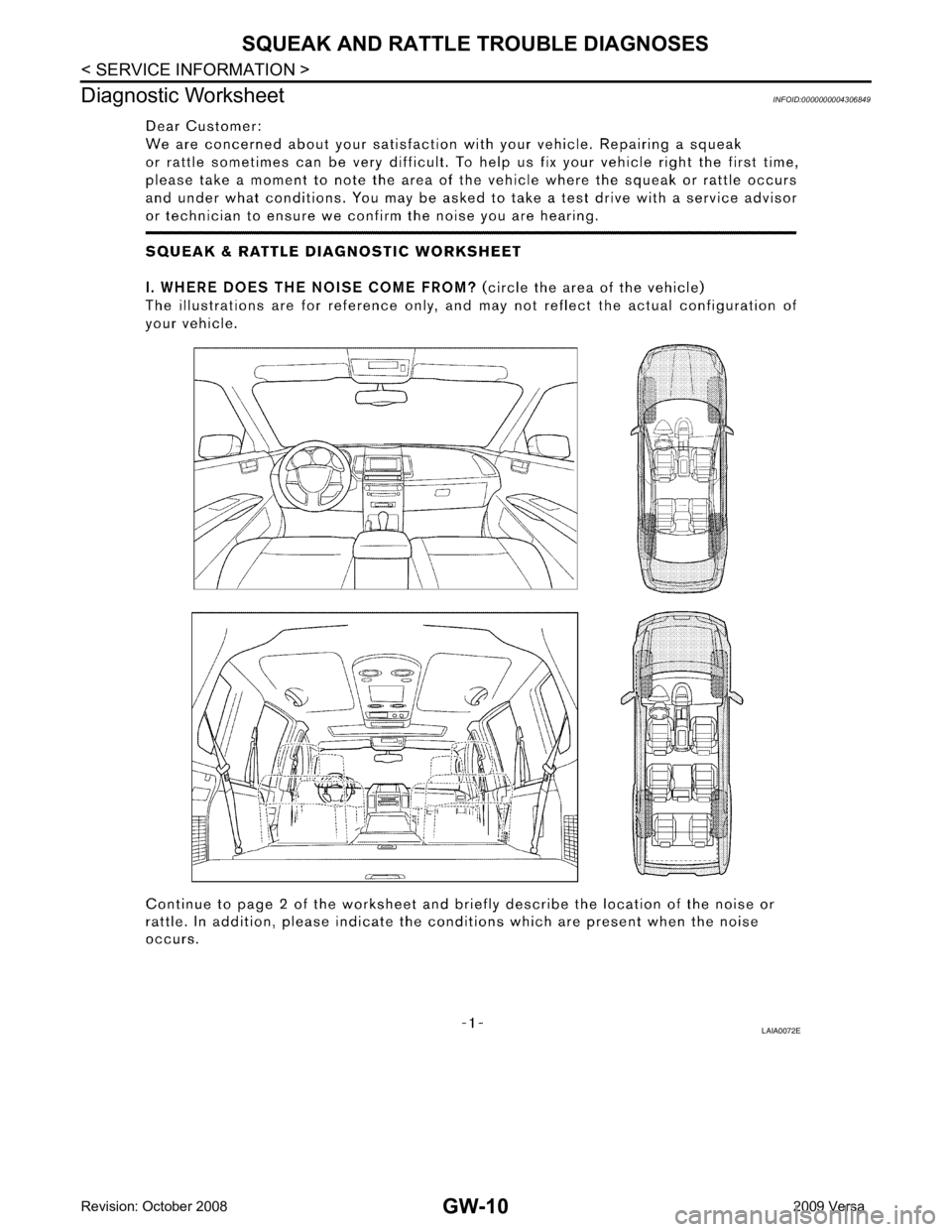

Diagnostic Worksheet INFOID:0000000004306849 LAIA0072E

Page 3314 of 4331

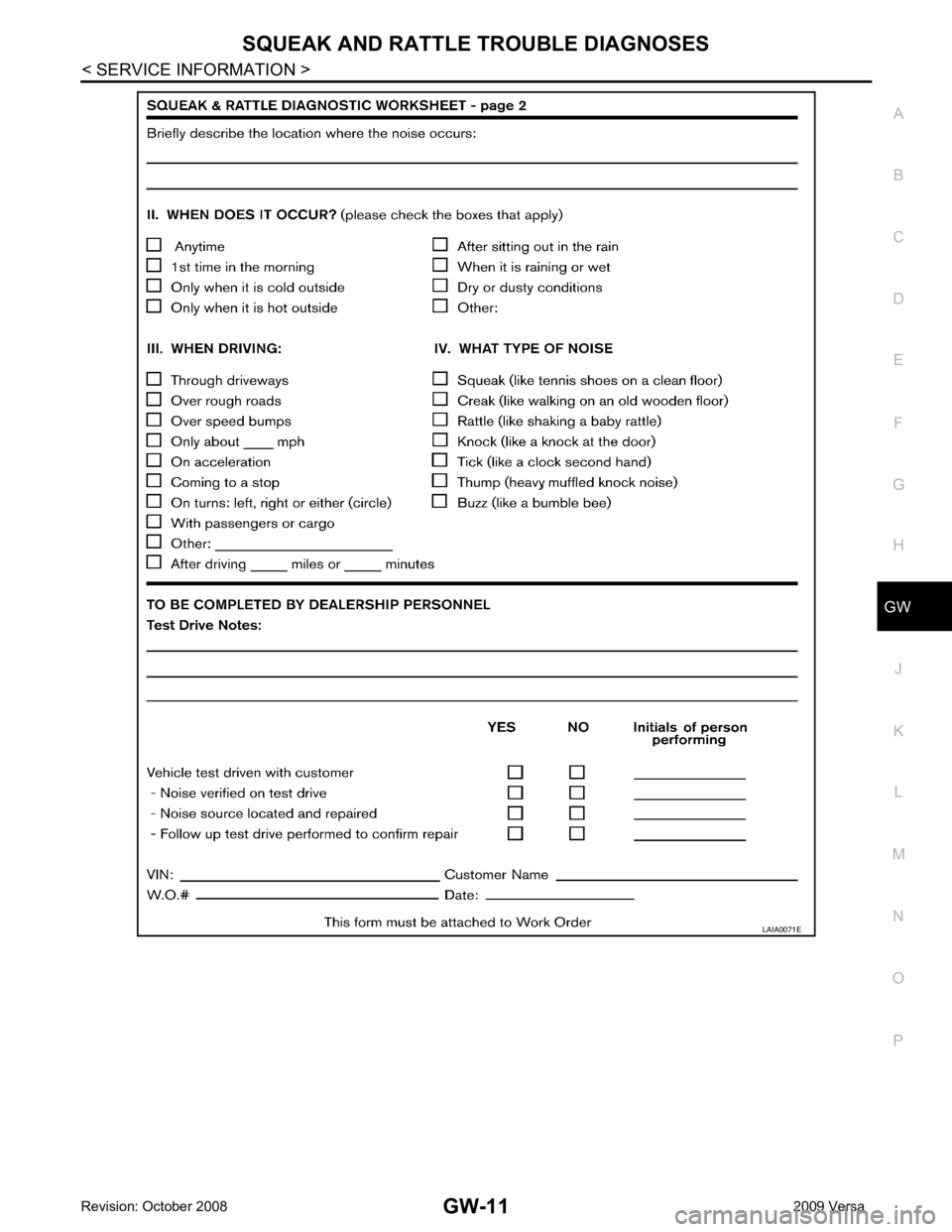

NISSAN LATIO 2009 Service Repair Manual SQUEAK AND RATTLE TROUBLE DIAGNOSES
GW-11
< SERVICE INFORMATION >
C
D E
F
G H
J
K L
M A
B GW
N
O P LAIA0071E

Page 3315 of 4331

NISSAN LATIO 2009 Service Repair Manual .
2. Remove the front wiper arms. Refer to WW-18, " Removal and Installation of Front Wiper Arms " .
3. Remove the cowl top cover. Refer to EI-22 .
4. Apply protective tape around the windshield gla

Page 3316 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
When cutting the glass from the vehicle, always
wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:
• When a windsh

GW
N
O P
When cutting the glass from the vehicle, always
wear safety glasses and heavy gloves to help prevent
glass splinters from entering your eyes or cutting your hands.
CAUTION:
• When a windshield glass is to be reused, do no t use a cutting knife or power cutting tool.
• Be careful not to scratch the glass when removing.
• Do not set or stand the glass on its ed ge. Small chips may develop into cracks.
INSTALLATION • Use a genuine NISSAN Urethane Adhesive Kit (if availabl e) or equivalent and follow the instructions fur-
nished with it.
• While the urethane adhesive is curing, open a door window . This will prevent the glass from being forced out
by passenger room air pressure when a door is closed.
• The molding must be installed securely so that it is in position and leaves no gap.
• Inform the customer that the vehicle should rema in stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
WARNING:
• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
• Use in an open, well ventilated lo cation. Avoid breathing the vapors. They can be harmful if inhaled.
If affected by vapor inhalation, imme diately move to an area with fresh air.
• Driving the vehicle before the urethane adhesive has completely cured may affect the performance
of the windshield in case of an accident.
CAUTION:
• Do not use an adhesive which is past its usable te rm. Shelf life of the adhesive is limited to six
months after the date of manufacture. Carefully ad here to the expiration or manufacture date printed
on the box.
• Keep primers and adhesive in a cool, dry place. Id eally, they should be stored in a refrigerator.
• Do not leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely
cured. Curing time varies depend ing on temperature and humidities. The curing time will increase
under lower temperatures and lower humidities.
Repairing Water Leaks Leaks can be repaired without removing and reinstalling glass.
If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the windshield area while pushing glass outward.
To stop the leak, apply primer (if necessary ) and then urethane adhesive to the leak point.

Page 3317 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal and Installation " .
2. Remove the instrument side panel. Refer to IP-11 .
3. Apply protective tape around the opera window glas s to protect the painted surface from damage.
• If a opera w

Page 3318 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
• Inform the customer that the vehicle should rema
in stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature an

Page 3319 of 4331

Page 3320 of 4331

NISSAN LATIO 2009 Service Repair Manual GW
N
O P
Sedan
REMOVAL 1. If equipped, remove the rear wiper arm and motor. Refer to WW-32, " Removal and Installation " .
2. Remove the connectors and grounds for the rear window defogger.
3. Remo
