Page 649 of 4331

BL-188< SERVICE INFORMATION >
BACK DOOR LOCK
OK or NG OK >> GO TO 6
NG >> Repair or replace harness. 6.

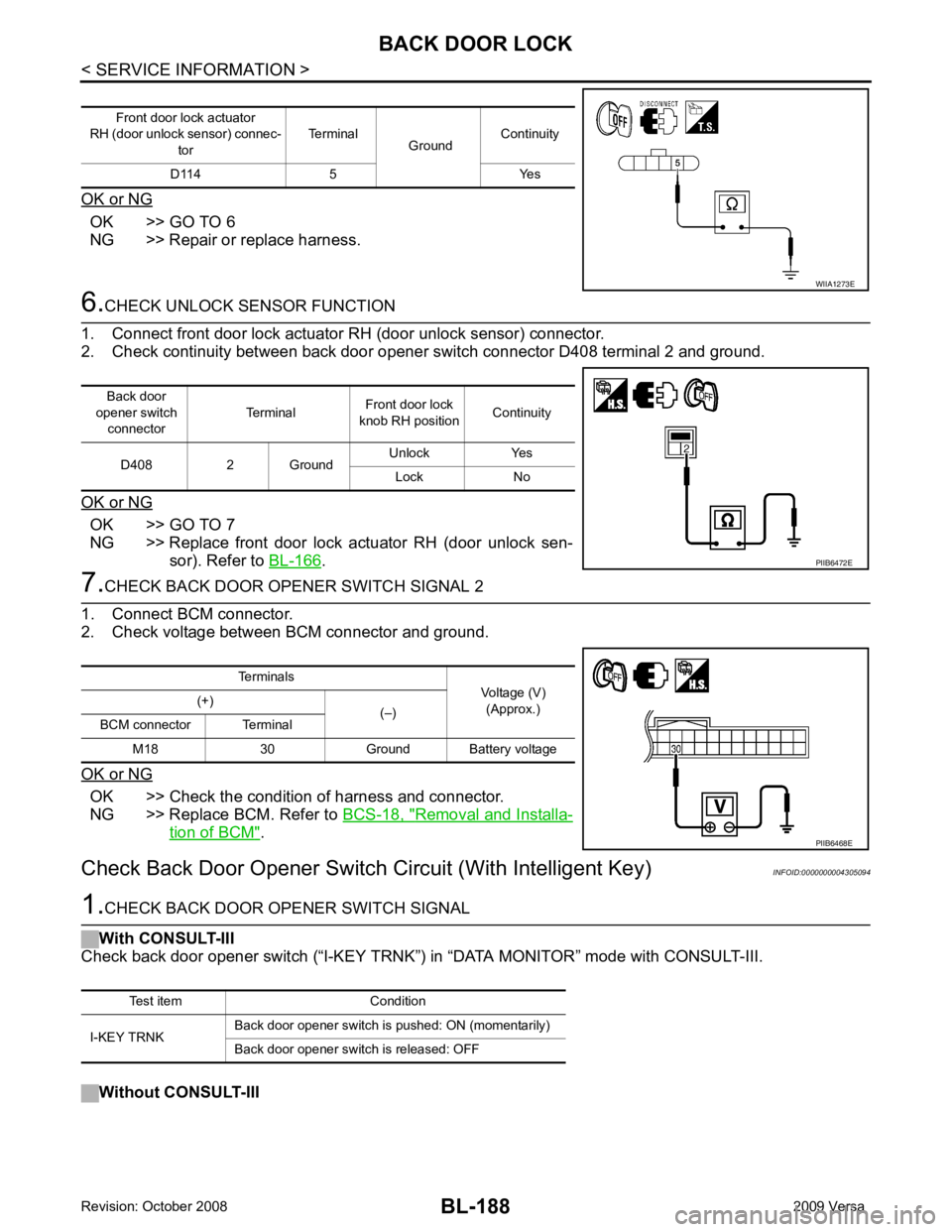

CHECK UNLOCK SENSOR FUNCTION
1. Connect front door lock actuator RH (door unlock sensor) connector.
2. Check continuity between back door opener switch connector D408 terminal 2 and ground.
OK or NG OK >> GO TO 7
NG >> Replace front door lock actuator RH (door unlock sen- sor). Refer to BL-166 .
7.
CHECK BACK DOOR OPENER SWITCH SIGNAL 2
1. Connect BCM connector.
2. Check voltage between BCM connector and ground.
OK or NG OK >> Check the condition of harness and connector.
NG >> Replace BCM. Refer to BCS-18, " Removal and Installa-
tion of BCM " .
Check Back Door Opener Switch Circuit (With Intelligent Key) INFOID:00000000043050941.
CHECK BACK DOOR OPENER SWITCH SIGNAL
With CONSULT-III
Check back door opener switch (“I-KEY TRNK”) in “DATA MONITOR” mode with CONSULT-III.
Without CONSULT-III Front door lock actuator
RH (door unlock sensor) connec-
tor Terminal
GroundContinuity
D114 5 Yes WIIA1273E
Back door
opener switch connector Terminal
Front door lock
knob RH position Continuity
D408 2 Ground Unlock Yes
Lock No PIIB6472E
Terminals
Voltage (V)
(Approx.)
(+)
(–)
BCM connector Terminal
M18 30 Ground Battery voltage PIIB6468E
Test item Condition
I-KEY TRNK Back door opener switch is pushed: ON (momentarily)
Back door opener switch is released: OFF
Page 650 of 4331
BL
N
O P

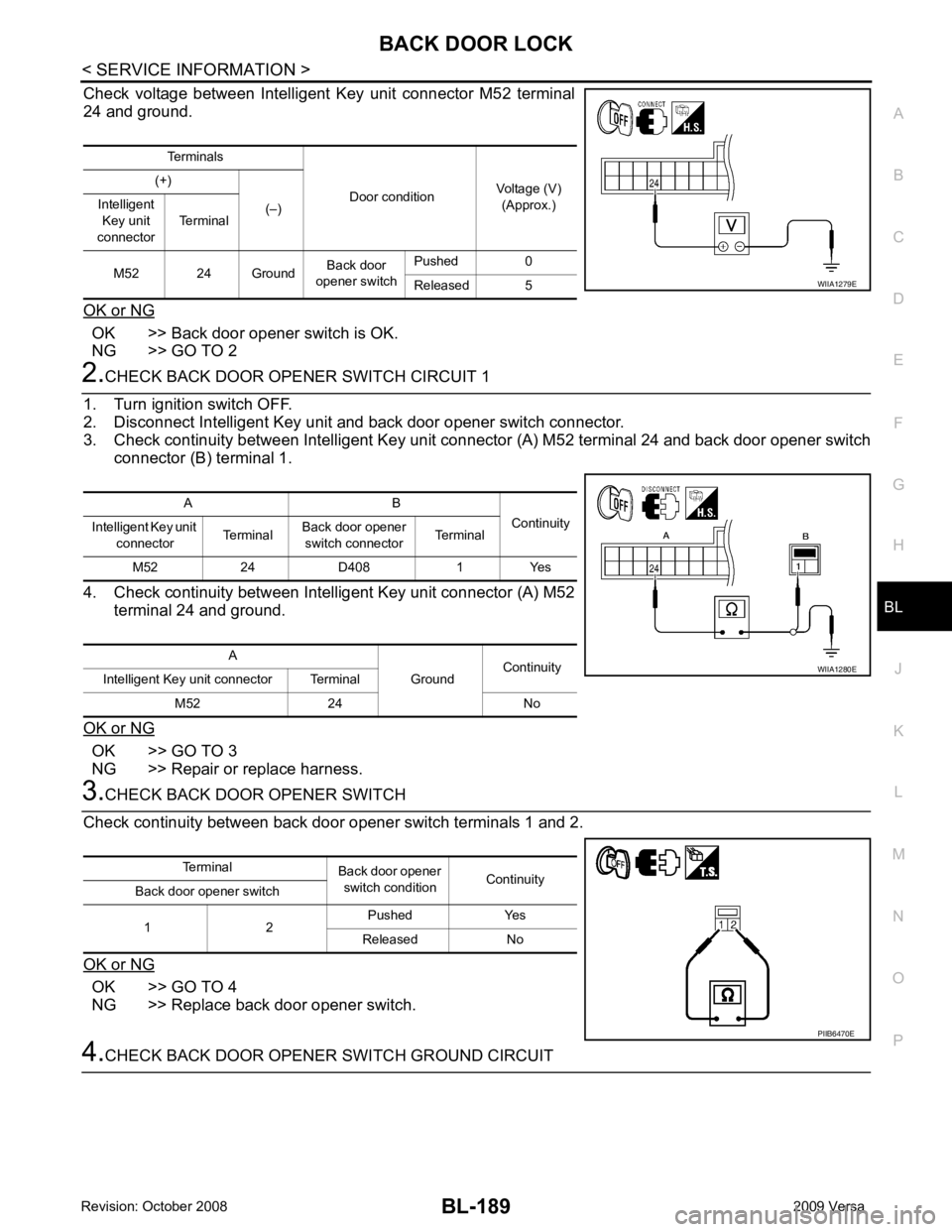

Check voltage between Intelligent Key unit connector M52 terminal
24 and ground.
OK or NG OK >> Back door opener switch is OK.
NG >> GO TO 2 OK >> GO TO 3
NG >> Repair or replace harness. OK >> GO TO 4
NG >> Replace back door opener switch.
Page 651 of 4331

BL-190< SERVICE INFORMATION >
BACK DOOR LOCK

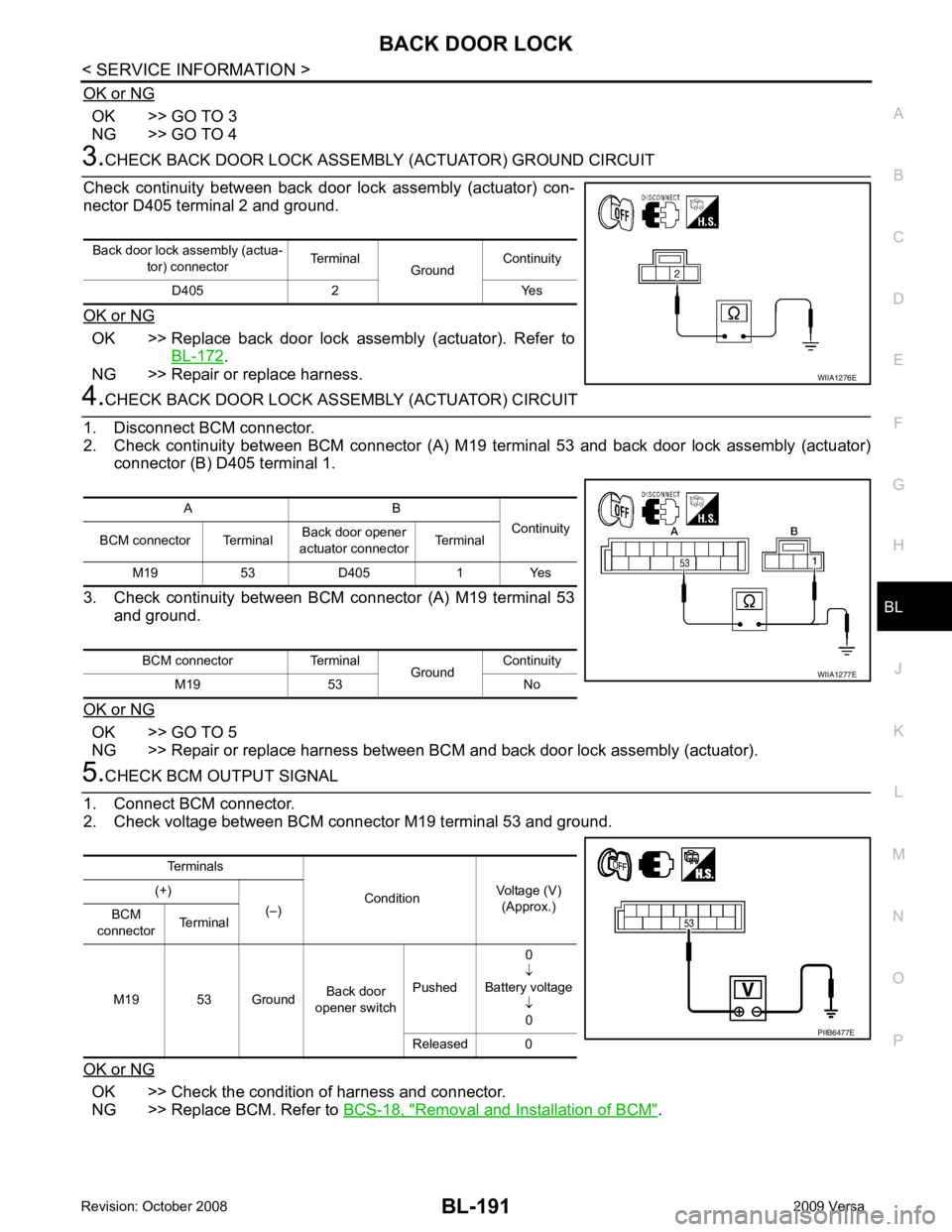

Check continuity between back door opener switch connector termi-
nal 2 and ground.
OK or NG OK >> GO TO 5
NG >> Repair or replace harness. 5.
CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL
1. Connect Intelligent Key unit connector.
2. Check voltage between Intelligent Key unit connector M52 terminal 24 and ground.
OK or NG OK >> Check the condition of harness and connector.
NG >> Replace Intelligent Key unit. Refer to BL-158, " Removal
and Installation of Intelligent Key Unit " .
Check Back Door Lock Asse mbly (Actuator) Circuit INFOID:00000000043050951.
CHECK BACK DOOR LOCK ASSE MBLY (ACTUATOR) FUNCTION
With CONSULT-III
Check the operation with (“TRUNK/BACK DOOR”) in the ACTIVE TEST.
YES or NO YES >> Back door lock assembly (actuator) is OK.
NO >> GO TO 2 2.
CHECK BACK DOOR LOCK ASSEMB LY (ACTUATOR) POWER SUPPLY
1. Turn ignition switch OFF.
2. Insure both front door lock knobs are turned to the UNLOCK position.
3. Disconnect back door lock assembly (actuator) connector.
4. Check voltage between back door lock assembly (actuator) connector D405 terminal 1 and ground. Back door opener switch
connector Terminal
GroundContinuity
D408 2 Yes PIIB6472E
Terminals
Voltage (V)(Approx.)
(+)
(–)
Intelligent Key unit
connector Terminal
M52 24 Ground 5 WIIA1279E
Does back door actuator system operate normally?
Terminals
ConditionVoltage (V)
(Approx.)
(+)
(–)
Back door
lock as-
sembly (ac-
tuator)
connector Terminal
D405 1 Ground Back door
opener switch Pushed 0
↓
Battery voltage ↓0
Released 0 WIIA1275E
Page 652 of 4331
BL
N
O P
OK or NG OK >> GO TO 3
NG >> GO TO 4 OK >> Replace back door lock assembly (actuator). Refer to
BL-172 .
NG >> Repair or replace harness. OK >> GO TO 5
NG >> Repair or replace harness between BCM and back door lock assembly (actuator). OK >> Check the condition of harness and connector.
NG >> Replace BCM. Refer to BCS-18, " Removal and Installation of BCM " .
Back door lock assembly (actua-
tor) connector Terminal
GroundContinuity
D405 2 Yes
Page 653 of 4331
.

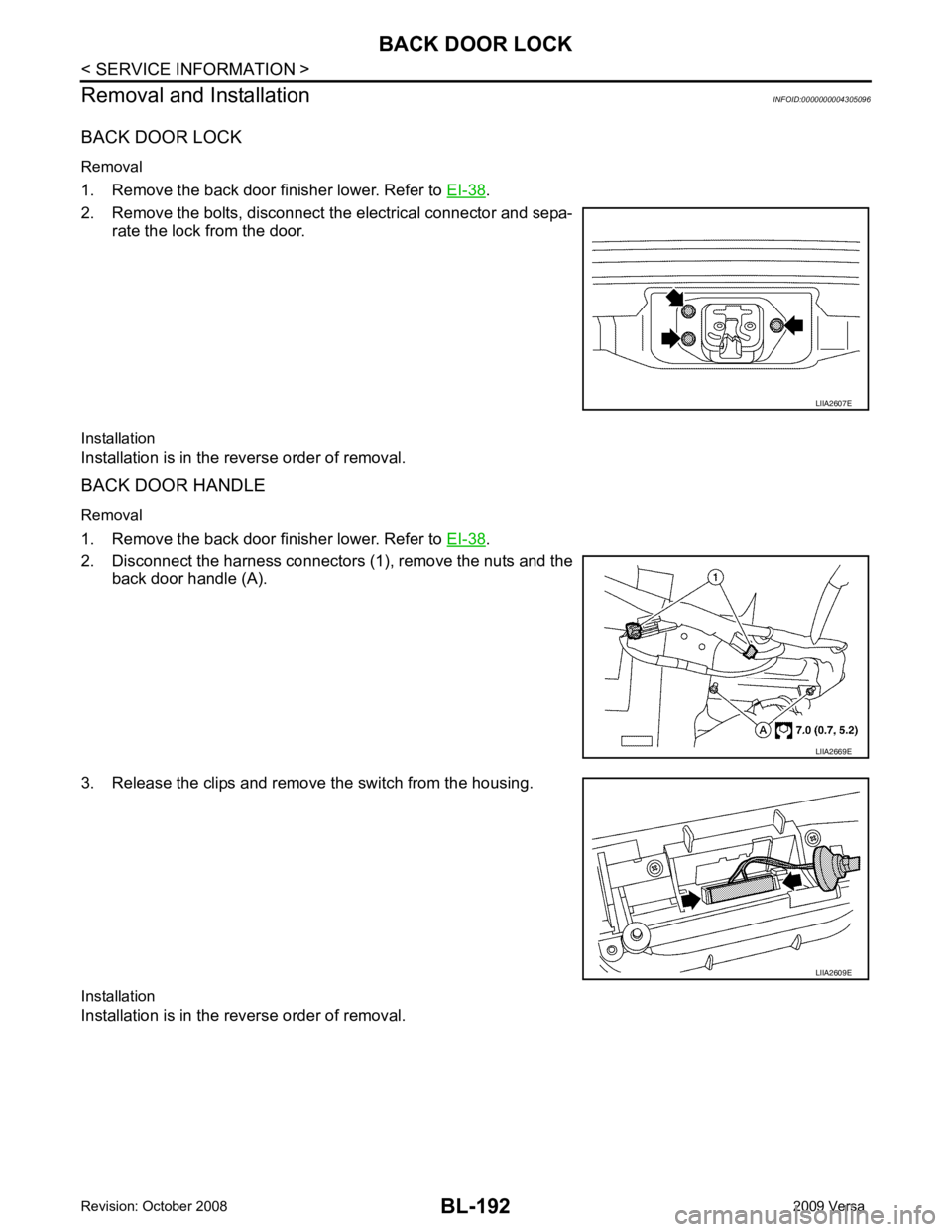

2. Remove the bolts, disconnect the electrical connector and sepa- rate the lock from the door.
Installation
Installation is in the reverse order of removal.
BACK DOOR HANDLE
Removal
1. Remove the back door finisher lower. Refer to EI-38 .
2. Disconnect the harness connectors (1), remove the nuts and the back door handle (A).
3. Release the clips and remove the switch from the housing.
Installation
Installation is in the reverse order of removal. LIIA2669E
LIIA2609E
Page 654 of 4331
BL
N
O P

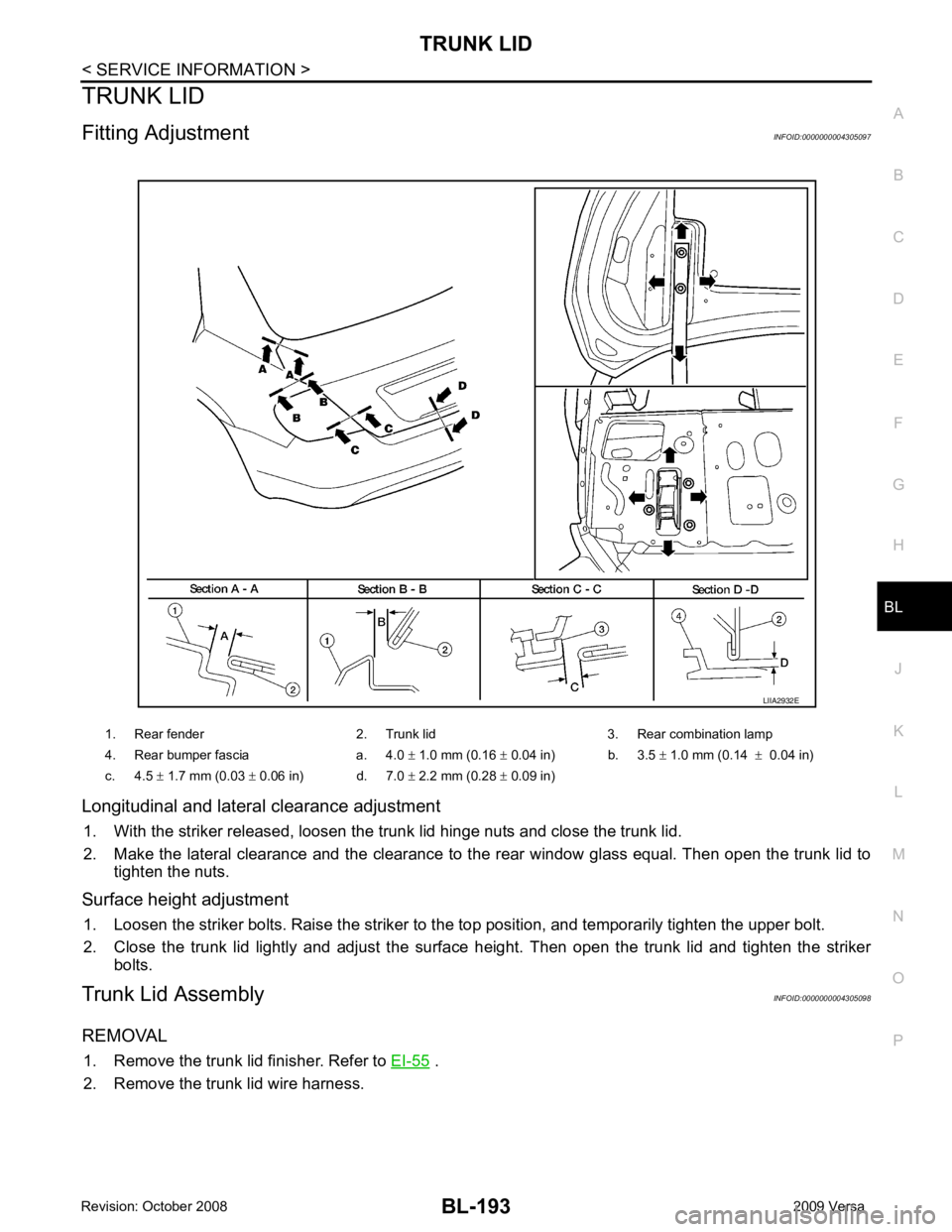

TRUNK LID
Fitting Adjustment INFOID:0000000004305097
Longitudinal and latera l clearance adjustment
1. With the striker released, loosen the trunk lid hinge nuts and close the trunk lid.
2. Make the lateral clearance and the clearance to the rear window glass equal. Then open the trunk lid to tighten the nuts.
Surface height adjustment 1. Loosen the striker bolts. Raise the striker to t he top position, and temporarily tighten the upper bolt.
2. Close the trunk lid lightly and adjust the surface height. Then open the trunk lid and tighten the striker bolts.
Trunk Lid Assembly INFOID:0000000004305098
REMOVAL 1. Remove the trunk lid finisher. Refer to EI-55 .
2. Remove the trunk lid wire harness. 1. Rear fender 2. Trunk lid 3. Rear combination lamp
4. Rear bumper fascia a. 4.0 ± 1.0 mm (0.16 ± 0.04 in) b. 3.5 ± 1.0 mm (0.14 ± 0.04 in)
c. 4.5 ± 1.7 mm (0.03 ± 0.06 in) d. 7.0 ± 2.2 mm (0.28 ± 0.09 in)
Page 655 of 4331
.

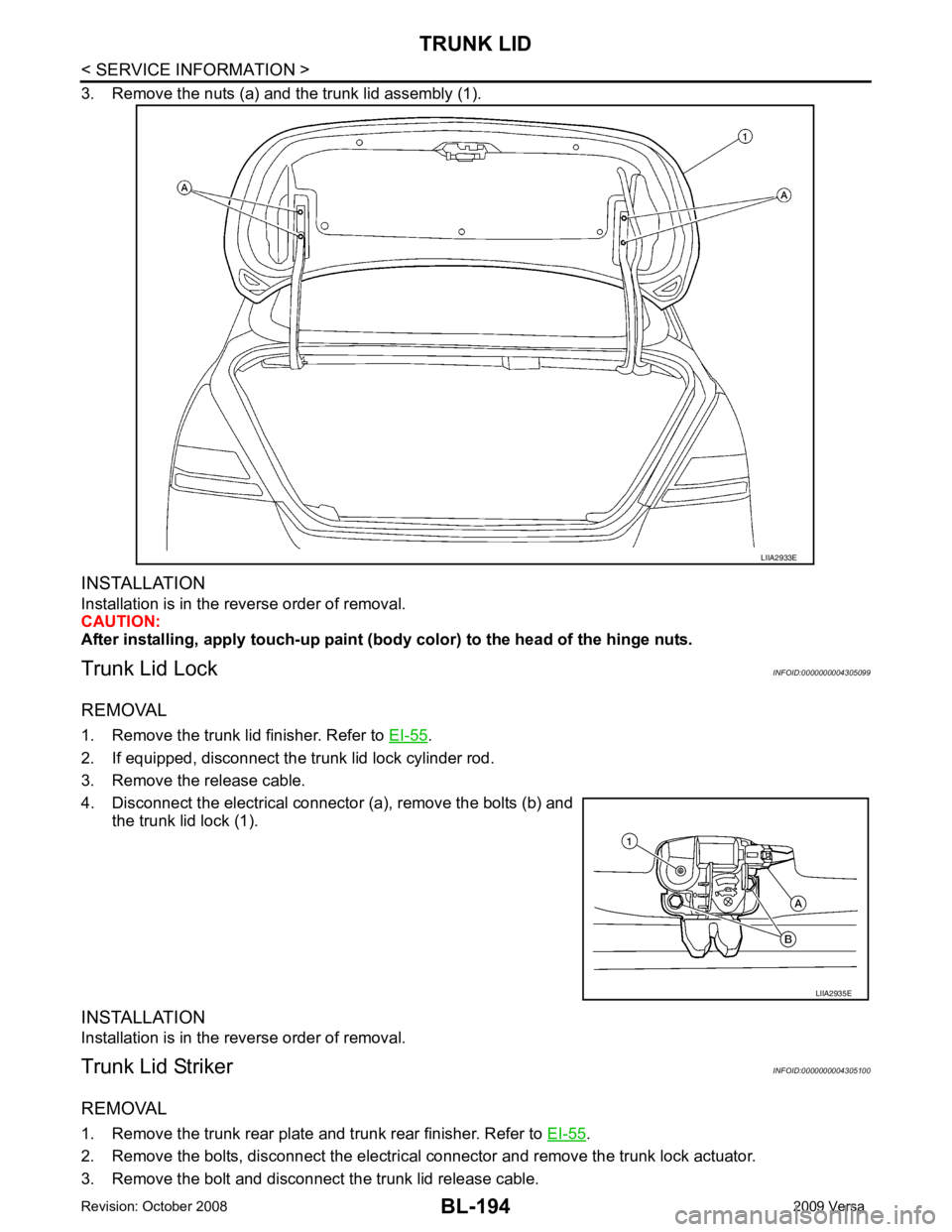

2. If equipped, disconnect the trunk lid lock cylinder rod.
3. Remove the release cable.
4. Disconnect the electrical connector (a), remove the bolts (b) and
the trunk lid lock (1).
INSTALLATION
Installation is in the reverse order of removal.
Trunk Lid Striker INFOID:0000000004305100
REMOVAL
1. Remove the trunk rear plate and trunk rear finisher. Refer to EI-55 .
2. Remove the bolts, disconnect the electrical connector and remove the trunk lock actuator.
3. Remove the bolt and disconnect the trunk lid release cable. LIIA2935E
Page 656 of 4331
BL
N
O P
4. Remove the bolts (a) and the trunk lid striker (1).
INSTALLATION Installation is in the reverse order of removal.
