NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 2. NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. OK >> GO TO 3. NG >> GO TO 4. OK >> Check filament. Refer to GW-61, " Filament Check " .

Page 3362 of 4331

NISSAN LATIO 2009 Service Repair Manual GW N O P OK or NG OK >> GO TO 5. NG >> Repair or replace harness. OK >> GO TO 6. NG >> Replace condenser-1. OK >> GO TO 7. NG >> Repair or replace harness. A B Continuity Terminal Terminal 1 2 Yes

Page 3363 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> Check condition of harness and connector. NG >> Replace IPDM E/R. Refer to PG-27, " Removal and Installation of IPDM E/R " . Door Mirror Defogger Circuit Inspection INFOID:0000000004306894OK >

Page 3364 of 4331

NISSAN LATIO 2009 Service Repair Manual GW N O P 1. Disconnect door mirror (LH or RH). 2. Check continuity between door mirror (LH or RH) connector and heated mirror relay connector. 3. Check continuity between door mirror (LH or RH) connec

Page 3365 of 4331

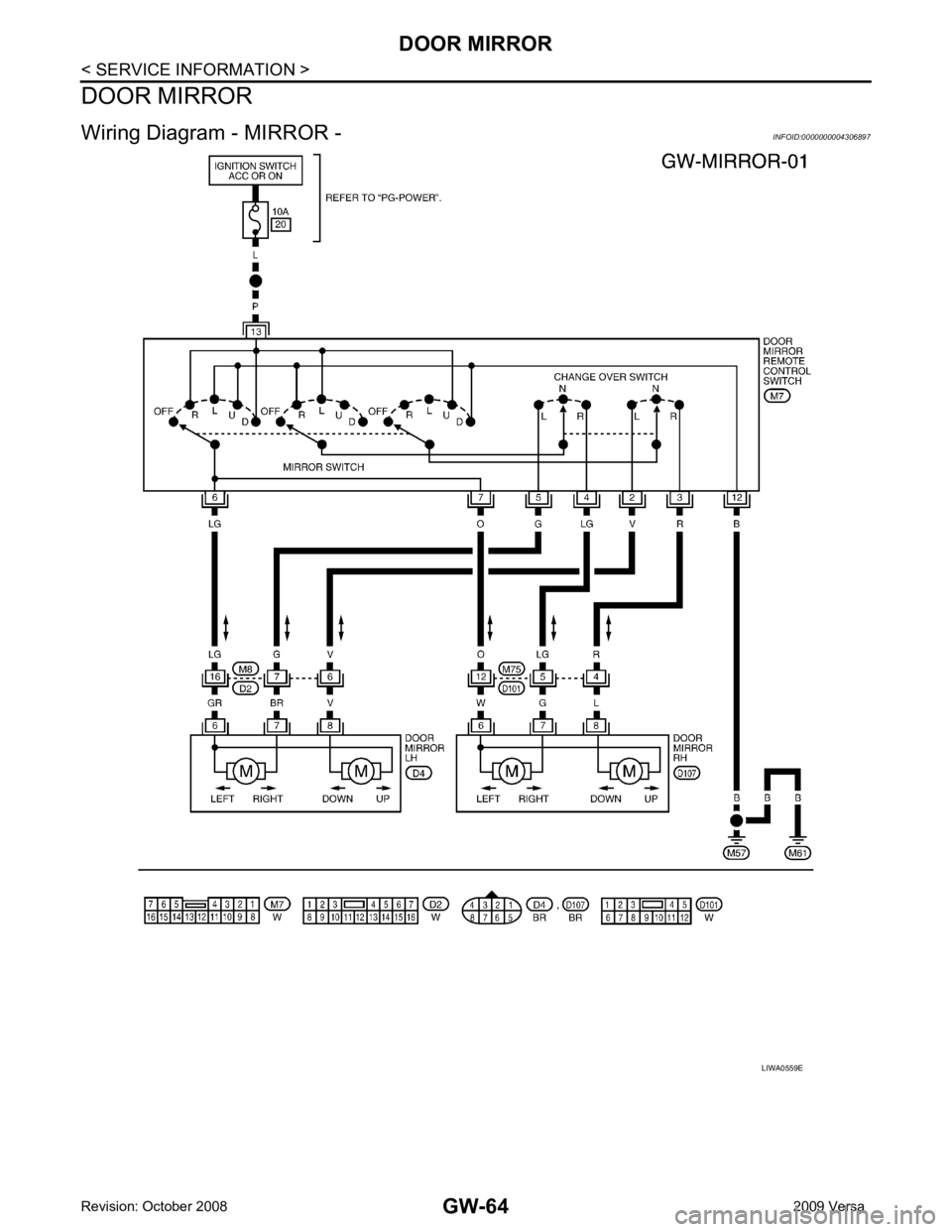

NISSAN LATIO 2009 Service Repair Manual SEL265 PIIA0215E

Page 3366 of 4331

NISSAN LATIO 2009 Service Repair Manual GW N O P 4. After repair has been completed, check repaired wire for conti- nuity. This check should be conducted 10 minutes after silver composition is deposited. Do not touch repai

Page 3367 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3368 of 4331

NISSAN LATIO 2009 Service Repair Manual GW N O P Removal and Installation INFOID:0000000004306898 CAUTION: Be careful not to damage the mirror body. REMOVAL 1. Remove the front door finisher. Refer to EI-34, " Removal and Installation " .
