Page 3161 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3162 of 4331

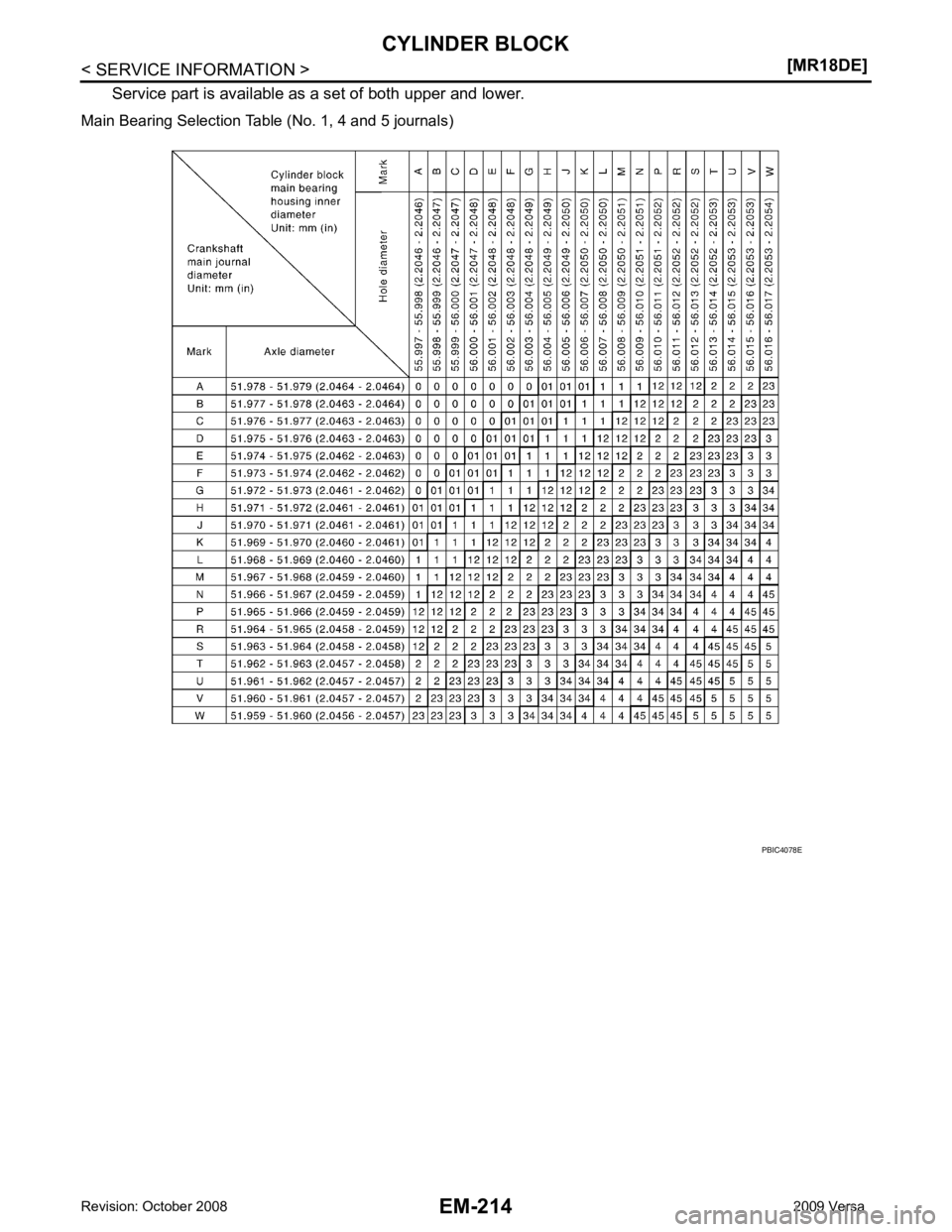

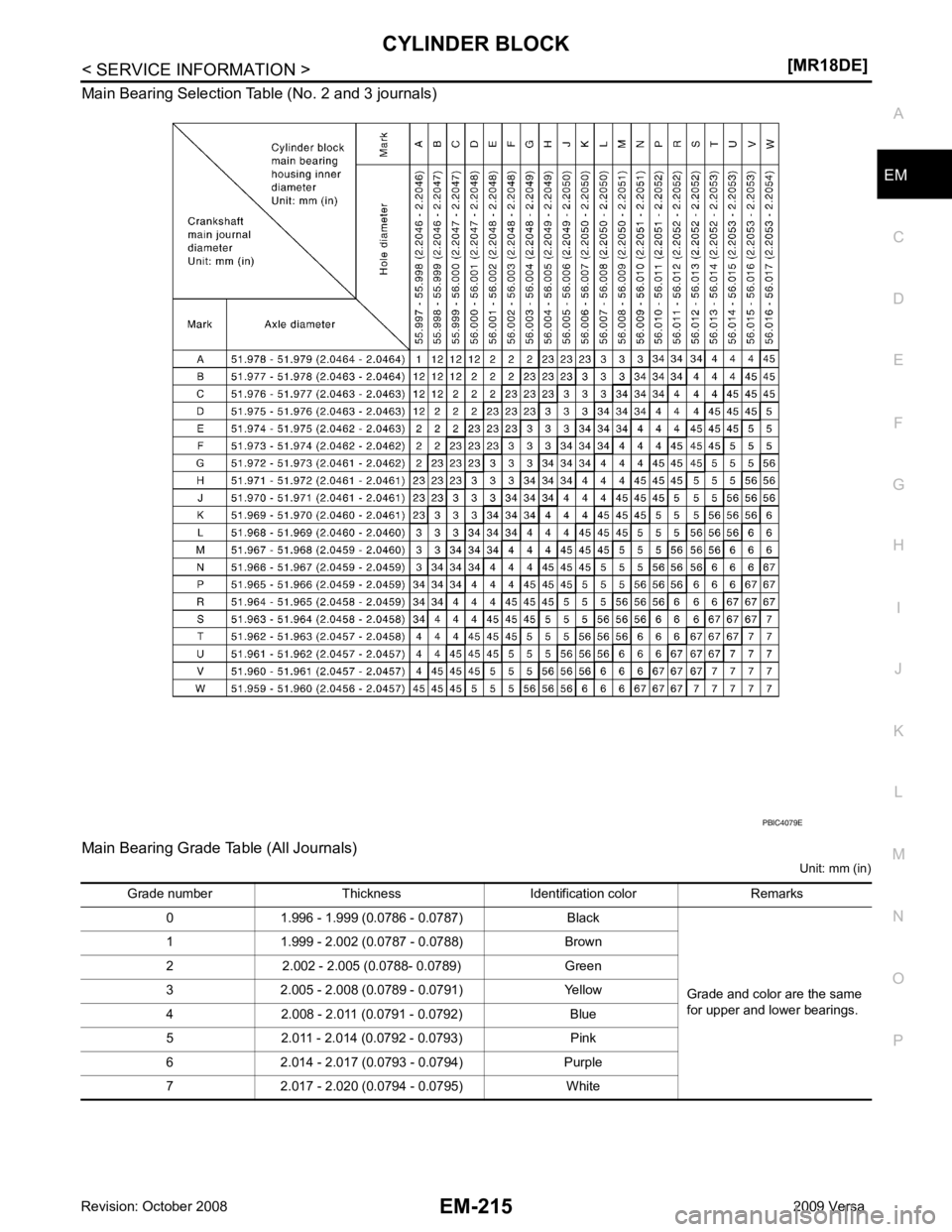

NISSAN LATIO 2009 Service Repair Manual EM NP O Main Bearing Selection Table (No. 2 and 3 journals) Main Bearing Grade Table (All Journals) Unit: mm (in)

Page 3163 of 4331

NISSAN LATIO 2009 Service Repair Manual EM-216< SERVICE INFORMATION > [MR18DE] CYLINDER BLOCK Use Undersize Bearing Usage Guide • When the specified main bearing oil clearance is not obtained with standard size main bearings, use under- s

Page 3164 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O • Measure the side clearance between connecting rod and crank- shaft arm with a feeler gauge (A). • If the measured value exceeds the limit, replace connecting rod, and m

Page 3165 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 3166 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O • Check with a connecting rod aligner. • If it exceeds the limit, replace connecting rod assembly. CONNECTING ROD BIG END DIAMETER • Install connecting rod cap (1) without connecti

Page 3167 of 4331

NISSAN LATIO 2009 Service Repair Manual Disassembly and Assembly " for the tightening procedure. • Measure the inner diameter of main bearing housing with a bore gauge. • Measure the position shown [5 mm (0.20 in)] backward from mai

Page 3168 of 4331

NISSAN LATIO 2009 Service Repair Manual EM NP O Main bearing caps cannot be replaced as a single part , because it is machined together with cylinder block. PISTON TO CYLINDER BORE CLEARANCE Cylinder Bore Inner Diameter • Using a bore
