Page 1025 of 4331

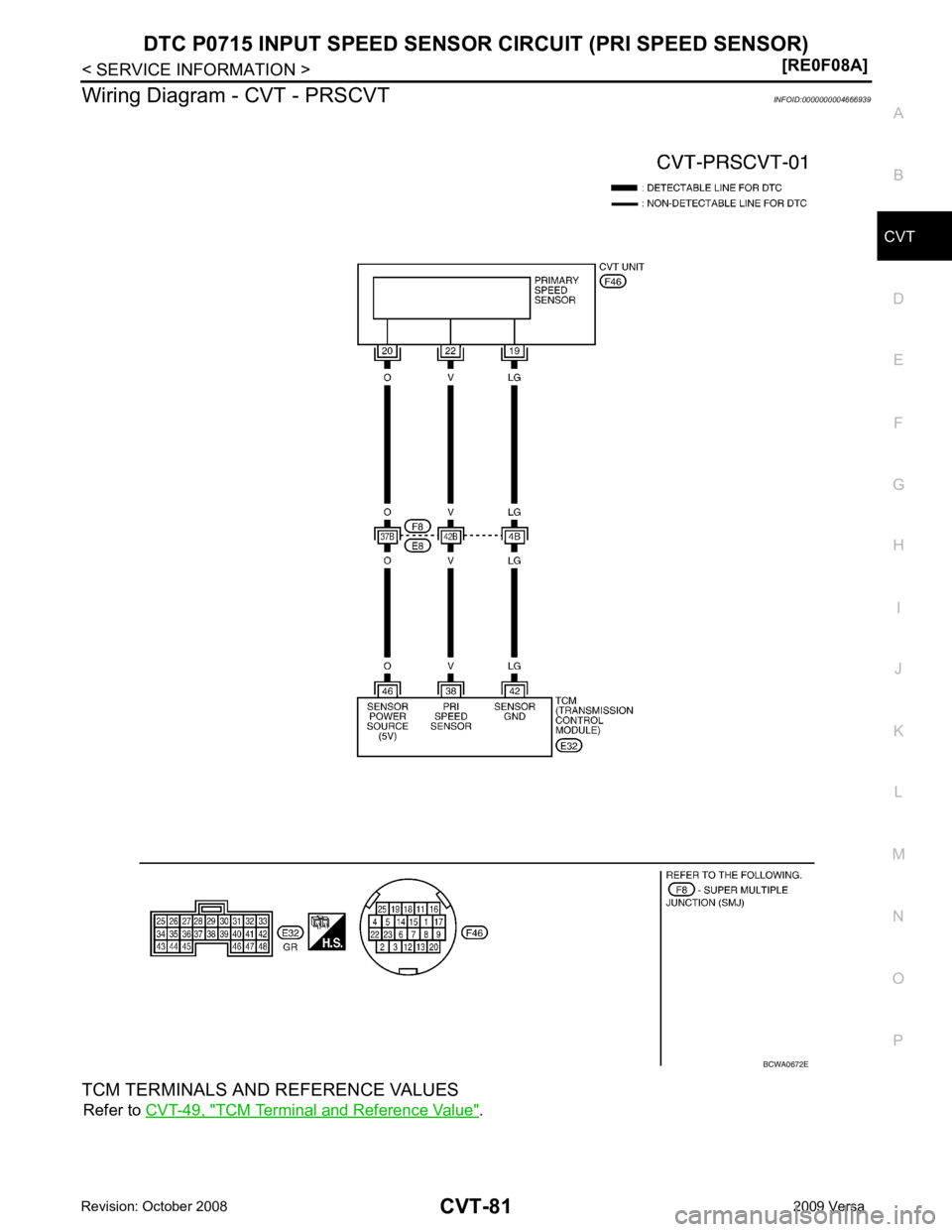

NISSAN LATIO 2009 Service Repair Manual CVT N O P Wiring Diagram - CVT - PRSCVT INFOID:0000000004666939 TCM TERMINALS AND REFERENCE VALUES Refer to CVT-49, " TCM Terminal and Reference Value " .

Page 1026 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 6. NG >> GO TO 2. OK >> GO TO 6. NG - 1 >> Battery voltage is not supplied: GO TO 3. NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4. 3. CHE

Page 1027 of 4331

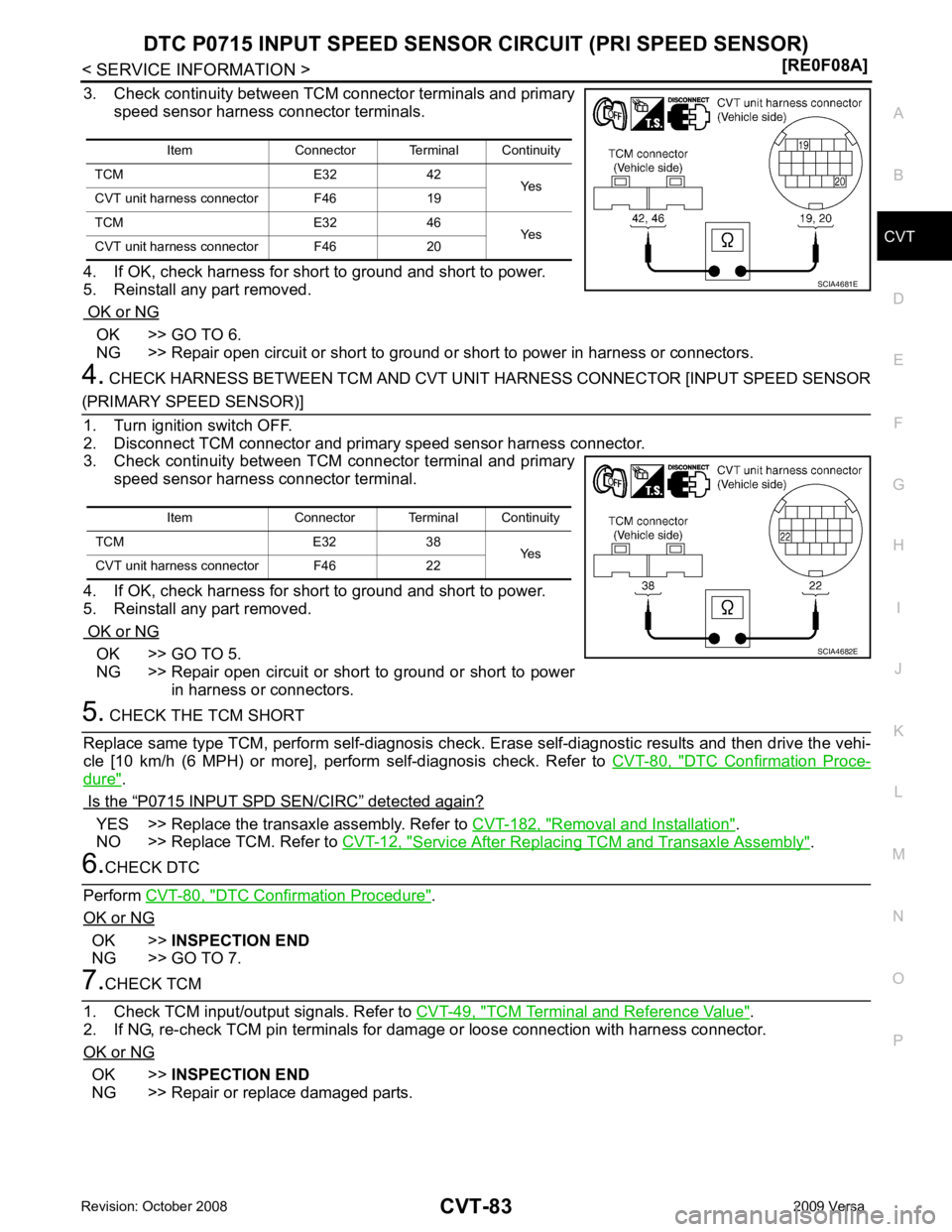

NISSAN LATIO 2009 Service Repair Manual CVT N O P 3. Check continuity between TCM connector terminals and primary speed sensor harness connector terminals. 4. If OK, check harness for short to ground and short to power. 5. Reinstall any par

Page 1028 of 4331

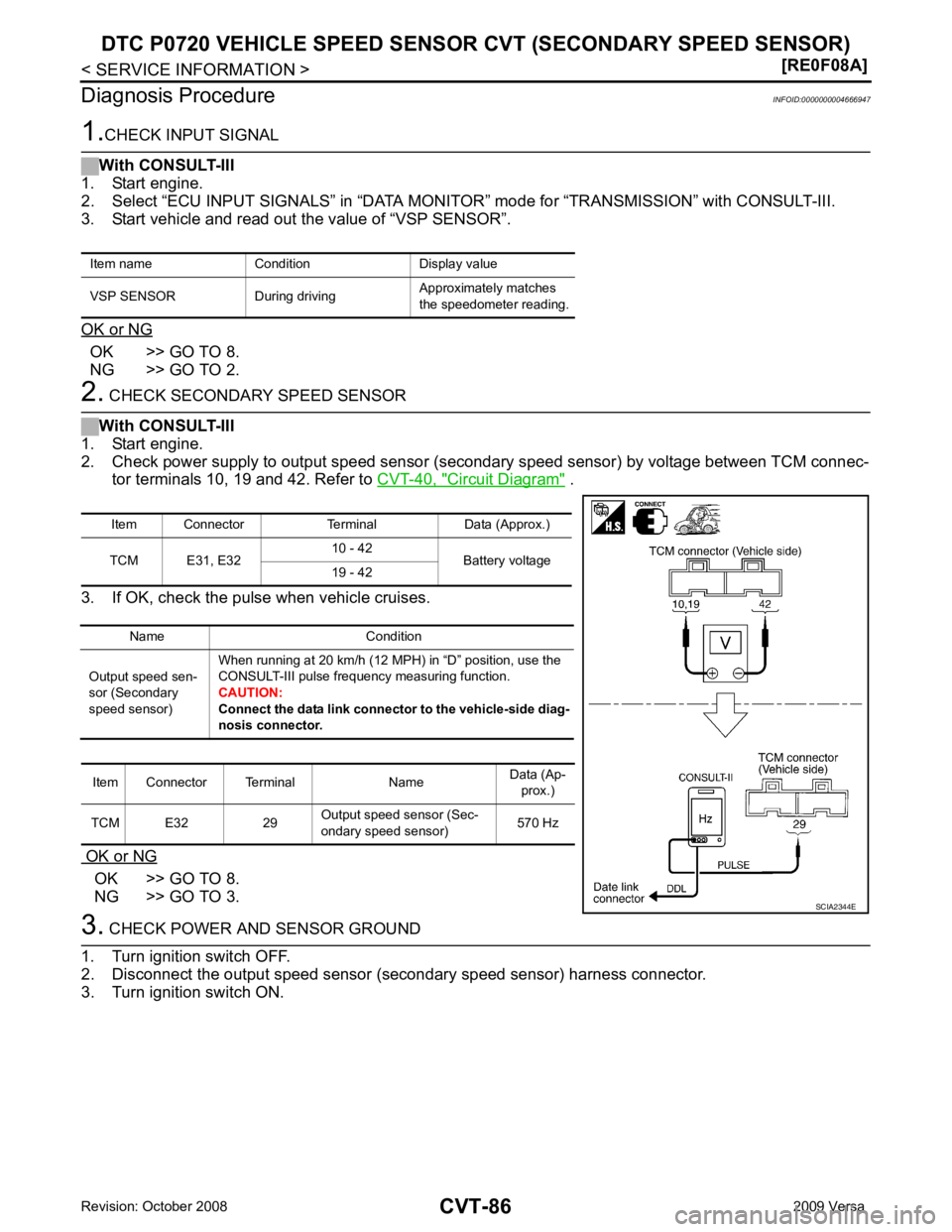

NISSAN LATIO 2009 Service Repair Manual Diagnosis Procedure " . WITH GST Follow the procedure “WITH CONSULT-III”. Item name Condition Display value VSP SENSOR During driving Approximatel y matches the speedometer reading.

Page 1029 of 4331

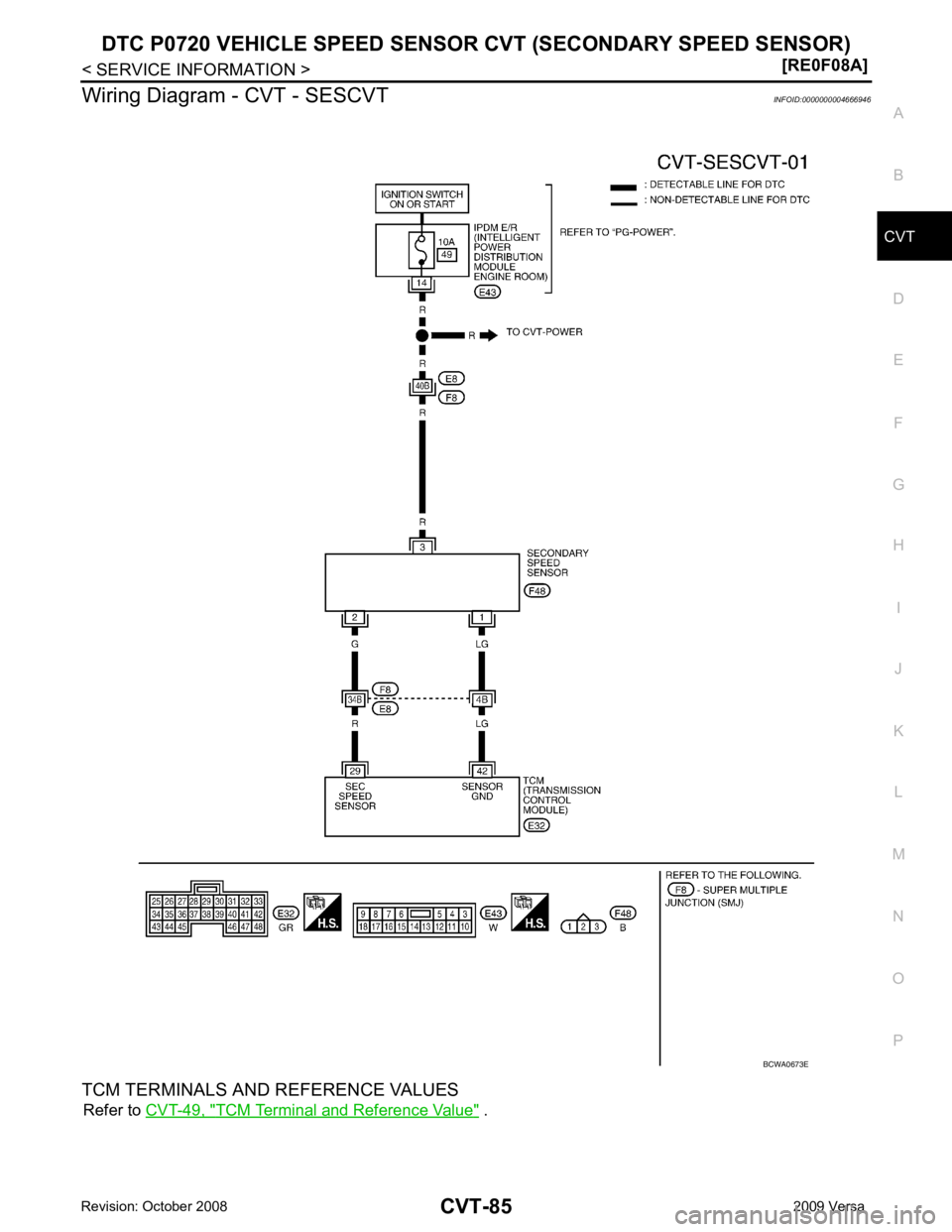

NISSAN LATIO 2009 Service Repair Manual CVT N O P Wiring Diagram - CVT - SESCVT INFOID:0000000004666946 TCM TERMINALS AND REFERENCE VALUES Refer to CVT-49, " TCM Terminal and Reference Value " .

Page 1030 of 4331

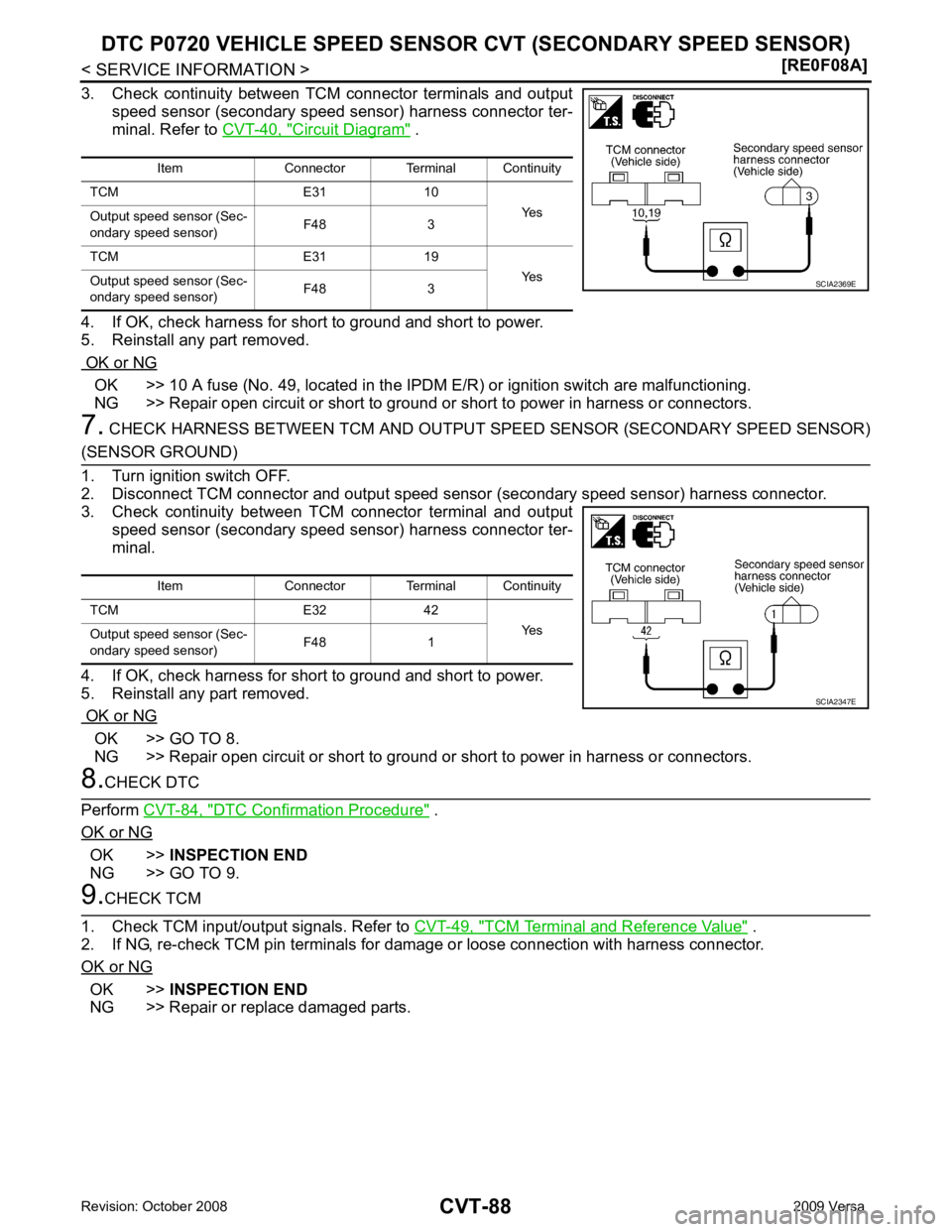

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 8. NG >> GO TO 2. Circuit Diagram " . 3. If OK, check the pulse when vehicle cruises. OK or NG OK >> GO TO 8. NG >> GO TO 3. Item Connector Terminal Data (Approx.) TCM E31, E32 10

Page 1031 of 4331

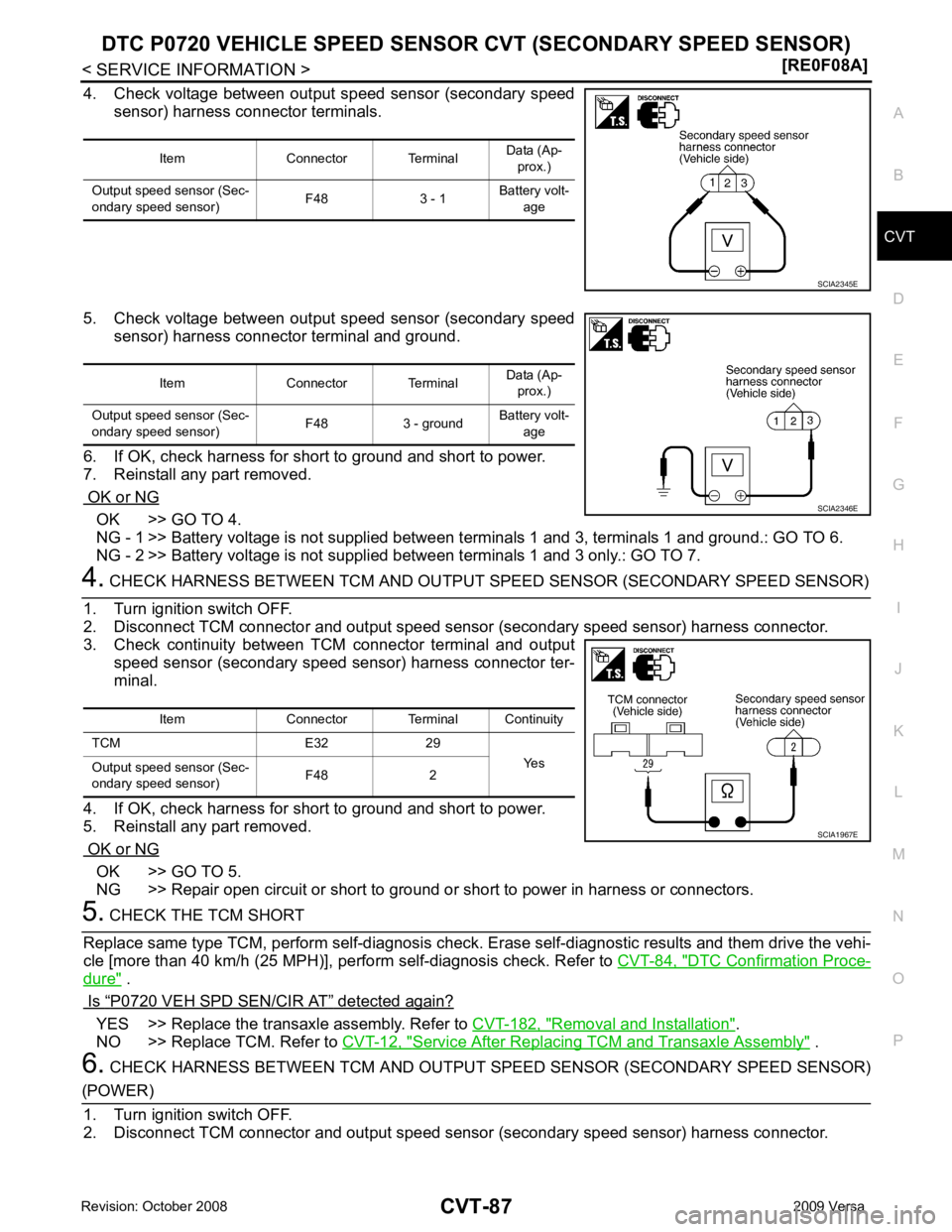

NISSAN LATIO 2009 Service Repair Manual CVT N O P 4. Check voltage between output speed sensor (secondary speed sensor) harness connector terminals. 5. Check voltage between output speed sensor (secondary speed sensor) harness connector ter

Page 1032 of 4331

NISSAN LATIO 2009 Service Repair Manual Circuit Diagram " . 4. If OK, check harness for short to ground and short to power. 5. Reinstall any part removed. OK or NG OK >> 10 A fuse (No. 49, located in the IPDM E/R) or ignition switch are
