INTAKE MANIFOLD
EM-143
< SERVICE INFORMATION >
[MR18DE] C
D E
F
G H
I
J
K L
M A EM
NP
O
3. Tighten intake manifold bolt (A). Then tighten intake manifold
bolt (B).
4. Install electric throttle control actuator.
5. Install water hoses (3), (5) to electric throttle control actuator as shown.
6. Installation of the remaining components is in the reverse order of removal.
INSPECTION AFTER INSTALLATION • Check for leaks of engine coolant. Refer to CO-35, " Inspection " .
• Start and warm up the engine. Visually check for engine coolant leaks. 1 : Intake manifold
: Engine front
Intake manifold bolt (A) : 19.6 N·m (2.0 kg-m, 14 ft-lb)
Intake manifold bolt (B) : 19.6 N·m (2.0 kg-m, 14 ft-lb) PBIC3939E
1 : Electric throttle control actuator
2 : Clamp
4 : Water outlet
A : Paint Mark
B : The clamp shall not interfere with the bulged section. PBIC4703E
Page 3091 of 4331
Component " .
2. Remove exhaust manifold cover.
3. Remove the air fuel ratio sensor 1, using Tool (A).
CAUTION:
Handle it carefully and avoid impacts.
4. Remove exhaust manifold side bolt of exhaust manifold stay. 1. Exhaust manifold cover 2. Exhaust manifold 3. Gasket
4. Stud bolt 5. Bracket 6. Air fuel ratio sensor 1
7. Exhaust manifold stay Engine front
Page 3092 of 4331
EXHAUST MANIFOLD
EM-145
< SERVICE INFORMATION >
[MR18DE] C
D E
F
G H
I
J
K L
M A EM
NP
O
5. Loosen nuts in reverse order as shown and remove exhaust
manifold.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion • Using straightedge (B) and feeler gauge (A), check the surface dis- tortion of exhaust manifold mating surface in each exhaust port
and entire part.
• If it exceeds the limit, replace exhaust manifold.
INSTALLATION 1. Install exhaust manifold gasket to cylinder head as shown.
2. Tighten exhaust manifold nuts to specification in two stages in the numerical order shown. : Engine front PBIC3529J
Limit:
Each exhaust port : 0.3 mm (0.012 in)
Entire part : 0.7 mm (0.028 in) PBIC3530J
: Engine front
PBIC3943E
: Engine front
WBIA0854E
Page 3093 of 4331
Page 3094 of 4331
EM
NP
O
OIL PAN

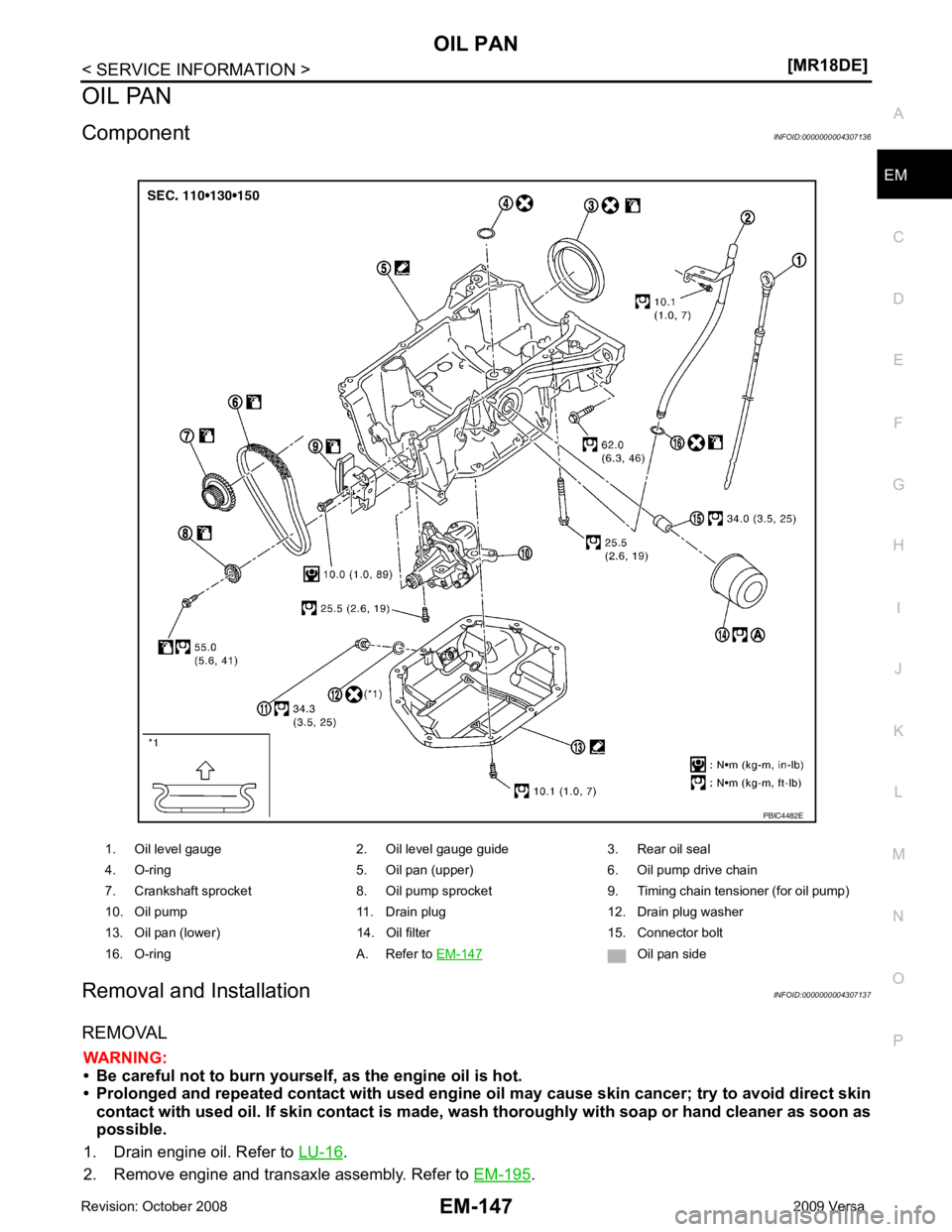

Component INFOID:0000000004307136
Removal and Installation INFOID:0000000004307137
REMOVAL WARNING:
• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cau se skin cancer; try to avoid direct skin
contact with used oil. If skin contact is made, w ash thoroughly with soap or hand cleaner as soon as
possible.
1. Drain engine oil. Refer to LU-16 .
2. Remove engine and transaxle assembly. Refer to EM-195 .
1. Oil level gauge 2. Oil level gauge guide 3. Rear oil seal
4. O-ring 5. Oil pan (upper) 6. Oil pump drive chain
7. Crankshaft sprocket 8. Oil pump sprocket 9. Timing chain tensioner (for oil pump)
10. Oil pump 11. Drain plug 12. Drain plug washer
13. Oil pan (lower) 14. Oil filter 15. Connector bolt
16. O-ring A. Refer to EM-147 Oil pan side
Page 3095 of 4331
![NISSAN LATIO 2009 Service Repair Manual EM-148< SERVICE INFORMATION >
[MR18DE]
OIL PAN
3. Remove flywheel (M/T models) or drive plate (CVT or A/T models). Refer to EM-199, " Component " .
4. Remove oil filter using Tool.
CAUTION:
When remo NISSAN LATIO 2009 Service Repair Manual EM-148< SERVICE INFORMATION >
[MR18DE]
OIL PAN
3. Remove flywheel (M/T models) or drive plate (CVT or A/T models). Refer to EM-199, " Component " .
4. Remove oil filter using Tool.
CAUTION:
When remo](/manual-img/5/57359/w960_57359-3094.png)
EM-148< SERVICE INFORMATION >
[MR18DE]
OIL PAN
3. Remove flywheel (M/T models) or drive plate (CVT or A/T models). Refer to EM-199, " Component " .
4. Remove oil filter using Tool.
CAUTION:
When removing, prepare a shop cloth to ab sorb any engine oil leakage or spillage.

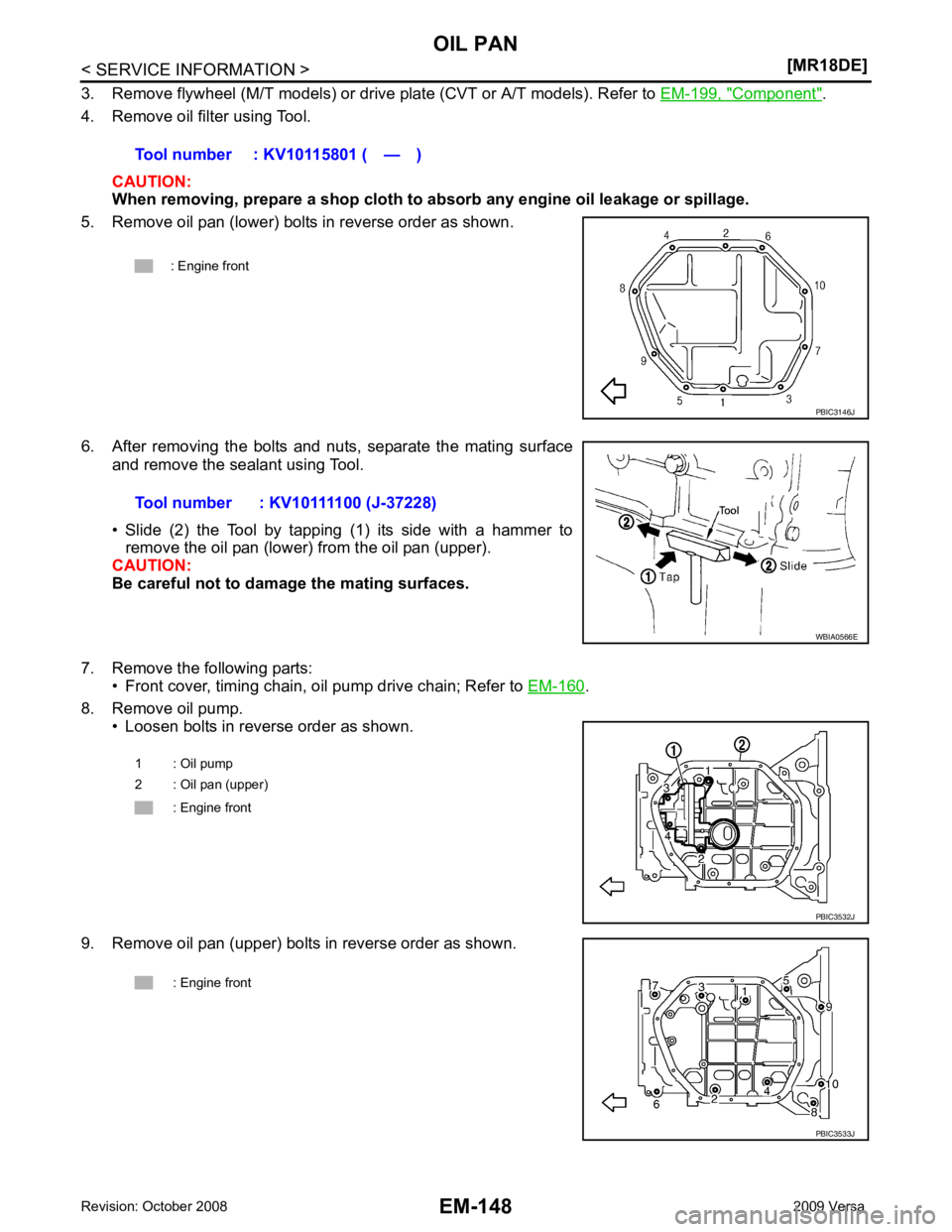

5. Remove oil pan (lower) bolts in reverse order as shown.
6. After removing the bolts and nuts, separate the mating surface and remove the sealant using Tool.
• Slide (2) the Tool by tapping (1) its side with a hammer to remove the oil pan (lower) from the oil pan (upper).
CAUTION:
Be careful not to damage the mating surfaces.
7. Remove the following parts: • Front cover, timing chain, oil pump drive chain; Refer to EM-160 .
8. Remove oil pump. • Loosen bolts in reverse order as shown.
9. Remove oil pan (upper) bolts in reverse order as shown. Tool number : KV10115801 ( — )
: Engine front PBIC3146J
Tool number : KV10111100 (J-37228)
WBIA0566E
1 : Oil pump
2 : Oil pan (upper)
: Engine front PBIC3532J
: Engine front
PBIC3533J
Page 3096 of 4331

EM
NP
O

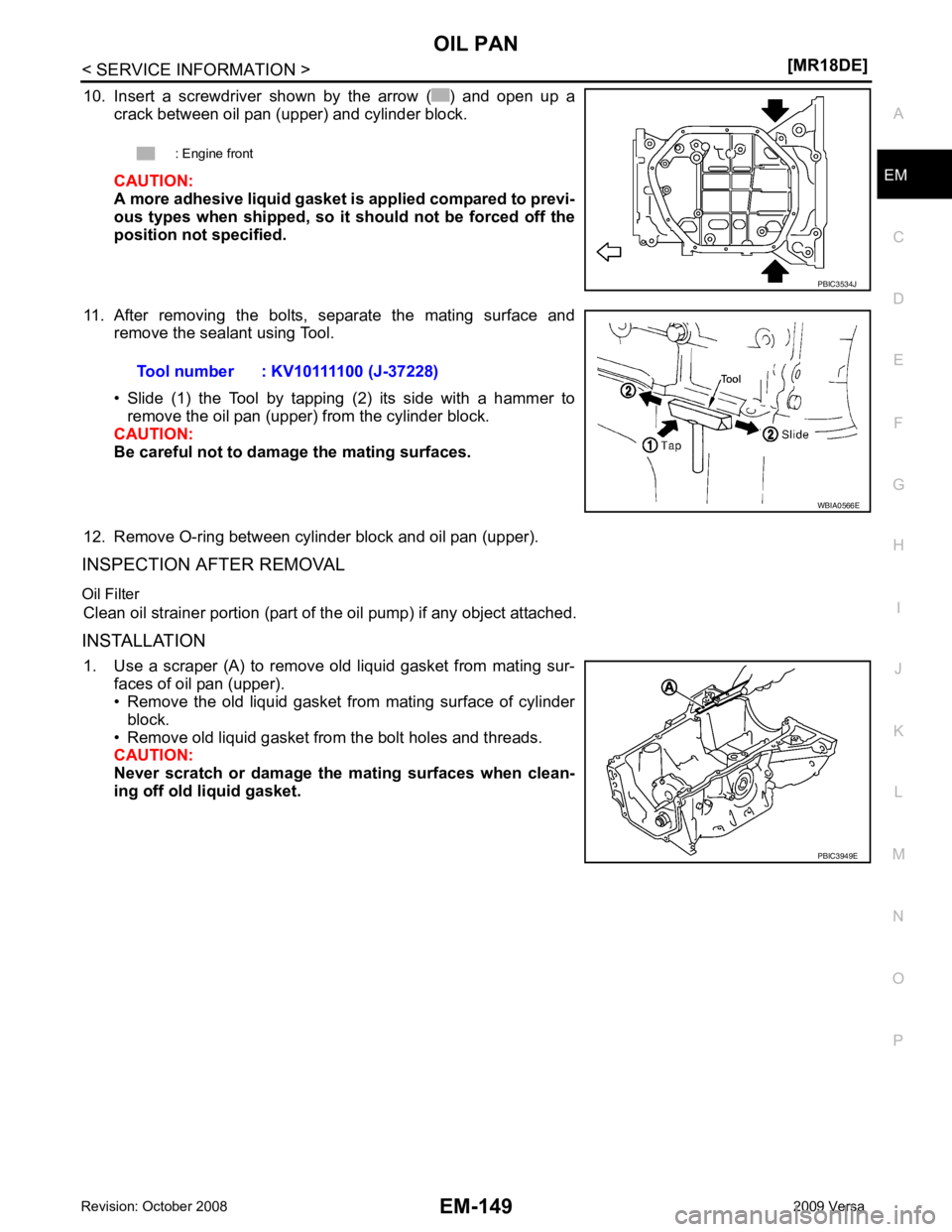

10. Insert a screwdriver shown by the arrow ( ) and open up a
crack between oil pan (upper) and cylinder block.
CAUTION:
A more adhesive liquid gasket is applied compared to previ-
ous types when shipped, so it should not be forced off the
position not specified.
11. After removing the bolts, separate the mating surface and remove the sealant using Tool.
• Slide (1) the Tool by tapping (2) its side with a hammer to remove the oil pan (upper) from the cylinder block.
CAUTION:
Be careful not to damage the mating surfaces.
12. Remove O-ring between cylinder block and oil pan (upper).
INSPECTION AFTER REMOVAL
Oil Filter Clean oil strainer portion (part of the oil pump) if any object attached.
INSTALLATION 1. Use a scraper (A) to remove old liquid gasket from mating sur- faces of oil pan (upper).
• Remove the old liquid gasket from mating surface of cylinder
block.
• Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket. : Engine front
