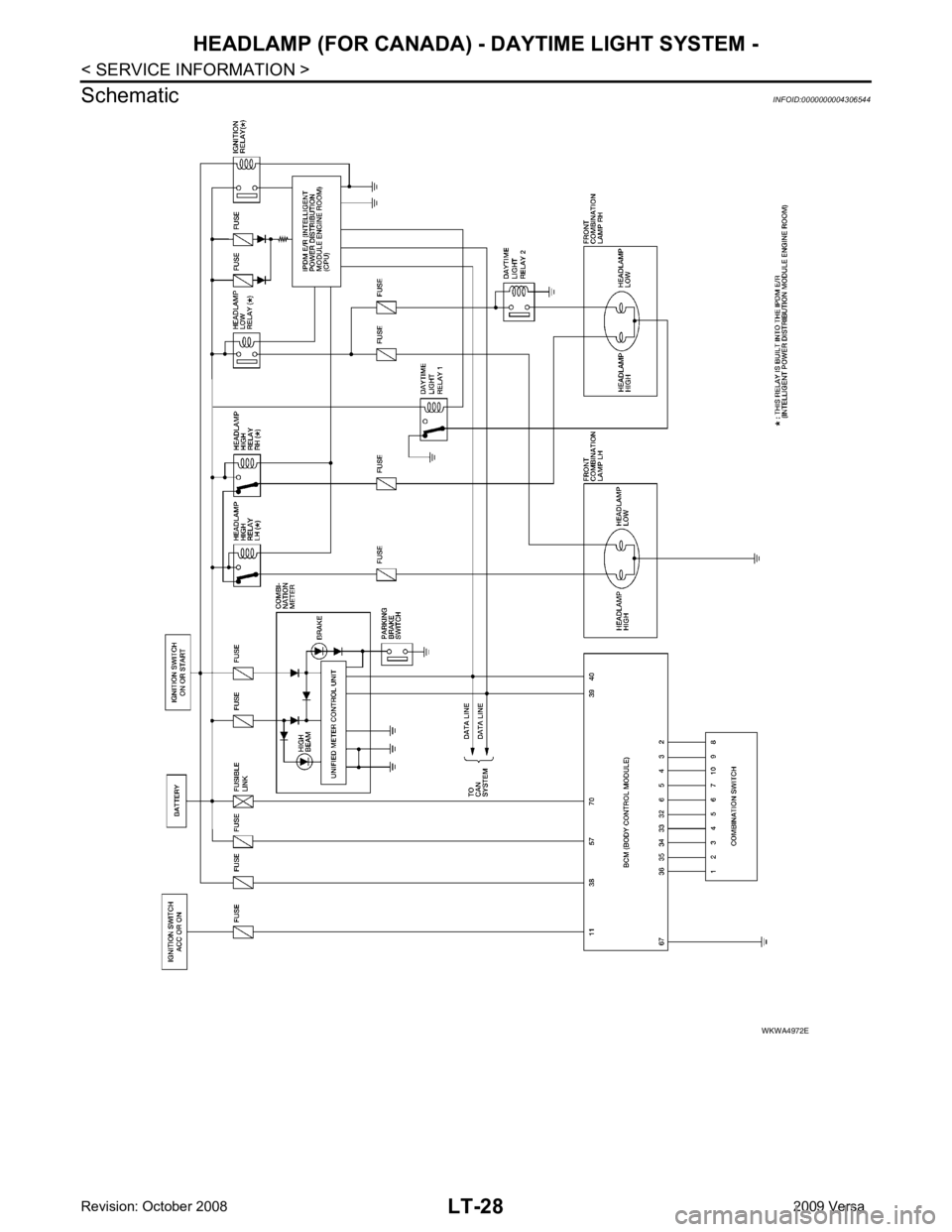

NISSAN LATIO 2009 Service Repair Manual LT N O P • to IPDM E/R terminal 56, • through 10A fuse (No. 34, located in IPDM E/R) and • through both de-energized headlamp high relays • to 10A fuse (No. 35, located in IPDM E/R), • throu

Page 3634 of 4331

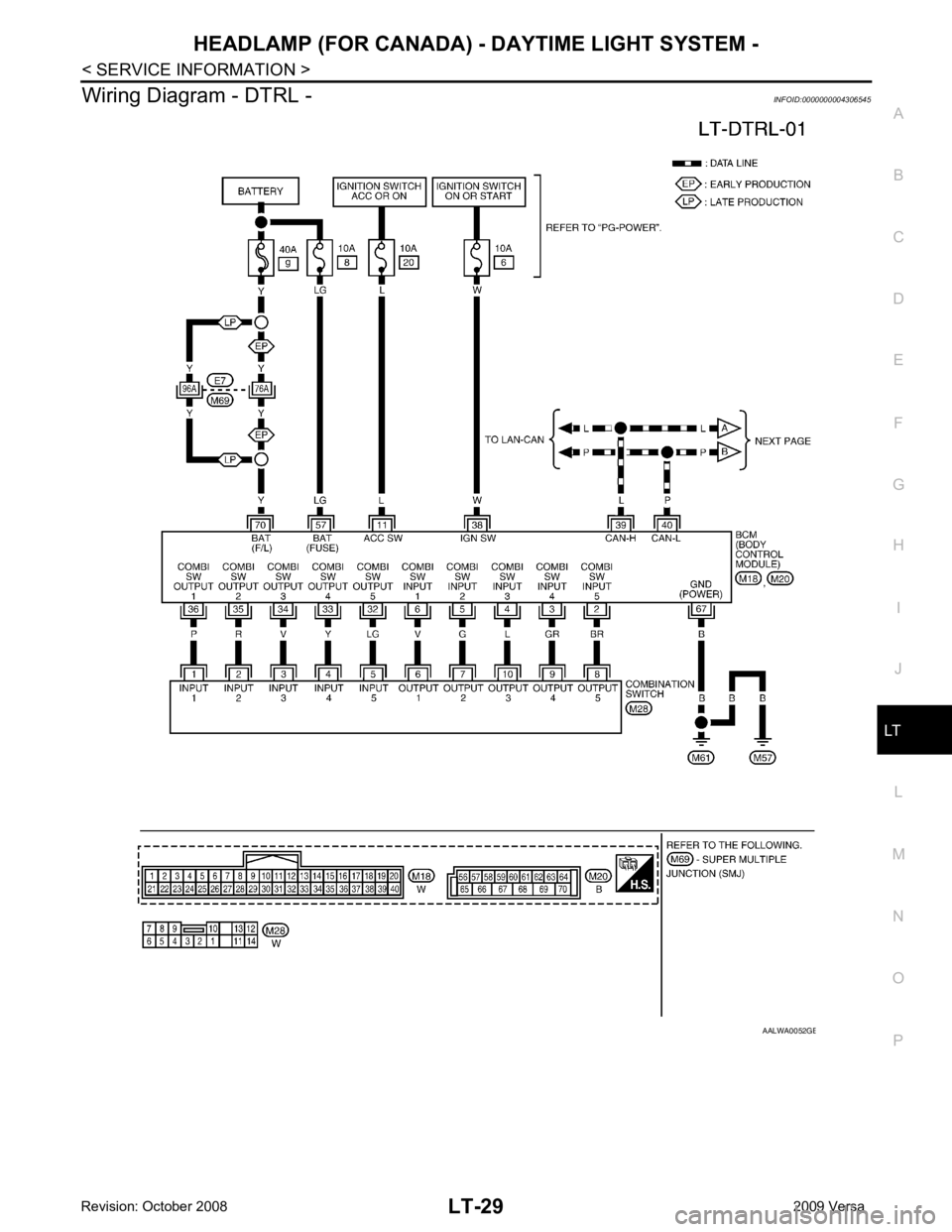

NISSAN LATIO 2009 Service Repair Manual

Page 3635 of 4331

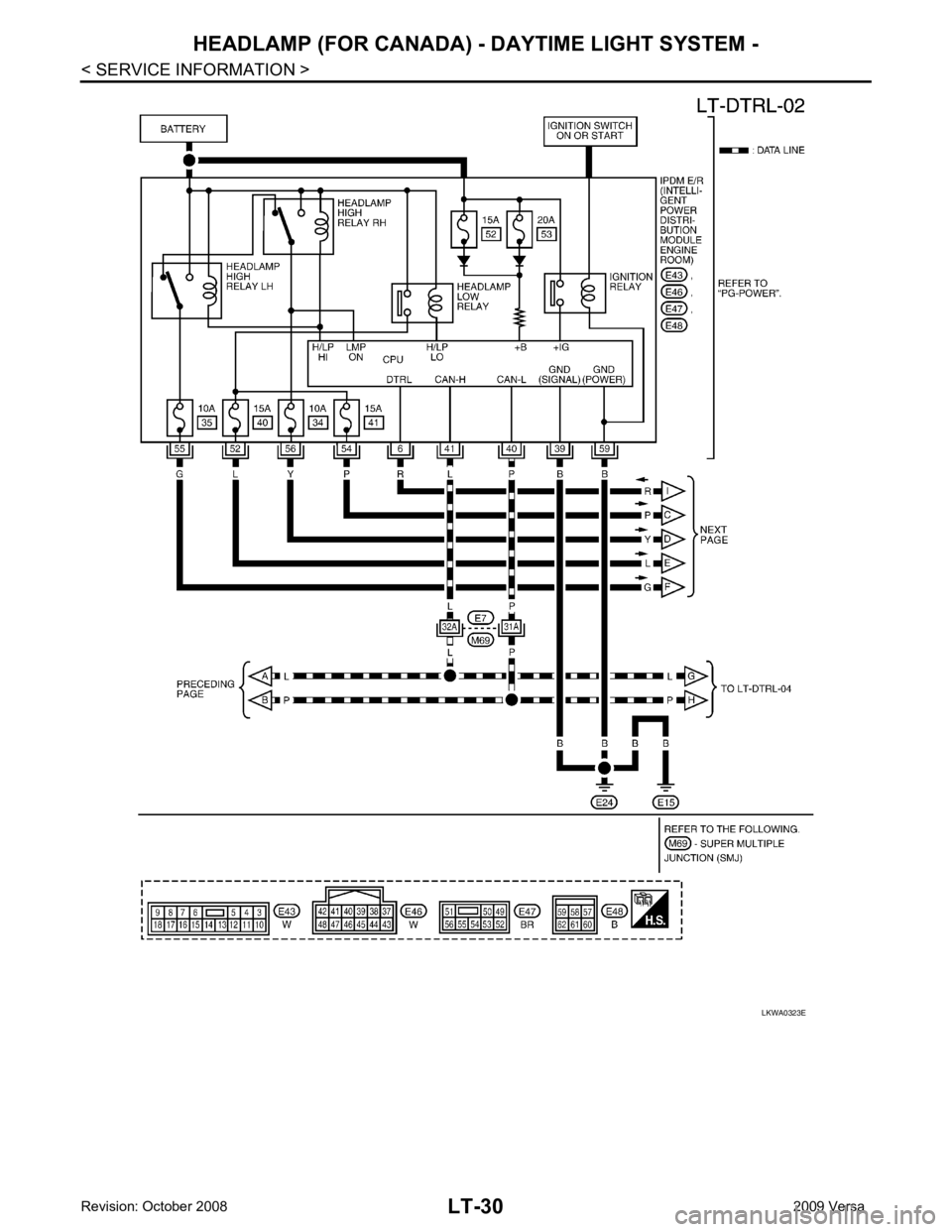

NISSAN LATIO 2009 Service Repair Manual LT N O P Wiring Diagram - DTRL - INFOID:0000000004306545 B

Page 3636 of 4331

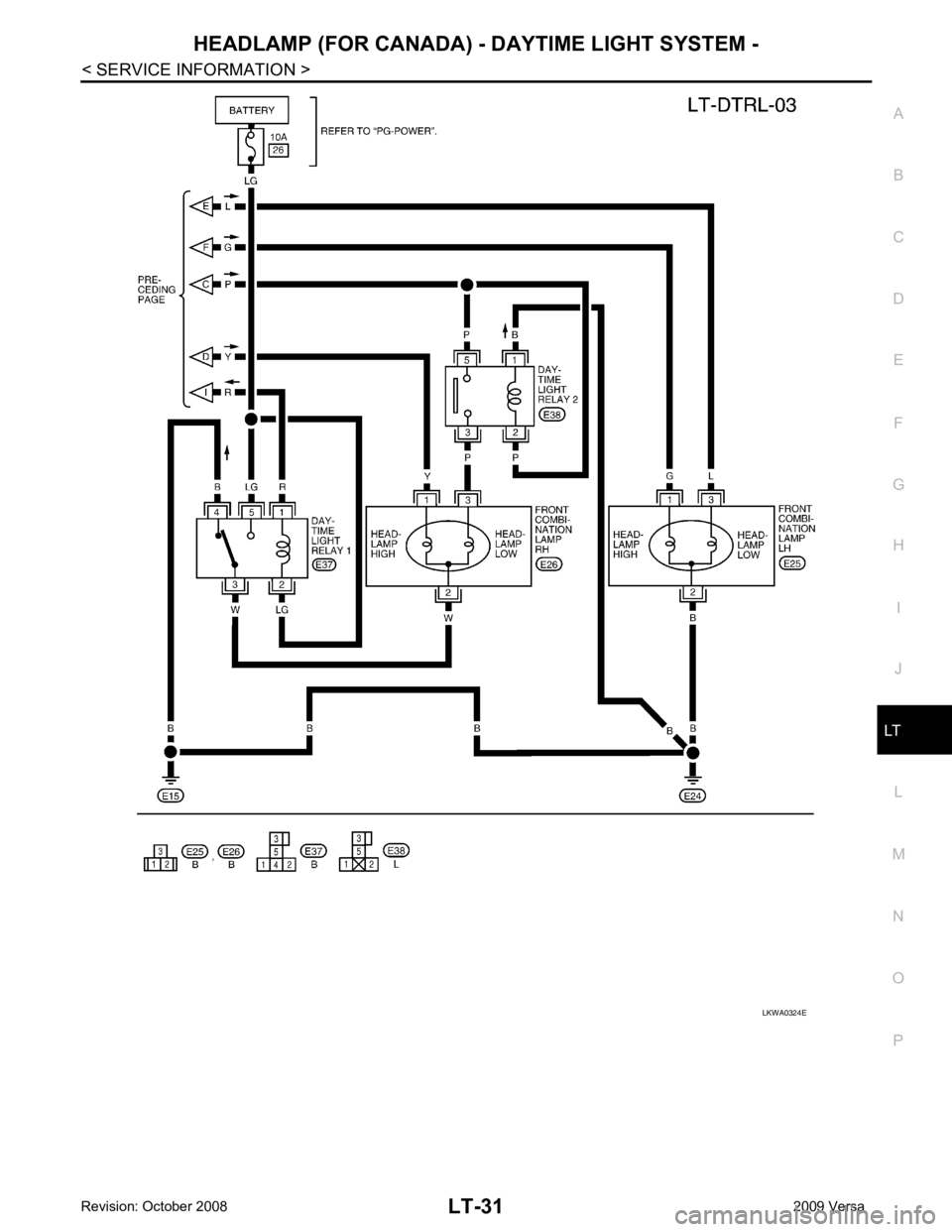

NISSAN LATIO 2009 Service Repair Manual

Page 3637 of 4331

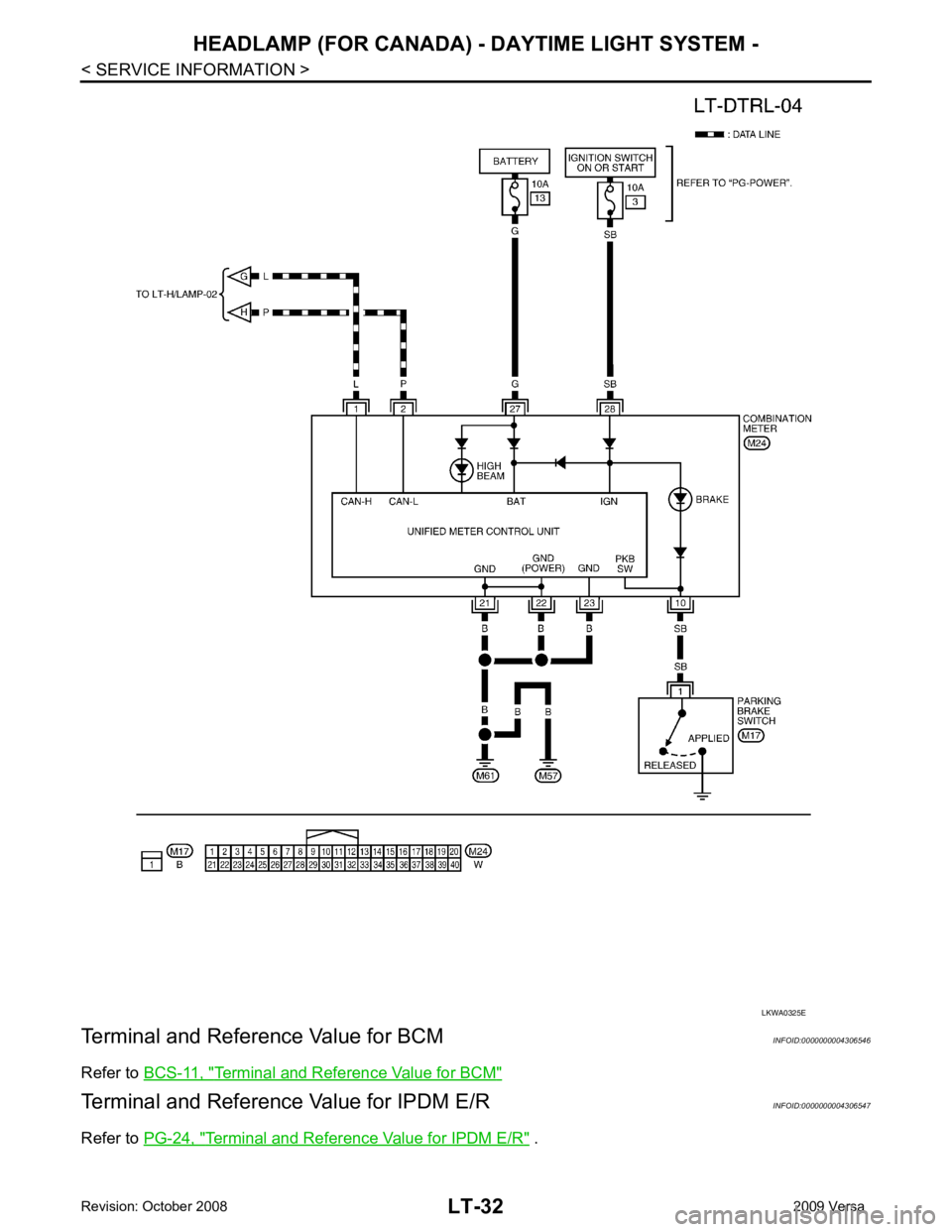

NISSAN LATIO 2009 Service Repair Manual LT N O P

Page 3638 of 4331

NISSAN LATIO 2009 Service Repair Manual Terminal and Reference Value for BCM " Terminal and Reference Value for IPDM E/R " .

Page 3639 of 4331

NISSAN LATIO 2009 Service Repair Manual LT N O P How to Perform Trouble Diagnosis INFOID:0000000004306548 1. Confirm the symptom or customer complaint. 2. Understand operation, description and function description. Refer to LT-25, " System

Page 3640 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 4. NG >> Replace daytime light relay 1. OK >> GO TO 6. NG >> GO TO 5. NO DTC>>Replace BCM. Refer to BCS-18, " Removal and Installation of BCM " . CAN COMM CIRCUIT>> Check BCM CAN
