DTC P1726 ELECTRIC TH
ROTTLE CONTROL SYSTEM
Description INFOID:0000000004305759
Electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throttle
position sensor etc. The actuator sends a signal to the ECM, and ECM sends the signal to TCM with CAN
communication.
On Board Diagnosis Logic INFOID:0000000004305760
• This is not an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1726 ELEC TH CONTROL” wit h CONSULT-III is detected when the electronically
controlled throttle for ECM is malfunctioning.
Possible Cause INFOID:0000000004305761
Harness or connectors
(Sensor circuit is open or shorted.)
DTC Confirmation Procedure INFOID:0000000004305762
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESU LTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start engine and let it idle for 5 second.
4. If DTC is detected, go to CVT-305, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004305763 CONSULT-III
Function (ENGINE) " .
OK or NG OK >> GO TO 2.
NG >> Check the DTC Detected Item. Refer to EC-1116, " CONSULT-III Function (ENGINE) " .
• If CAN communication line is detected, go to CVT-238 .
DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 3. OK >> Replace TCM. Refer to
CVT-190, " Service After Replacing TCM and Transaxle Assembly " .
NG >> Repair or replace damaged parts.
Page 1250 of 4331
Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value
LUSEL SOL OUT Selector lever in “P
” and “N” positions ON
Wait at least for 5 seconds with the selector lever
in “R”, “D” and “L” positions OFF
Page 1251 of 4331
DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
CVT-307
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P

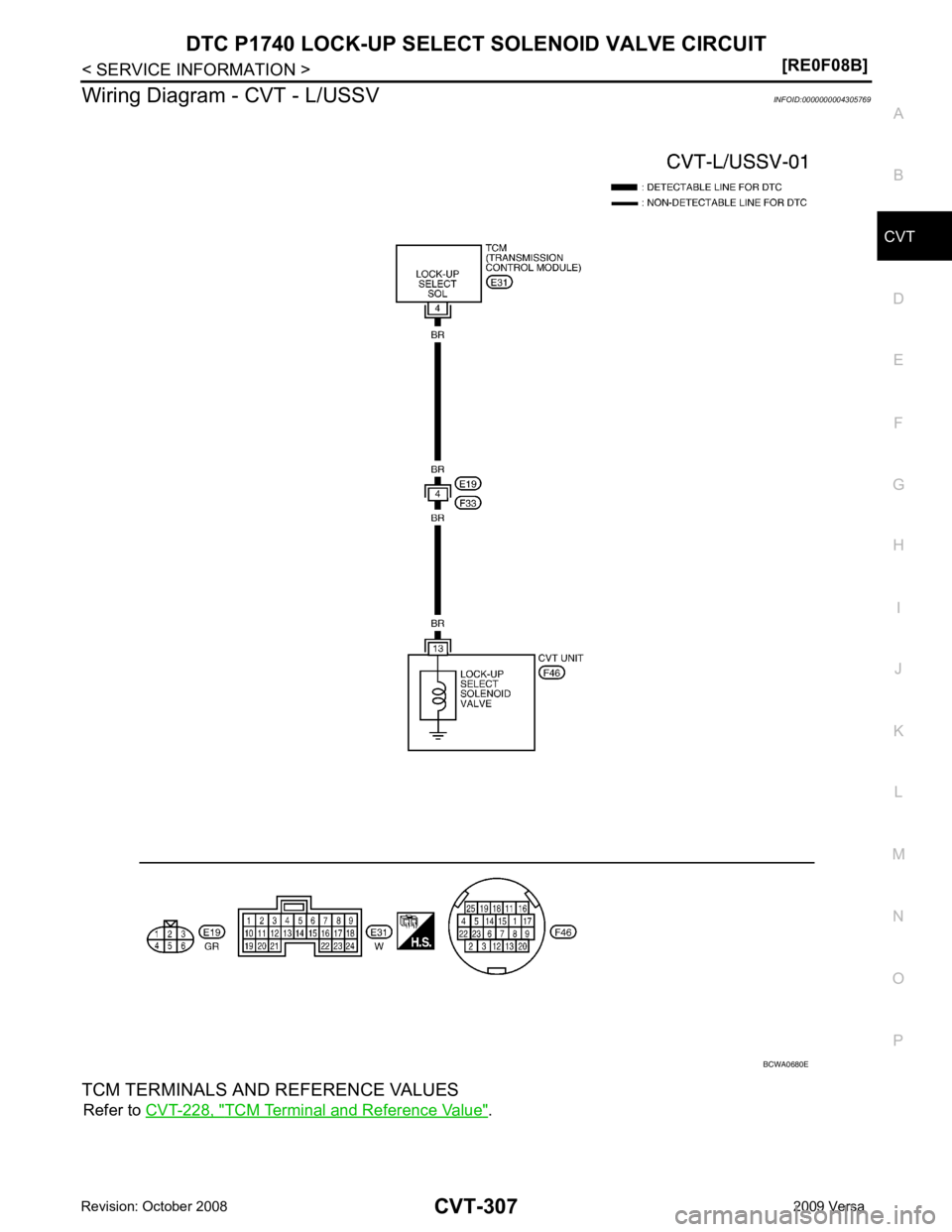

Wiring Diagram - CVT - L/USSV
INFOID:0000000004305769
TCM TERMINALS AND REFERENCE VALUES Refer to CVT-228, " TCM Terminal and Reference Value " . BCWA0680E
Page 1252 of 4331
![NISSAN LATIO 2009 Service Repair Manual CVT-308< SERVICE INFORMATION >
[RE0F08B]
DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
Diagnosis Procedure INFOID:00000000043057701.
CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON. NISSAN LATIO 2009 Service Repair Manual CVT-308< SERVICE INFORMATION >
[RE0F08B]
DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
Diagnosis Procedure INFOID:00000000043057701.
CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON.](/manual-img/5/57359/w960_57359-1251.png)
CVT-308< SERVICE INFORMATION >
[RE0F08B]
DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
Diagnosis Procedure INFOID:00000000043057701.
CHECK INPUT SIGNAL
With CONSULT-III
1. Turn ignition switch ON.
2. Select “SELECTION FROM MENU” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “LUSEL SOL OUT”.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check voltage between TCM connector terminal and ground.
3. Turn ignition switch OFF.
4. Disconnect the TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG OK >> GO TO 5.
NG >> GO TO 2. 2.
CHECK LOCK-UP SELECT SOLENOID VALVE CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check resistance between TCM connector terminal and ground.
OK or NG OK >> GO TO 5.
NG >> GO TO 3. 3.
CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector. Item name Condition Display value
LUSEL SOL OUT Selector lever in “P” and “N”
positions ON
Wait at least for 5 seconds
with the selector lever in
“R”, “D” and “L” positions OFF
Name Connector Terminal Condition Voltage
(Approx.)
Lock-up
select sole-
noid valve E31 4 - Ground Selector lever in “P” and
“N” positions Battery
voltage
Wait at least for 5 sec-
onds with the selector le-
ver in “R”, “D” and “L”
positions 0 V SCIA7955E
Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Lock-up select solenoid
valve E31 4 - Ground 6 - 19
Ω SCIA4692E
Page 1253 of 4331
![NISSAN LATIO 2009 Service Repair Manual DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
CVT-309
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P

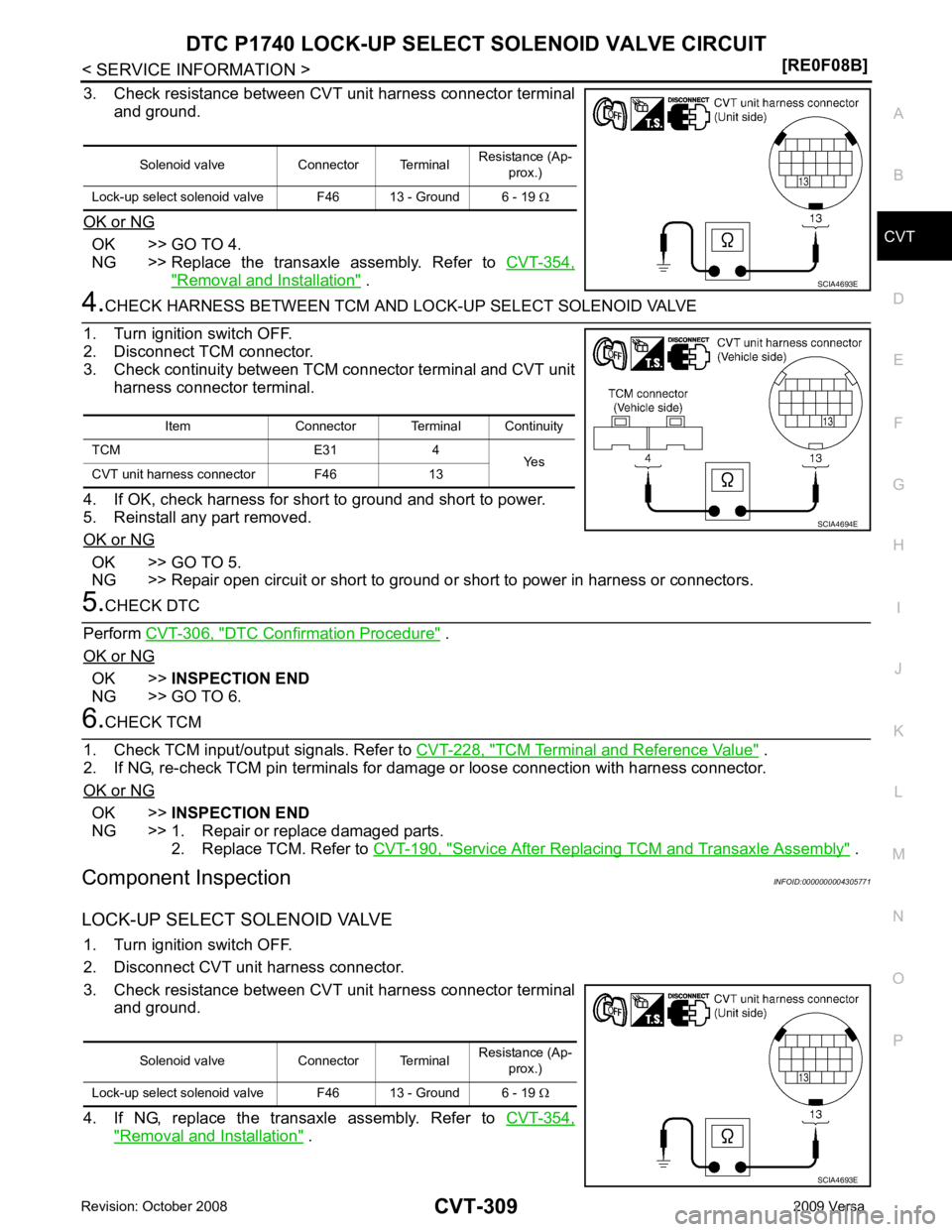

3. Check resistance between CVT unit harness connector terminal
and ground. NISSAN LATIO 2009 Service Repair Manual DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
CVT-309
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
3. Check resistance between CVT unit harness connector terminal
and ground.](/manual-img/5/57359/w960_57359-1252.png)
DTC P1740 LOCK-UP SELECT
SOLENOID VALVE CIRCUIT
CVT-309
< SERVICE INFORMATION >
[RE0F08B] D
E
F
G H
I
J
K L
M A
B CVT
N
O P
3. Check resistance between CVT unit harness connector terminal
and ground.
OK or NG OK >> GO TO 4.
NG >> Replace the transaxle assembly. Refer to CVT-354," Removal and Installation " .
4.
CHECK HARNESS BETWEEN TCM AND LO CK-UP SELECT SOLENOID VALVE
1. Turn ignition switch OFF.
2. Disconnect TCM connector.
3. Check continuity between TCM connector terminal and CVT unit harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5.
CHECK DTC
Perform CVT-306, " DTC Confirmation Procedure " .
OK or NG OK >>
INSPECTION END
NG >> GO TO 6. 6.
CHECK TCM
1. Check TCM input/output signals. Refer to CVT-228, " TCM Terminal and Reference Value " .
2. If NG, re-check TCM pin terminals for dam age or loose connection with harness connector.
OK or NG OK >>
INSPECTION END
NG >> 1. Repair or replace damaged parts.
2. Replace TCM. Refer to CVT-190, " Service After Replacing TCM and Transaxle Assembly " .
Component Inspection INFOID:0000000004305771
LOCK-UP SELECT SOLENOID VALVE 1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
3. Check resistance between CVT unit harness connector terminal and ground.
4. If NG, replace the transaxle assembly. Refer to CVT-354," Removal and Installation " .
Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Lock-up select solenoid valve F46 13 - Ground 6 - 19 Ω SCIA4693E
Item Connector Terminal Continuity
TCM E31 4 Yes
CVT unit harness connector F46 13 SCIA4694E
Solenoid valve Connector Terminal
Resistance (Ap-
prox.)
Lock-up select solenoid valve F46 13 - Ground 6 - 19 Ω SCIA4693E
Page 1254 of 4331
Diagnosis Procedure " .
Diagnosis Procedure INFOID:0000000004305776OBD-II Diagnostic Trouble Code (DTC) " .
4. Turn ignition switch OFF, and wait for 10 seconds or more.
5. Start engine.
6. Confirm self-diagnostic results again. Refer to CVT-230, " CONSULT-III Function (TRANSMISSION) " .
Is the “ P1745 L/PRESS CONTROL ” displayed?
YES >> Replace TCM. Refer to
CVT-190, " Service After Replacing TCM and Transaxle Assembly " .
NO >> INSPECTION END
Page 1255 of 4331

CVT
N
O P

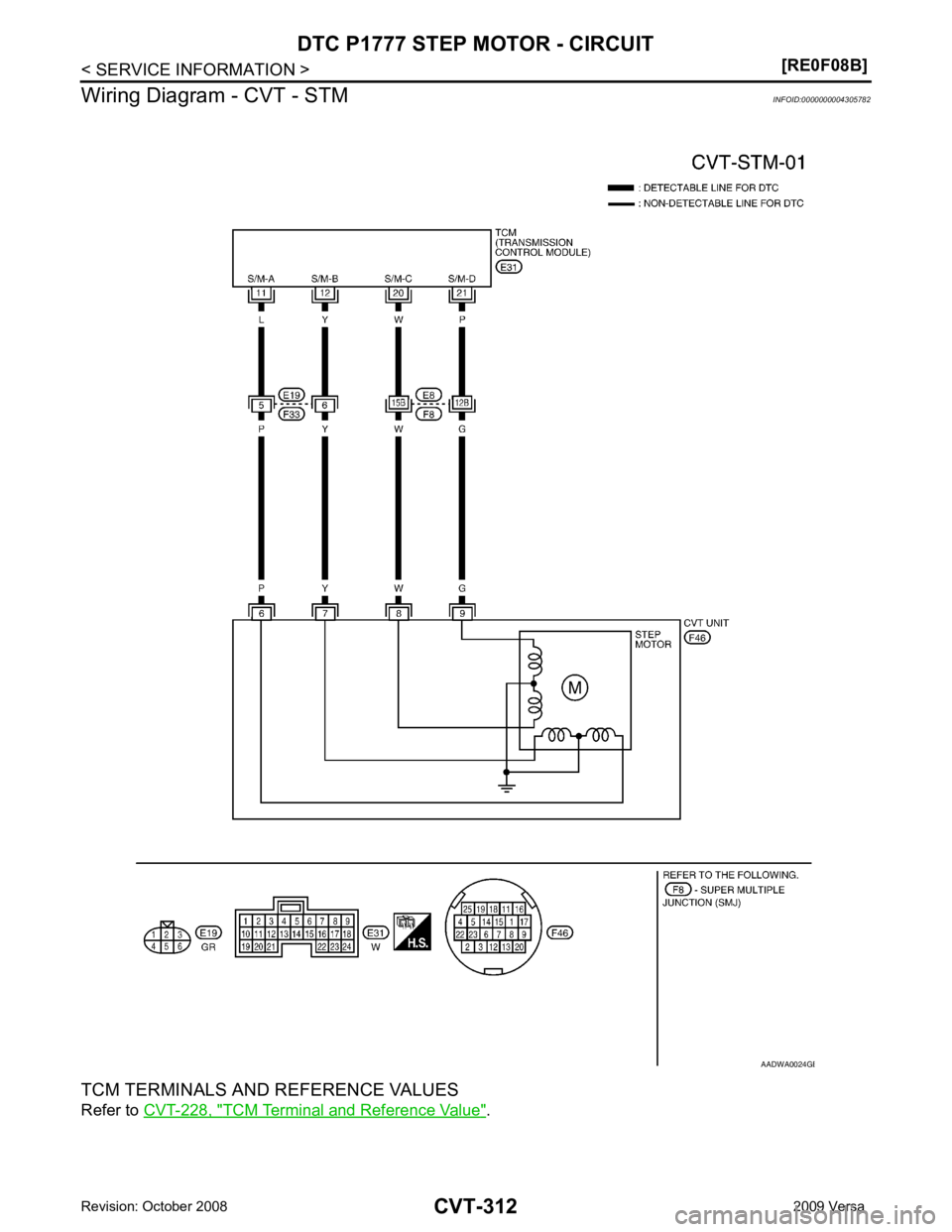

DTC P1777 STEP MOTOR - CIRCUIT
Description INFOID:0000000004305777
• The step motor is included in the control valve assembly.
• The step motor changes the step with turning 4 coils ON/OF F according to the signal from TCM. As a result,
the flow of line pressure to primary pu lley is changed and pulley ratio is controlled
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004305778
Remarks: Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004305779
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P1777 STEP MOTR CIRC” with CONSULT-III is detected under the following con-
ditions.
- When operating step motor ON and OFF, there is no proper change in the voltage of TCM terminal which corresponds to it.
Possible Cause INFOID:0000000004305780
• Step motor
• Harness or connectors
(Step motor circuit is open or shorted.)
DTC Confirmation Procedure INFOID:0000000004305781
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESU LTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MO NITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Drive vehicle for at least 5 consecutive seconds.
3. If DTC is detected, go to CVT-313, " Diagnosis Procedure " .
WITH GST
Follow the procedure “WITH CONSULT-III”. Item name Condition Display value (Approx.)
STM STEP
During driving−
20 step - 180 step
SMCOIL A
Changes ON⇔OFF.
SMCOIL B
SMCOIL C
