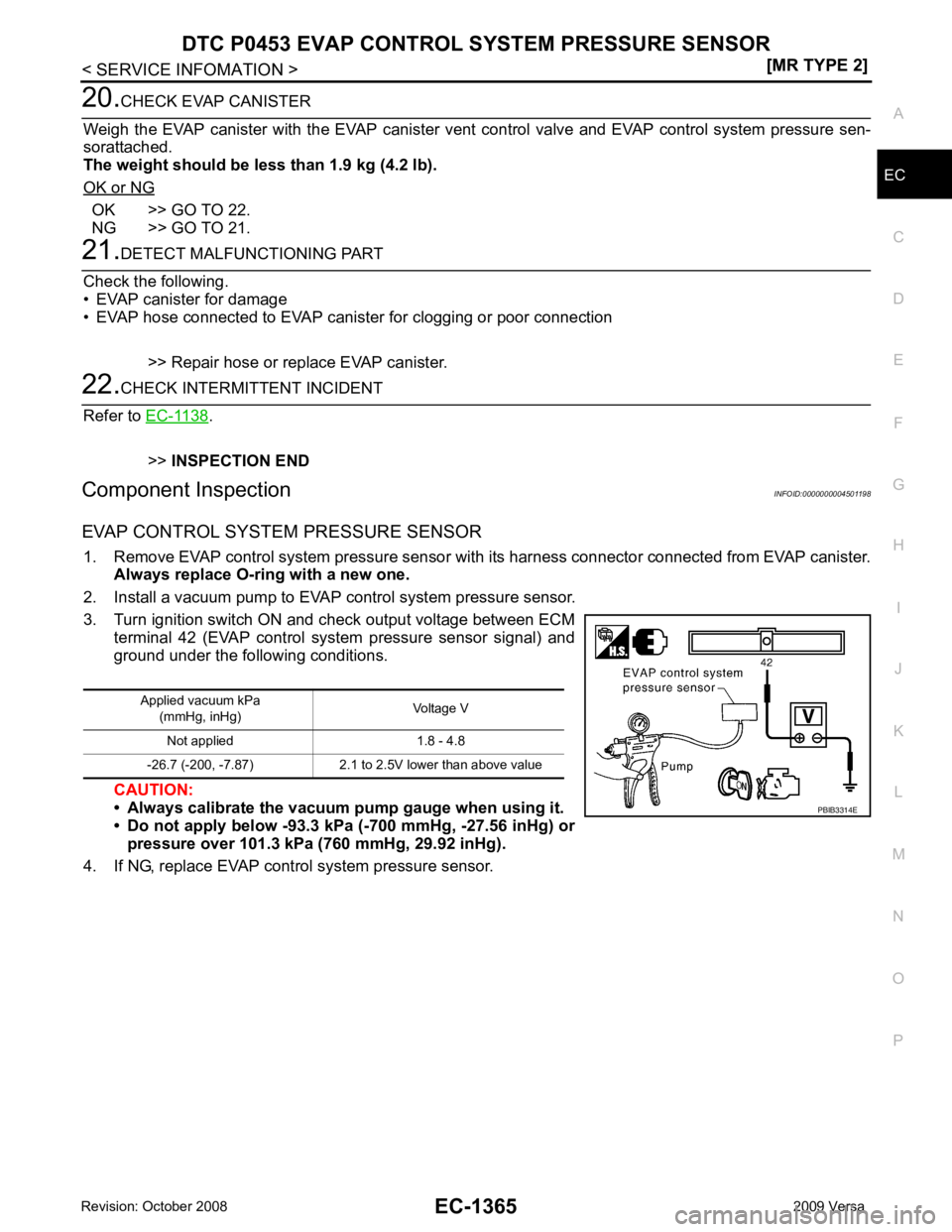

Page 2721 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-1365
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O 20.
CHECK EVAP CANISTER
Weigh the EVAP canister with the EVAP canister

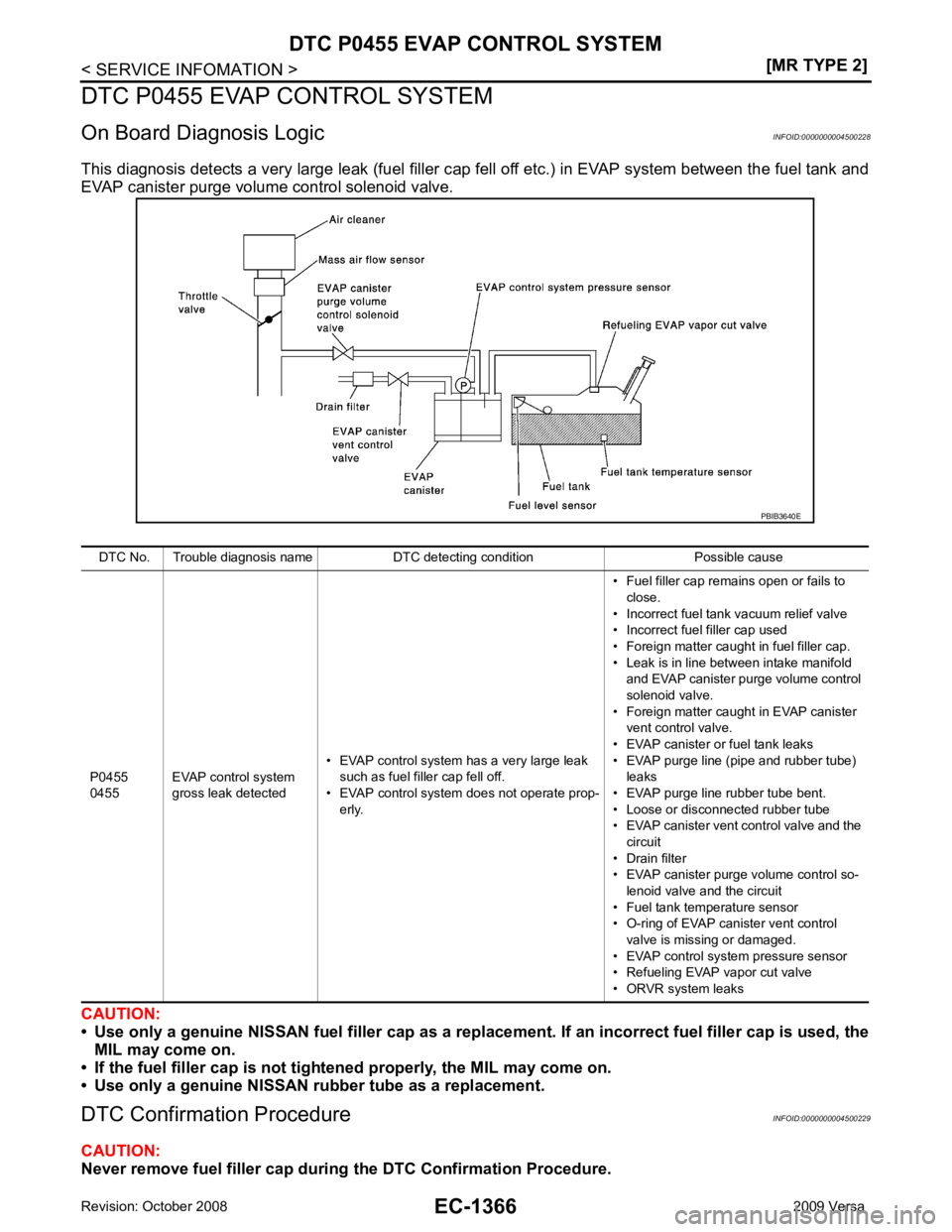

Page 2722 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1366< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0455 EVAP CONTROL SYSTEM
DTC P0455 EVAP CONTROL SYSTEM
On Board Diagn osis Logic INFOID:0000000004500228
This diagnosis detects a very large leak (fuel f

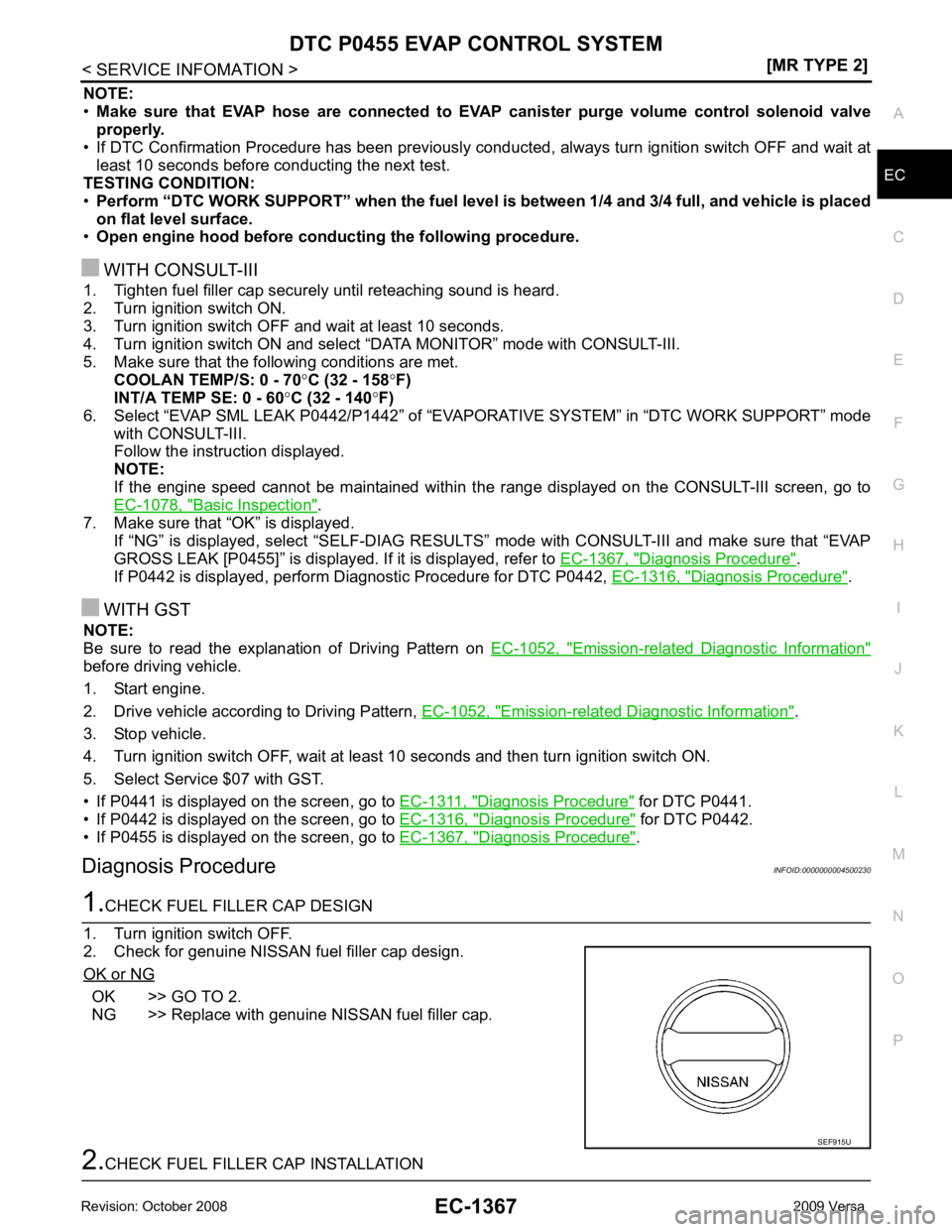

Page 2723 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEM
EC-1367
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
NOTE:
• Make sure that EVAP hose are connected to EVAP canister purge volume cont

DTC P0455 EVAP CONTROL SYSTEM
EC-1367
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
NOTE:
• Make sure that EVAP hose are connected to EVAP canister purge volume control solenoid valve
properly.
• If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
• Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
• Open engine hood before conducting the following procedure.
WITH CONSULT-III
1. Tighten fuel filler cap securely until reteaching sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met. COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select “EVAP SML LEAK P0442/P1442” of “EVAPORA TIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within the range displayed on the CONSULT-III screen, go to
EC-1078, " Basic Inspection " .
7. Make sure that “OK” is displayed. If “NG” is displayed, select “SELF-DIAG RESULT S” mode with CONSULT-III and make sure that “EVAP
GROSS LEAK [P0455]” is displayed. If it is displayed, refer to EC-1367, " Diagnosis Procedure " .
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442, EC-1316, " Diagnosis Procedure " .
WITH GST
NOTE:
Be sure to read the explanation of Driving Pattern on EC-1052, " Emission-related Diagnostic Information "
before driving vehicle.
1. Start engine.
2. Drive vehicle according to Driving Pattern, EC-1052, " Emission-related Diagnostic Information " .
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ignition switch ON.
5. Select Service $07 with GST.
• If P0441 is displayed on the screen, go to EC-1311, " Diagnosis Procedure " for DTC P0441.
• If P0442 is displayed on the screen, go to EC-1316, " Diagnosis Procedure " for DTC P0442.
• If P0455 is displayed on the screen, go to EC-1367, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:00000000045002301.
CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap. 2.
CHECK FUEL FILLER CAP INSTALLATION SEF915U

Page 2724 of 4331

NISSAN LATIO 2009 Service Repair Manual OK >> GO TO 3.
NG >> 1. Open fuel filler cap, then clean cap and fuel filler neck threads using air blower.
2. Retighten until reteaching sound is heard. OK >> GO TO 5.

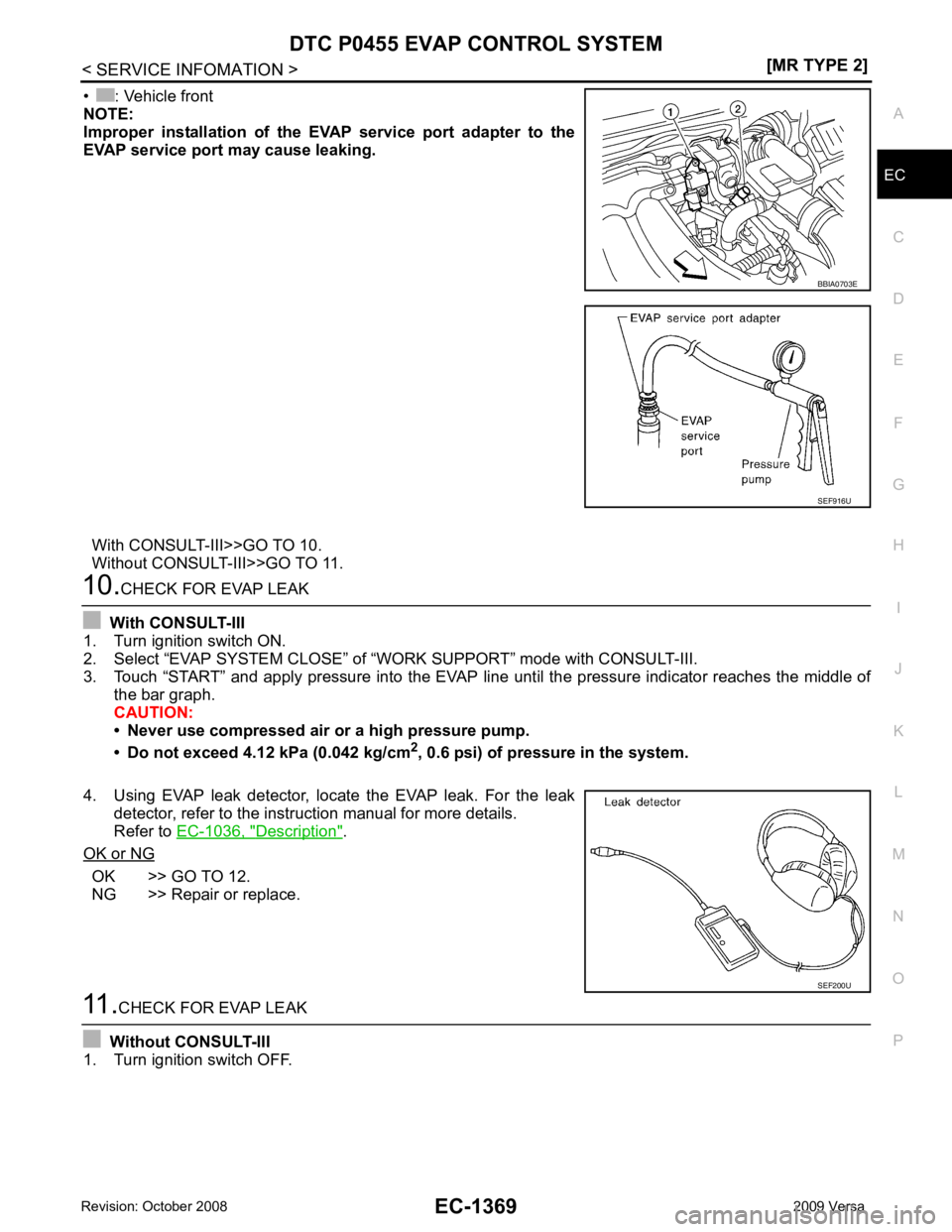

NG >> GO TO 4. Component Inspe

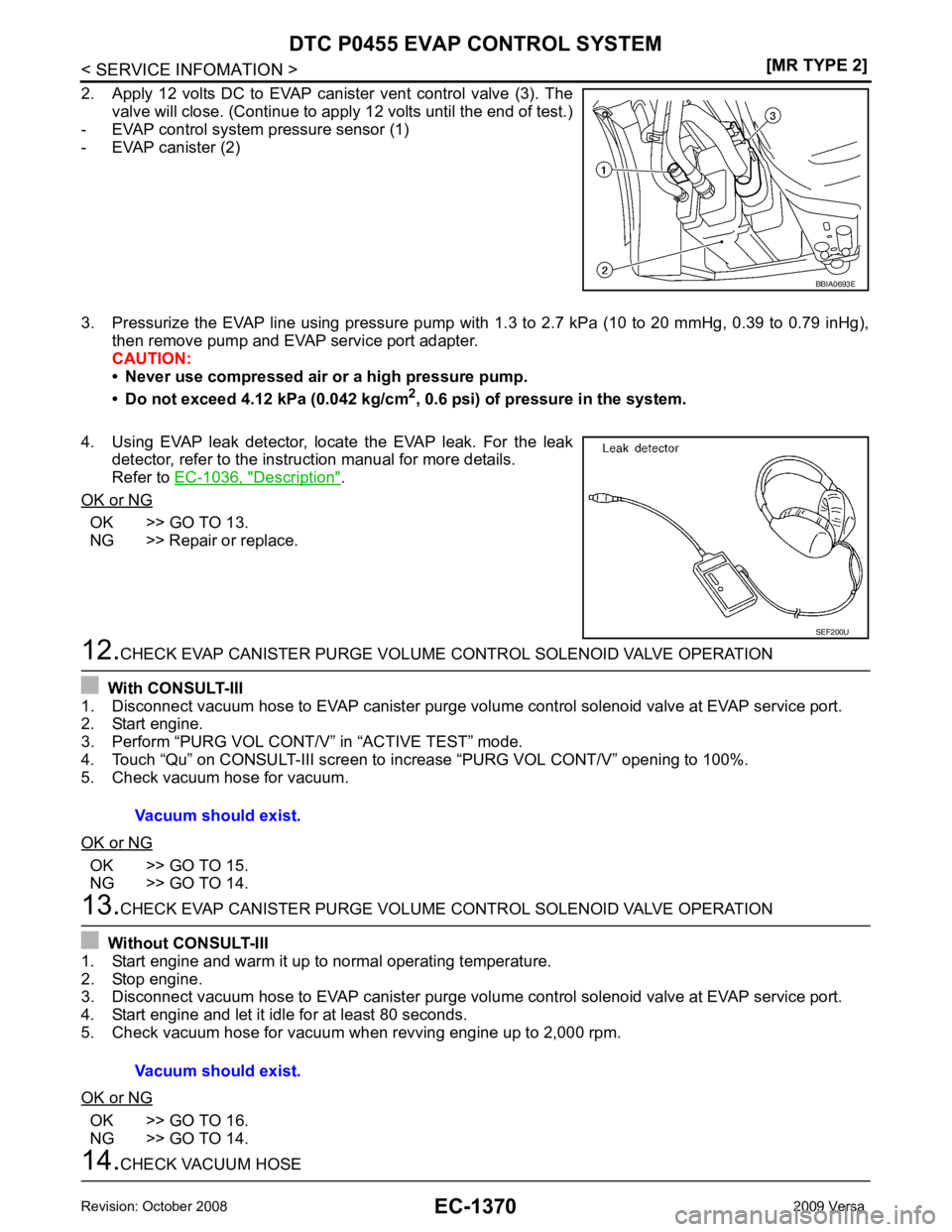

Page 2725 of 4331

NISSAN LATIO 2009 Service Repair Manual DTC P0455 EVAP CONTROL SYSTEM
EC-1369
< SERVICE INFOMATION >
[MR TYPE 2] C
D E
F
G H
I
J
K L
M A EC
NP
O
• : Vehicle front
NOTE:
Improper installation of the EV AP service port adapter to t

Page 2726 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1370< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0455 EVAP CONTROL SYSTEM
2. Apply 12 volts DC to EVAP canister vent control valve (3). The valve will close. (Continue to appl y 12 volts unti

Page 2727 of 4331

NISSAN LATIO 2009 Service Repair Manual EC
NP
O
Check vacuum hoses for clogging or disconnection. Refer to
EC-1106, " Vacuum Hose Drawing " .
OK or NG OK (With CONSULT-III)>>GO TO 15.
OK (Without CONSULT-III)>>GO TO 16.
NG >> Repair or rec

Page 2728 of 4331

NISSAN LATIO 2009 Service Repair Manual EC-1372< SERVICE INFOMATION >
[MR TYPE 2]
DTC P0455 EVAP CONTROL SYSTEM
>> INSPECTION END
Component Inspection INFOID:0000000004535234
DRAIN FILTER
1. Check visually for insect nests in the drain filt
