Page 873 of 4331

NISSAN LATIO 2009 Service Repair Manual BRC
N
O P
• When installing front wheel sensor, press rubber gr
ommets of strut bracket and body all the way in
until they get locked, and be careful not to apply a twist to harness. Harness should

Page 874 of 4331

NISSAN LATIO 2009 Service Repair Manual Removal
and Installation " (front axle),
RAX-5, " Removal and Installation " (rear axle).

Page 875 of 4331

NISSAN LATIO 2009 Service Repair Manual BRC
N
O P

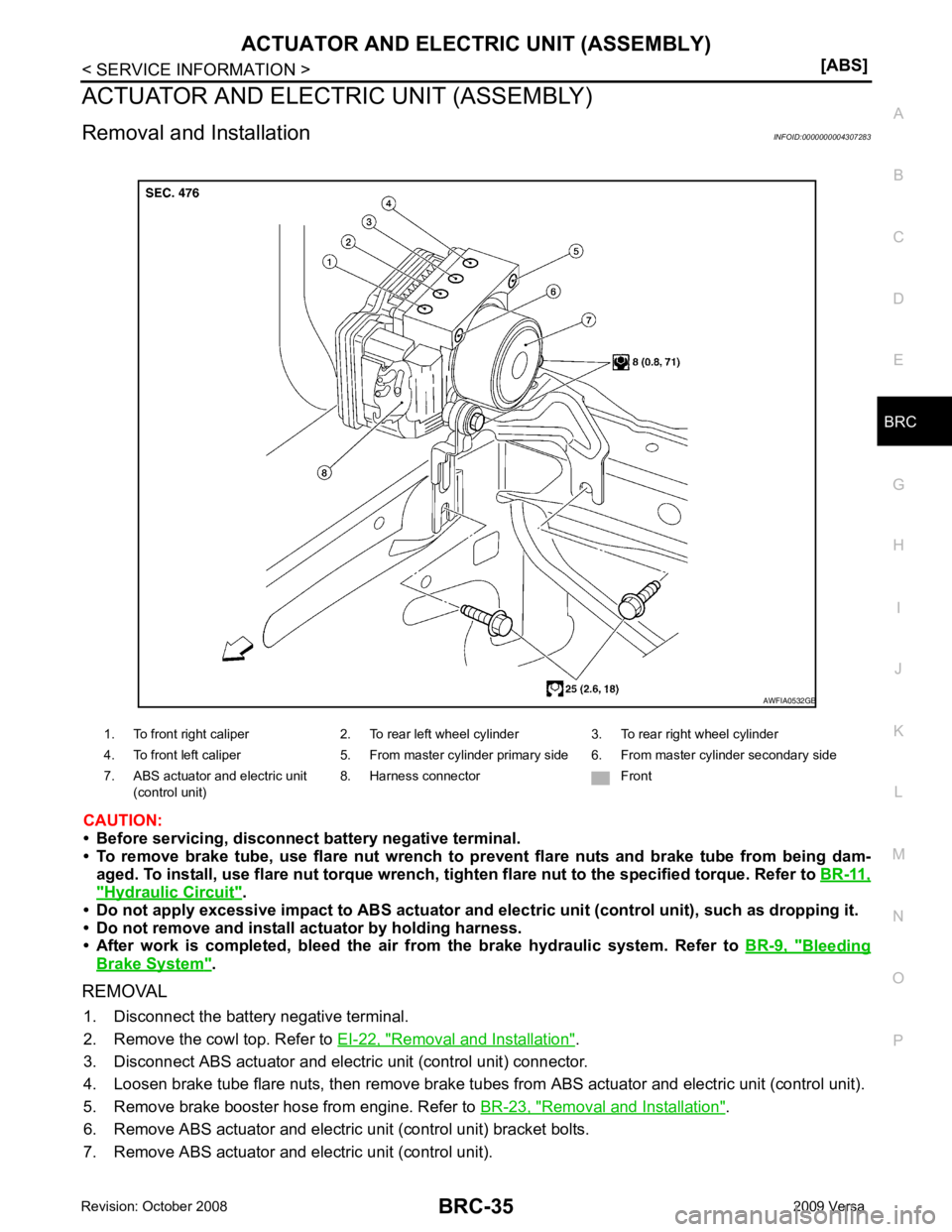

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and Installation INFOID:0000000004307283
CAUTION:
• Before servicing, disconnect battery negative terminal.
• To remove brake tube, use

Page 876 of 4331

NISSAN LATIO 2009 Service Repair Manual Bleeding Brake System " .
CAUTION:
After installing harness connector in the ABS actuato r and electric unit (control unit), make sure the
connector is securely locked.

Page 877 of 4331

NISSAN LATIO 2009 Service Repair Manual CL
N
O P
CONTENTS
CLUTCH
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR

CL
N
O P
CONTENTS
CLUTCH
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precaution for Procedure without Cowl Top Cover ......2
Service Notice or Precaution ............................... ......2
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool .................................... ......3
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ .....4
NVH Troubleshooting Chart ................................ ......4
CLUTCH PEDAL ............................................ .....5
On-vehicle Inspection and Adjustment ................ ......5
Removal and Installation ...........................................6
CLUTCH FLUID .............................................. .....8 Air Bleeding Procedure ........................................
.....8
CLUTCH MASTER CYLINDER ........................ 10
Removal and Installation ..................................... ....10
CSC (CONCENTRIC SLAVE CYLINDER) ....... 12
Exploded View ..................................................... ....12
Removal and Installation ..................................... ....12
CLUTCH PIPING ............................................... 14
Removal and Installation ..................................... ....14
CLUTCH DISC, CLUTCH COVER AND FLY-
WHEEL .............................................................. 15
Removal and Installation ..................................... ....15
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................. 18
Clutch Control System ......................................... ....18
Clutch Pedal ........................................................ ....18
Clutch Disc .......................................................... ....18
Clutch Cover ........................................................ ....18

Page 878 of 4331

NISSAN LATIO 2009 Service Repair Manual CL-2< SERVICE INFORMATION >
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint Syst em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000004802358
The Supple

CL-2< SERVICE INFORMATION >
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint Syst em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" INFOID:0000000004802358
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution for Procedure without Cowl Top Cover INFOID:0000000004305163
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Service Notice or Precaution INFOID:0000000004305164
• Use recommended brake fluid when adding flui d to the clutch reservoir tank. Refer to MA-14 .
• Never reuse fluid drained from clutch system.
• Be careful not to splash brake fluid on painted areas.
• Use new brake fluid to clean or wash all part s of master cylinder and operating cylinder.
• Never use mineral oils such as gasoline or kerosene. It will ruin the rubber parts of the hydraulic sys-
tem.
• If transaxle assembly is removed from the vehicle , always replace CSC (Concentric slave cylinder).
Return CSC to original position to remove transaxle assembly. Dust on clutch disc sliding parts may
damage CSC seal and may cause clutch fluid leakage.
• Do not disassemble clutch master cylinder and CSC.
WARNING:
After cleaning clutch disc, clean it with a dust collector. Do not use compressed air. PIIB3706J

Page 879 of 4331

NISSAN LATIO 2009 Service Repair Manual CL
N
O P

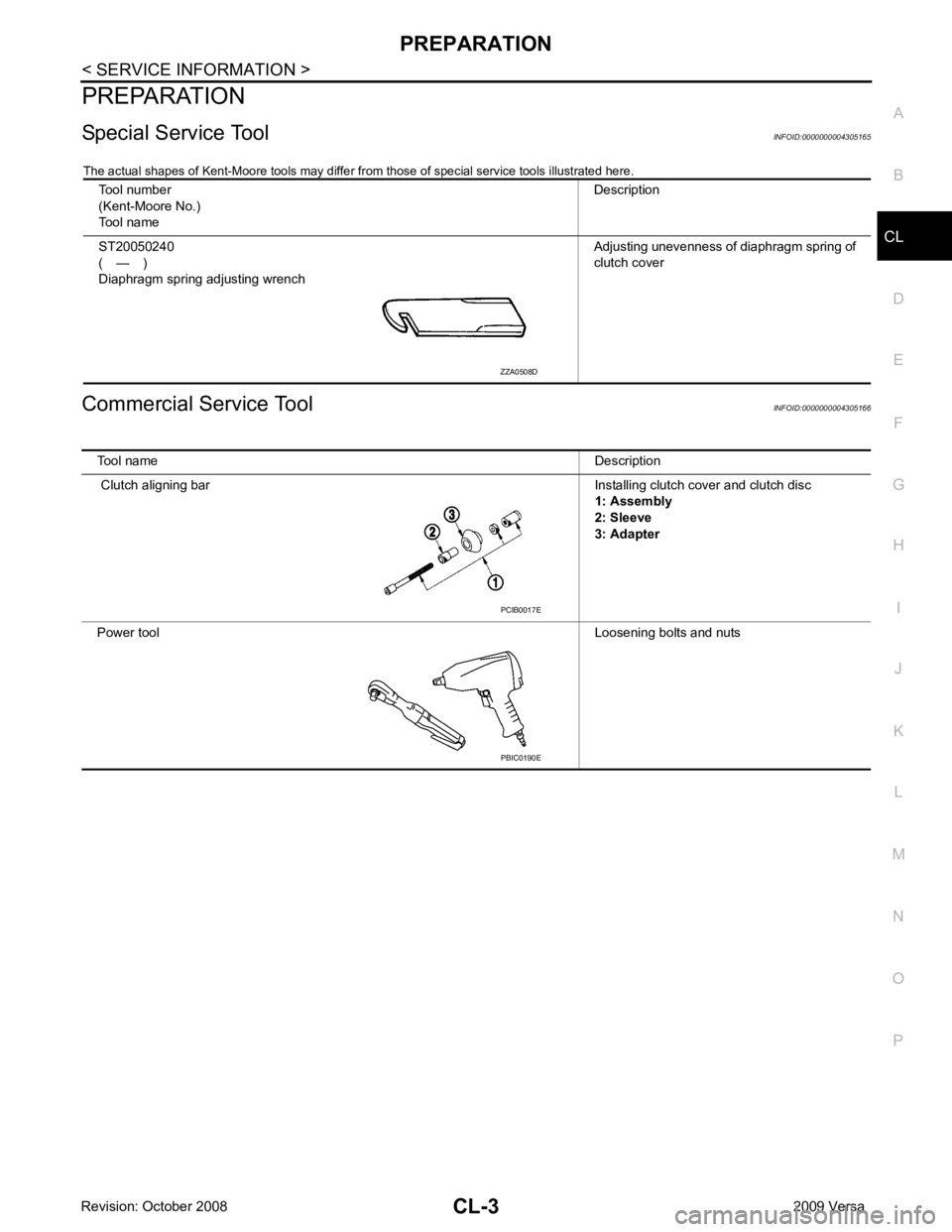

PREPARATION
Special Service Tool INFOID:0000000004305165
The actual shapes of Kent-Moore tools may differ fr om those of special service tools illustrated here.
Commercial Service Tool INFOID

Page 880 of 4331

NISSAN LATIO 2009 Service Repair Manual CL-8EM-195CL-12CL-15EM-216SUSPECTED PARTS (Possible cause)
CLUTCH PEDAL (Inspection and adjustment)
CLUTCH LINE (Air in line)
ENGINE MOUNTING (Loose)
CSC (Concentric slave cylinder) (Worn, dirty or da
