Page 657 of 4331

NISSAN LATIO 2009 Service Repair Manual

Page 658 of 4331

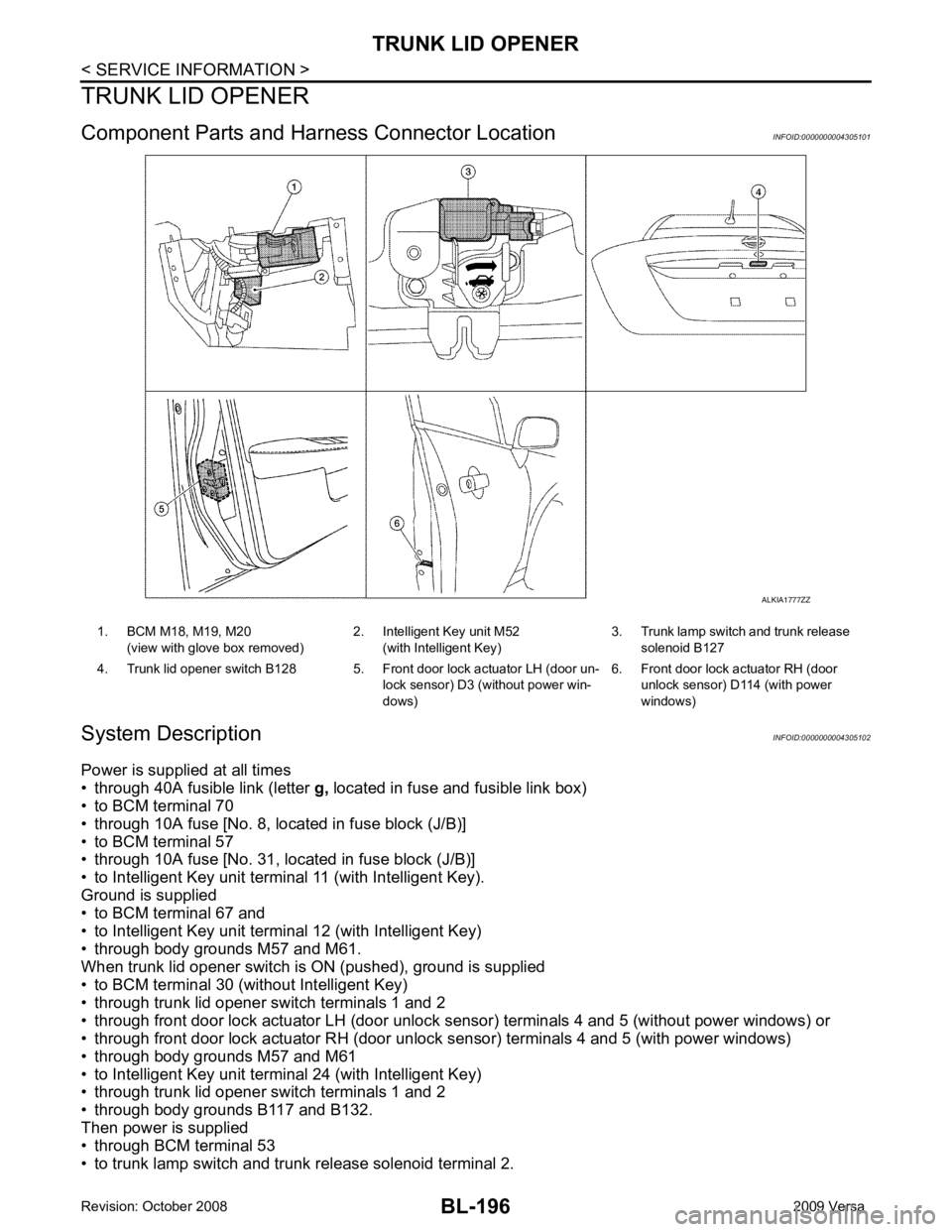

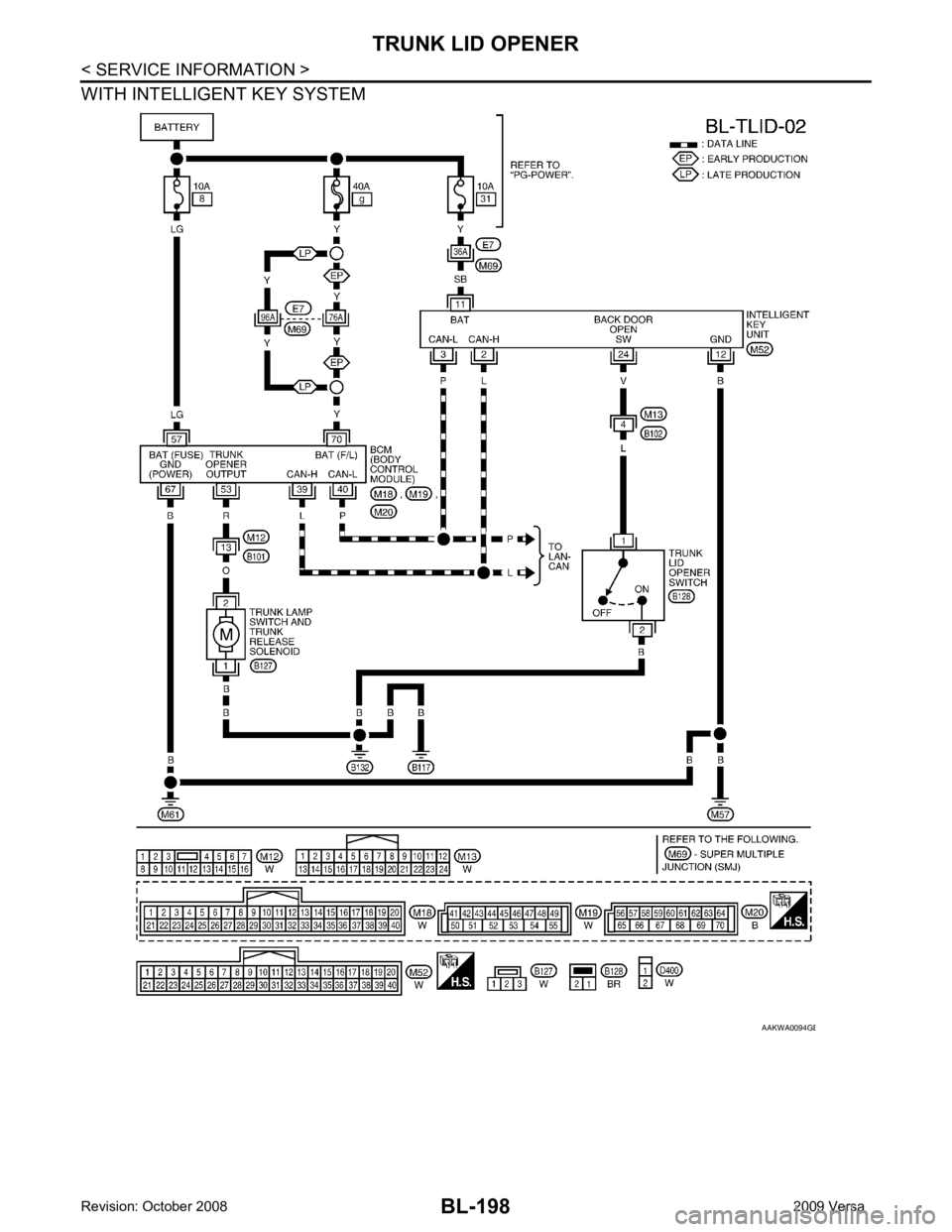

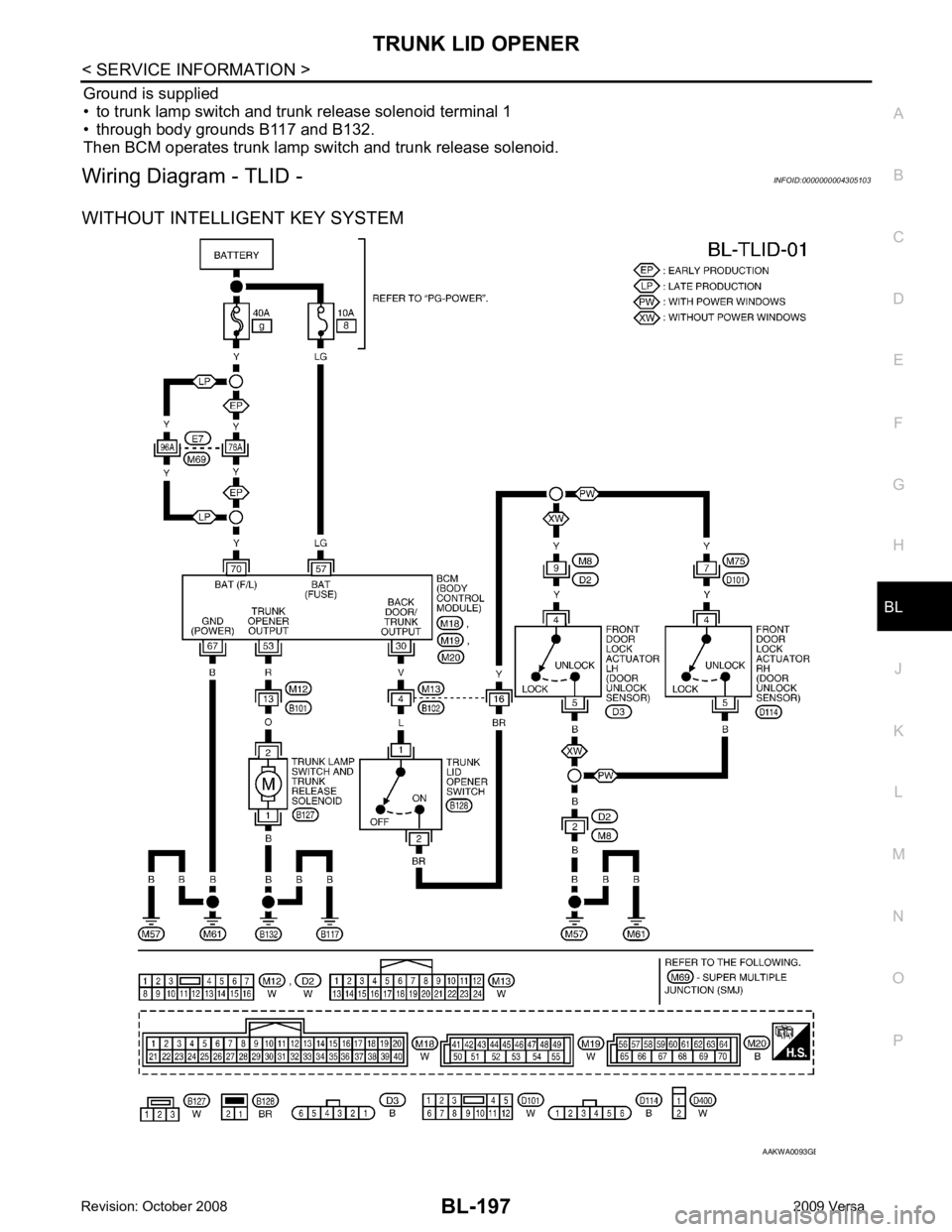

NISSAN LATIO 2009 Service Repair Manual BL N O P Ground is supplied • to trunk lamp switch and trunk release solenoid terminal 1 • through body grounds B117 and B132. Then BCM operates trunk lamp switch and trunk release solenoid. Wirin

Page 659 of 4331

NISSAN LATIO 2009 Service Repair Manual B

Page 660 of 4331

NISSAN LATIO 2009 Service Repair Manual TRUNK LID OPENER BL-199 < SERVICE INFORMATION > C D E F G H J K L M A B BL N O P Terminal and Reference Value for BCM INFOID:0000000004678898 Terminal Wire color Signal name Signal input/ output Mea

Page 661 of 4331

NISSAN LATIO 2009 Service Repair Manual BL-200< SERVICE INFORMATION > TRUNK LID OPENER 18 V Remote keyless entry receiver (ground) Output OFF — 0V 19 BR Remote keyless entry receiver (power sup- ply) Output OFF Ignition switch OFF 20 G

Page 662 of 4331

NISSAN LATIO 2009 Service Repair Manual TRUNK LID OPENER BL-201 < SERVICE INFORMATION > C D E F G H J K L M A B BL N O P 30 1 VBack door/trunk out- put Output —Back door open (switch closed) 0V Back door closed (switch open) 5V 30 3 VBa

Page 663 of 4331

NISSAN LATIO 2009 Service Repair Manual BL-202< SERVICE INFORMATION > TRUNK LID OPENER 43 5 R Back door switch Input OFF ON (open) 0V OFF (closed) Ba ttery voltage 44 5 LG Rear wiper auto stop Input ON Rear wiper operating 0 Rear wiper stop

Page 664 of 4331

NISSAN LATIO 2009 Service Repair Manual BL N O P 1: With Intelligent Key 2: Without Intelligent Key 3: Hatchback without Intelligent Key 4: Sedan without Intelligent Key 5: Hatchback 6: Sedan 7: With power door locks 8: With power windows T
