NISSAN LATIO 2009 Service Repair Manual EI
N
O P
TRUNK LID FINISHER
Removal and Installation INFOID:0000000004307227
REMOVAL 1. Disconnect the negative battery terminal.
2. Open trunk lid, remove trunk lid finisher inner. Refer to EI-55 .

Page 2923 of 4331

Page 2924 of 4331

NISSAN LATIO 2009 Service Repair Manual EI
N
O P

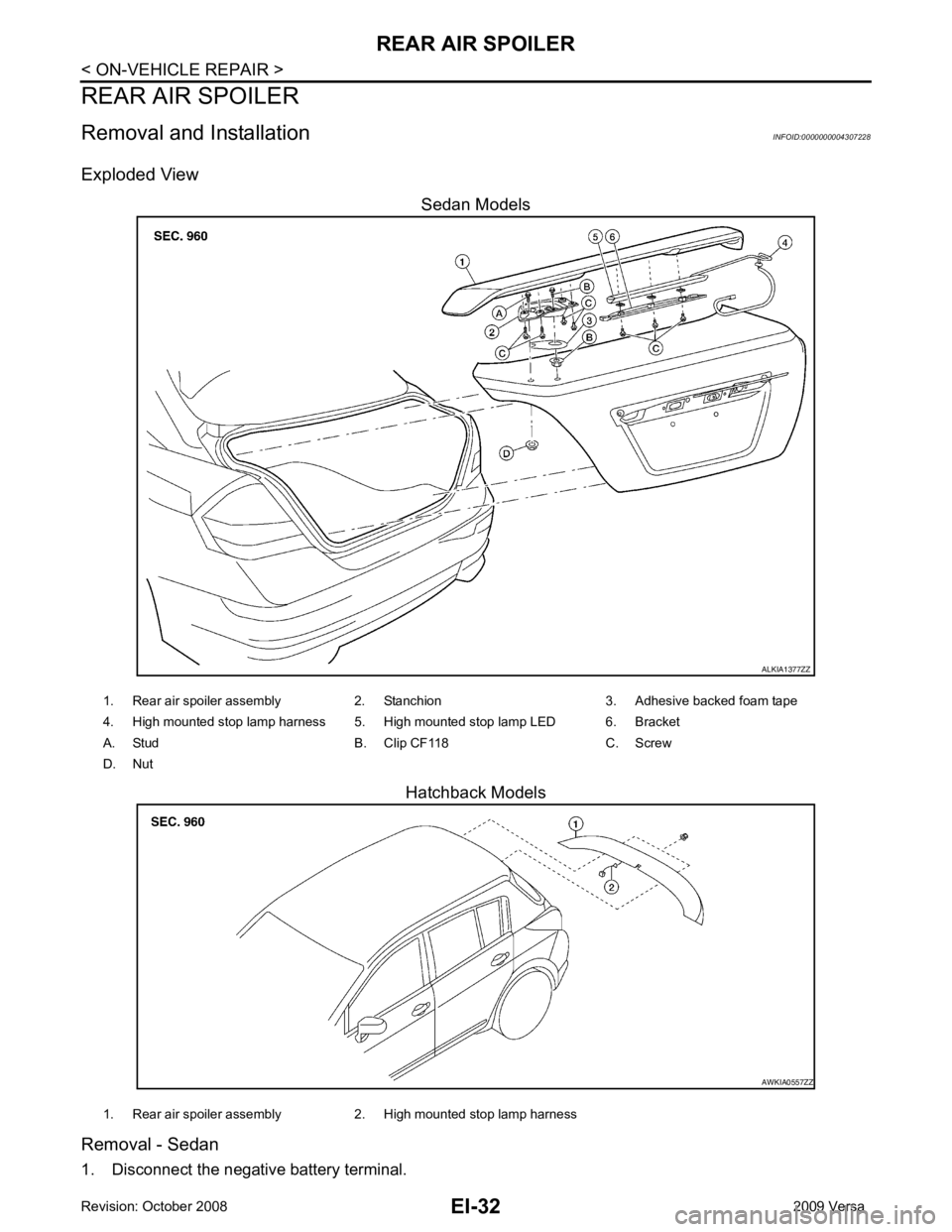

2. Remove the rear spoiler nuts.
3. Remove inside trunk lid finisher. Refer to EI-55, " Removal and Installation " .
4. Disconnect high mounted stop lamp connector.
5. Release adhesive backe

EI
N
O P
2. Remove the rear spoiler nuts.
3. Remove inside trunk lid finisher. Refer to EI-55, " Removal and Installation " .
4. Disconnect high mounted stop lamp connector.
5. Release adhesive backed foam tape and clips, then carefully lift the rear air spoiler from trunk lid. CAUTION:
Use care not to damage painted surfaces during removal, or releasing of adhesive backed foam
tapes if equipped.
6. Release the high mounted stop lamp harness grommet from trunk lid, then remove rear air spoiler.
Installation - Sedan Installation is in the reverse order of removal.
NOTE:
• Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equiva-
lent to degrease the surface.
• Before installing, be sure there are no gaps or wa ves in the foam tape (if equipped) where the surfaces
meet.
• During installation, be sure grommet of high mounted stop lamp harness is fully seated into trunk lid opening
prior to final rear air spoiler placement.
Removal - Hatchback 1. Disconnect the negative battery terminal.
2. Remove back door finisher upper. Refer to EI-38 .
3. Disconnect high mounted stop lamp connector.
4. Remove the nuts and carefully lift the rear air spoiler from the back door. CAUTION:
Use care not to damage painted surfaces during removal, or releasing of adhesive backed foam
tapes if equipped.
5. Release the high mounted stop lamp harness grommet from back door, then remove rear air spoiler.
Installation - Hatchback Installation is in the reverse order of removal.
NOTE:
• Before installing rear air spoiler, clean the surface where it will be mounted with isopropyl alcohol or equiva-
lent to degrease the surface.
• Before installing, be sure there are no gaps or wa ves in the foam tape (if equipped) where the surfaces
meet.
• During installation, be sure grommet of high mount ed stop lamp harness is fully seated into back door open-
ing prior to final rear air spoiler placement.

Page 2925 of 4331

NISSAN LATIO 2009 Service Repair Manual AWJIA0421ZZ

Page 2926 of 4331

NISSAN LATIO 2009 Service Repair Manual EI
N
O P

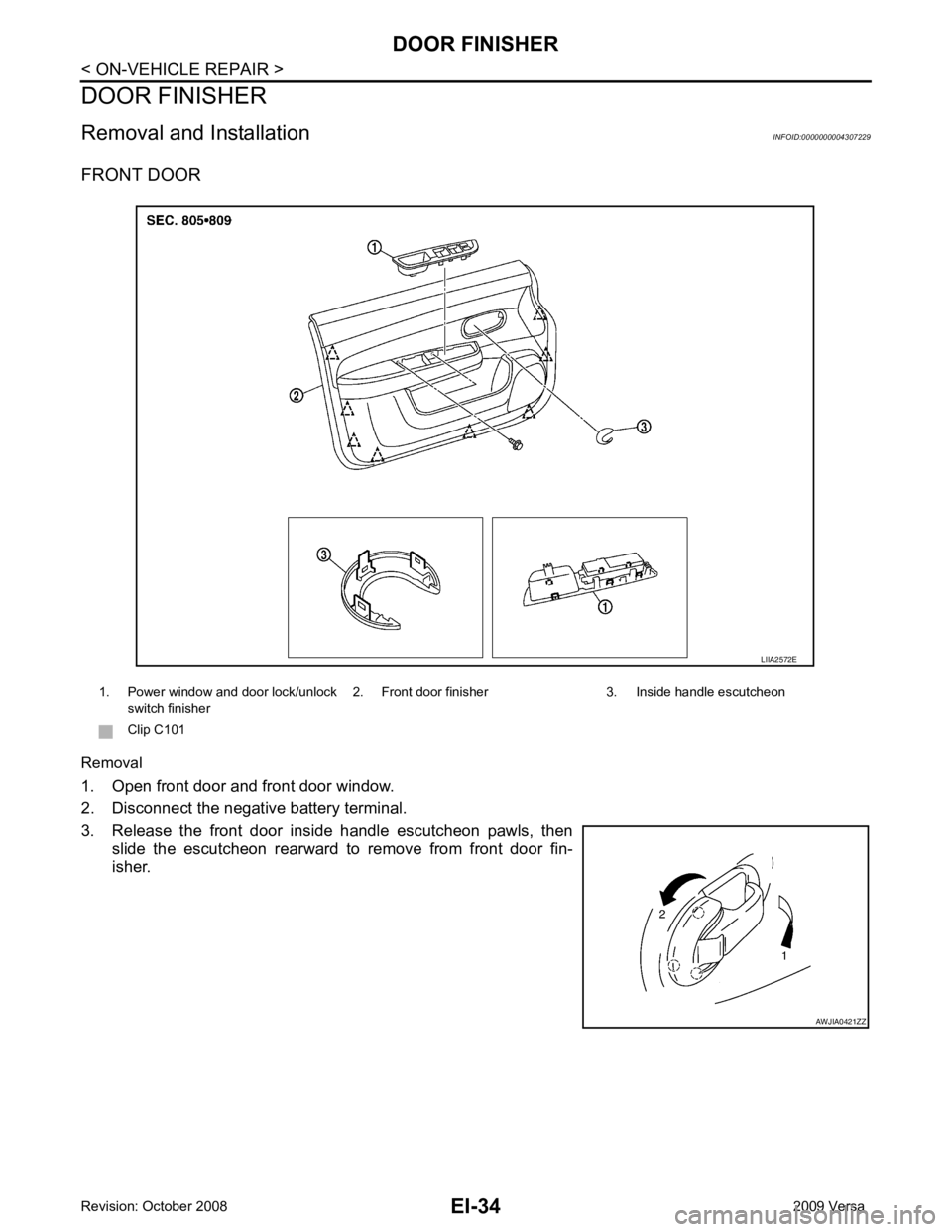

4. Insert a trim stick (A) or suitable tool into back edge of front door
power window and door lock/unlock switch finisher. Lift upward
to release the clips and remove.
5. Disconnect

Page 2927 of 4331

NISSAN LATIO 2009 Service Repair Manual WIIA1238E

Page 2928 of 4331

NISSAN LATIO 2009 Service Repair Manual EI
N
O P

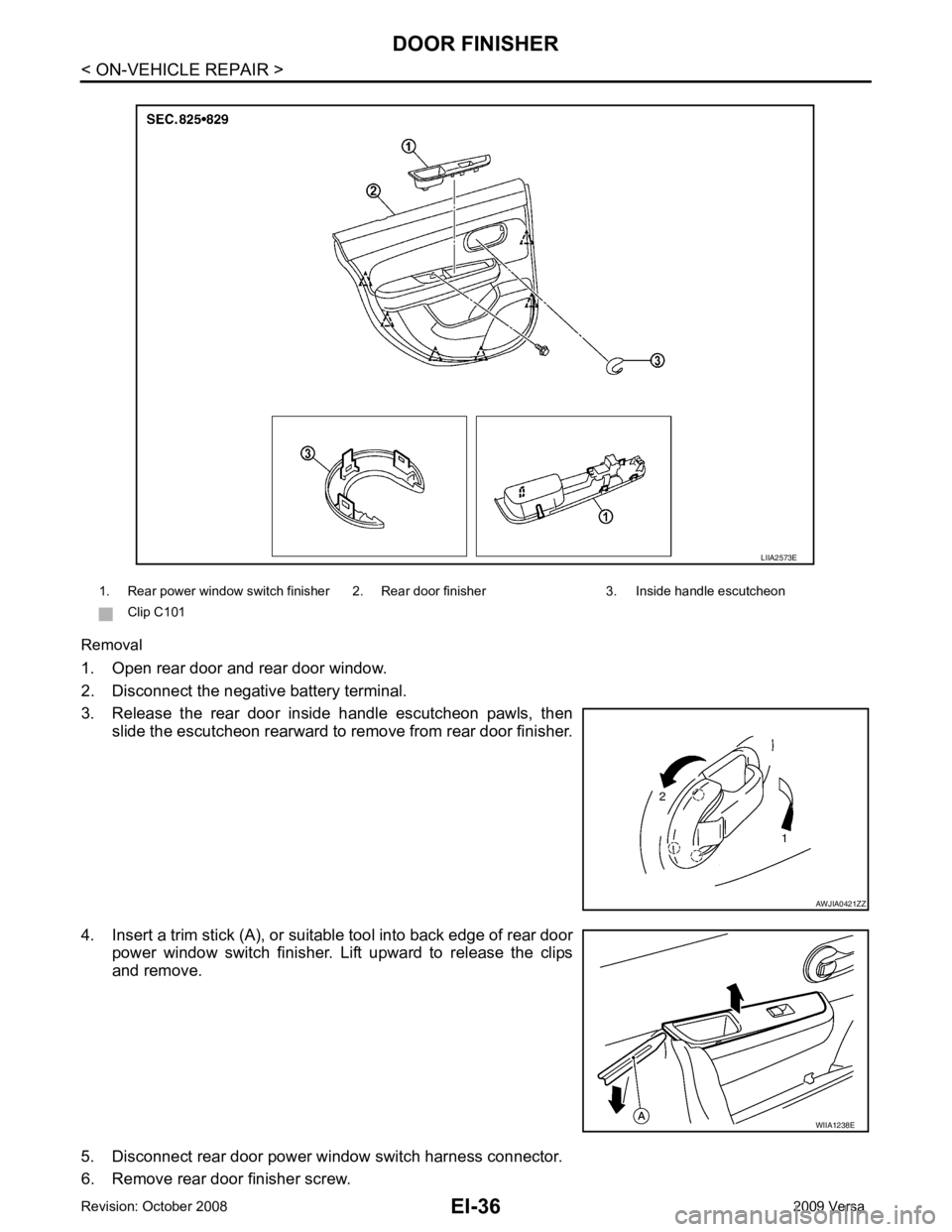

7. Release the clips, then lift rear door finisher upward to remove it
from door body panel.
Installation Installation is in the reverse order of removal.
