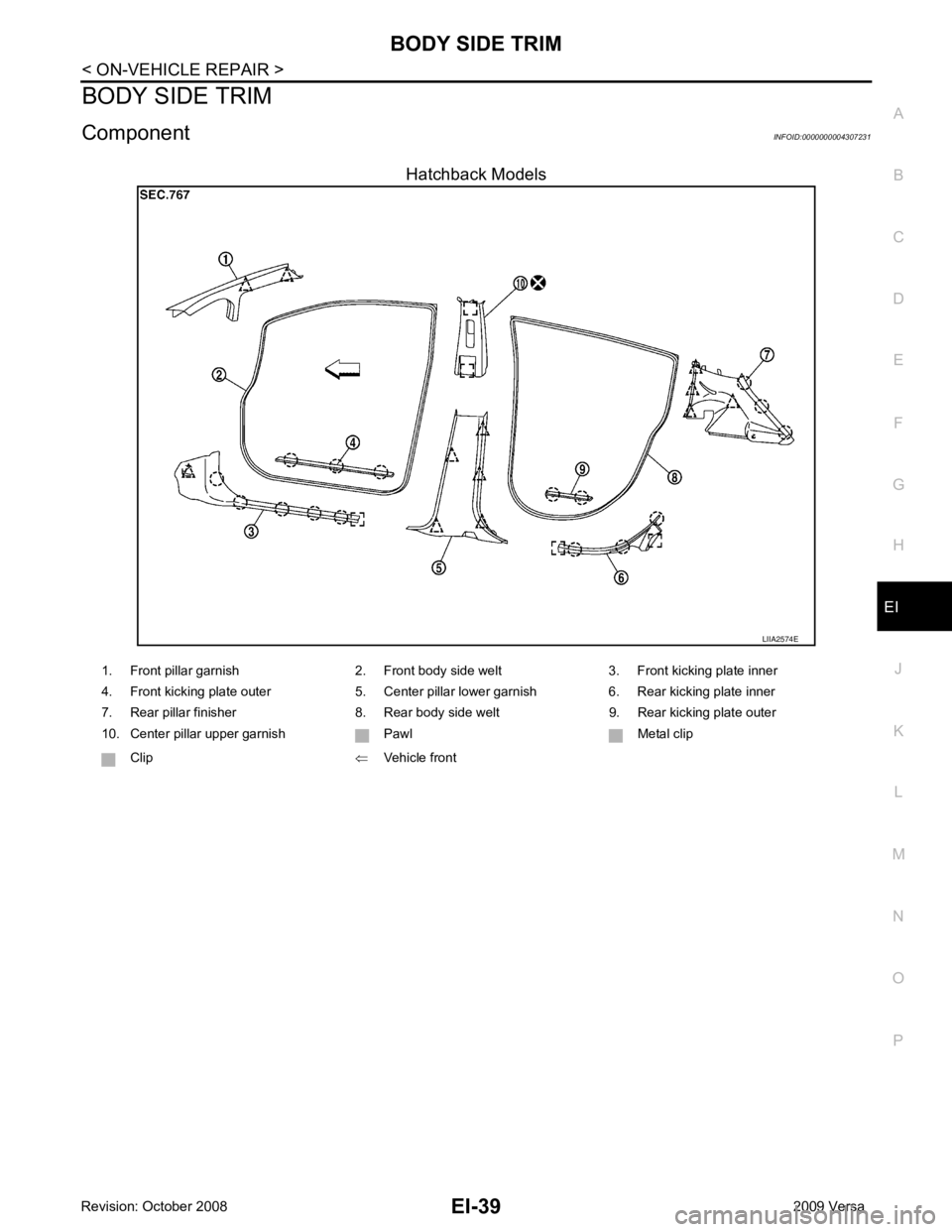

BODY SIDE TRIM
Component INFOID:0000000004307231

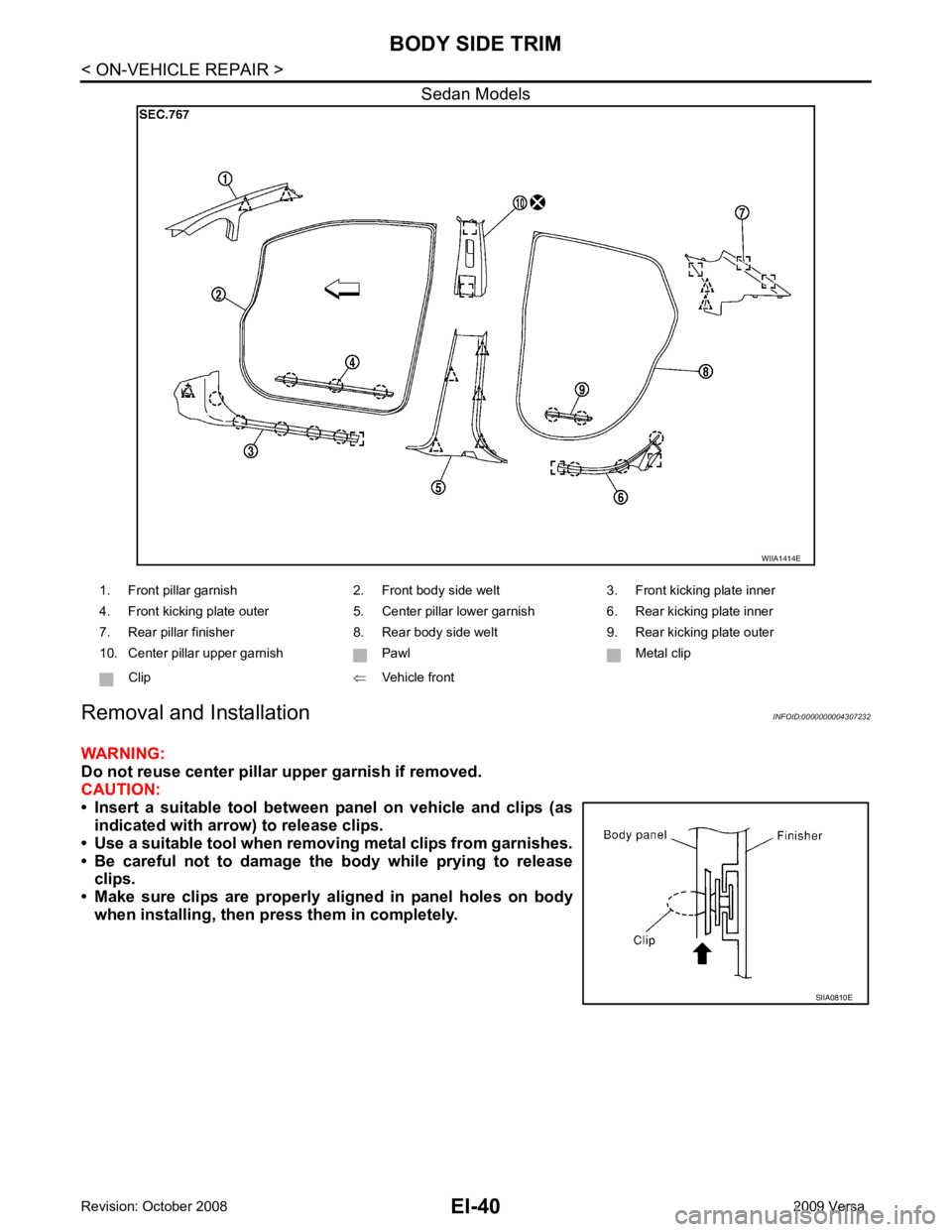

Hatchback Models
Page 2931 of 4331
Page 2932 of 4331
EI
N
O P
• When releasing molded-in pawls or
resin clips, follow the steps below to prevent garnish or clip
damage.
FRONT PILLAR GARNISH
Removal Release the clips, then remove front pillar garnish.
Installation Installation is in the reverse order of removal.
FRONT KICKING PLATE INNER
Removal Release the clips, then remove front kicking plate inner.
Installation Installation is in the reverse order of removal.
FRONT KICKING PLATE OUTER
Removal Release the clips, then remove front kicking plate outer. PIIB2569J
PIIB2571J
Page 2933 of 4331
Page 2934 of 4331
EI
N
O P
WARNING:
Do not reuse center pillar upper garnish if removed.
1. Remove center pillar lower garnish.
2. Remove front seat belt shoulder anchor. Refer to SB-4," Removal and Installation of Front Seat Belt " .
3. Remove front and rear body side welts.
4. Release the resin clips, then remove center pillar upper garnish.
Installation Installation is in the reverse order of removal.
REAR PILLAR FINISHER
Removal 1. Remove rear seat cushion, rear seat back, and seatback side cushions. Refer to SE-16, " Removal and
Installation " .
2. Remove rear body side welt.
3. Release the clips, then remove rear pillar finisher.
Installation Installation is in the reverse order of removal.

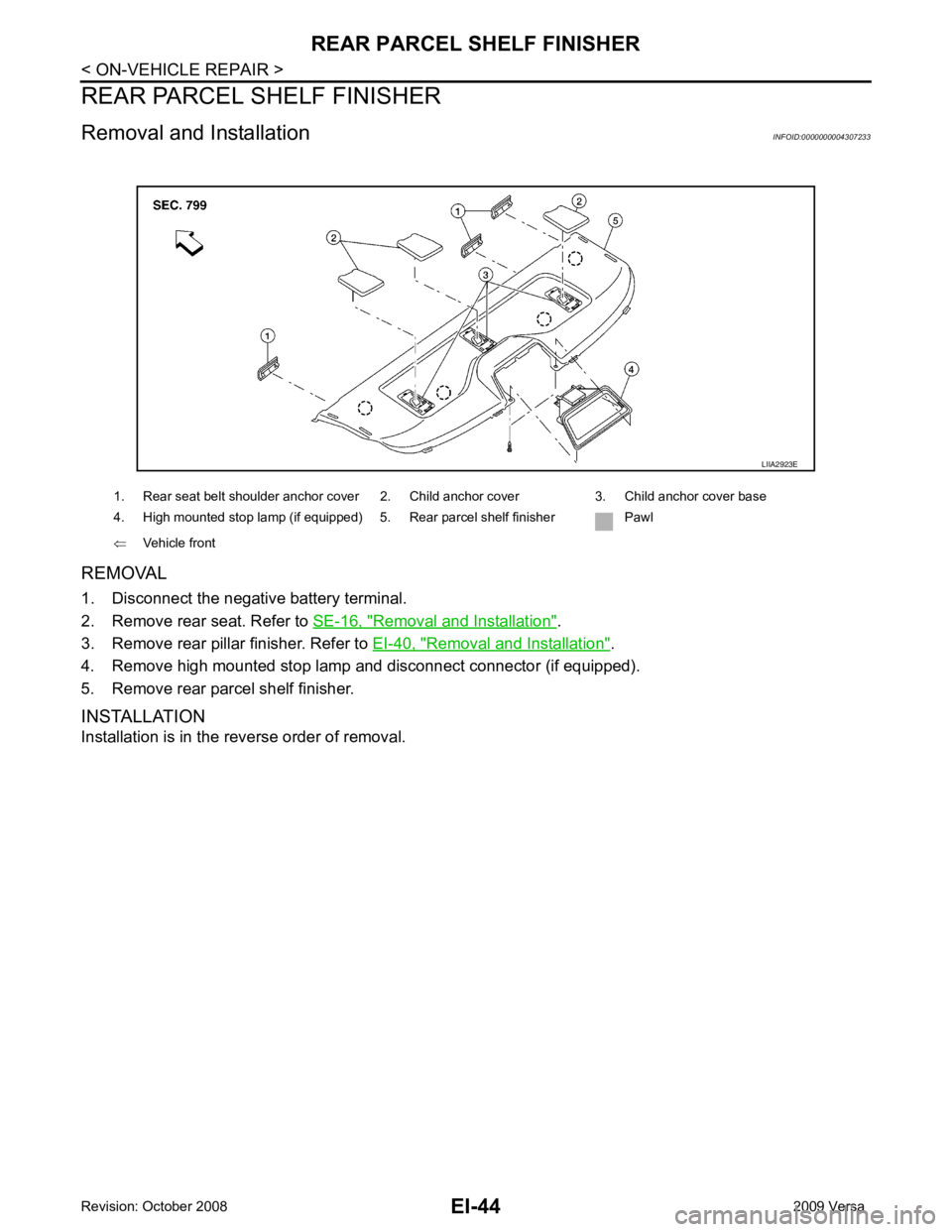

Page 2935 of 4331
Removal and Installation " .
3. Remove rear pillar finisher. Refer to EI-40, " Removal and Installation " .
4. Remove high mounted stop lamp and disconnect connector (if equipped).
5. Remove rear parcel shelf finisher.
INSTALLATION
Installation is in the reverse order of removal.
Page 2936 of 4331
EI
N
O P
FLOOR TRIM
Removal and Installation INFOID:0000000004307234
REMOVAL 1. Disconnect both the negative and positive battery te rminals, then wait at least three minutes.
2. Remove front seat assembly RH/LH and rear seat cushion. Refer to SE-12, " Removal and Installation "
and
SE-16, " Removal and Installation " .
3. Remove center console and floor bracket. Refer to IP-12, " Removal and Installation " .
4. Remove instrument lower cover. Refer to IP-12, " Removal and Installation " .
5. Remove front kicking plate inner RH/LH, center pillar lower garnish RH/LH, and rear kicking plate inner
RH/LH. Refer to EI-40, " Removal and Installation " .
1. Clip C101 2. Steering column shaft cover 3. Floor carpet hook
4. Front floor spacer 5. Rear floor spacer 6. Floor trim Metal clip Clip CF110 ⇐Vehicle front
