WATER PUMP

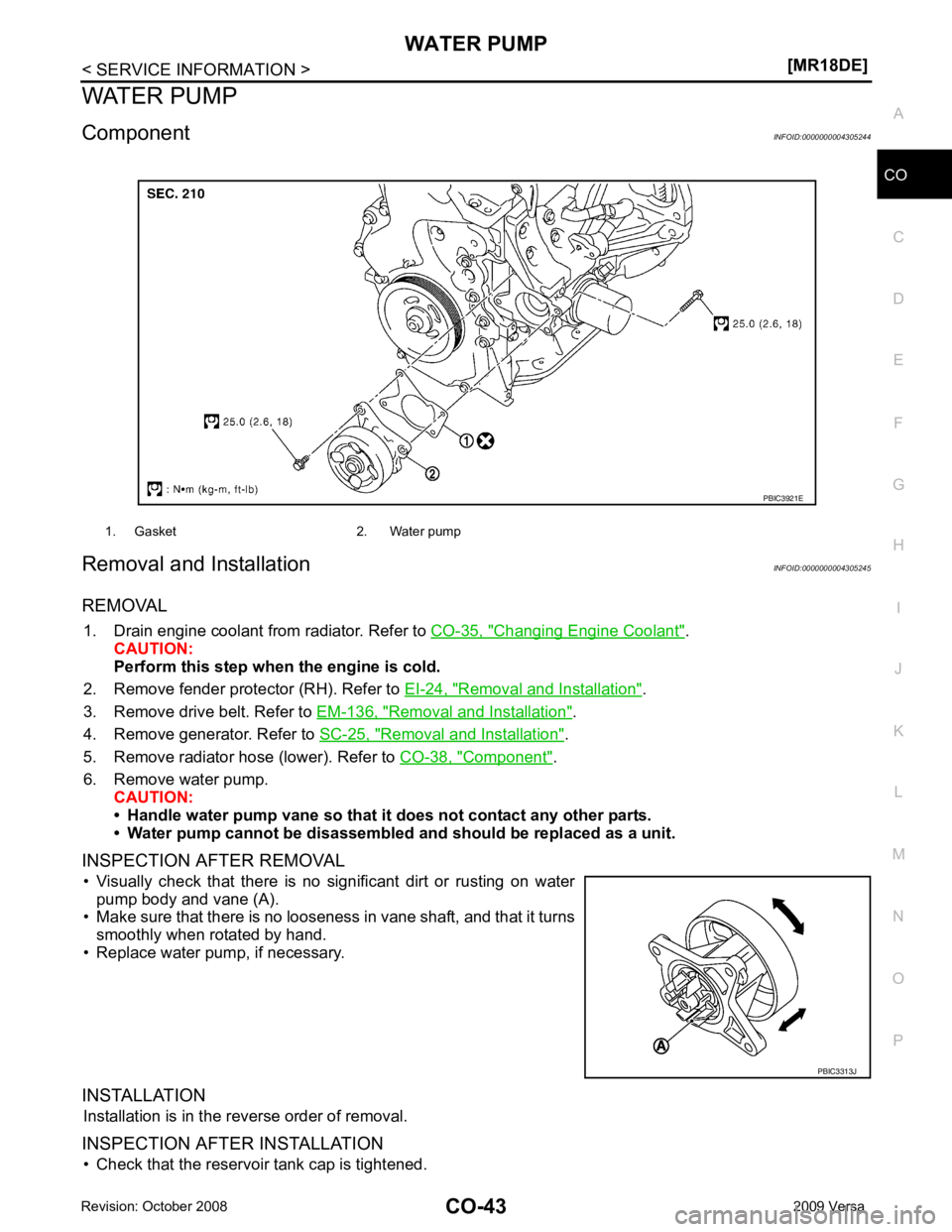

Component INFOID:0000000004305244
Removal and Installation INFOID:0000000004305245
REMOVAL 1. Drain engine coolant from radiator. Refer to CO-35, " Changing Engine Coolant " .
CAUTION:
Perform this step when the engine is cold.
2. Remove fender protector (RH). Refer to EI-24, " Removal and Installation " .
3. Remove drive belt. Refer to EM-136, " Removal and Installation " .
4. Remove generator. Refer to SC-25, " Removal and Installation " .
5. Remove radiator hose (lower). Refer to CO-38, " Component " .
6. Remove water pump. CAUTION:
• Handle water pump vane so that it does not contact any other parts.
• Water pump cannot be disassembled and should be replaced as a unit.
INSPECTION AFTER REMOVAL • Visually check that there is no significant dirt or rusting on water pump body and vane (A).
• Make sure that there is no looseness in vane shaft, and that it turns
smoothly when rotated by hand.
• Replace water pump, if necessary.
INSTALLATION Installation is in the reverse order of removal.
INSPECTION AFTER INSTALLATION • Check that the reservoir tank cap is tightened. 1. Gasket 2. Water pump
PBIC3313J
Page 938 of 4331
Inspection " .
• Start and warm up the engine. Visually check for leaks of engine coolant.
Page 939 of 4331
CO
NP
O
THERMOSTAT

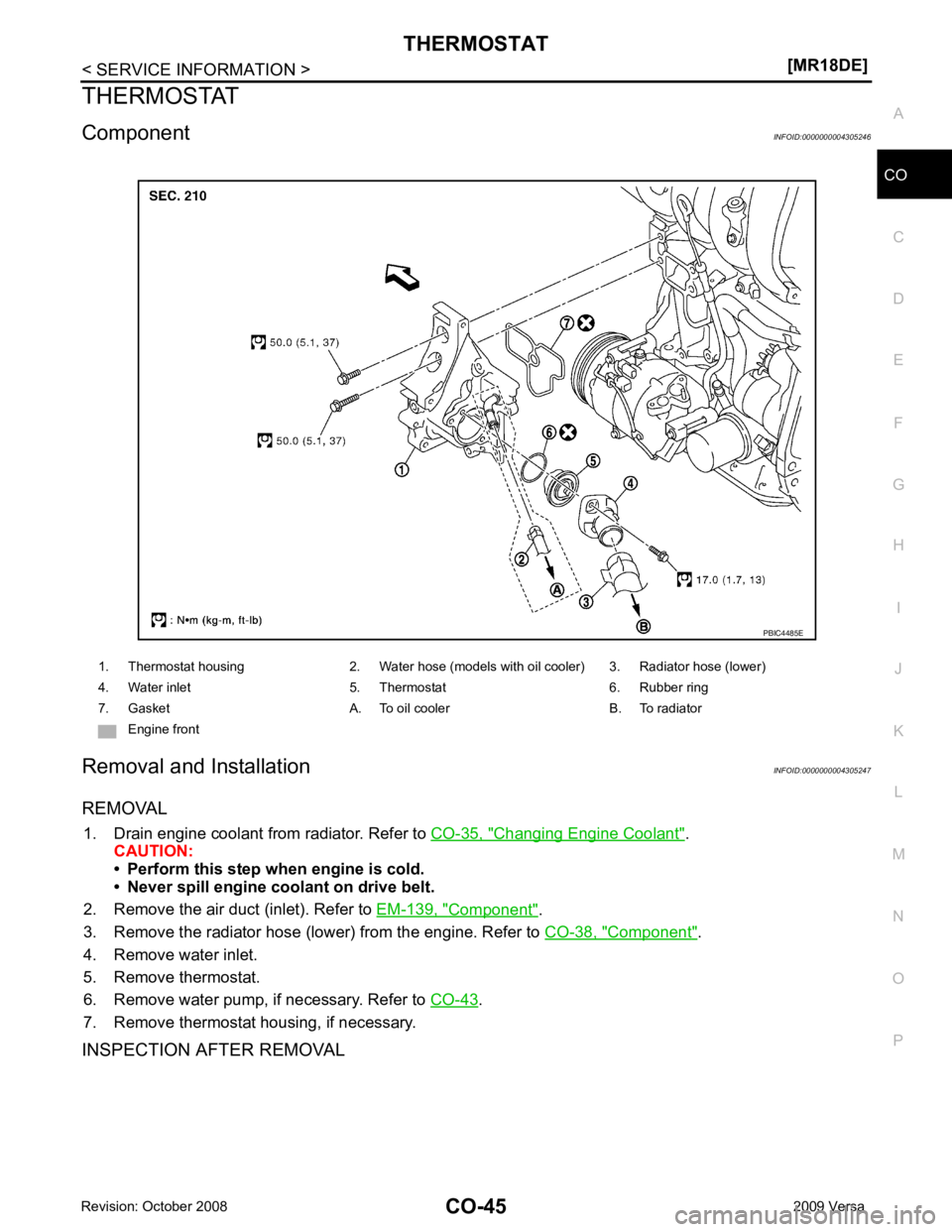

Component INFOID:0000000004305246
Removal and Installation INFOID:0000000004305247
REMOVAL 1. Drain engine coolant from radiator. Refer to CO-35, " Changing Engine Coolant " .
CAUTION:
• Perform this step when engine is cold.
• Never spill engine coolant on drive belt.
2. Remove the air duct (inlet). Refer to EM-139, " Component " .
3. Remove the radiator hose (lower) from the engine. Refer to CO-38, " Component " .
4. Remove water inlet.
5. Remove thermostat.
6. Remove water pump, if necessary. Refer to CO-43 .
7. Remove thermostat housing, if necessary.

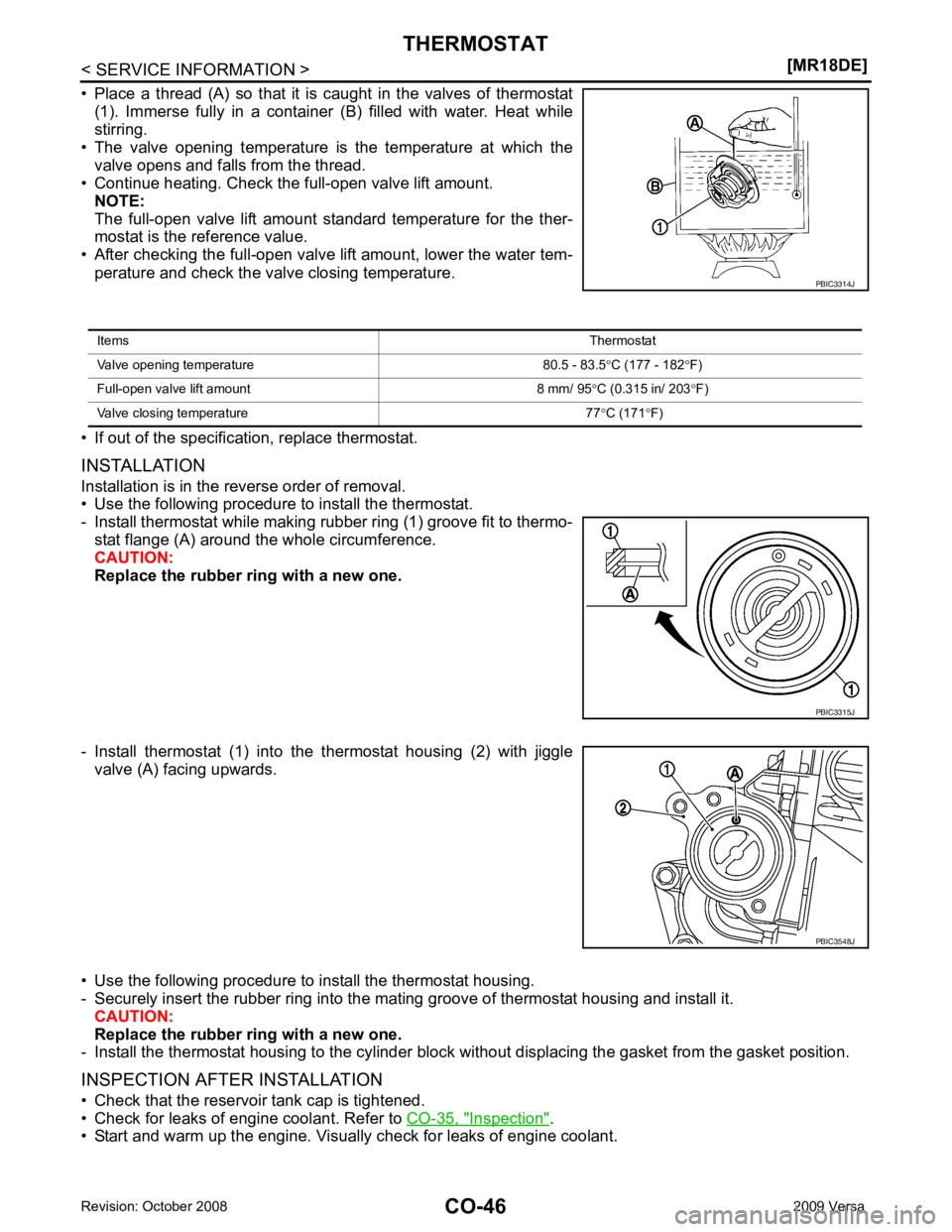

INSPECTION AFTER REMOVAL 1. Thermostat housing 2. Water hose (models with oil cooler) 3. Radiator hose (lower)
4. Water inlet 5. Thermostat 6. Rubber ring
7. Gasket A. To oil cooler B. To radiator Engine front
Page 940 of 4331
Inspection " .
• Start and warm up the engine. Visually check for leaks of engine coolant.
Page 941 of 4331

CO
NP
O
WATER OUTLET AND WATER CONTROL VALVE

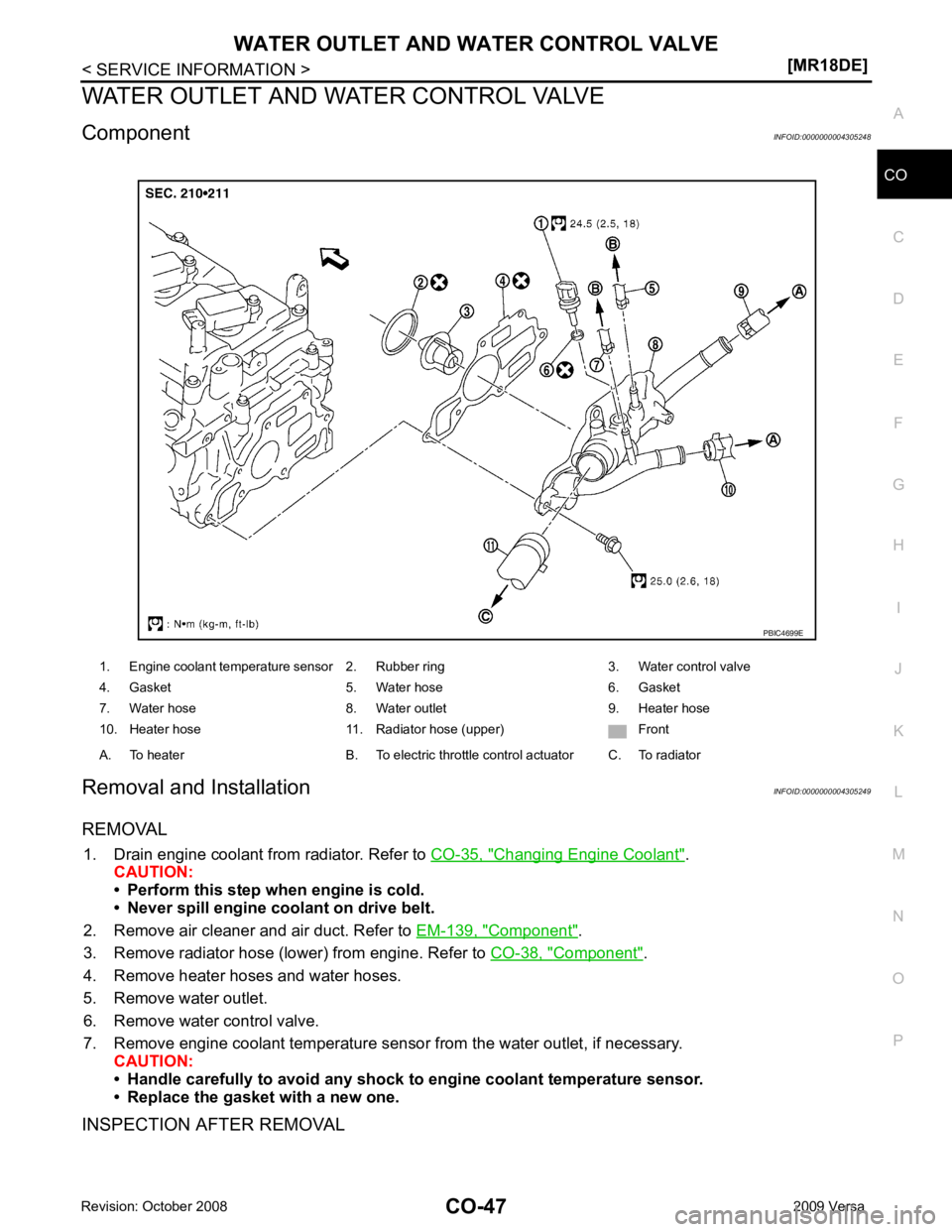

Component INFOID:0000000004305248
Removal and Installation INFOID:0000000004305249
REMOVAL 1. Drain engine coolant from radiator. Refer to CO-35, " Changing Engine Coolant " .
CAUTION:
• Perform this step when engine is cold.
• Never spill engine coolant on drive belt.
2. Remove air cleaner and air duct. Refer to EM-139, " Component " .
3. Remove radiator hose (lower) from engine. Refer to CO-38, " Component " .
4. Remove heater hoses and water hoses.
5. Remove water outlet.
6. Remove water control valve.
7. Remove engine coolant temperature sensor from the water outlet, if necessary. CAUTION:
• Handle carefully to avoid any shock to engine coolant temperature sensor.
• Replace the gasket with a new one.
INSPECTION AFTER REMOVAL 1. Engine coolant temperature sensor 2. Rubber ring 3. Water control valve
4. Gasket 5. Water hose 6. Gasket
7. Water hose 8. Water outlet 9. Heater hose
10. Heater hose 11. Radiator hose (upper) Front
A. To heater B. To electric throttle control actuator C. To radiator
Page 942 of 4331
![NISSAN LATIO 2009 Service Repair Manual CO-48< SERVICE INFORMATION >
[MR18DE]
WATER OUTLET AND WATER CONTROL VALVE
• Place a thread (A) so that it is c aught in the valves of water control
valve (1). Immerse fully in a container (B NISSAN LATIO 2009 Service Repair Manual CO-48< SERVICE INFORMATION >
[MR18DE]
WATER OUTLET AND WATER CONTROL VALVE
• Place a thread (A) so that it is c aught in the valves of water control
valve (1). Immerse fully in a container (B](/manual-img/5/57359/w960_57359-941.png)
CO-48< SERVICE INFORMATION >
[MR18DE]
WATER OUTLET AND WATER CONTROL VALVE
• Place a thread (A) so that it is c aught in the valves of water control
valve (1). Immerse fully in a container (B) filled with water. Heat
while stirring.
• The valve opening temperature is the temperature at which the
valve opens and falls from the thread.
• Continue heating. Check the full-open valve lift amount.
NOTE:
The full-open valve lift amount standard temperature for water con-
trol valve is the reference value.
• After checking the full-open valve lift amount, lower the water tem- perature and check the valve closing temperature.
• If out of the specification, replace water control valve.
INSTALLATION
Installation is in the reverse order of removal.
• Use the following procedure to install the water control valve.
- Install water control valve while making rubber ring (1) groove fit to water control valve flange (A) around the whole circumference.
CAUTION:
Replace the rubber ring with a new one.
- While the mark (A) points to up, install water control valve (2) with frame center (B) facing straight upward into water outlet (1).
• Use the following procedure to install the water outlet.
- Install the water outlet to the cylinder head without disp lacing the water control valve from the valve position.
• Use the following procedure to install the water hoses. Valve opening temperature 93.5 - 96.5
°C (200 - 206 °F)
Full-open valve lift amount 8 mm/ 108 °C (0.315 in/ 226 °F)
Valve closing temperature 90 °C (194 °F) PBIC3314J
PBIC3317J
PBIC4700E
Page 943 of 4331
CO
NP
O
- Install water hoses (3),(5) as shown.

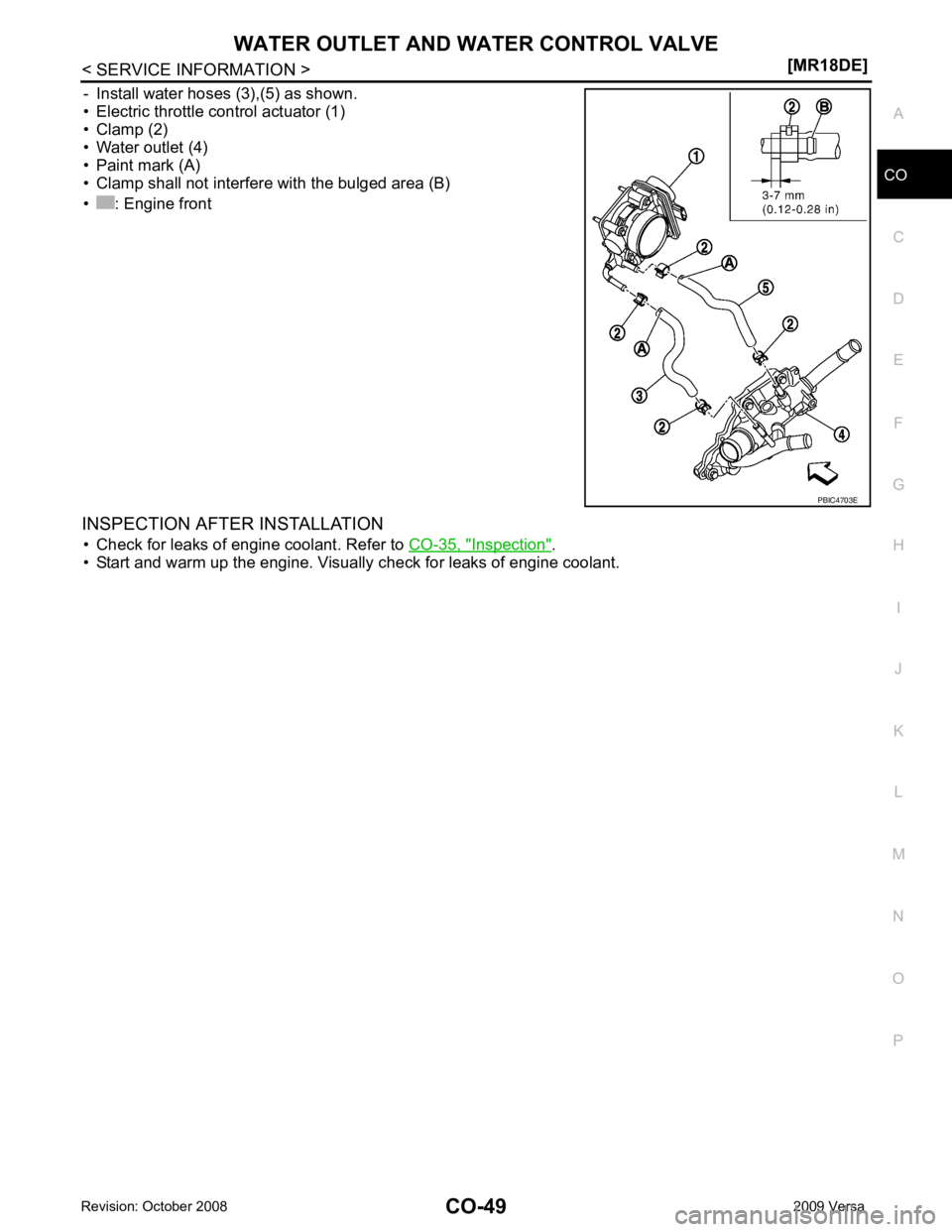

• Electric throttle control actuator (1)
• Clamp (2)
• Water outlet (4)
• Paint mark (A)
• Clamp shall not interfere with the bulged area (B)
• : Engine front
INSPECTION AFTER INSTALLATION • Check for leaks of engine coolant. Refer to CO-35, " Inspection " .
• Start and warm up the engine. Visually check for leaks of engine coolant.
Page 944 of 4331
Valve opening temperature 80.5 - 83.5
°C (177 - 182 °F)
Full-open valve lift amount 8 mm/ 95 °C (0.315 in/ 203 °F)
Valve closing temperature 77 °C (171 °F) Valve opening temperature 93.5 - 96.5
°C (200 - 206 °F)
Full-open valve lift amount 8 mm/ 108 °C (0.315 in/ 226 °F)
Valve closing temperature 90°C (194 °F) Cap relief pressure
Standard 78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)
Limit 59 (0.59, 0.6, 9)
Leakage test pressure 157 (1.57, 1.6, 23)
