Page 4273 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
414
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the ªHOTº or ªCOLDº
range depending

05_SEQUOIA_U (L/O 0408)
414
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Power steering fluid level
Check the level through the reservoir. The
level should be in the ªHOTº or ªCOLDº
range depending on the fluid temperature.
See page 428 in Section 7±2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See ªEngine exhaust cautionsº on
page 339 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise.Seats
Check that all seat controls such as seat
adjusters, seatback recliner, etc. operate
smoothly and that all latches lock securely
in any position. Check that the head re-
straint move up and down smoothly and
that the locks hold securely in any latched
position. For folding±down rear seatbacks,
swing±up rear seat cushions and detach-
able temporary third seat, check that the
latches lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied.Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission ªParkº mecha-
nism
On a safe incline, check that your vehicle
is held securely with the selector lever in
ªPº position and all brakes released.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including back door
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.

Page 4274 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
415
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See page 429 in Section 7±

Page 4275 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
416
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Some states have vehicle emission in-
spection programs which include OBD
(On±Board Diagnostics) checks.
The OBD system monitor

Page 4276 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
417
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
DO±IT±YOURSELF MAINTENANCE
Introduction
Engine compartment overview418 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 4277 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
418
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

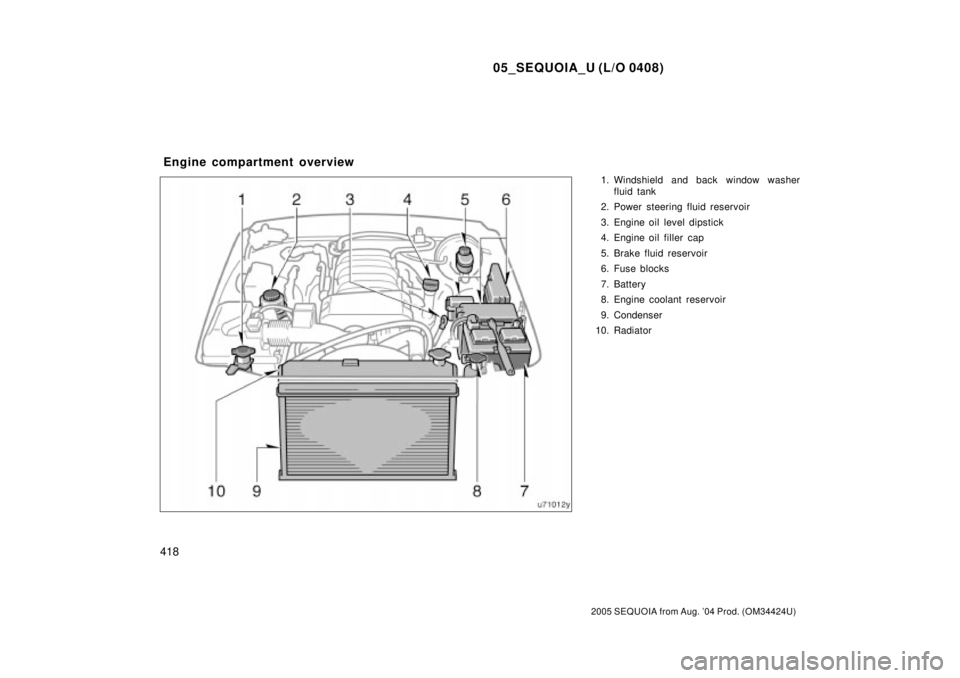

1. Windshield and back window washer
fluid tank
2. Power steering fluid reservoir
3. Engine oil level dipstick
4. Engine oil fil

Page 4278 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
419
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

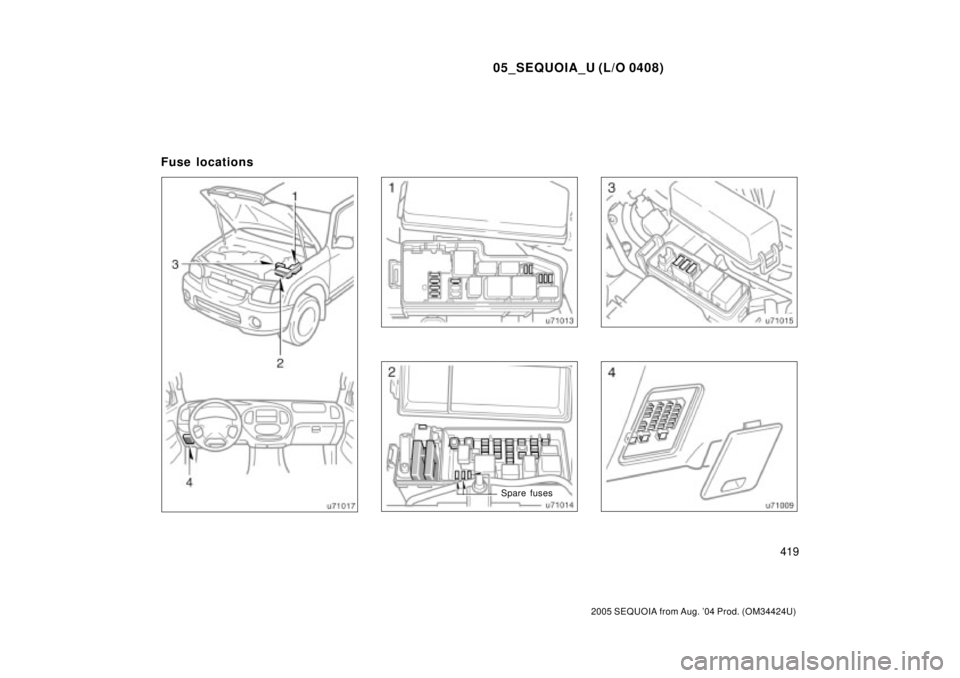

Spare fuses
Fuse locations

Page 4279 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
420
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that

05_SEQUOIA_U (L/O 0408)
420
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing do±it±yourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
6, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do±
it±yourself maintenance, see ªParts and
toolsº on page 421 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-

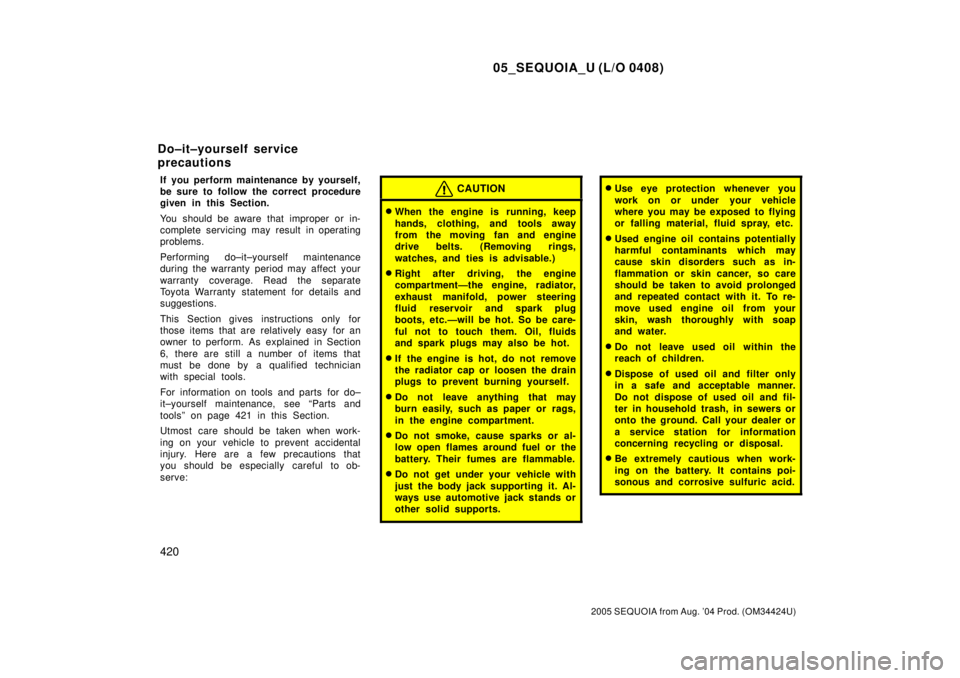

serve:CAUTION
When the engine is running, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartmentÐthe engine, radiator,
exhaust manifold, power steering
fluid reservoir and spark plug
boots, etc.Ðwill be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the engine is hot, do not remove
the radiator cap or loosen the drain
plugs to prevent burning yourself.
Do not leave anything that may
burn easily, such as paper or rags,
in the engine compartment.
Do not smoke, cause sparks or al-
low open flames around fuel or the
battery. Their fumes are flammable.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to flying
or falling material, fluid spray, etc.
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as in-
flammation or skin cancer, so care
should be taken to avoid prolonged
and repeated contact with it. To re-
move used engine oil from your
skin, wash thoroughly with soap
and water.
Do not leave used oil within the
reach of children.
Dispose of used oil and filter only
in a safe and acceptable manner.
Do not dispose of used oil and fil-
ter in household trash, in sewers or
onto the ground. Call your dealer or
a service station for information
concerning recycling or disposal.
Be extremely cautious when work-
ing on the battery. It contains poi-
sonous and corrosive sulfuric acid.
Do±it±yourself service
precautions

Page 4280 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
421
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short

05_SEQUOIA_U (L/O 0408)
421
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Remember that battery and ignition
cables carry high currents or volt-
ages. Be careful of accidentally
causing a short circuit.
Add only ªToyota Super Long Life
Coolantº or similar high quality eth-
ylene glycol based non±silicate,
non±amine, non±nitrite, and non±bo-
rate coolant with long±life hybrid
organic acid technology to fill the
radiator. ªToyota Super Long Life
Coolantº is a mixture of 50% cool-
ant and 50% deionized water (for
the U.S.A.) or 55% coolant and 45%
deionized water (for Canada).
If you spill some of the coolant, be
sure to wash it off with water to
prevent it from damaging the parts
or paint.
Do not allow dirt or anything else
to fall through the spark plug holes.
Use only spark plugs of the speci-
fied type. Using other types will
cause engine damage, loss of per-
formance or radio noise.
Do not reuse iridium±tipped spark
plugs by cleaning or regapping.
Do not overfill automatic transmis-
sion fluid, or the transmission
could be damaged.
Do not drive with the air cleaner
filter removed, or excessive engine
wear could result. Also backfiring
could cause a fire in the engine
compartment.
Be careful not to scratch the glass
surface with the wiper frame.
When closing the engine hood,
check to see that you have not for-
gotten any tools, rags, etc.
Here is a list of parts and tools you will
need to perform do±it±yourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
ªToyota Genuine Motor Oilº or equiva-
lent
See page 425 in Section 7±2 for de-
tails about engine oil selection.
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT
LEVEL
Parts (if level is low):
ªToyota Super Long Life Coolantº or
similar high quality ethylene glycol
based non±silicate, non±amine, non±ni-
trite, and non±borate coolant with long±
life hybrid organic acid technology.
ªToyota Super Long Life Coolantº is a
mixture of 50% coolant and 50% deion-
ized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for
Canada).
Parts and tools
