TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
190
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
ªLOº (low) modeÐ
Two±wheel drive modelsÐThe vehicle
height is about 15 mm (0.6 in.) lower at
rear than ªNº mode height.
F

Page 4050 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
191
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
(c) Vehicle height adjustment
To change the mode, push the height
select switch on either side of ªº
(higher) or ªº (lower

Page 4051 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
192
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing

05_SEQUOIA_U (L/O 0408)
192
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
Before you lower the vehicle height
with the height select switch, check
under the vehicle to make sure
nothing to damage the vehicle or
no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.
Do not select ªLOº mode for bumpy
roads. If the underbody of the ve-
hicle touches the road surface, the
vehicle may be damaged.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle, press the mode select
switch, and check that manual control
mode indicator light comes on. Then, re-
move the obstruction.
CAUTION
If you drive through water, set the
vehicle height to ªHIº with the height
select switch and then change to
manual control mode by pushing the
mode select switch. Do not exceed 30
km/h (18 mph) or ªHIº mode will au-
tomatically change to ªNº mode. Do
not drive through water deeper than
about 700 mm (28 in.) even if the
vehicle height is in ªHIº mode.
NOTICE
When jacking up or installing tire
chains, be sure to set manual con-
trol mode by pushing the mode se-
lect switch and stop the engine.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.
If your vehicle must be towed, set
the vehicle height to ªNº and
change to manual control mode.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.
If your vehicle gets stuck in a
ditch, set manual control mode by
pushing the mode select switch.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.

Page 4052 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
193
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

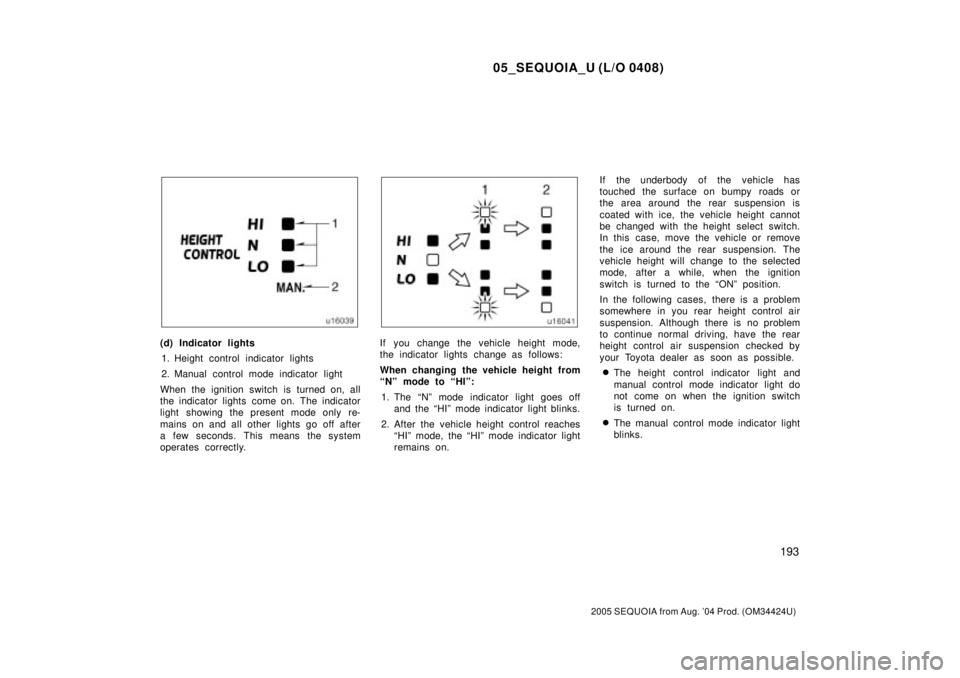

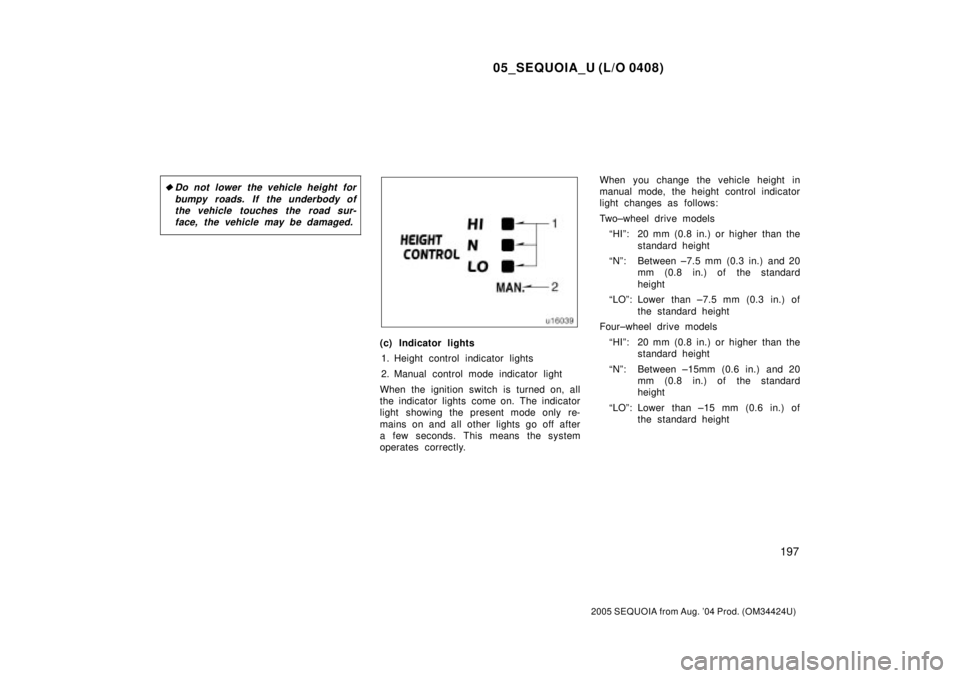

(d) Indicator lights
1. Height control indicator lights
2. Manual control mode indicator light
When the ignition switch is turne

Page 4053 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
194
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
(e) Parking and stopping tips
If you immediately stop the engine to park
the vehicle after off±road driving, the ve-
hicle he

Page 4054 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
195
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
In manual control mode, the automatic lev-
eling function is turned off. When the ve-
hicle height is changed because of the
con

05_SEQUOIA_U (L/O 0408)
195
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
In manual control mode, the automatic lev-
eling function is turned off. When the ve-
hicle height is changed because of the
conditions (load etc.), you can adjust the
vehicle height with the height select
switch.
In manual control mode, if the vehicle
speed exceeds 30 km/h (18 mph), auto-
matic control mode is activated and ªNº is
selected automatically.
If you attempt to adjust the vehicle height
with anything such as snow, ice, or stones
in contact with the vehicle body, the ve-
hicle height may not change. In this case,
stop the vehicle and remove the obstruc-
tion.
CAUTION
If you drive through water, set the
vehicle height to ªHIº with the height
select switch and then change to
manual control mode by pushing the
mode select switch. Do not exceed 30
km/h (18 mph) or ªHIº mode will au-
tomatically change to ªNº mode. Do
not drive through water deeper than
about 700 mm (28 in.) even if the
vehicle height is in ªHIº mode.
NOTICE
When jacking up or installing tire
chains, be sure to set manual con-
trol mode by pushing the mode se-
lect switch and stop the engine.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an ac-
cident.
If your vehicle must be towed, set
the vehicle height to ªNº in auto-
matic control mode, then select
manual control mode by pushing
the mode select switch. Otherwise,
the vehicle height may change be-
cause of the automatic leveling
function, resulting in an accident.
If your vehicle gets stuck in a
ditch, set manual control mode with
the mode select switch. Otherwise,
the vehicle height may change be-
cause of the automatic leveling
function, resulting in an accident.
(b) Vehicle height adjustment
To change the vehicle height in manual
mode, push the height select switch on
either side of ªº (higher) or ªº
(lower).
A higher vehicle height is suitable when
driving on bumpy roads and through water.
A lower vehicle height allows for easy
access to the vehicle (getting in and out)
and easy loading and unloading.
When you are driving on bumpy roads,
which may cause the suspension to fully
elongate, the rear height control air sus-
pension may not operate.

Page 4055 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
196
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
To raise the vehicle heightÐ
Push the ªº side of the switch for two
seconds or more. Each time you push the
switch, the veh

05_SEQUOIA_U (L/O 0408)
196
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
To raise the vehicle heightÐ
Push the ªº side of the switch for two
seconds or more. Each time you push the
switch, the vehicle height increases. When
the vehicle height is about 20 mm (0.8
in.) higher than the standard height, the
ªHIº indicator light comes on.
The maximum selectable height is about
40 mm (1.6 in.) higher than the standard
height.
To lower the vehicle heightÐ
Push the ªº side of the switch. Each
time you push the switch, the vehicle
height decreases.
Two±wheel drive modelsÐ
When the vehicle height is about 7.5 mm
(0.3 in.) lower than the standard height,
the ªLOº indicator light comes on.
The minimum selectable height is about
15 mm (0.6 in.) lower than the standard
height.
Four±wheel drive modelsÐ
When the vehicle height is about 15 mm
(0.6 in.) lower than the standard height,
the ªLOº indicator light comes on.
The minimum selectable height is about
30 mm (1.2 in.) lower than the standard
height.If the underbody of the vehicle has
touched the surface on bumpy roads, the
vehicle height cannot be lowered with the
height select switch.
When adjusting the vehicle height with
one or more doors open, make sure that
there is nothing that might come into con-
tact with the vehicle body or around the
doors.
If the vehicle height is adjusted on the
slope, or with the selector lever in a posi-
tion other than ªPº or ªNº while the vehicle
is stopped, you may hear a sound caused
by the expansion and contraction of the
propeller shaft. This does not indicate a
malfunction.
CAUTION
The higher vehicle height should be
only set for severe off±road driving
conditions. Because the vehicle's cen-
ter of gravity is higher in this setting,
the vehicle may become unstable
when turning abruptly, resulting in an
accident.
NOTICE
When lowering the vehicle, the ve-
hicle must be stopped. Otherwise,
when the vehicle speed exceeds 30
km/h (18 mph), automatic control
mode is activated and ªNº is se-
lected automatically. Proper caution
should be taken in places where the
overhead height is limited.
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
Before you lower the vehicle height
with the height select switch, check
under the vehicle to make sure
nothing to damage the vehicle or
no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.

Page 4056 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
197
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Do not lower the vehicle height for
bumpy roads. If the underbody of
the vehicle touches the road sur-
face, the vehicle may
