Page 3985 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
126
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

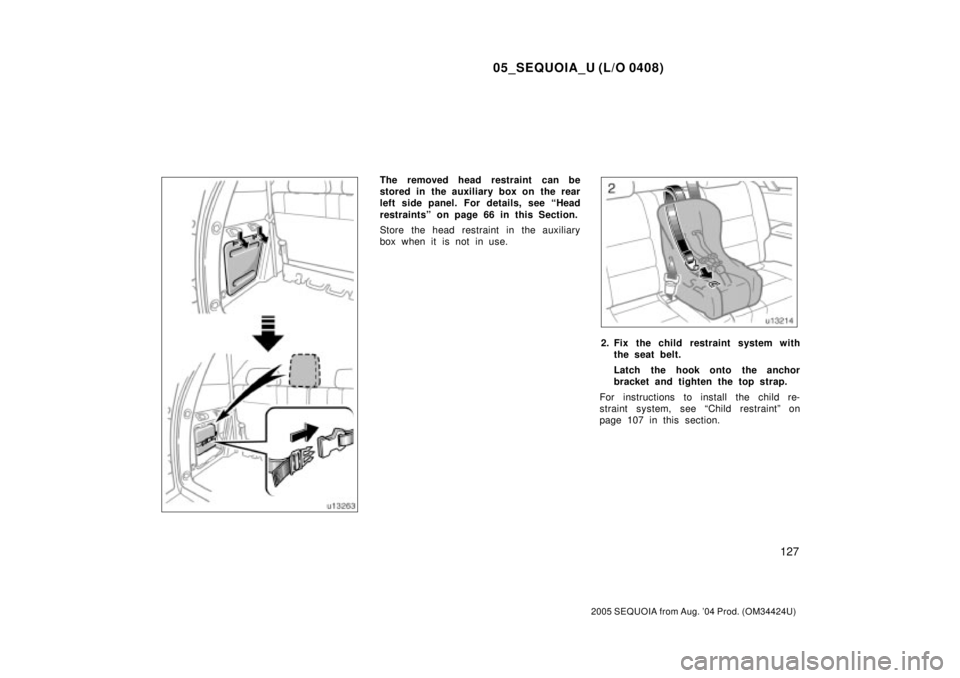

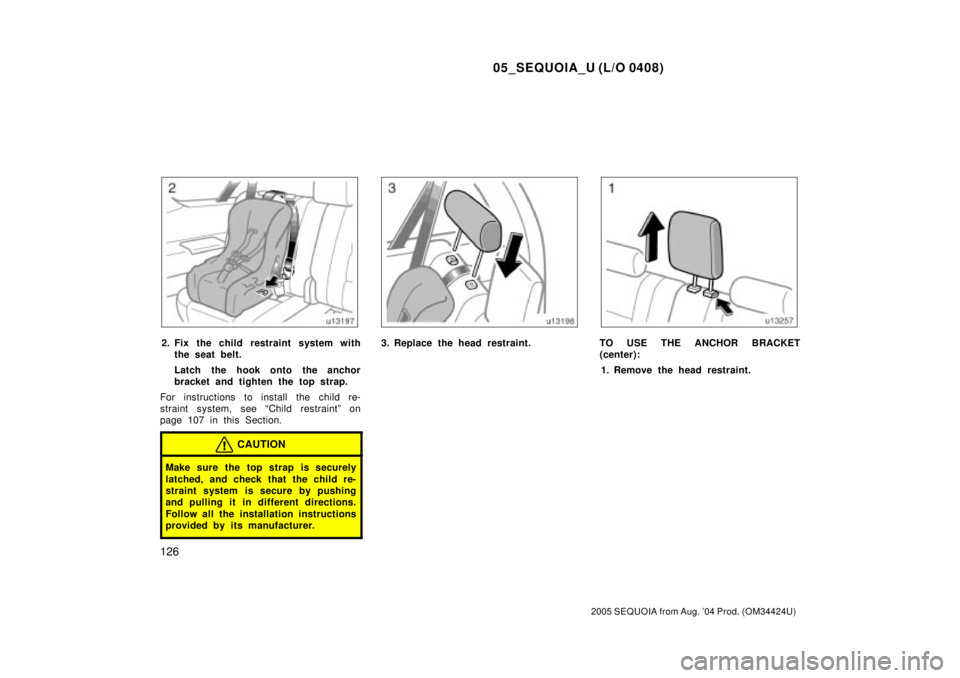

2. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For ins

Page 3986 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
127
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The removed head restraint can be
stored in the auxiliary box on the rear
left side panel. For details, see ªHead
restraintsº

Page 3987 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
128
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

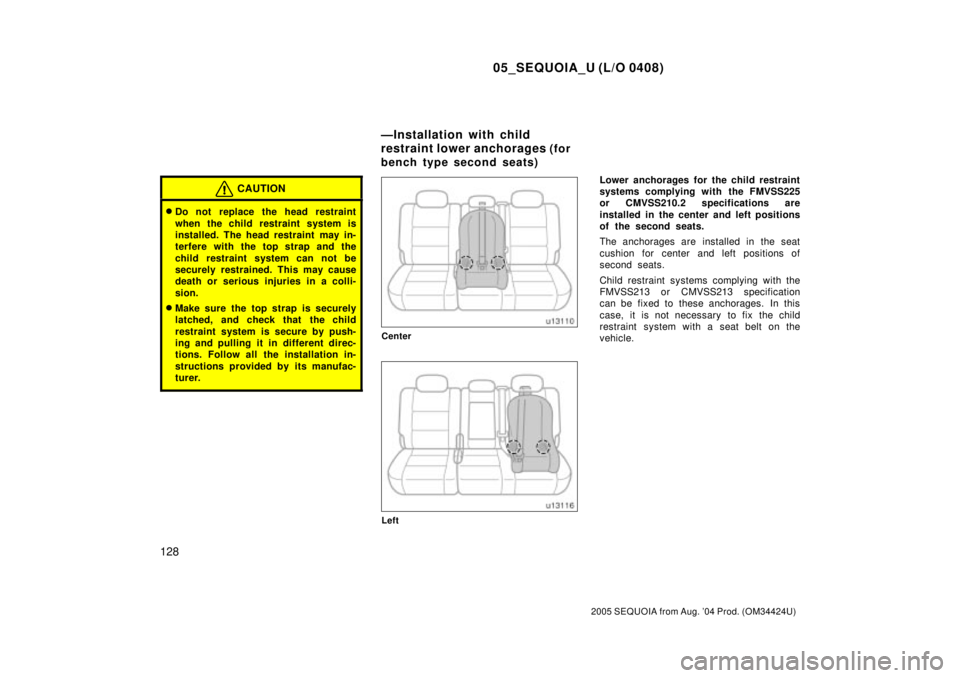

CAUTION
Do not replace the head restraint
when the child restraint system is
installed. The head restraint may in-
terfere with

Page 3988 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
129
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

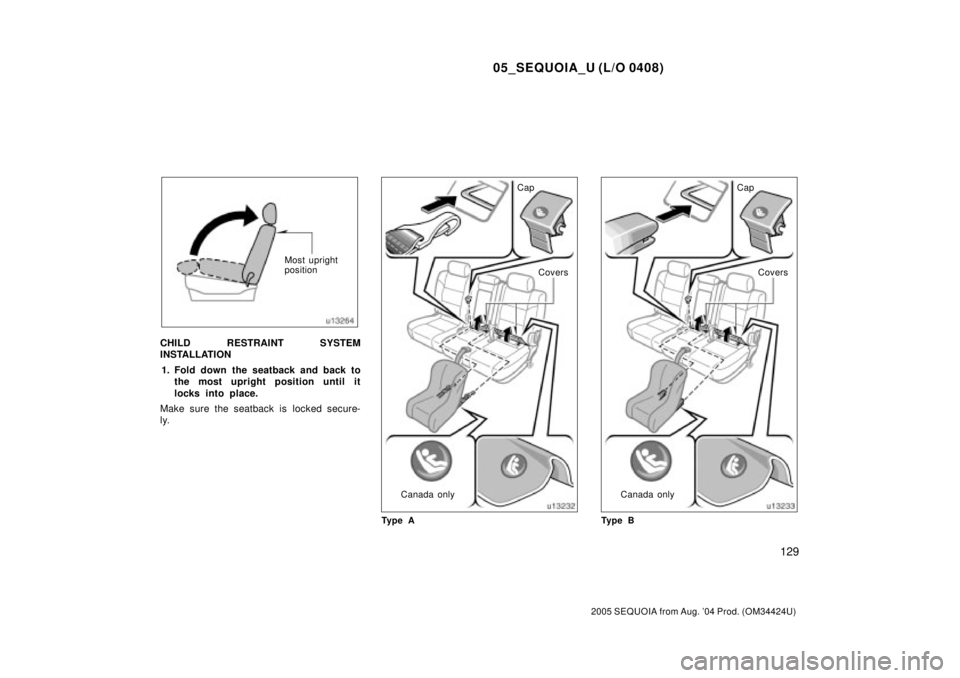

Most upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to
the most upright position until

Page 3989 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
130
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
2. Left side: Turn up the cover for the
lower anchorages. Confirm the posi-
tion of the lower anchorages below
the button on th

05_SEQUOIA_U (L/O 0408)
130
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
2. Left side: Turn up the cover for the
lower anchorages. Confirm the posi-
tion of the lower anchorages below
the button on the cover.
Center: Turn up the cover for the left
lower anchorage and remove the cap
for the right lower anchorage. Con-
firm the position of the lower an-
chorages below the button on the
cover.
3. Type AÐLatch the hooks of lower
straps onto the anchorages and
tighten the lower straps.
Type BÐLatch the buckles onto the
anchorages.
For owners in CanadaÐThe symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see ªÐUsing
a top strap (for bench type second seats)º
on page 121 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION

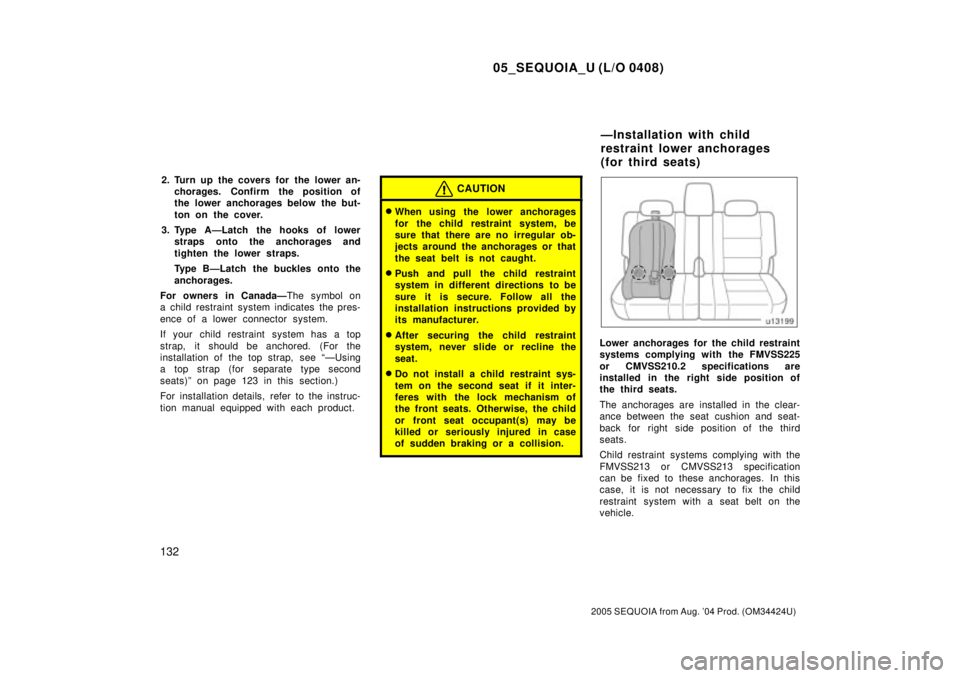

When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
After securing the child restraint
system, never recline the seat.
Do not install a child restraint sys-
tem on the second seat if it inter-
feres with the lock mechanism of
the front seats. Otherwise, the child
or front seat occupant(s) may be
killed or seriously injured in case
of sudden braking or a collision.
Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the second seat.
The anchorages are installed in the seat
cushion of each second seat.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
ÐInstallation with child
restraint lower anchorages
(for
separate type second seats)

Page 3990 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
131
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

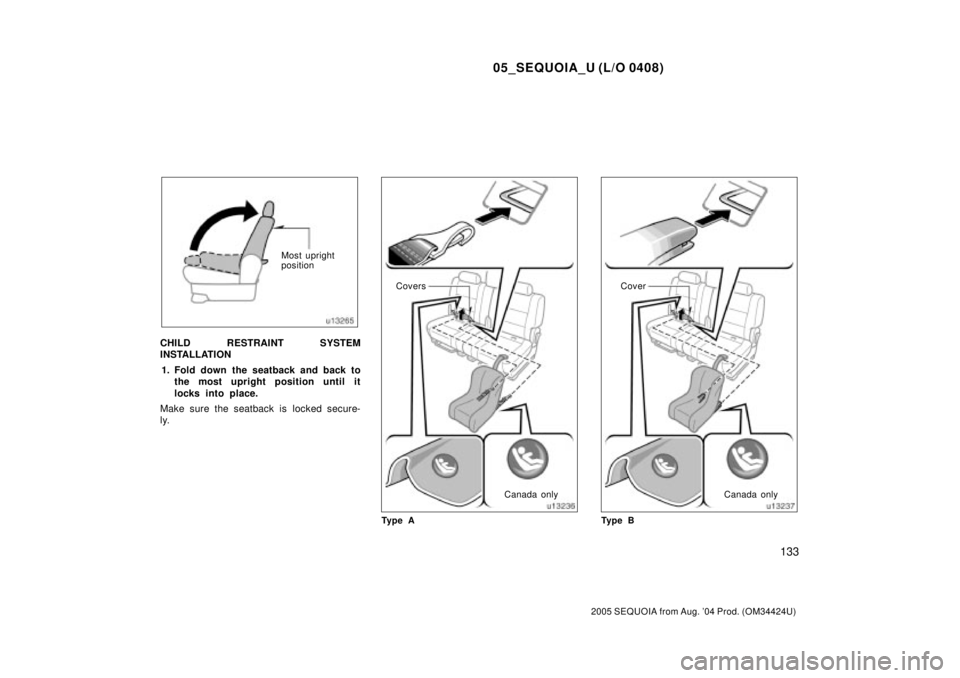

Most upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to
the most upright position until

Page 3991 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
132
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
2. Turn up the covers for the lower an-
chorages. Confirm the position of
the lower anchorages below the but-
ton on the cover.

Page 3992 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
133
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Most upright
position
CHILD RESTRAINT SYSTEM
INSTALLATION
1. Fold down the seatback and back to
the most upright position until
