2001 TOYOTA SEQUOIA Service Repair Manual

catalytic converter child lock inflation pressure fuel reserve brake sensor automatic transmission fluid

Page 4201 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
342
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
ANTI±LOCK BRAKE SYSTEM
(with ªABSº warning light)
The anti±lock brake system is designed
to help prevent lock±up of the wh

05_SEQUOIA_U (L/O 0408)
342
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
ANTI±LOCK BRAKE SYSTEM
(with ªABSº warning light)
The anti±lock brake system is designed
to help prevent lock±up of the wheels
during a sudden braking or braking on
slippery road surfaces. This assists in
providing directional stability and steer-
ing performance of the vehicle under
these circumstances.
Effective way to press the ABS brake
pedal: When the anti±lock brake system
function is in action, you may feel the
brake pedal pulsating and hear a noise.
In this situation, to let the anti±lock
brake system work for you, just hold the
brake pedal down more firmly. Do not
pump the brake in a panic stop. This
will result in reduced braking performan-
ce.
The anti±lock brake system becomes op-
erative after the vehicle has accelerated
to a speed in excess of approximately 10
km/h (6 mph). It stops operating when the
vehicle decelerates to a speed below
approximately 5 km/h (3 mph).Depressing the brake pedal on slippery
road surfaces such as on a manhole cov-
er, a steel plate at a construction site,
joints in a bridge, etc. on a rainy day
tends to activate the anti±lock brake sys-
tem.
You may hear a click or motor sound in
the engine compartment for a few seconds
when the engine is started or just after
the vehicle begins to move. This means
that the anti±lock brake system is in the
self±check mode, and does not indicate a
malfunction.
When the anti±lock brake system is ac-
tivated, the following conditions may
occur. They do not indicate a malfunc-
tion of the system:
You may hear the anti±lock brake sys-
tem operating and feel the brake pedal
pulsating and the vibrations of the ve-
hicle body and steering wheel. You
may also hear the motor sound in the
engine compartment even after the ve-
hicle is stopped.
At the end of the anti±lock brake sys-
tem activation, the brake pedal may
move a little forward.
CAUTION
Do not overestimate the anti±lock
brake system: Although the anti±lock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti±
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the anti±lock brake system does not
provide vehicle control.
Anti±lock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
anti±lock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow±
covered roads.

Page 4202 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
343
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
su

Page 4203 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
344
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warnin

Page 4204 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
345
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The brake pad wear limit indicators on
your disc brakes give a warning noise
when the brake pads are worn to where
replacement

Page 4205 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
346
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The engine number is stamped on the
engine block as shown.Your new vehicle carries theft preven-
tion labels which are approxim

Page 4206 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
347
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

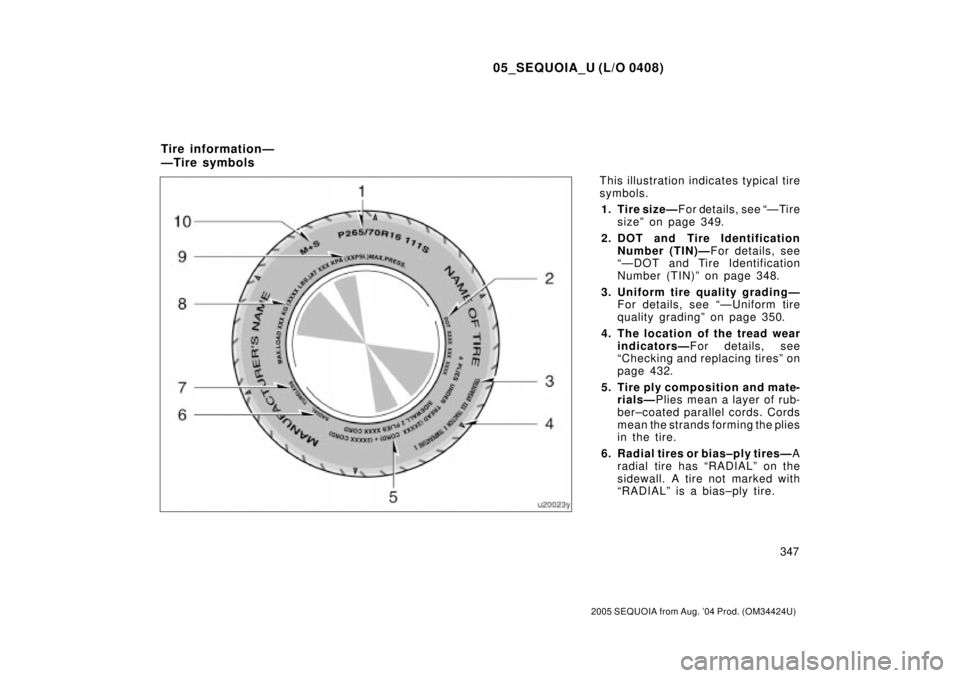

This illustration indicates typical tire
symbols.
1. Tire sizeÐF or det ails, see ªÐ Ti re
sizeº on page 349.
2. DOT and Tir

Page 4207 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
348
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
7. ªTUBELESSº or ªTUBE
TYPEºÐA tubeless tire does not
have a tube inside the tire and air
is directly filled in the tire. A

Page 4208 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
349
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
This illustration indicates typical tire
size.
1. Tire use (P=Passenger car,
T=Temporary use)
2. Section width (in millimeters)
