Page 3945 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
86
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors,

05_SEQUOIA_U (L/O 0408)
86
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er 's seat position sensor, driver 's seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger 's seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, ªRSCA OFFº indicator
light, interconnecting wiring and power
sources. (For details, see ªService remind-
er indicators and warning buzzersº on
page 162 in Section 1±6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the ªONº posi-
tion or remains on for more than 6
seconds.
The light comes on while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.

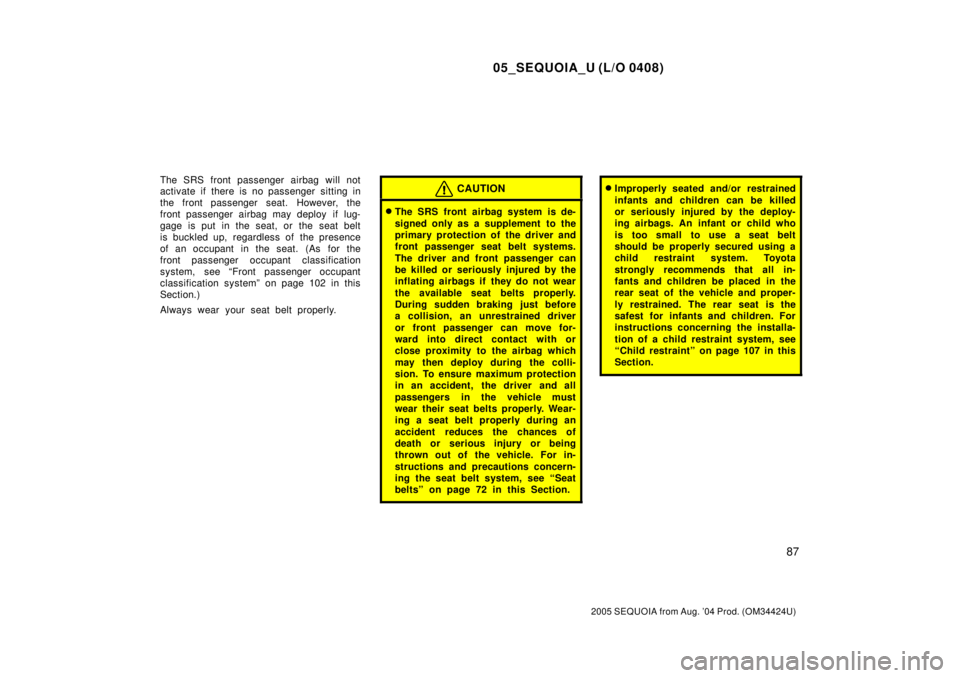

The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help re-
duce injuries mainly to the driver's or front
passenger 's head or chest caused by hit-
ting the vehicle interior.
SRS driver airbag and front
passenger airbag

Page 3946 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
87
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The SRS front passenger airbag will not
activate if there is no passenger sitting in
the front passenger seat. However, the
front

Page 3947 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
88
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The SRS front airbags are designed to
deploy in severe (usually frontal) colli-
sions where the magnitude and duration
of the for

Page 3948 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
89
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion.
1.

05_SEQUOIA_U (L/O 0408)
89
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The SRS front airbag system consists
mainly of the following components, and
their locations are shown in the illustra-
tion.
1. Front airbag sensors
2. Front passenger occupant classification
indicator light
3. Airbag module for front passenger
(airbag and inflator)
4. Front passenger occupant classification
system (ECU and sensors)
5. Front passenger 's seat belt buckle
switch
6. Driver 's seat belt buckle switch
7. Driver 's seat position sensor8. Airbag sensor assembly
9. Airbag module for driver
(airbag and inflator)
10. SRS warning light
The airbag sensor assembly consists of a
safing sensor and airbag sensor.
The front airbag sensors constantly moni-
tor the forward deceleration of the vehicle.
If an impact results in a forward decelera-
tion beyond the designed threshold level,
the system triggers the airbag inflators. At
this time a chemical reaction in the infla-
tors very quickly fills the airbags with
non±toxic gas to help restrain the forward
motion of the occupants. The front airbags
then quickly deflate, so that there is no
obstruction of the driver 's vision should it
be necessary to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non±toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately.Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is designed to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant's
hands, arms, chest or head is in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.

Page 3949 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
90
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

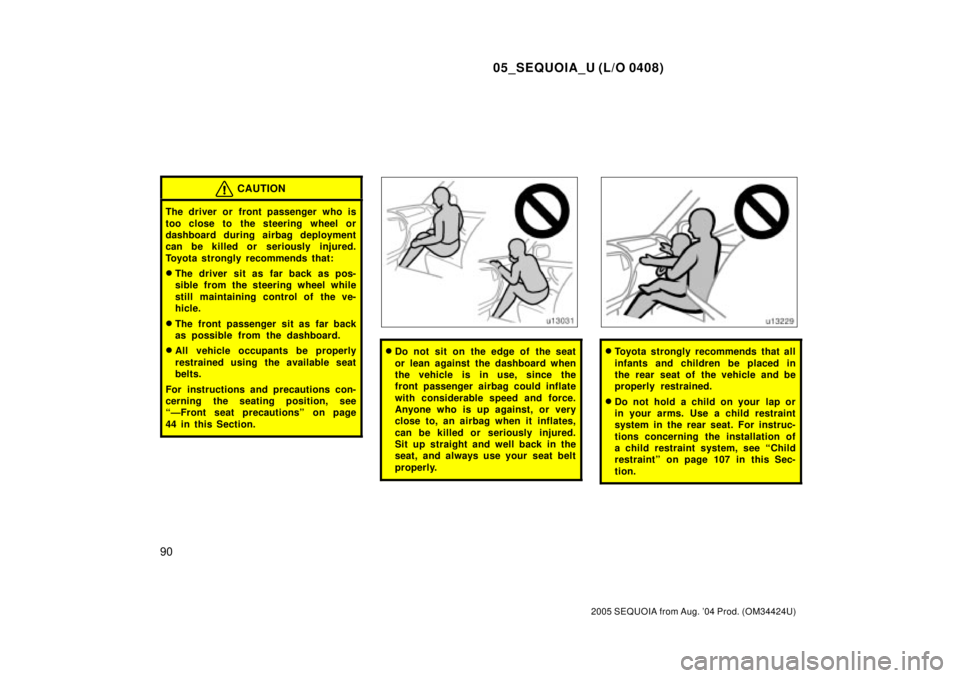

CAUTION
The driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed

Page 3950 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
91
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Do not put anything or any part of
your body on or in front of the
dashboard or steering wheel pad
that houses the front airbag

Page 3951 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
92
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
This indicator comes on when the igni-
tion key is turned to the ªONº position.
It goes off after about 6 seconds. This
means t

Page 3952 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
93
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

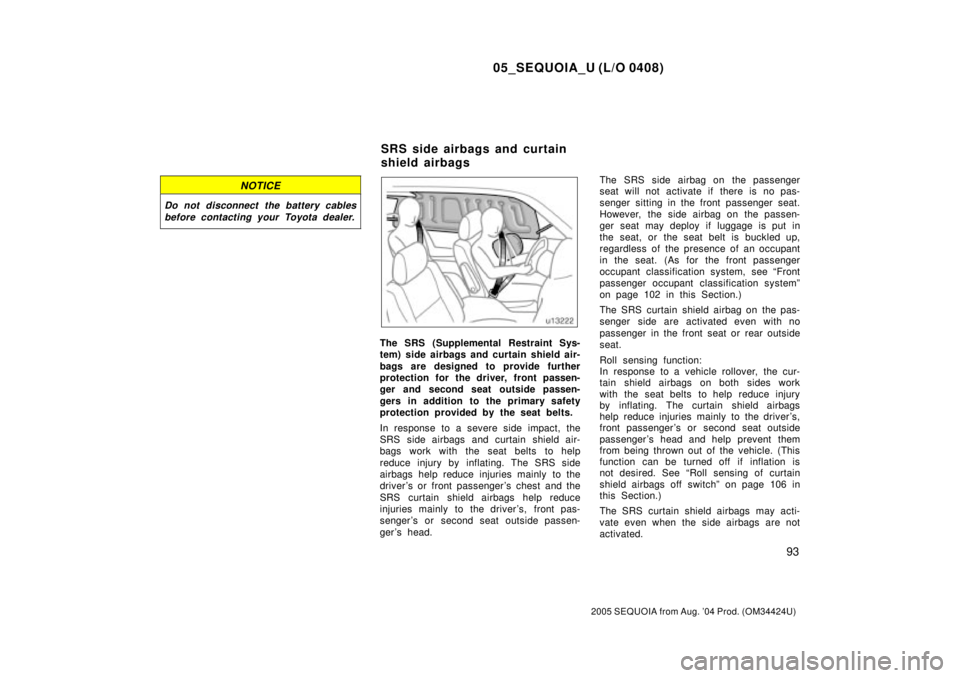

NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
The SRS (Supplemental Restraint Sys-
tem) side

05_SEQUOIA_U (L/O 0408)
93
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.
The SRS (Supplemental Restraint Sys-
tem) side airbags and curtain shield air-
bags are designed to provide further
protection for the driver, front passen-
ger and second seat outside passen-
gers in addition to the primary safety
protection provided by the seat belts.
In response to a severe side impact, the
SRS side airbags and curtain shield air-
bags work with the seat belts to help
reduce injury by inflating. The SRS side
airbags help reduce injuries mainly to the
driver 's or front passenger 's chest and the
SRS curtain shield airbags help reduce
injuries mainly to the driver's, front pas-
senger 's or second seat outside passen-
ger 's head.The SRS side airbag on the passenger
seat will not activate if there is no pas-
senger sitting in the front passenger seat.
However, the side airbag on the passen-
ger seat may deploy if luggage is put in
the seat, or the seat belt is buckled up,
regardless of the presence of an occupant
in the seat. (As for the front passenger
occupant classification system, see ªFront
passenger occupant classification systemº
on page 102 in this Section.)
The SRS curtain shield airbag on the pas-
senger side are activated even with no
passenger in the front seat or rear outside
seat.
Roll sensing function:
In response to a vehicle rollover, the cur-
tain shield airbags on both sides work
with the seat belts to help reduce injury
by inflating. The curtain shield airbags
help reduce injuries mainly to the driver 's,
front passenger 's or second seat outside
passenger 's head and help prevent them
from being thrown out of the vehicle. (This
function can be turned off if inflation is
not desired. See ªRoll sensing of curtain
shield airbags off switchº on page 106 in
this Section.)
The SRS curtain shield airbags may acti-
vate even when the side airbags are not
activated.
SRS side airbags and curtain
shield airbags
