Page 4025 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
166
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
i

05_SEQUOIA_U (L/O 0408)
166
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
(d) Discharge Warning Light
This light warns that the battery is being
discharged.
If it comes on while you are driving, there
is a problem somewhere in the charging
system.
The engine ignition will continue to oper-
ate, however, until the battery is dis-
charged. Turn off the air conditioning,
blower, radio, etc., and drive directly to
the nearest Toyota dealer or repair shop.
NOTICE
Do not continue driving if the engine
drive belt is broken or loose.
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition
key is turned to the ªONº position and
goes off after the engine starts. This
means that the warning light system is
operating properly.
If the lamp remains on or the lamp
comes on while driving, first check the
followings.
Empty fuel tank
If the fuel tank is empty, refuel immedi-
ately.
Loose fuel tank cap
If the fuel tank cap is loose, securely
tighten it.
These cases are temporary malfunctions.
The malfunction indicator lamp will go off
after taking several driving trips.
If the lamp does not go off even after
several trips, contact your Toyota dealer
as soon as possible.
If the fuel tank is not empty or the fuel
tank cap is not loose...
There is a problem somewhere in the
engine, emission control system, elec-
tronic throttle control system, automatic
transmission electrical system or warn-
ing light system itself.
Contact your Toyota dealer as soon as
possible to service the vehicle.
If engine speed does not increase when
the accelerator pedal is depressed, there
may be a problem somewhere in the elec-
tronic throttle control system.
At this time, vibration may occur. Howev-
er, if you depress the accelerator pedal
more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle
checked by your Toyota dealer as soon as
possible.Even if the abnormality of the electronic
throttle control system is corrected during
low speed driving, the system may not be
recovered until the engine is stopped and
the ignition key is turned to ªACCº or
ªLOCKº position.
CAUTION
Be especially careful to prevent erro-
neous pedal operation.
Emissions inspection and maintenance
(I/M) programs
We recommend you to contact your
Toyota dealer to check your vehicle's
emission control system and OBD
(On±Board Diagnostics) system before
taking your vehicle for a state emission
inspection.
For details, see ªEmissions Inspection and
Maintenance (I/M) programsº on page 416
in Section 6.

Page 4026 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
167
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as s

05_SEQUOIA_U (L/O 0408)
167
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
(f) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(g) ªABSº Warning Light
The light comes on when the ignition key
is turned to the ªONº position. If the anti±
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if either
of the systems malfunctions, the light
comes on again.
When the ªABSº warning light is on (and
the brake system warning light is off), the
anti±lock brake system, the brake assist
system, the traction control system (two±
wheel drive vehicles), the active traction
control system (four±wheel drive vehicles)
and the vehicle stability control system do
not operate, but the brake system still
operates conventionally.When the ªABSº warning light is on (and
the brake system warning light is off), the
anti±lock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the components moni-
tored by the warning light system. Con-
tact your Toyota dealer as soon as
possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ªONº posi-
tion, or remains on.
The light comes on while you are dri-
ving.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the ªABSº warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the anti±lock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(h) ªVSC TRACº Warning Light
This light warns that there is a problem
somewhere in the vehicle stability control
system and traction control system (two±
wheel drive models) or active traction con-
trol system (four±wheel drive models).
The light will come on when the ignition
key is turned to ªONº and will go off after
a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.

Page 4027 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
168
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to ªO

05_SEQUOIA_U (L/O 0408)
168
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to ªONº.
The warning light remains on after the
ignition key is turned to ªONº.
The warning light comes on while driv-
ing.
(i) Open Door Warning Light
This light remains on until all the side
doors and back door are completely
closed.
(j) SRS Warning Light
This light will come on when the igni-
tion key is turned to the ªONº position.
After about 6 seconds, the light will go
off. This means the system of the air-
bag and front seat belt pretensioner are
operating properly.This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er 's seat position sensor, driver 's seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger 's seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, ªRSCA OFFº indicator
light, interconnecting wiring and power
sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
ignition key is turned to the ªONº posi-
tion or remains on for more than 6
seconds.
The light comes on while driving.(k) Automatic Transmission Fluid Tem-
perature Warning Light (four±wheel
drive models)
This light warns that the automatic trans-
mission fluid temperature is too high.
If this light comes on while you are driv-
ing, slow down and pull off the road. Stop
the vehicle at a safe place and put the
selector lever in ªPº. With the engine id-
ling, wait until the light goes off. If the
light goes off, you may start the vehicle
again. If the light does not go off, call a
Toyota dealer or qualified repair shop for
assistance.
NOTICE
Continued driving with the warning
light on may damage the automatic
transmission.

Page 4028 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
169
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
(l) Low Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (including the
spare ti

05_SEQUOIA_U (L/O 0408)
169
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
(l) Low Tire Pressure Warning Light
This light warns that the tire pressure of
one or more of your tires (including the
spare tire) is low. The light comes on
when the ignition key is turned to the
ªONº position. It goes off after a few sec-
onds. This indicates that the tire pressure
warning system is functioning properly.
If the warning light comes on, stop your
vehicle in a safe place as soon as pos-
sible and check that the inflation pressure
of all tires (including the spare tire) is as
specified on the tire and loading informa-
tion label. (See ªChecking tire inflation
pressureº on page 429 in Section 7±2.)
The light should go off a few minutes after
the tire pressure is adjusted.
If the warning light blinks, the tire pres-
sure warning system may be malfunction-
ing. Contact your Toyota dealer.
For details, see ªTire pressure warning
systemº on page 198 in Section 1±7.
(m) Low Windshield Washer Fluid Level
Warning Light
This light warns that the windshield wash-
er fluid level is too low. Add washer fluid
at your earliest opportunity. (For instruc-
tions, see ªAdding washer fluidº on page
444 in Section 7±3.)(n) Engine Oil Replacement Reminder
Light (for vehicles sold in U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the ignition
key is turned to ªONº and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the ªONº
position. If you continue driving without
replacing the engine oil, and if the dis-
tance driven exceeds 8000 km (5000
miles), the light will come on after the
ignition key is turned to ªONº position.
The light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible.The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the ªACCº or
ªLOCKº position with the odometer
reading shown. (For details, see
ªOdometer and two trip metersº on
page 160 in this Section.)
2. Turn the ignition key to the ªONº posi-
tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates ª000000º
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(o) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver's door
with the ignition key in the ªACCº or
ªLOCKº position.

Page 4029 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
170
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
CHECKING SERVICE REMINDER
INDICATORS (except the low fuel level
warning light and low windshield
washer fluid level warning ligh

Page 4030 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
171
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock172 . .

Page 4031 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
172
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
ªSTARTºÐStarter motor on. The key
will return to the ªONº position when
released.
For starting tips, see page 361 in Sectio

Page 4032 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
173
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

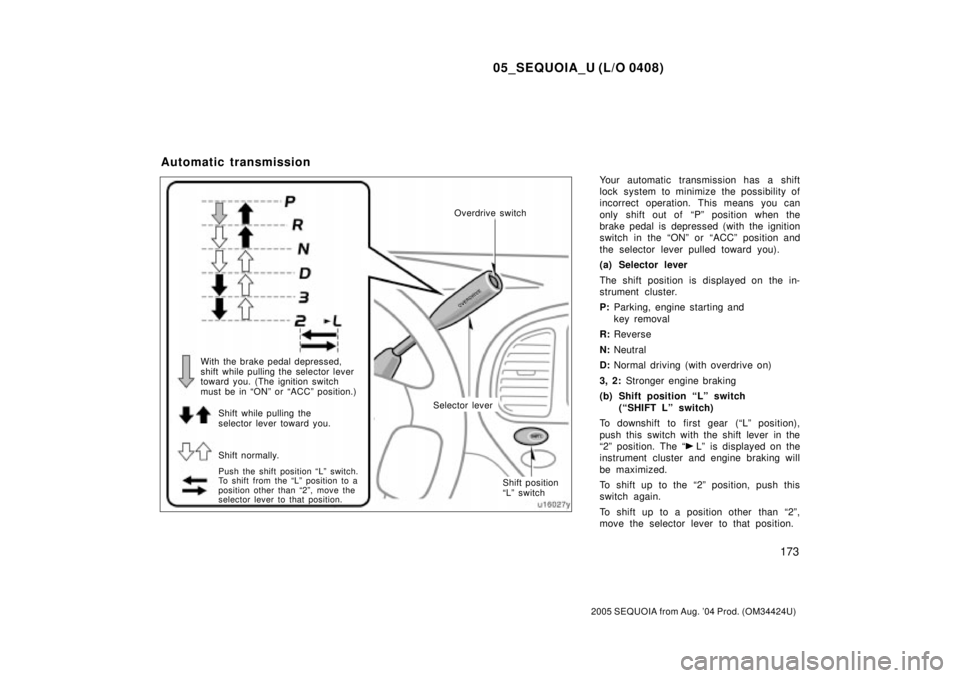

Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only

Load next 8 pages

Page: < prev 1-10 ... 3993-4000 4001-4008 4009-4016 4017-4024 4025-4032 4033-4040 4041-4048 4049-4056 4057-4064 ... 4328 next >

fuel reserve interior lights airbag brake pads service interval ESP
