Page 3897 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
38
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again u

Page 3898 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
39
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

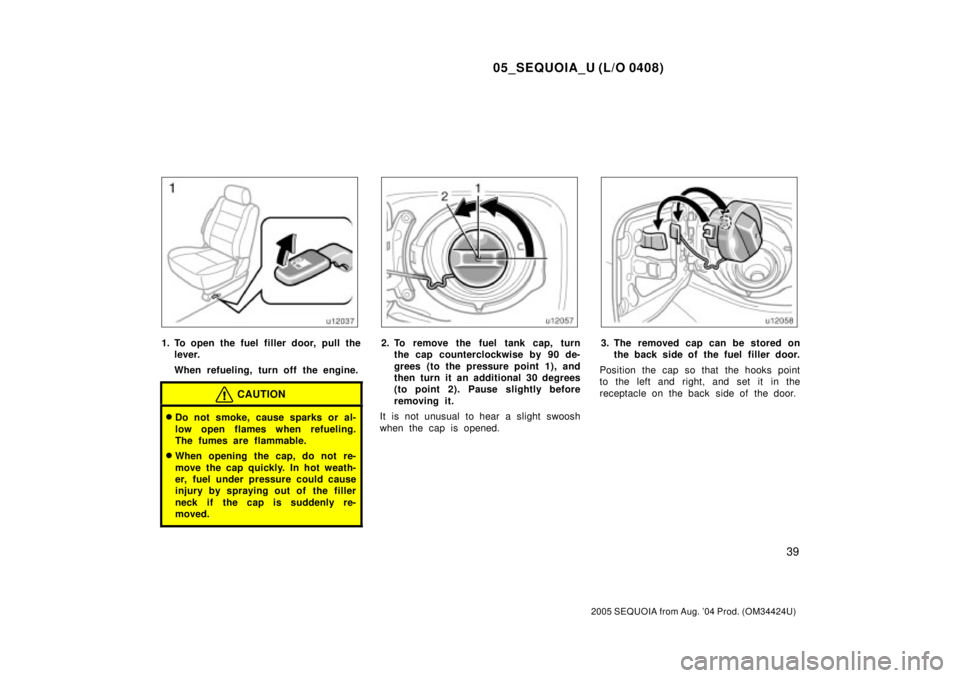

1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-

Page 3899 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
40
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

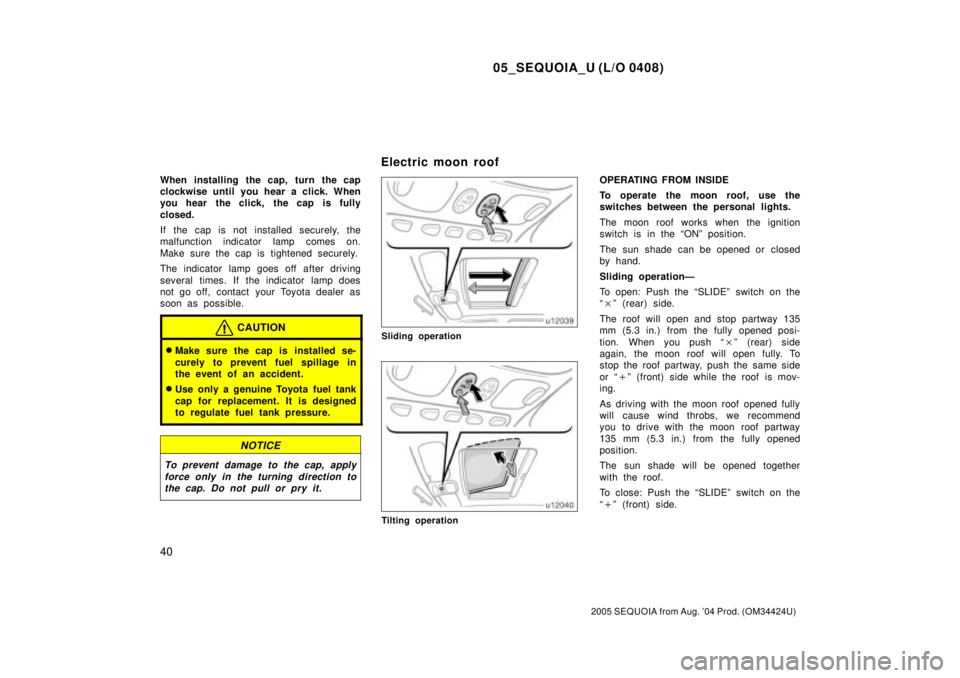

When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the

Page 3900 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
41
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The roof will fully close. To stop the roof
partway, push the same side or ªº (rear)
side briefly.
Tilting operationÐ
To tilt

Page 3901 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
42
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands

Page 3902 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
43
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Occupant restraint systems
Seats44 . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 3903 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
44
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-

05_SEQUOIA_U (L/O 0408)
44
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded±down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.
During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (ªNHTSAº) advises:
Since the risk zone for driver airbag
is the first 50Ð75 mm (2Ð3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non±slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
SeatsFront seatsÐ
ÐFront seat precautions

Page 3904 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
45
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Front passenger seat
CAUTION
The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious
