TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
230
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
CONTROLLER FEATURES
1. ª
º and ªº (DISC/CH/PROG) buttons
2. ª
º and ªº (TUNE/TRACK) buttons
3. ªON/SOURCEº button
4.

Page 4090 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
231
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Cassette tape player
This button has the following featuresÐ
To fast forward or reverse:
Push and hold the ª
º (TUNE/TRACK)
b

05_SEQUOIA_U (L/O 0408)
231
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Cassette tape player
This button has the following featuresÐ
To fast forward or reverse:
Push and hold the ª
º (TUNE/TRACK)
button until ªFFº will appears on the dis-
play to forward a tape. Push and hold the
ª
º (TUNE/TRACK) button until ªREWº
appears on the display to rewind a tape.
To stop the tape while it is fast forward-
ing, push the ª
º (TUNE/TRACK) button.
To stop the tape while it is rewinding,
push the ª
º (TUNE/TRACK) button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto±reverse feature.
To skip up or down to locate a song or
recording:
You can select up to nine recordings (in-
cluding current one).
Push the ª
º or ªº (TUNE/TRACK) but-
ton. ªFF 1º or ªREW 1º will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
Compact disc player
This button has the following featuresÐ
To skip up or down to a different track:
Push the ª
º or ªº (TUNE/TRACK) but-
ton until the number of the track you want
to listen to appears on the display. If you
want to return to the beginning of the
current track, quickly push the ª
º
(TUNE/TRACK) button one time.
To fast forward or reverse:
Push and hold the ª
º or ªº (TUNE/
TRACK) button to fast forward or reverse
within a compact disc. When you release
the button, the compact disc player will
resume playing.3. ªON/SOURCEº button
Push ªON/SOURCEº button to turn on the
rear seat audio system.
Use ªON/SOURCEº button to select an
audio mode when the rear seat audio sys-
tem is on. Each time you push this but-
ton, the system changes between the ra-
dio, cassette player and compact disc
player.
When you change the mode, the display
indicates which mode is selected.
When a cassette tape and compact discs
are not loaded in the front audio system,
only a radio mode can be selected in the
rear seat audio system.
If you push ªON/SOURCEº button to se-
lect the casette tape player mode or com-
pact disc player mode in that case, a
beep sounds from front audio system and
ªINVALIDº flashes on the screen for 6
seconds, and then the rear audio system
returns to the radio mode.
If you push ªON/SOURCEº button while
receiving an emergency broadcast, a beep
sounds and ªINVALIDº appears on the
screen to indicate that no button can be
operated.

Page 4091 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
232
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Radio
AM mode
When you select the AM mode, ªAMº will
appear on the screen.
FM mode
When you select the FM mode, ªFM1º or
ªF

Page 4092 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
233
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
Replace the battery by using the following
procedures:
1. Pull the case out while pushing the
lock release button to the side.2.

Page 4093 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
234
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

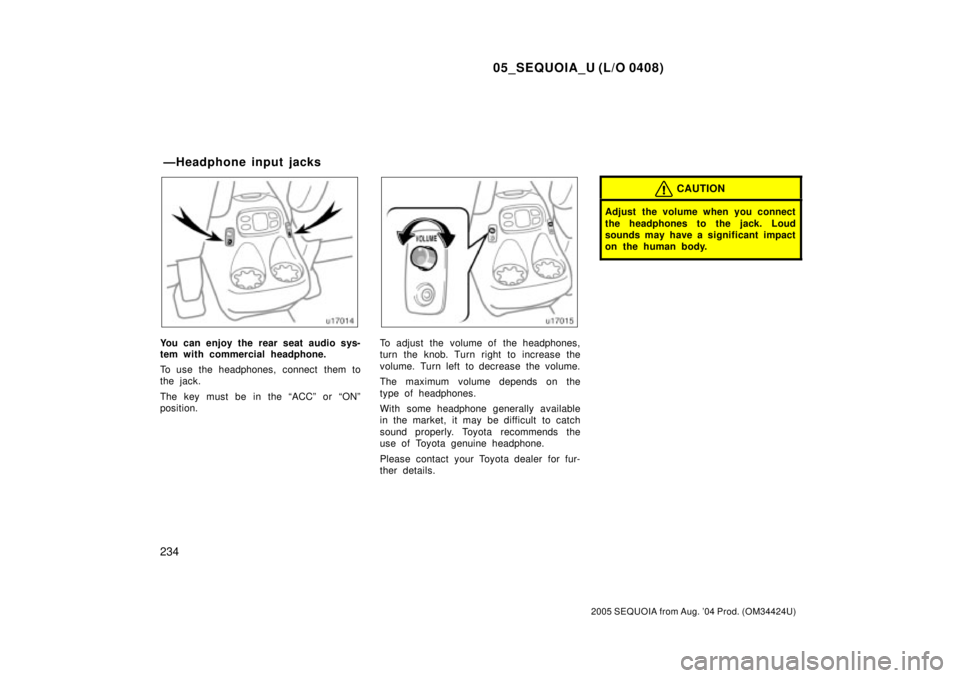

You can enjoy the rear seat audio sys-
tem with commercial headphone.
To use the headphones, connect them to
the jack.
The key

Page 4094 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
235
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

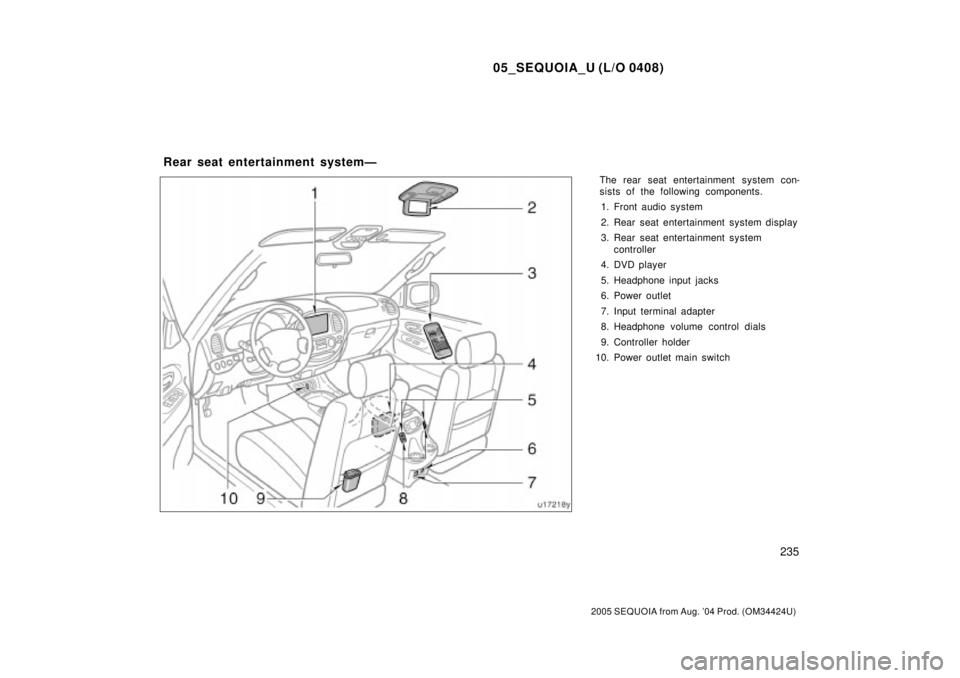

The rear seat entertainment system con-
sists of the following components.
1. Front audio system
2. Rear seat entertainment syst

Page 4095 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
236
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front

05_SEQUOIA_U (L/O 0408)
236
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the ªACCº or ªONº position.
The rear passengers can enjoy all modes
(AM and FM radio, cassette tape player,
compact disc player with changer and
DVD player) on the rear seat entertain-
ment system only if a cassette tape and
a compact disc are loaded in the front
audio system.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts±CD or DVD audio only when a
disc is loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter on the rear
console box. For details, refer to the
manufacturer 's instructions.You can enjoy the rear seat entertainment
system with commercial headphone. See
ªÐHeadphone input jacksº on page 282 in
this Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer 's
instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone

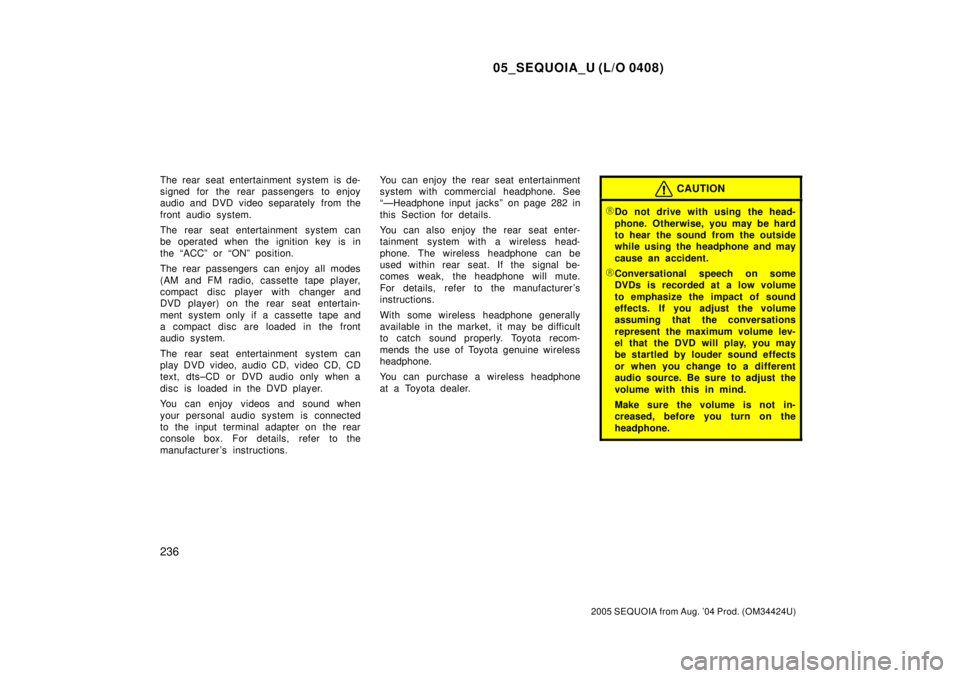

at a Toyota dealer.CAUTION
Do not drive with using the head-
phone. Otherwise, you may be hard
to hear the sound from the outside
while using the headphone and may
cause an accident.
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

Page 4096 of 4323

TOYOTA SEQUOIA 2001 Service Repair Manual 05_SEQUOIA_U (L/O 0408)
237
2005 SEQUOIA from Aug. 04 Prod. (OM34424U)

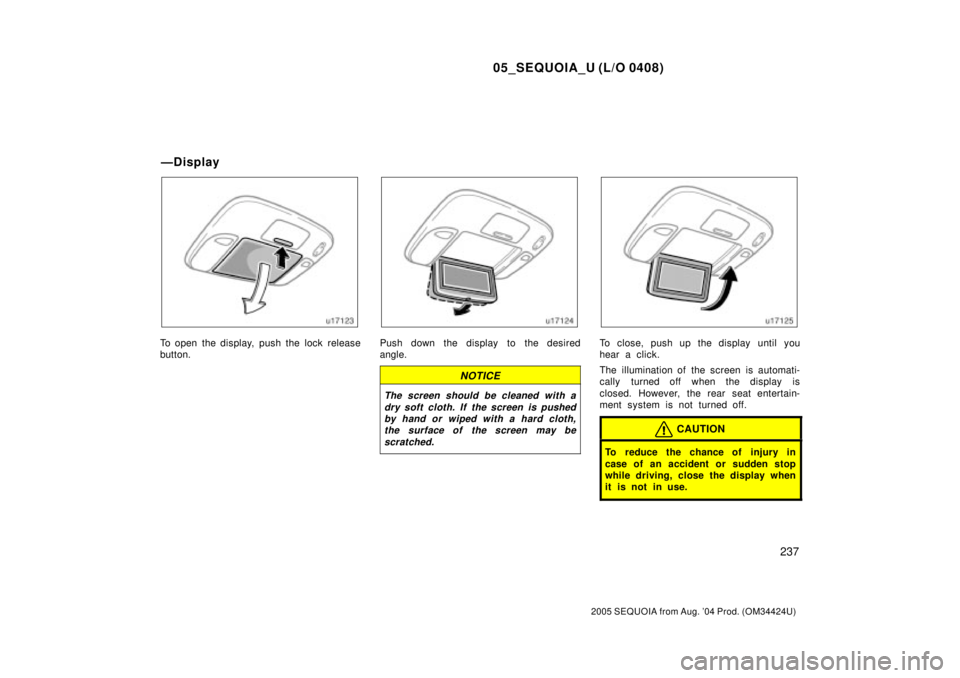

To open the display, push the lock release
button.Push down the display to the desired
angle.
NOTICE
The screen should be cleane
