2001 TOYOTA SEQUOIA towing capacity

05_SEQUOIA_U (L/O 0408)
355
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Vehicle load limits include total load
capacity, seating capacity, towing ca-
pacity and cargo capacity. Follow the
load limits shown below.
Total load capacity:
567 kg (1250 lb.)
Total load capacity means com-
bined weight of occupants, cargo
and luggage. Tongue load is in-
cluded when trailer towing.
Seating capacity:
Vehicles with bench type second
seats:
Total 8 (Front 2, Rear 6)
Vehicles with separate type second
seats:
Total 7 (Front 2, Rear 5)
Seating capacity means the maxi-
mum number of occupants whose
estimated average weight is 68 kg
(150 lb.) per person. Depending on
the weight of each person, the seat-
ing capacity given may exceed the
total load capacity.NOTICE
Even if the number of occupants
are within the seating capacity,
do not exceed the total load ca-
pacity.
Towing capacity:
Two±wheel drive models
2948 kg (6500 lb.)
Four±wheel drive models
2812 kg (6200 lb.)
Towing capacity means the maxi-
mum gross trailer weight (trailer
weight plus its cargo weight) that
your vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or de-
crease depending on the size (weight)
and the number of occupants. For de-
tails, see ªCapacity and distributionº
that follows.
CAUTION
Do not apply the load more than
each load limit. That may cause
not only damage to the tires, but
also deterioration to the steering
ability and braking ability, which
may cause an accident.
Veh icle lo ad limit s

05_SEQUOIA_U (L/O 0408)
356
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
When stowing cargo and luggage in
the vehicle, observe the following:

Put cargo and luggage in the lug-
gage compartment when at all
possible. Be sure all items are se-
cured in place.

Be careful to keep the vehicle bal-
anced. Locating the weight as far
forward as possible helps maintain
balance.

For better fuel economy, do not
carry unneeded weight.
CAUTION

To prevent cargo and luggage
from sliding forward during
braking, do not stack anything
in the luggage compartment
higher than the seatbacks.
Keep cargo and luggage low,
as close to the floor as pos-
sible.

Never allow anyone to ride in
the luggage compartment. It is
not designed for passengers.
They should ride in their seats
with their seat belts properly
fastened. Otherwise, they are
much more likely to suffer seri-
ous bodily injury, in the event
of sudden braking or a colli-
sion.

Do not drive with objects left
on top of the instrument panel.
They may interfere with the
driver's field of view. Or they
may move during sharp vehicle
acceleration or turning, and im-
pair the driver's control of the
vehicle. In an accident they
may injure the vehicle occu-
pants.Cargo capacity depends on the to-
tal weight of the occupants.
(Cargo capacity) = (Total load capac-
ity) ± (Total weight of occupants)
STEPS FOR DETERMINING
CORRECT LOAD LIMIT
1. Locate the statement ªThe com-
bined weight of occupants and
cargo should never exceed XXX
poundsº on your vehicle's placard.
2. Determine the combined weight of
the driver and passengers that will
be riding in your vehicle.
3. Subtract the combined weight of
the driver and passengers from
XXX kilograms or XXX pounds.
4. The resulting figure equals the
available amount of cargo and lug-
gage load capacity. For example,
if the ªXXXº amount equals 1400
lbs. and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and lug-
gage load capacity is 650 lbs.
(1400±750 (5x150)=650 lbs).
Cargo and luggageÐ
ÐStowage precautionsÐCapacity and distribution

05_SEQUOIA_U (L/O 0408)
357
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
5. Determine the combined weight of
luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer will
be transferred to your vehicle.
Consult this manual to determine
how this reduces the available car-
go and luggage load capacity of
your vehicle.
For details about trailer towing, see
page 368.

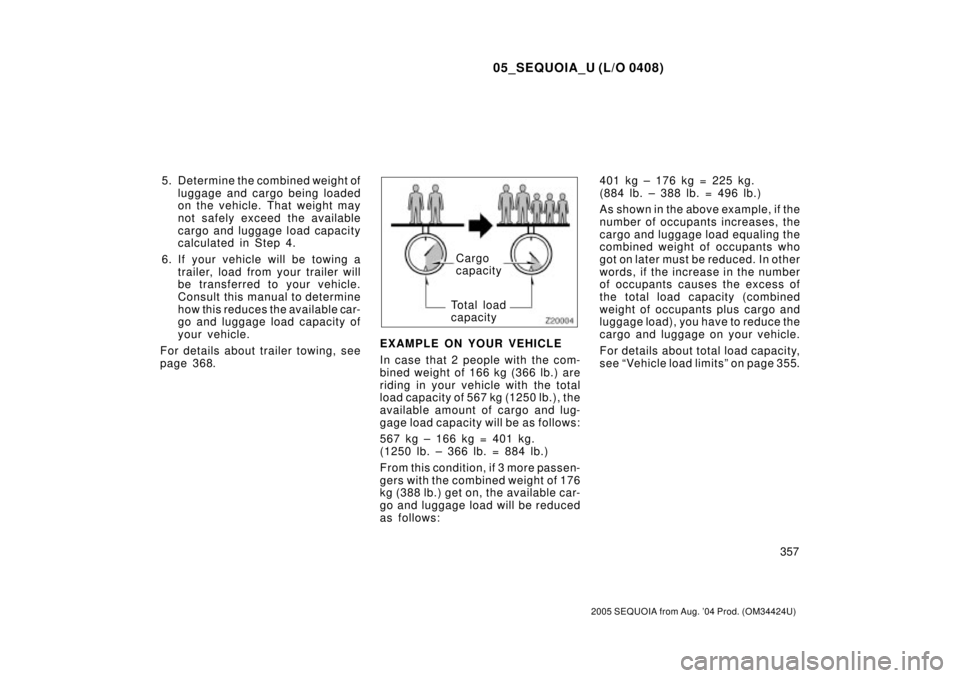

Cargo
capacity
Total load
capacity
EXAMPLE ON YOUR VEHICLE
In case that 2 people with the com-
bined weight of 166 kg (366 lb.) are
riding in your vehicle with the total
load capacity of 567 kg (1250 lb.), the
available amount of cargo and lug-
gage load capacity will be as follows:
567 kg ± 166 kg = 401 kg.
(1250 lb. ± 366 lb. = 884 lb.)
From this condition, if 3 more passen-
gers with the combined weight of 176
kg (388 lb.) get on, the available car-
go and luggage load will be reduced
as follows:401 kg ± 176 kg = 225 kg.
( 884 lb. ± 388 lb. = 496 lb. )
As shown in the above example, if the
number of occupants increases, the
cargo and luggage load equaling the
combined weight of occupants who
got on later must be reduced. In other
words, if the increase in the number
of occupants causes the excess of
the total load capacity (combined
weight of occupants plus cargo and
luggage load), you have to reduce the
cargo and luggage on your vehicle.
For details about total load capacity,
see ªVehicle load limitsº on page 355.

05_SEQUOIA_U (L/O 0408)
369
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
WEIGHT LIMITS
Before towing, make sure the total trail-
er weight, gross combination weight,
gross vehicle weight, gross axle weight
and trailer tongue load are all within
the limits.
The total trailer weight and tongue load
can be measured with platform scales
found at a highway weighing station, build-
ing supply company, trucking company,
junk yard, etc.
CAUTION

The maximum gross trailer weight
(trailer weight plus cargo weight)
must never exceed the following.
Two±wheel drive models
2948 kg (6500 lb.)
Four±wheel drive models
2812 kg (6200 lb.)
If towing a trailer and cargo weigh-
ing over 907 kg (2000 lb.), it is
necessary to use a sway control
device with sufficient capacity. The
combination of the gross trailer
weight added to the total weight of
the vehicle, occupants and vehicle
cargo must never exceed a total of
5352 kg. (11800 lb.)
Exceeding the maximum weight of
the trailer, the vehicle, or the ve-
hicle and trailer combination, can
cause an accident resulting in seri-
ous personal injuries.

Trailer hitch assemblies have differ-
ent weight capacities established by
the hitch manufacturer. Even though
the vehicle may be physically capa-
ble of towing a higher weight, the
operator must determine the maxi-
mum weight rating of the particular
hitch assembly and never exceed
the maximum weight rating speci-
fied for the trailer±hitch. Exceeding
the maximum weight rating set by
the trailer hitch manufacturer can
cause an accident resulting in seri-
ous personal injuries.

05_SEQUOIA_U (L/O 0408)
454
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
*
1: Unladen vehicle*
2: With P245/70R16 tires and without
roof rails
*
3: With P265/70R16 or P265/65R17 tires
and without roof rails
*
4: With P245/70R16 tires and with roof
rails
*
5: With P265/70R16 or P265/65R17 tires
and with roof rails
*
6: Installing accessories in addition to
those installed at the factory increases
the weight of the vehicle, thereby re-
ducing vehicle capacity weight. Con-
tact your Toyota dealer about the
weight of accessory parts.
Dimensions and weights
1860 (73.2)*
2
1870 (73.6)*
3
1915 (75.4)*
4
1925 (75.8)*
5
Overall length mm (in.)
Overall width mm (in.)
Overall height
*
1mm (in.)Two±wheel drive models
Four±wheel drive models
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight
*
6 (occupants
 luggage) kg (lb.)
Towing capacity
(trailer weight +
cargo weight) kg (lb.)
5180 (203.9)
2005 (78.9)
1880 (74.0)
*
3
1935 (76.2)*
5
3000 (118.1)
1675 (65.9)
1710 (67.3)
567 (1250)
2948 (6500)
2812 (6200) Two±wheel drive models
Four±wheel drive models
