± MAINTENANCEINSIDE VEHICLE
49 Author: Date:
2005 SEQUOIA (RM1146U)
INSIDE VEHICLE
GENERAL MAINTENANCE
These are maintenance and inspection items which are considered to be the owner's responsibility.
They can be done by the owner or they can have them done at a service shop.
These items include those which should be checked on a daily basis, those which, in most cases, do not
require (special) tools and those which are considered to be reasonable for the owner to do.
Items and procedures for general maintenance are as follows.
1. GENERAL NOTES

Maintenance items may vary from country to country. Check the owner's manual supplement in which
the maintenance schedule is shown.

Every service item in the periodic maintenance schedule must be performed.

Periodic maintenance service must be performed according to whichever interval in the periodic main-
tenance schedule occurs first, the odometer reading (miles) or the time interval (months).

Maintenance service after the last period should be performed at the same interval as before unless
otherwise noted.

Failure to do even one item can cause the engine to run poorly and increase exhaust emissions.
2. LIGHTS
(a) Check that the headlights, stop lights, taillights, turn signal lights, and other lights are all working.
(b) Check the headlight aim.
3. WARNING LIGHTS AND BUZZERS
Check that all warning lights and buzzers function properly.
4. HORN
Check that it is working.
5. WINDSHIELD GLASS
Check for scratches, pits or abrasions.
6. WINDSHIELD WIPER AND WASHER
(a) Check operation of the wipers and washer.
(b) Check that the wipers do not streak.
7. WINDSHIELD DEFROSTER
Check that air comes out from the defroster outlet when operating the heater or air conditioner.
8. REAR VIEW MIRROR
Check that it is mounted securely.
9. SUN VISORS
Check that they move freely and are mounted securely.
10. STEERING WHEEL
Check that it has the specified free play. Be alert for changes in steering condition, such as hard steering,
excessive free play or strange noises.
11. SEATS
(a) Check that the seat adjusters operate smoothly.
(b) Check that all latches lock securely in any position.
(c) Check that the head restraints move up and down smoothly and that the locks hold securely in any
latch position.
(d) For fold±down seat backs, check that the latches lock securely.
12. SEAT BELTS
(a) Check that the seat belt system such as the buckles, retractors and anchors operate properly and
smoothly.
(b) Check that the belt webbing is not cut, frayed, worn or damaged.

B02100
± MAINTENANCECHASSIS
MA±11
58 Author: Date:
2005 SEQUOIA (RM1146U)

Leaf spring U±bolt mounting nuts
Torque: 133 N´m (1,350 kgf´cm, 98 ft´lbf )
(b) Under Severe Conditions:
In addition to the above maintenance items, check for
loose or missing bolts and nuts on the following.

Steering system

Drive train

Suspension system

Fuel tank mounts

Engine mounts, etc.
14. FINAL INSPECTION
(a) Check operation of body parts:

Hood:

Auxiliary catch operates properly

Hood locks securely when closed

Doors:

Door locks operate properly

Doors close properly

Seats:

Seat adjusts easily and locks securely in any
positions

Seat backs lock securely at any angle

Fold±down seat backs lock securely
(b) Road test:

Engine and chassis parts do not have abnormal
noises.

Vehicle does not wander or pull to one side.

Brakes work properly and do not drag.
(c) Be sure to deliver a clean vehicle and especially check:

Steering wheel

Shift lever knob

All switch knobs

Door handles

Seats

05_SEQUOIA_U (L/O 0408)
44
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.

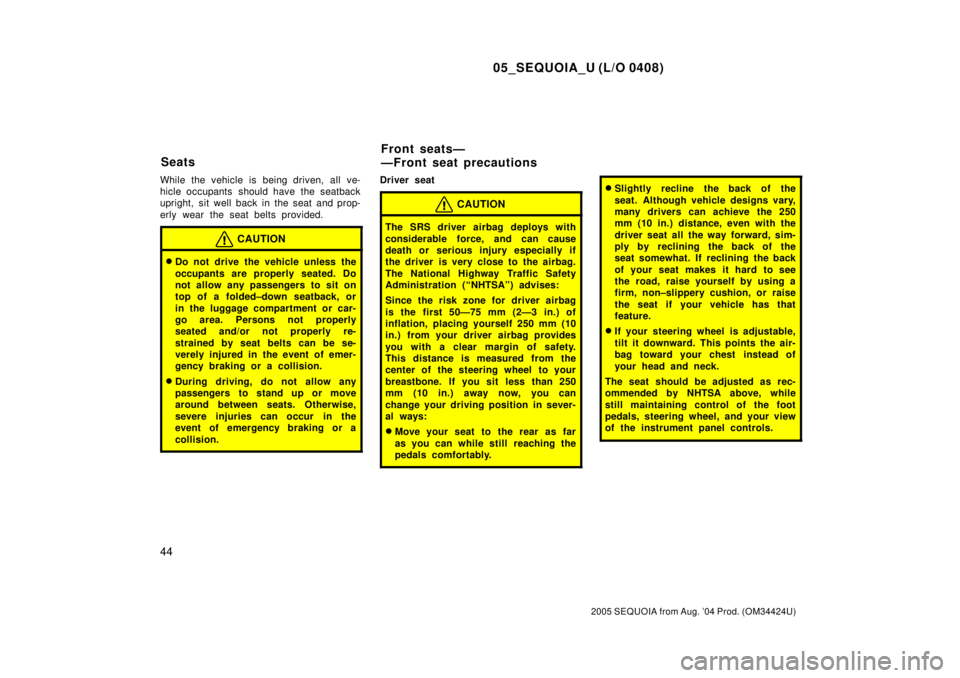

CAUTION

Do not drive the vehicle unless the
occupants are properly seated. Do
not allow any passengers to sit on
top of a folded±down seatback, or
in the luggage compartment or car-
go area. Persons not properly
seated and/or not properly re-
strained by seat belts can be se-
verely injured in the event of emer-
gency braking or a collision.

During driving, do not allow any
passengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration (ªNHTSAº) advises:
Since the risk zone for driver airbag
is the first 50Ð75 mm (2Ð3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:

Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.

Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non±slippery cushion, or raise
the seat if your vehicle has that
feature.

If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
SeatsFront seatsÐ
ÐFront seat precautions

05_SEQUOIA_U (L/O 0408)
48
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the driver and
the front passenger are sitting up
straight and well back in the seats. If
you are reclined, the lap belt may
slide past your hips and apply re-
straint forces directly to the abdomen
or your neck may contact the shoul-
der belt. In the event of a frontal
collision, the more the seat is re-
clined, the greater the risk of death
or personal injury.
3. SEAT LUMBAR SUPPORT
ADJUSTING SWITCH
Push the control switch in the desired
direction.
The amount of lumber support will change
while the switch is pushed.
Vehicles with the driving position memory
systemÐThe position of the driver's seat
and outside rear view mirrors can be
memorized. For details, see ªDriving posi-
tion memory systemº on page 71 in this
Section.
CAUTION

Adjustment should not be made
while the vehicle is moving.

When adjusting the seat, be careful
not to hit the seat against a pas-
senger or luggage.

Third seats only: Adjust both seat
cushions to the same position and
align both seatbacks at the same
angle when a person sits in the
third seat center position. Other-
wise, the person cannot wear the
seat belt properly and this may
cause serious injuries in a collision.

When folding up the third seats, do
not fold down or up the second
seats.

After adjusting the seat position, re-
lease the lever and try sliding the
seat forward and backward to make
sure it is lock in position.

After adjusting the seatback, push
your body back against the seat to
make sure the seat is locked in
position.

Do not allow sitting on top of a
folded±down seatback, or in the
luggage compartment while driving.
Persons not properly seated and/or
properly restrained by seat belts
can be severely injured in the event
of emergency braking or a collision.

Do not operate any equipment in
the luggage compartment while
driving. People not properly seated
and/or properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.

Do not load luggage with only the
seatback folded down. Do not fail
to swing the whole seat up in such
a case. Luggage sliding forward
during braking may cause an acci-
dent or severe injury.
Rear seatsÐ
ÐRear seat precautions

05_SEQUOIA_U (L/O 0408)
49
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

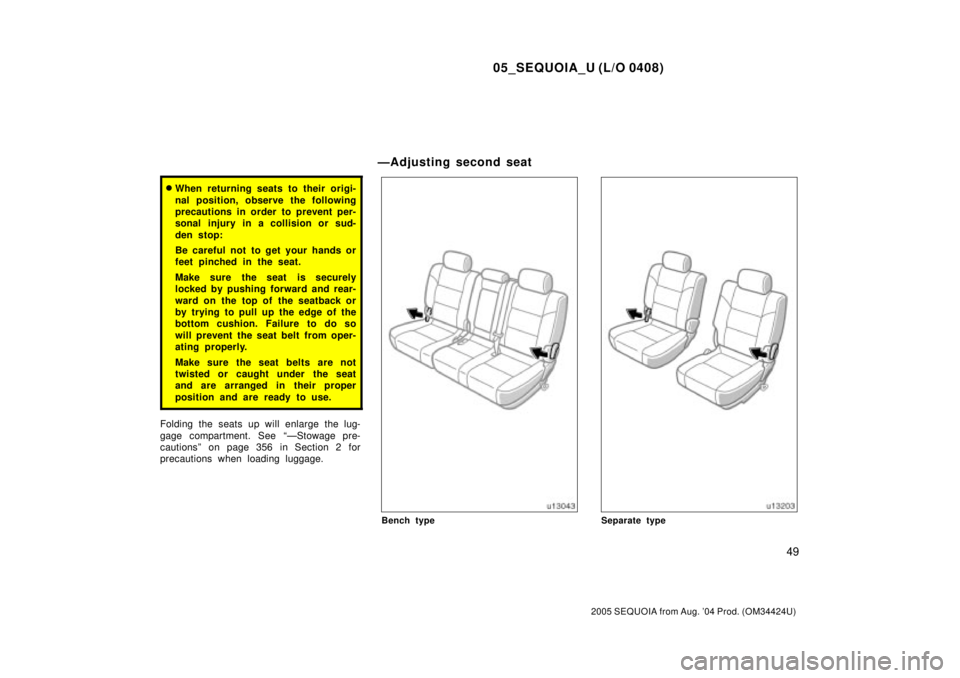

When returning seats to their origi-
nal position, observe the following
precautions in order to prevent per-
sonal injury in a collision or sud-
den stop:
Be careful not to get your hands or
feet pinched in the seat.
Make sure the seat is securely
locked by pushing forward and rear-
ward on the top of the seatback or
by trying to pull up the edge of the
bottom cushion. Failure to do so
will prevent the seat belt from oper-
ating properly.
Make sure the seat belts are not
twisted or caught under the seat
and are arranged in their proper
position and are ready to use.
Folding the seats up will enlarge the lug-
gage compartment. See ªÐStowage pre-
cautionsº on page 356 in Section 2 for
precautions when loading luggage.
Bench typeSeparate type
ÐAdjusting second seat

05_SEQUOIA_U (L/O 0408)
50
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

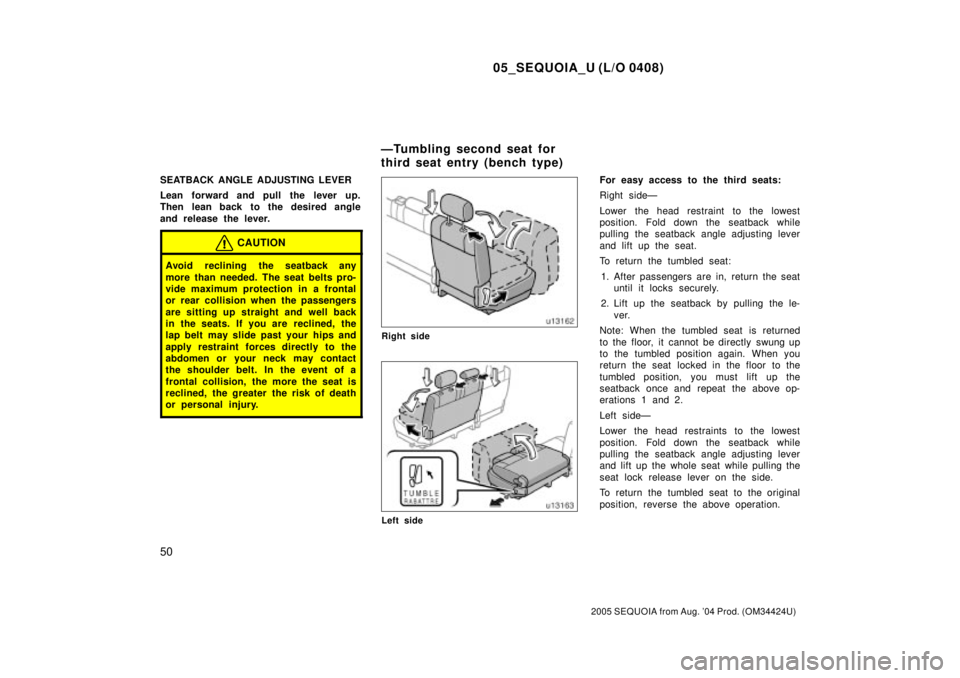

SEATBACK ANGLE ADJUSTING LEVER
Lean forward and pull the lever up.
Then lean back to the desired angle
and release the lever.
CAUTION
Avoid reclining the seatback any
more than needed. The seat belts pro-
vide maximum protection in a frontal
or rear collision when the passengers
are sitting up straight and well back
in the seats. If you are reclined, the
lap belt may slide past your hips and
apply restraint forces directly to the
abdomen or your neck may contact
the shoulder belt. In the event of a
frontal collision, the more the seat is
reclined, the greater the risk of death
or personal injury.
Right side
Left side
For easy access to the third seats:
Right sideÐ
Lower the head restraint to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever
and lift up the seat.
To return the tumbled seat:
1. After passengers are in, return the seat
until it locks securely.
2. Lift up the seatback by pulling the le-
ver.
Note: When the tumbled seat is returned
to the floor, it cannot be directly swung up
to the tumbled position again. When you
return the seat locked in the floor to the
tumbled position, you must lift up the
seatback once and repeat the above op-
erations 1 and 2.
Left sideÐ
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever
and lift up the whole seat while pulling the
seat lock release lever on the side.
To return the tumbled seat to the original
position, reverse the above operation.
ÐTumbling second seat for
third seat entry (bench type)

05_SEQUOIA_U (L/O 0408)
51
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION

Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.

Left side onlyÐUse the seat lock
release lever on the side only when
folding up the seat.

After returning the seat, make sure
the seat is securely locked by push-
ing forward and rearward on the
top of the seatback or by trying to
pull up the edge of the bottom
cushion. Failure to do so will pre-
vent seat belt from operating prop-
erly.
For easy access to the third seats:
Lower the head restraints to the lowest
position. Fold down the seatback while
pulling the seatback angle adjusting lever
and lift up the whole seat while pulling the
seat lock release lever on the side.
To return the tumbled seat to the original
position, reverse the above operation.
CAUTION

Make sure people or luggage are
clear of the seat. Then, hold the
seat and slowly move it. Otherwise,
people may be injured or luggage
may be damaged, if the seat hits
them.

Use the seat lock release lever on
the side only when folding up the
seat.

After returning the seat, make sure
the seat is securely locked by push-
ing forward and rearward on the
top of the seatback or by trying to
pull up the edge of the bottom
cushion. Failure to do so will pre-
vent seat belt from operating prop-
erly.
ÐTumbling second seat for
third seat entry
(separate type)

05_SEQUOIA_U (L/O 0408)
52
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
BEFORE TUMBLING SECOND SEATS
Stow the second seat belt buckles as
shown in the illustration.
NOTICE
To prevent damage to the seat belt
buckles, they must be stowed before
you tumble the seatback.
Right side
Left side
TUMBLING SECOND SEATS
Right sideÐ
1. Lower the head restraint to the low-
est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward.
To return the tumbled seat:
1. Return the seat until it locks securely.
2. Lift up the seatback by pulling the le-
ver.
Note: When the tumbled seat is returned
to the floor, it cannot be directly swung up
to the tumbled position again. When you
return the seat locked in the floor to the
tumbled position, you must lift up the
seatback once and repeat the above op-
erations 1 and 2.
Left sideÐ
1. Lower the head restraints to the low-
est position. Fold down the seatback
while pulling the seatback angle ad-
justing lever and swing the whole
seat up and forward while pulling
the seat lock release lever on the
side.
To return the tumbled seat to the original
position, reverse the above operation.
ÐTumbling second seats for
luggage space (bench type)
