SUBARU LEGACY 1997 Service Repair Manual 4. Parking Brake (Rear Disc Brake) G4M0411 1Back plate  2Retainer  3Spring washer  4Lever  5Parking brake shoe (Primary)  6Parking brake show (Secondary)  7Strut spring 8Strut  9Shoe guide pl

Page 1330 of 3342

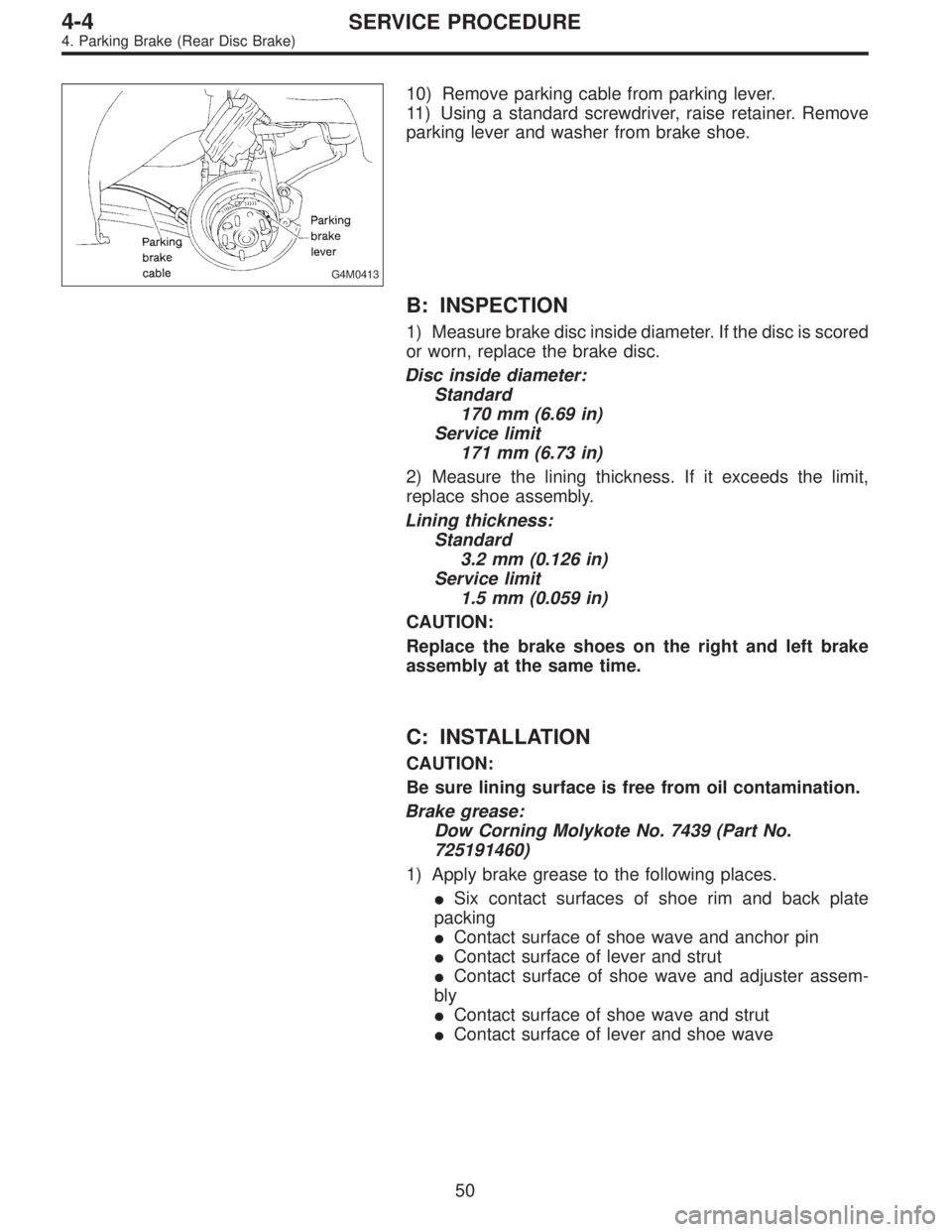

SUBARU LEGACY 1997 Service Repair Manual G4M0413 10) Remove parking cable from parking lever. 11) Using a standard screwdriver, raise retainer. Remove parking lever and washer from brake shoe. B: INSPECTION 1) Measure brake disc inside diame

Page 1331 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2) Installation is in reverse order of removal. CAUTION: Use new retainers and clinch them when installing brake shoes to levers. Ensure that parking lever moves smoothly. Do not confuse left parki

Page 1332 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0416 D: PARKING BRAKE ADJUSTMENT 1. SHOE CLEARANCE ADJUSTMENT 1) Remove adjusting hole cover from back plate. 2) Turn adjusting screw using a slot-type screwdriver until brake shoe is in close cont

Page 1333 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0416 D: PARKING BRAKE ADJUSTMENT 1. SHOE CLEARANCE ADJUSTMENT 1) Remove adjusting hole cover from back plate. 2) Turn adjusting screw using a slot-type screwdriver until brake shoe is in close cont

Page 1334 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: DISASSEMBLY 1. PRECAUTIONS FOR DISASSEMBLING 1) Remove mud and dirt from the surface of brake master cylinder. 2) Prepare tools necessary for disassembly operation, and arrange them neatly on work

Page 1335 of 3342

SUBARU LEGACY 1997 Service Repair Manual D: ASSEMBLY 1. PRECAUTIONS FOR ASSEMBLING 1) When assembling, be sure to use recommended brake fluid. 2) Ensure that the inside wall of cylinder, pistons, and pis- ton cups are free from dirt when ass

Page 1336 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. Brake Booster A: REMOVAL 1) Remove or disconnect the following parts at engine compartment. (1) Disconnect connector for brake fluid level indicator. (2) Remove brake pipes from master cylinder. (3
