Page 2713 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0913A
8N5CHECK GROUND SHORT IN G SENSOR
OUTPUT HARNESS.
1) Disconnect connector from G sensor.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 7�

Page 2714 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0915
8N7
CHECK G SENSOR.
1) Remove G sensor from vehicle.
2) Connect connector to G sensor.
3) Connect connector to ABSCM.
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connect

Page 2715 of 3342

SUBARU LEGACY 1997 Service Repair Manual 8N9
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
:

Page 2716 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0096
9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498345700
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring items Cont

Page 2717 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FA 0B1 Stop light switchLED 1 comes on with the switch on (with the brak

Page 2718 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. FC MODE (TROUBLE CODES AND FREEZE
FRAME DATA ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes is erased.Funct

4. FC MODE (TROUBLE CODES AND FREEZE
FRAME DATA ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes is erased.Function of clearing trouble code. Possible 4-4c [T9J0]
5. FD MODE (ABS SEQUENCE CHECK MODE)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS sequence con-
trolPerform ABS sequence control by operating valve and
pump motor sequentially.Impossible4-4
[W20D0]
6. FE MODE (FREEZE FRAME DATA)
NOTE:
Data stored at the time of trouble occurrence is shown on
display.
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FE1 FR FR wheel speed (mile/h)Wheel speed detected by the FR ABS sensor is displayed in
mile/h.Possible 4-4c [T9K0]
FE2 FL FL wheel speed (mile/h)Wheel speed detected by the FL ABS sensor is displayed in
mile/h.Possible 4-4c [T9L0]
FE3 RR RR wheel speed (mile/h)Wheel speed detected by the RR ABS sensor is displayed in
mile/h.Possible 4-4c [T9M0]
FE4 RL RL wheel speed (mile/h)Wheel speed detected by the RL ABS sensor is displayed in
mile/h.Possible 4-4c [T9N0]
FE5 FR FR wheel speed (km/h)Wheel speed detected by the FR ABS sensor is displayed in
km/h.Possible 4-4c [T9K0]
FE6 FL FL wheel speed (km/h)Wheel speed detected by the FL ABS sensor is displayed in
km/h.Possible 4-4c [T9L0]
FE7 RR RR wheel speed (km/h)Wheel speed detected by the RR ABS sensor is displayed in
km/h.Possible 4-4c [T9M0]
FE8 RL RL wheel speed (km/h)Wheel speed detected by the RL ABS sensor is displayed in
km/h.Possible 4-4c [T9N0]
FE13 POWERABSCM power supply
voltage (V)Power (in volts) supplied to ABSCM appears on the select
monitor display.Possible 4-4c [T9O0]
FE14 G-SENSG sensor output voltage
(V)Refers to vehicle acceleration detected by the analog G sen-
sor. It appears on the select monitor display in volts.Possible 4-4c [T9P0]
FE15MM Motor relay monitor LED 1 comes on when motor relay is on.
Possible 4-4c [T9Q0] B1 Stop light switchLED 2 comes on with the stop light switch on (with the brake
pedal depressed).
AT AT ABS signal LED 3 comes on when ABS control is on.
CM CCM signal LED 4 comes on when ABS control is on.
A0 ABS control LED 5 comes on when ABS control is on.
11 3
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

Page 2719 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1) When a trouble code is not stored in memory, activat-
ing the FE mode causes the initial value to appear on the
select monitor display.
FE1—4: 159 mile/h
FE5—8: 255 km/h
FE13: 16.84 V
FE14:

Page 2720 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0922

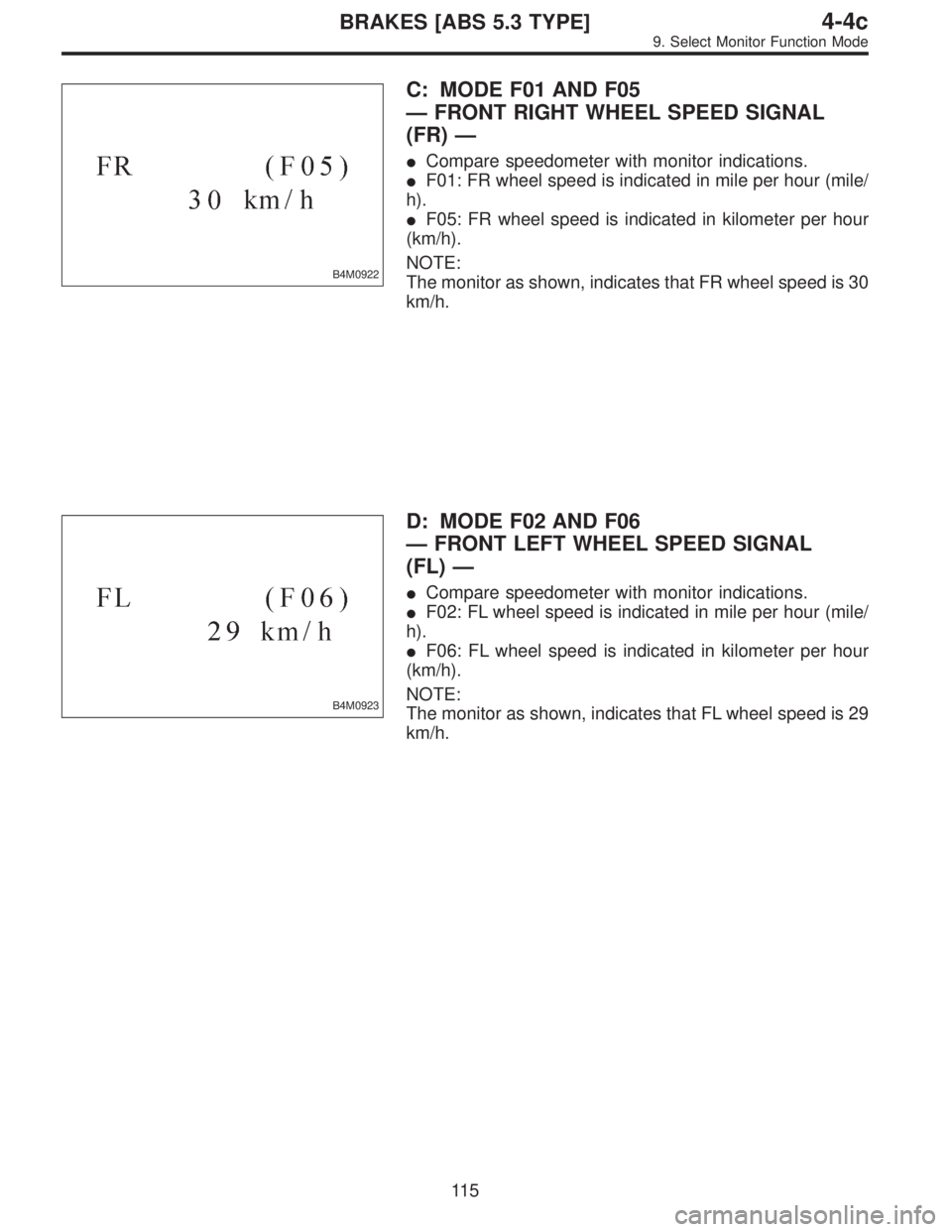

C: MODE F01 AND F05
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—
Compare speedometer with monitor indications.
F01: FR wheel speed is indicated in mile per hour (mile/
h).
F05: FR wheel speed
