Page 857 of 3342

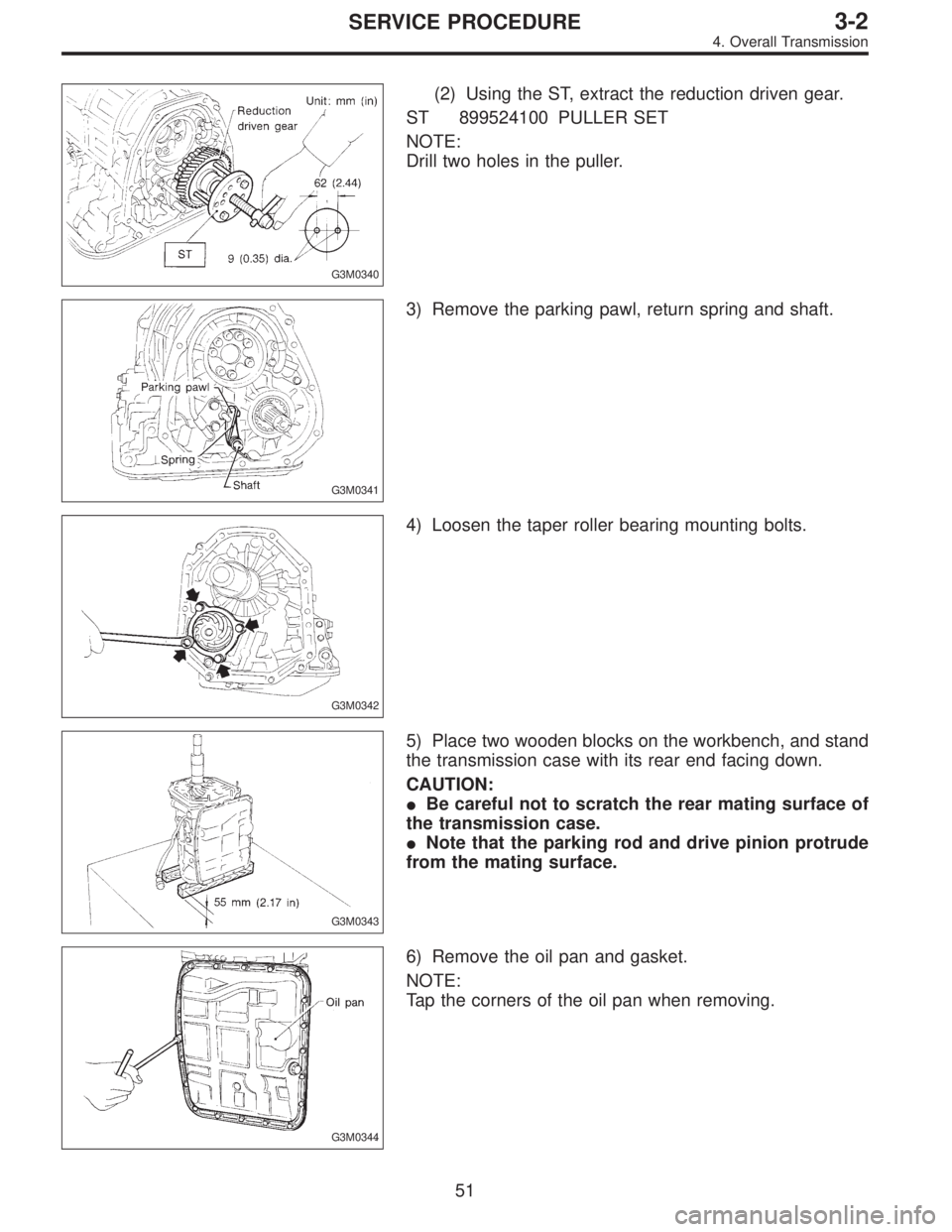

SUBARU LEGACY 1997 Service Repair Manual G3M0340 (2) Using the ST, extract the reduction driven gear. ST 899524100 PULLER SET NOTE: Drill two holes in the puller. G3M0341 3) Remove the parking pawl, return spring and shaft. G3M0342 4) Loosen

Page 858 of 3342

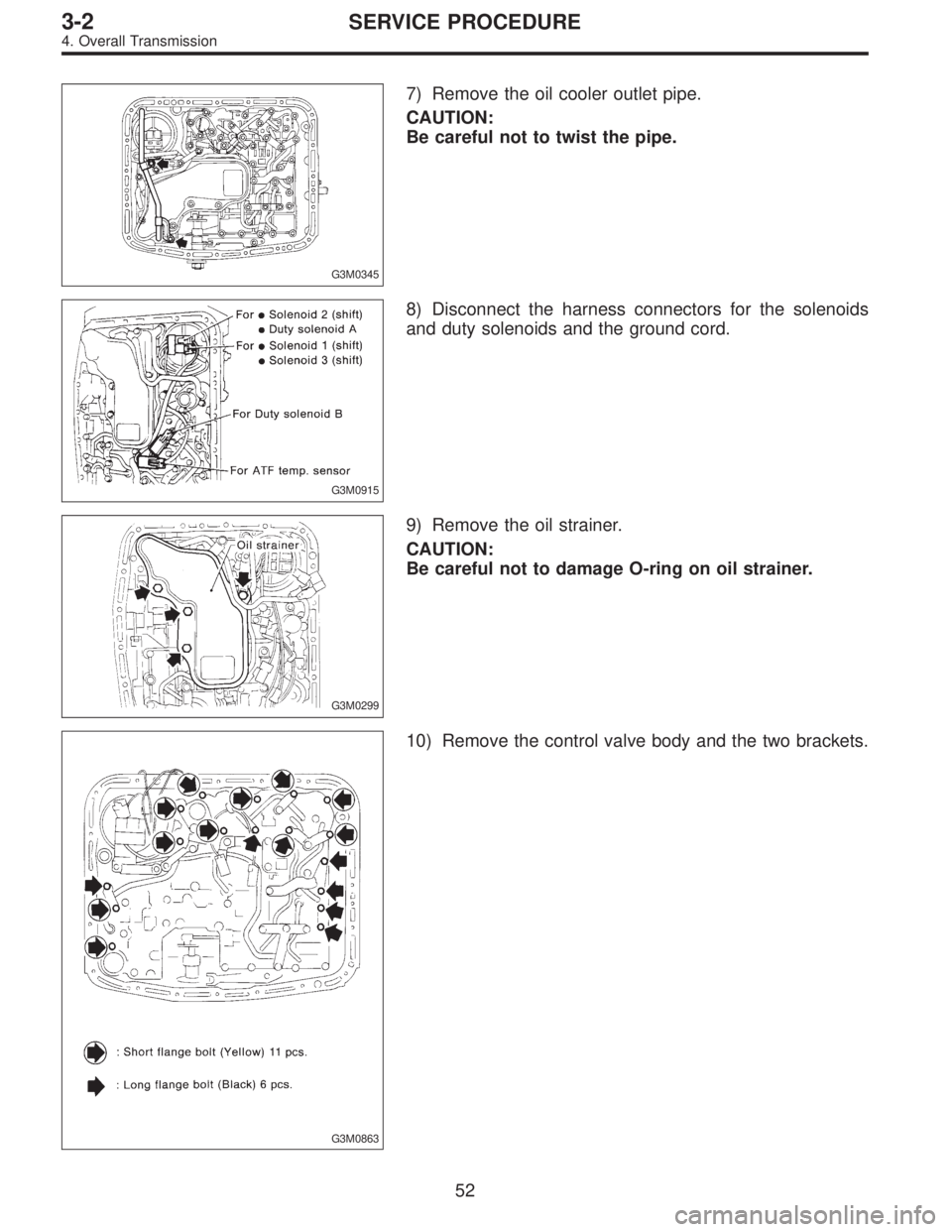

SUBARU LEGACY 1997 Service Repair Manual G3M0345 7) Remove the oil cooler outlet pipe. CAUTION: Be careful not to twist the pipe. G3M0915 8) Disconnect the harness connectors for the solenoids and duty solenoids and the ground cord. G3M0299

Page 859 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0346 11) Remove the three accumulator springs. G3M0347 12) Loosen the reverse clutch drum lightly by turning the adjusting screw. Then remove the oil pump housing. CAUTION: Be careful not to lose t

Page 860 of 3342

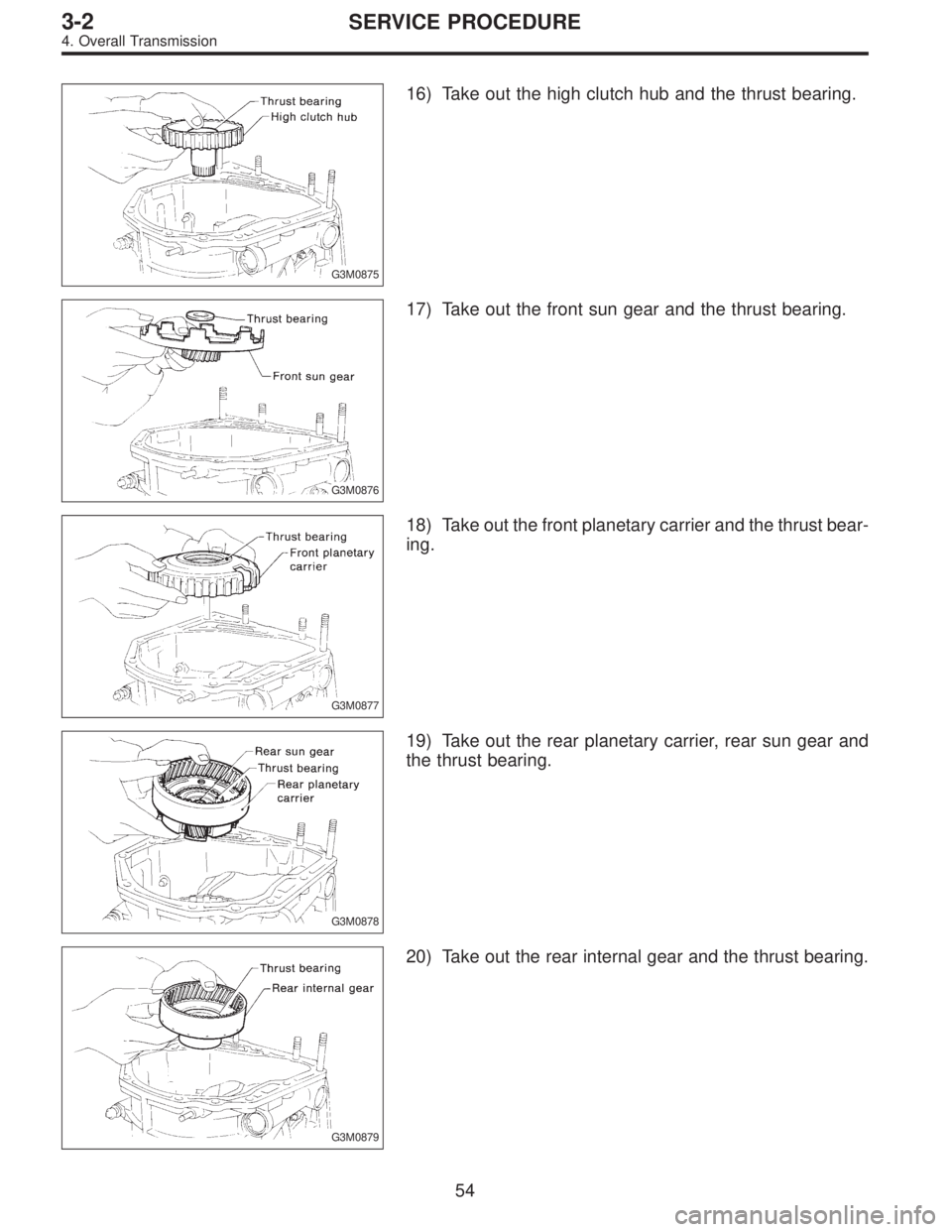

SUBARU LEGACY 1997 Service Repair Manual G3M0875 16) Take out the high clutch hub and the thrust bearing. G3M0876 17) Take out the front sun gear and the thrust bearing. G3M0877 18) Take out the front planetary carrier and the thrust bear- i

Page 861 of 3342

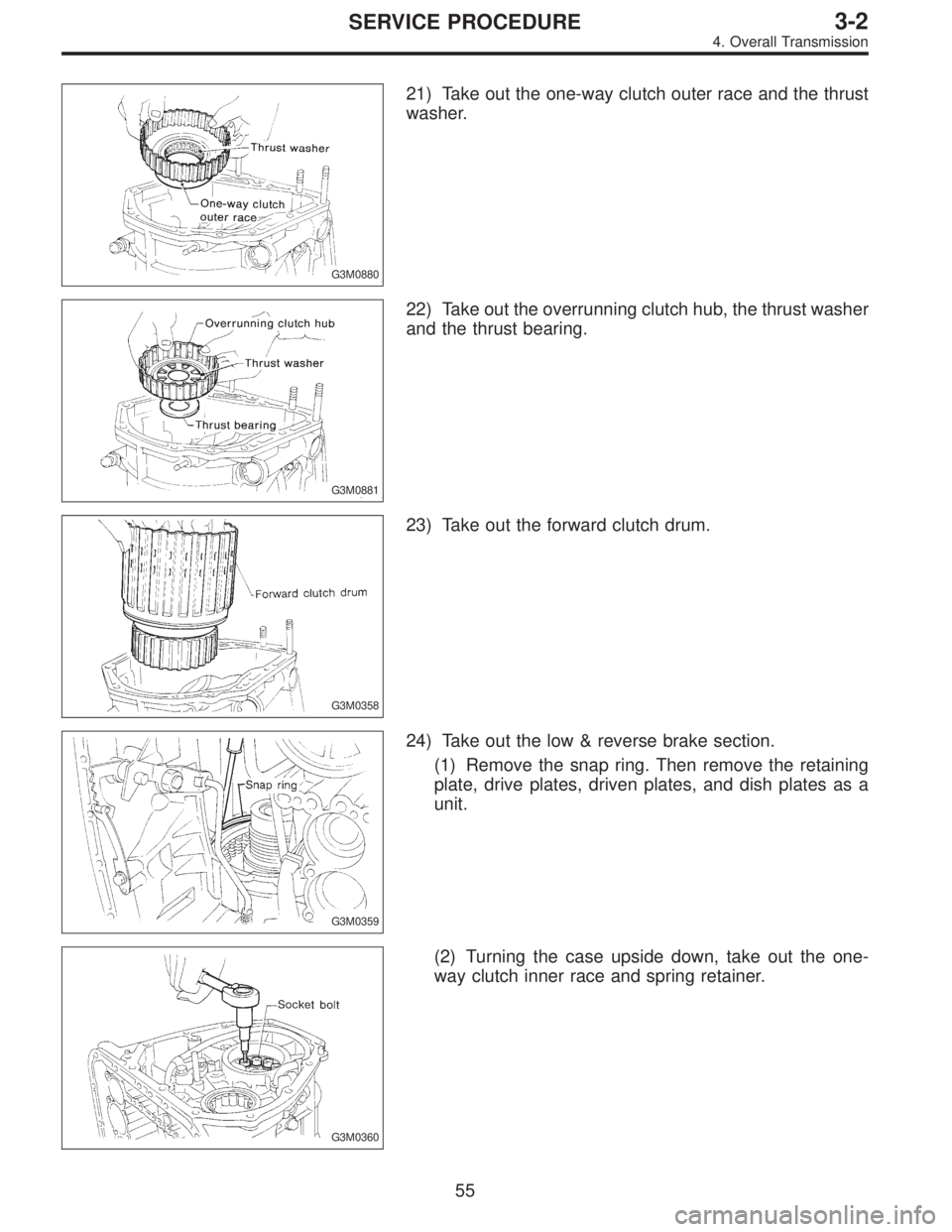

SUBARU LEGACY 1997 Service Repair Manual G3M0880 21) Take out the one-way clutch outer race and the thrust washer. G3M0881 22) Take out the overrunning clutch hub, the thrust washer and the thrust bearing. G3M0358 23) Take out the forward cl

Page 862 of 3342

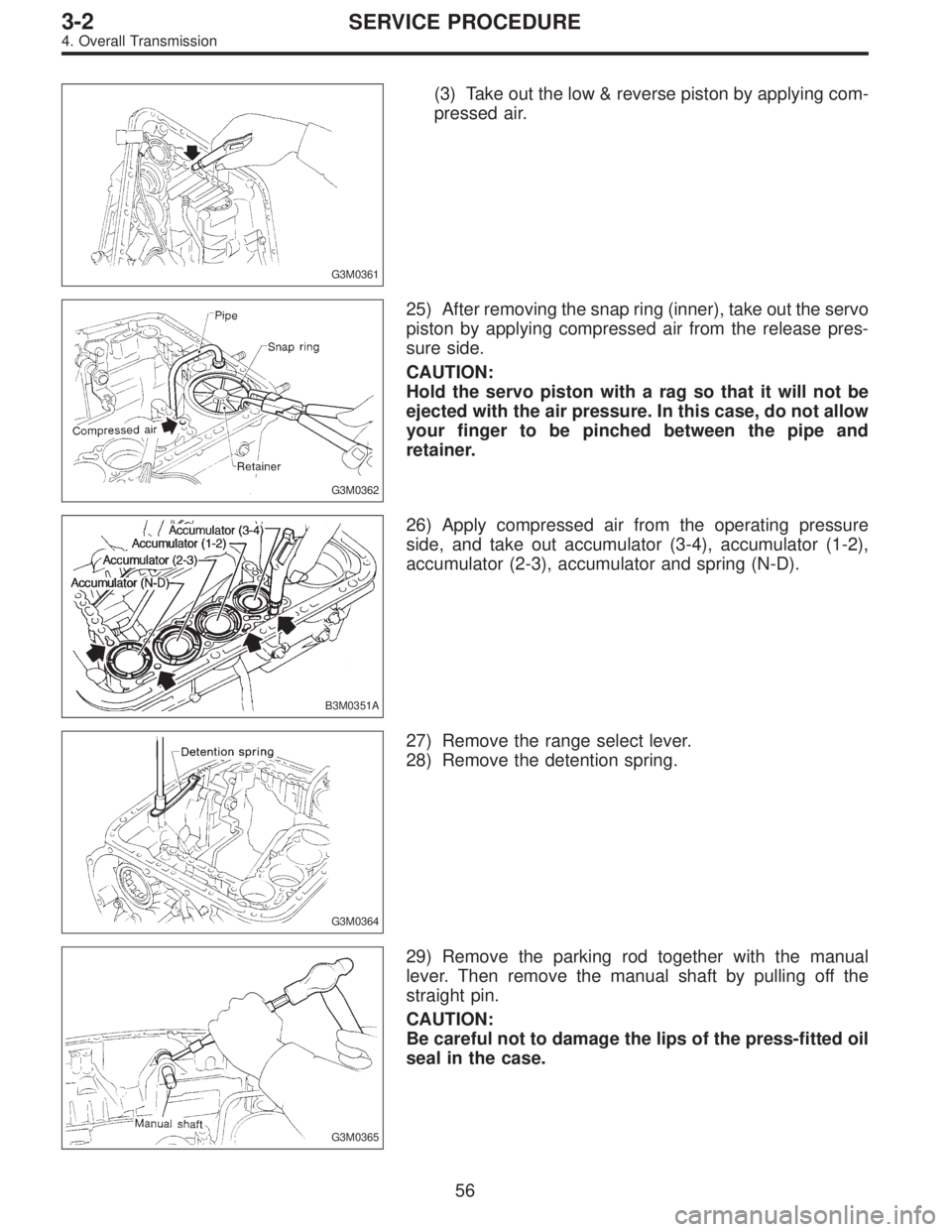

SUBARU LEGACY 1997 Service Repair Manual G3M0361 (3) Take out the low & reverse piston by applying com- pressed air. G3M0362 25) After removing the snap ring (inner), take out the servo piston by applying compressed air from the release pres

Page 863 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0366 30) Remove the inhibitor switch. G3M0367 31) Remove the transmission harness. CAUTION: Be careful not to damage the cord insulation. G3M0368 4. TORQUE CONVERTER CLUTCH CASE SECTION 1) Wrap the

Page 864 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0371 5) Remove the snap ring. Then remove the speedometer driven gear. G3M0372 6) Remove vehicle speed sensor 2. 7) Tap out the speedometer shaft to the outside of the case, and remove the oil seal
