Page 2377 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1128 CG: DTC P1143 —PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (LOW INPUT)— WIRING DIAGRAM: B2M0786 NOTE: Check pressure sensor circuit. <Ref. to 2-7 [T10CJ0].> 526 2-7ON-BOARD DIAGNOSTI

Page 2378 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1129 CH: DTC P1144 —PRESSURE SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (HIGH INPUT)— WIRING DIAGRAM: B2M0786 NOTE: Check pressure sensor circuit. <Ref. to 2-7 [T10CK0].> 527 2-7ON-BOARD DIAGNOST

Page 2379 of 3342

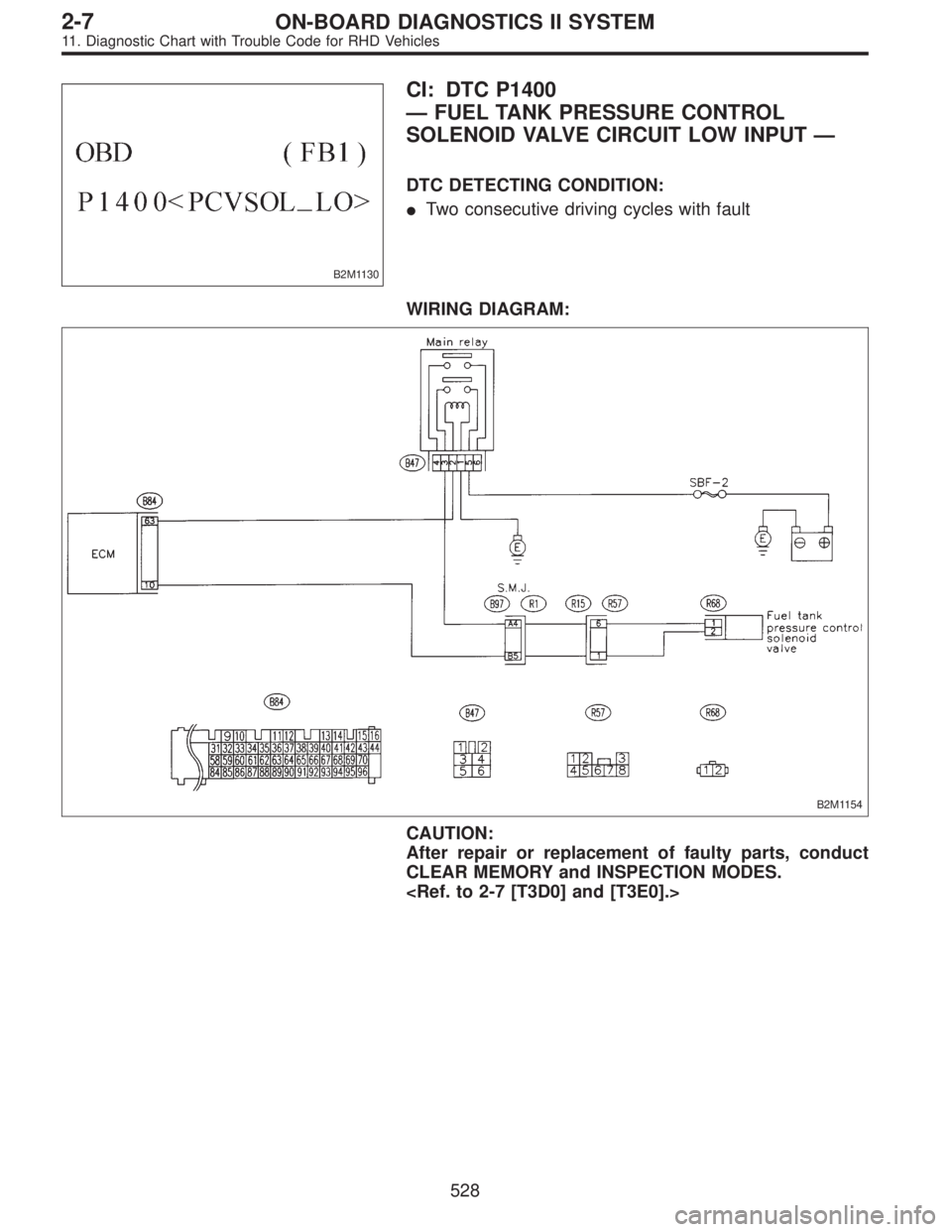

SUBARU LEGACY 1997 Service Repair Manual B2M1130 CI: DTC P1400 —FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1154 CAUTION: After repai

Page 2380 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1408B 11CI1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 10 (+)—Chassis ground (�): Is the volt

Page 2381 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0931A 4) Measure resistance of harness between ECM and fuel tank pressure control solenoid valve connector. : Connector & terminal (B84) No. 10—(R68) No. 2: Is the voltage less than 1Ω? : Go to

Page 2382 of 3342

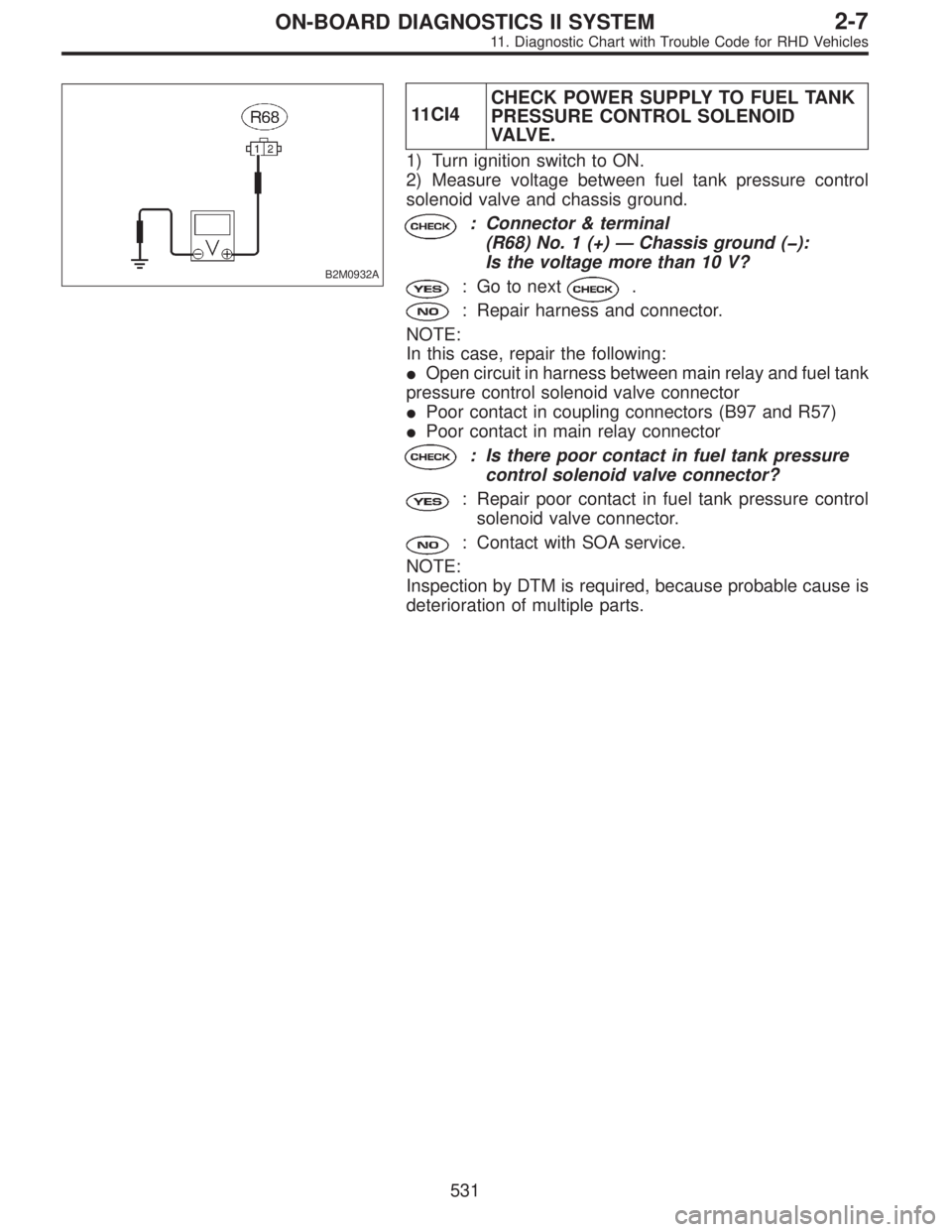

SUBARU LEGACY 1997 Service Repair Manual B2M0932A 11CI4CHECK POWER SUPPLY TO FUEL TANK PRESSURE CONTROL SOLENOID VA LV E . 1) Turn ignition switch to ON. 2) Measure voltage between fuel tank pressure control solenoid valve and chassis ground

Page 2383 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1131 CJ: DTC P1420 —FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1154 CAUTION: After repa

Page 2384 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1408B 11CJ1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 10 (+)—Chassis ground (�): Is the volt
