Page 3033 of 3342

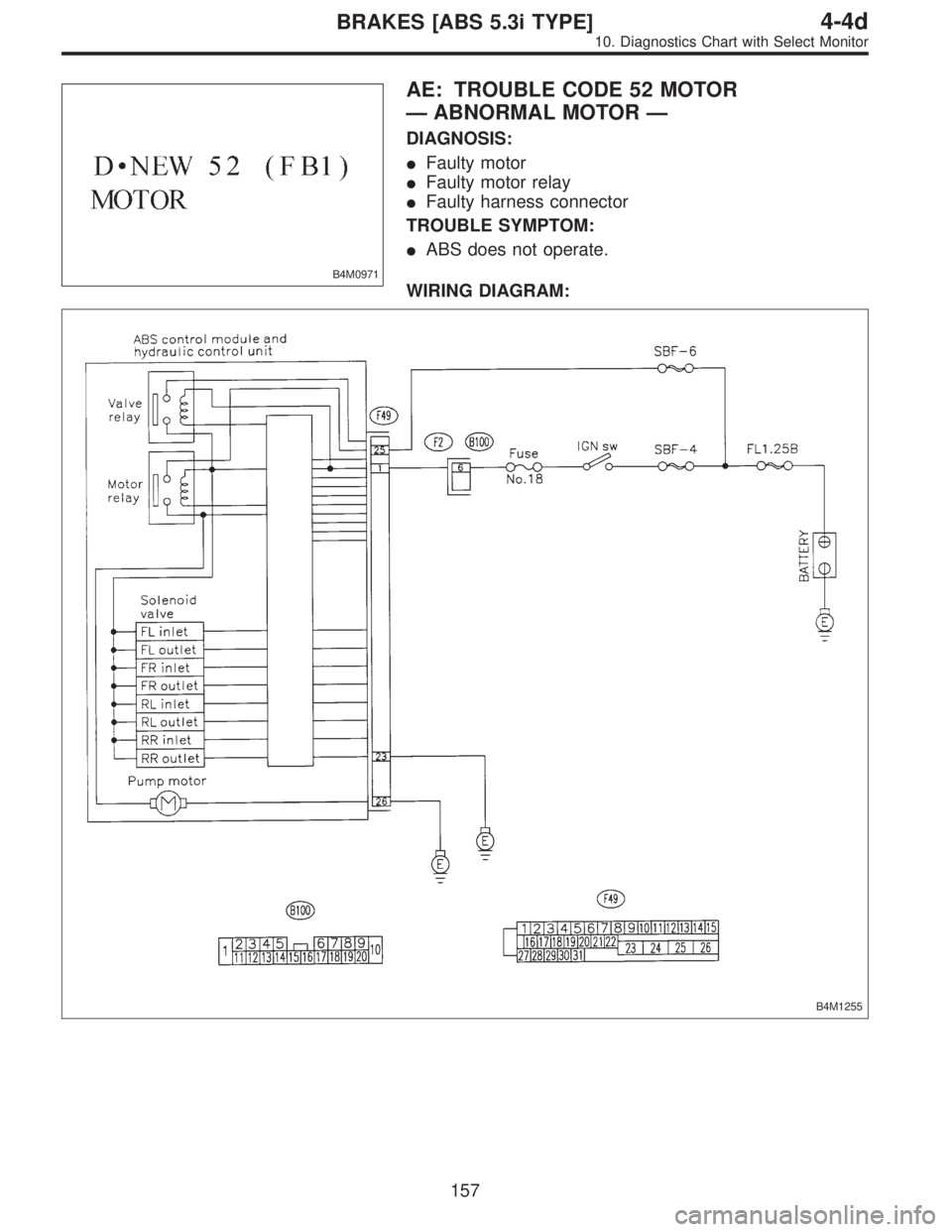

SUBARU LEGACY 1997 Service Repair Manual B4M0971 AE: TROUBLE CODE 52 MOTOR —ABNORMAL MOTOR— DIAGNOSIS: Faulty motor Faulty motor relay Faulty harness connector TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1255 157 4-4dBR

Page 3034 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1256A 10AE1CHECK INPUT VOLTAGE OF ABSCM&H/U. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM&H/U. 3) Turn ignition switch to ON. 4) Measure voltage between ABSCM&H/U connector an

Page 3035 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1234A 10AE3CHECK INPUT VOLTAGE OF ABSCM&H/U. 1) Run the engine at idle. 2) Measure voltage between ABSCM&H/U connector and chassis ground. Connector & terminal (F49) No. 1 (+)—Chassis ground (�):

Page 3036 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AE6CHECK POOR CONTACT IN CONNEC- TORS. Turn ignition switch to OFF. : Is there poor contact in connector between generator, battery and ABSCM&H/U? <Ref. to FOREWORD [T3C1].> : Repair connector. : Go

Page 3037 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0972 AF: TROUBLE CODE 54 BLS —ABNORMAL STOP LIGHT SWITCH— DIAGNOSIS: Faulty stop light switch TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1258 161 4-4dBRAKES [ABS 5.3i TYPE] 10.

Page 3038 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0973 10AF1CHECK OUTPUT OF STOP LIGHT SWITCH USING SELECT MONITOR. 1) Press [F], [0] and [9] on the select monitor. 2) Depress the brake pedal. 3) Read the stop light switch output on the select mon

Page 3039 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1259A 10AF4 CHECK OPEN CIRCUIT IN HARNESS. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM&H/U. 3) Depress brake pedal. 4) Measure voltage between ABSCM&H/U connector and chassis

Page 3040 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0974 AG: TROUBLE CODE 56 G SENSOR LINE —OPEN OR SHORT CIRCUIT OF G SENSOR— DIAGNOSIS: Faulty G sensor output voltage TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1260 164 4-4dBRA
