Page 1313 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1) Clean mud and foreign particles from caliper body assembly and support. CAUTION: Be careful not to allow foreign particles to enter inlet (at brake hose connector). B4M1164A 2) Using a standard scr

Page 1314 of 3342

SUBARU LEGACY 1997 Service Repair Manual E: ASSEMBLY 1. EXCEPT 2500 cc MODEL 1) Clean caliper body interior using brake fluid. 2) Apply a coat of brake fluid to piston seal and fit piston seal in groove on caliper body. 3) Apply a coat of br

Page 1315 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. 2500 cc MODEL 1) Clean caliper body interior using brake fluid. 2) Apply a coat of brake fluid to piston seal and fit piston seal in groove on caliper body. 3) Apply a coat of brake fluid to the en

Page 1316 of 3342

SUBARU LEGACY 1997 Service Repair Manual F: INSTALLATION 1) Install disc rotor on hub. 2) Install support on housing. Tightening torque: 78±10 N⋅m (8±1 kg-m, 58±7 ft-lb) CAUTION: Always replace the pads for both the left and right whee

Page 1317 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Rear Disc Brake G4M0912 1Guide pin  2Lock pin  3Lock pin boot  4Lock pin sleeve  5Air bleeder screw  6Guide pin boot  7Caliper body  8Piston seal  9Piston 10Piston boot  11Boot ring  12

Page 1318 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0379 2) Raise caliper body. 3) Remove pad from support. G4M0362 4) Check pad thickness (including back metal). Pad thickness: A Standard value 15.0 mm (0.591 in) Wear limit 6.5 mm (0.256 in) CAUTIO

Page 1319 of 3342

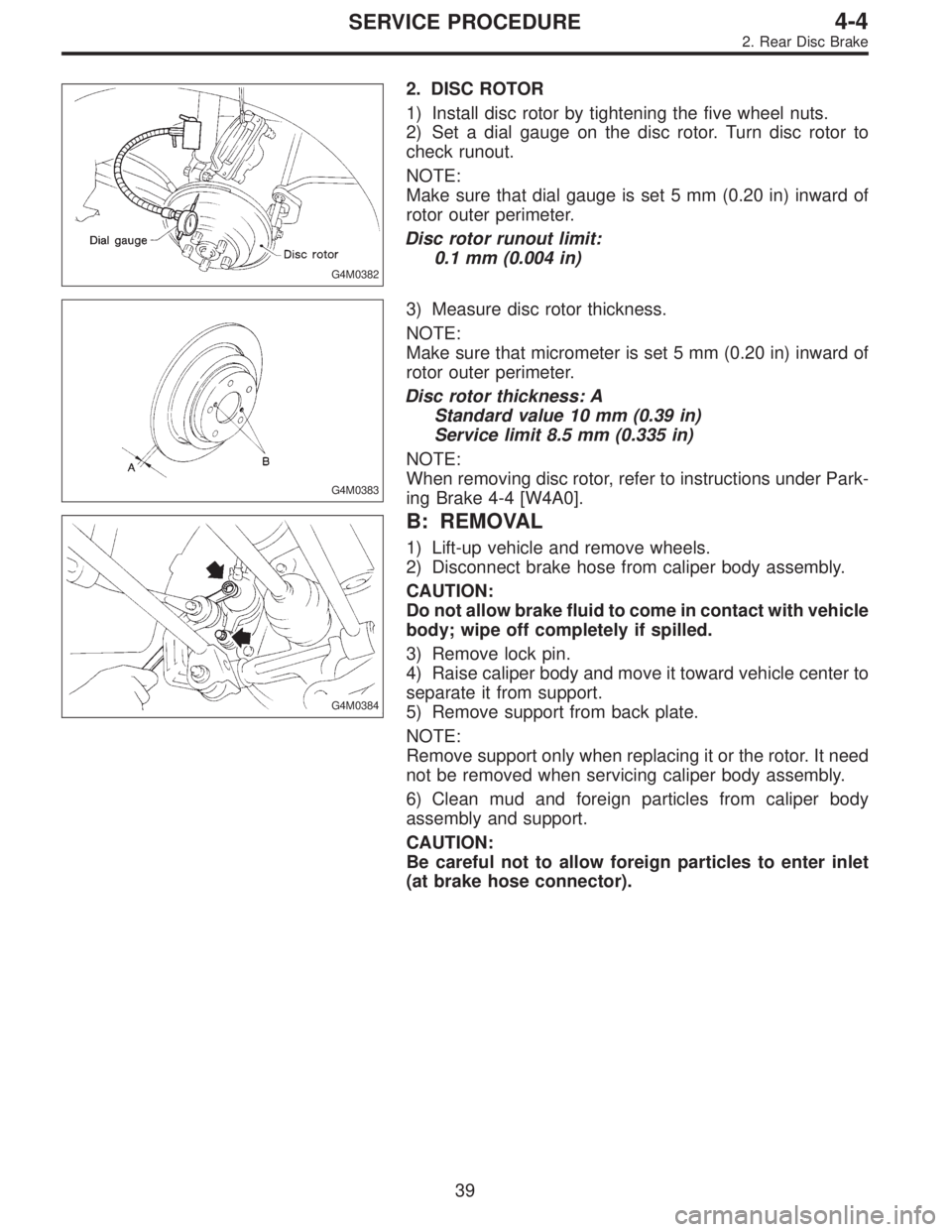

SUBARU LEGACY 1997 Service Repair Manual G4M0382 2. DISC ROTOR 1) Install disc rotor by tightening the five wheel nuts. 2) Set a dial gauge on the disc rotor. Turn disc rotor to check runout. NOTE: Make sure that dial gauge is set 5 mm (0.20

Page 1320 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0370 C: DISASSEMBLY 1) Remove the boot ring. G4M0474 2) Remove the piston boot. G4M0371 3) Gradually supply compressed air via inlet of caliper body to force piston out. CAUTION: Place a wooden bl
