How to use this manual
This Service Manual is divided into four volumes by section so that it can be used with ease at work. Refer to
the Table of Contents, select and use the necessary section.
GENERAL INFORMATION SECTION
REPAIR SECTION
DIAGNOSTICS SECTION
WIRING DIAGRAM SECTION
Each chapter in the manual is basically made of the following four types of areas.
S SPECIFICATIONS AND SERVICE DATA
C COMPONENT PARTS
W SERVICE PROCEDURE
(X SERVICE PROCEDURE)
(Y SERVICE PROCEDURE)
K DIAGNOSTICS
The description of each area is provided with four types of titles different in size as shown below. The Title No.
or Symbol prefixes each title in order that the construction of the article and the flow of explanation can be eas-
ily understood.
[Example of each title]
Area title: W SERVICE PROCEDURE (one of the four types of areas)
Large title (Heading): 1. Oil Pump (to denote the main item of explanation)
Medium title (Section): A: REMOVAL (to denote the type of work in principle)
Small title (Sub-section): 1. INNER ROTATOR (to denote a derivative item of explanation)
3
Page 3330 of 3342
The Title Index No. is indicated on the top left (or right) side of the page as the book is opened. This is useful
for retrieving the necessary portion.
(Example of usage)
Refer to 4 - 1
[W1A0]
Small title (Sub-section)
Medium title (Section)
Large title (Heading)
Area title
Chapter No.
4
Page 3331 of 3342

In this manual, the following symbols are used.
*: Selective part
: Replacement part
: Should be lubricated with oil.
: Should be lubricated with grease.
: Sealing point
: Tightening torque
WARNING, CAUTION, NOTE
WARNING: Indicates the item which must be observed precisely during performance of maintenance ser-
vices in order to avoid injury to the mechanics and other persons.
CAUTION: Indicates the item which must be followed precisely during performance of maintenance ser-
vices so as to avoid damage and breakage to the vehicle and its parts and components.
NOTE: Indicates the hints, knacks, etc. which make the maintenance job easier.
SPECIAL TOOLS
When any special tool is required to perform the job, it is identified by“ST”in the applicable illustration and its
part number is shown in the manual.
M1H0120
1. Procedures for adjusting backlash
1) Set steering wheel to the straight-ahead position.
2) Remove the exhaust pipe
3) Loosen the lock nut with ST.
{ST1 921650000 STEERING GEARBOX WRENCH
ST2 921550000 STEERING GEARBOX WRENCH
Description
(of job method)
Shows the part name
Shows the part number
Tells that two kinds of special tools are required.
When two or more kinds of special tools are required to do
a job, they are identified by ST1, ST2,......respectively.
5
Page 3332 of 3342

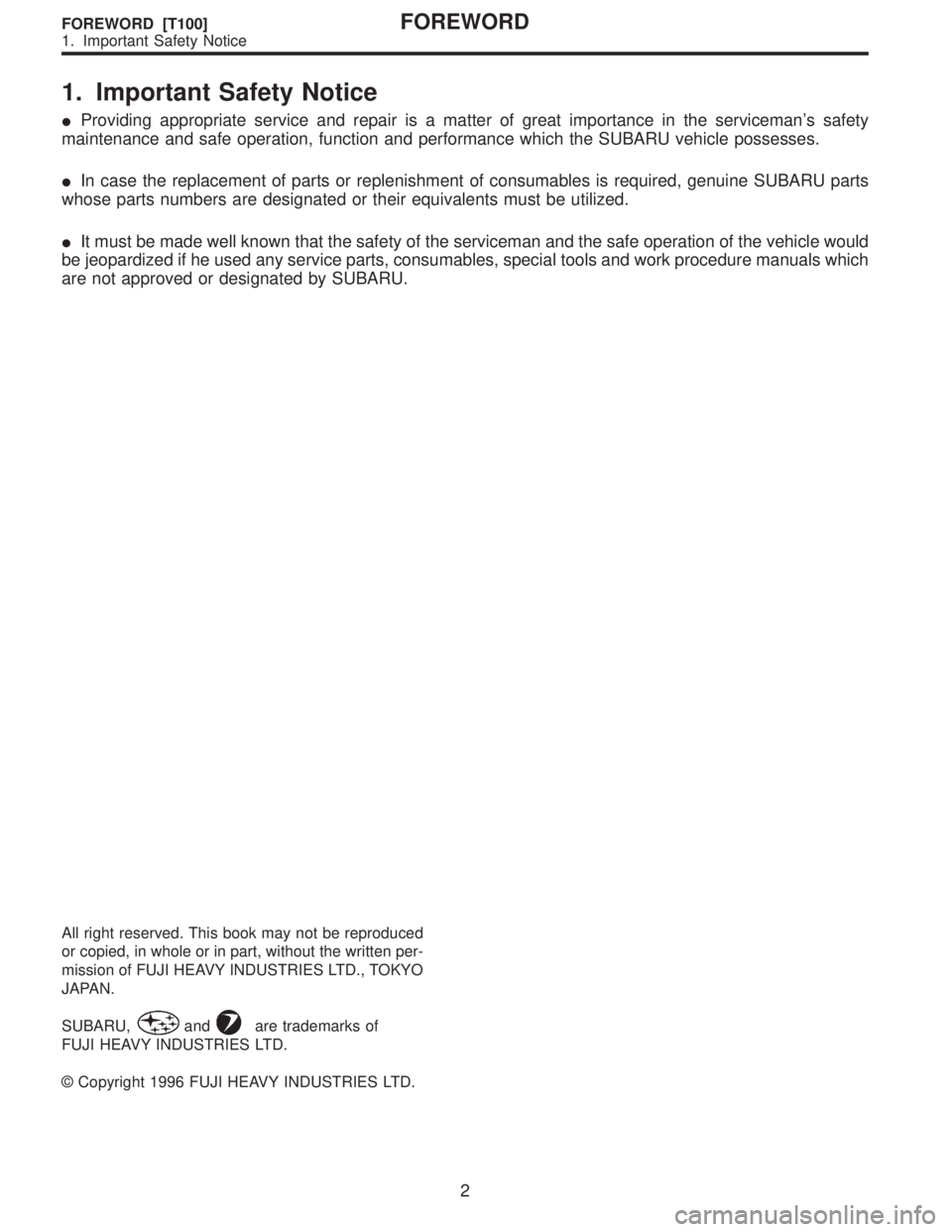

1. Important Safety Notice
Providing appropriate service and repair is a matter of great importance in the serviceman’s safety
maintenance and safe operation, function and performance which the SUBARU vehicle possesses.
In case the replacement of parts or replenishment of consumables is required, genuine SUBARU parts
whose parts numbers are designated or their equivalents must be utilized.
It must be made well known that the safety of the serviceman and the safe operation of the vehicle would
be jeopardized if he used any service parts, consumables, special tools and work procedure manuals which
are not approved or designated by SUBARU.
All right reserved. This book may not be reproduced
or copied, in whole or in part, without the written per-
mission of FUJI HEAVY INDUSTRIES LTD., TOKYO
JAPAN.
SUBARU,
andare trademarks of
FUJI HEAVY INDUSTRIES LTD.
© Copyright 1996 FUJI HEAVY INDUSTRIES LTD.
2
FOREWORD [T100]FOREWORD
1. Important Safety Notice
Page 3333 of 3342
2. How to Use this Manual
This Service Manual is divided into four volumes by section so that it can be used with ease at work.
Refer to the Table of Contents, select and use the necessary section.
GENERAL INFORMATION SECTION
REPAIR SECTION
DIAGNOSTICS SECTION
WIRING DIAGRAM SECTION
The description of each area is provided with four types of titles different in size as shown below. The
Title No. or Symbol prefixes each title in order that the construction of the article and the flow of explana-
tion can be easily understood.
[Example of each title]
Area title: T. DIAGNOSTICS
Large title (Heading): 1. Diagnostics Chart with Select Monitor (to denote the main item of explanation.)
Medium title (Section): A: BASIC DIAGNOSTICS CHART (to denote the type of work in principle.)
Small title (Sub-section): 1. CHECK INPUT SIGNAL FOR ECM (to denote a derivative item of explanation.)
3
[T200] FOREWORDFOREWORD
2. How to Use this Manual
Page 3334 of 3342

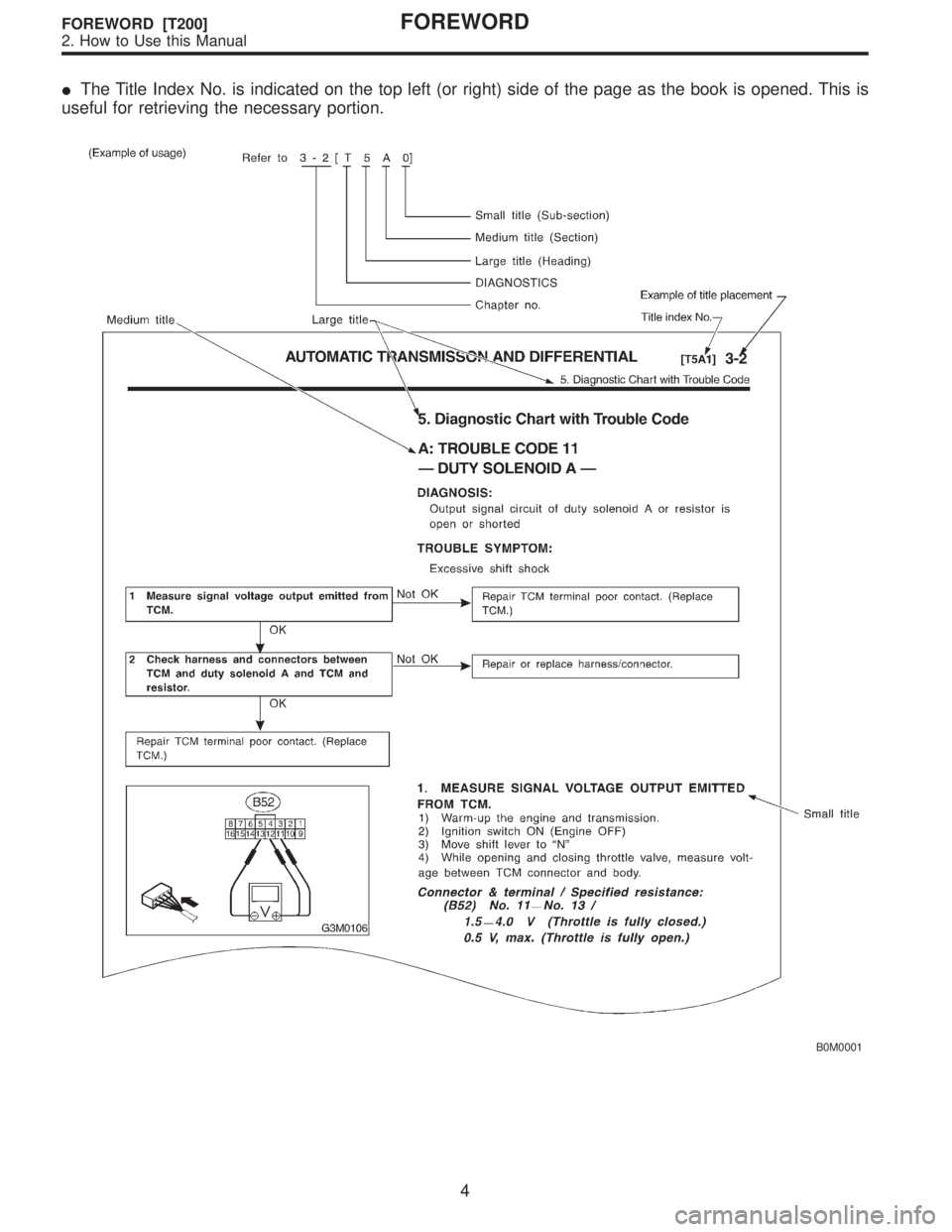

The Title Index No. is indicated on the top left (or right) side of the page as the book is opened. This is
useful for retrieving the necessary portion.
B0M0001
4
FOREWORD [T200]FOREWORD
2. How to Use this Manual
Page 3335 of 3342

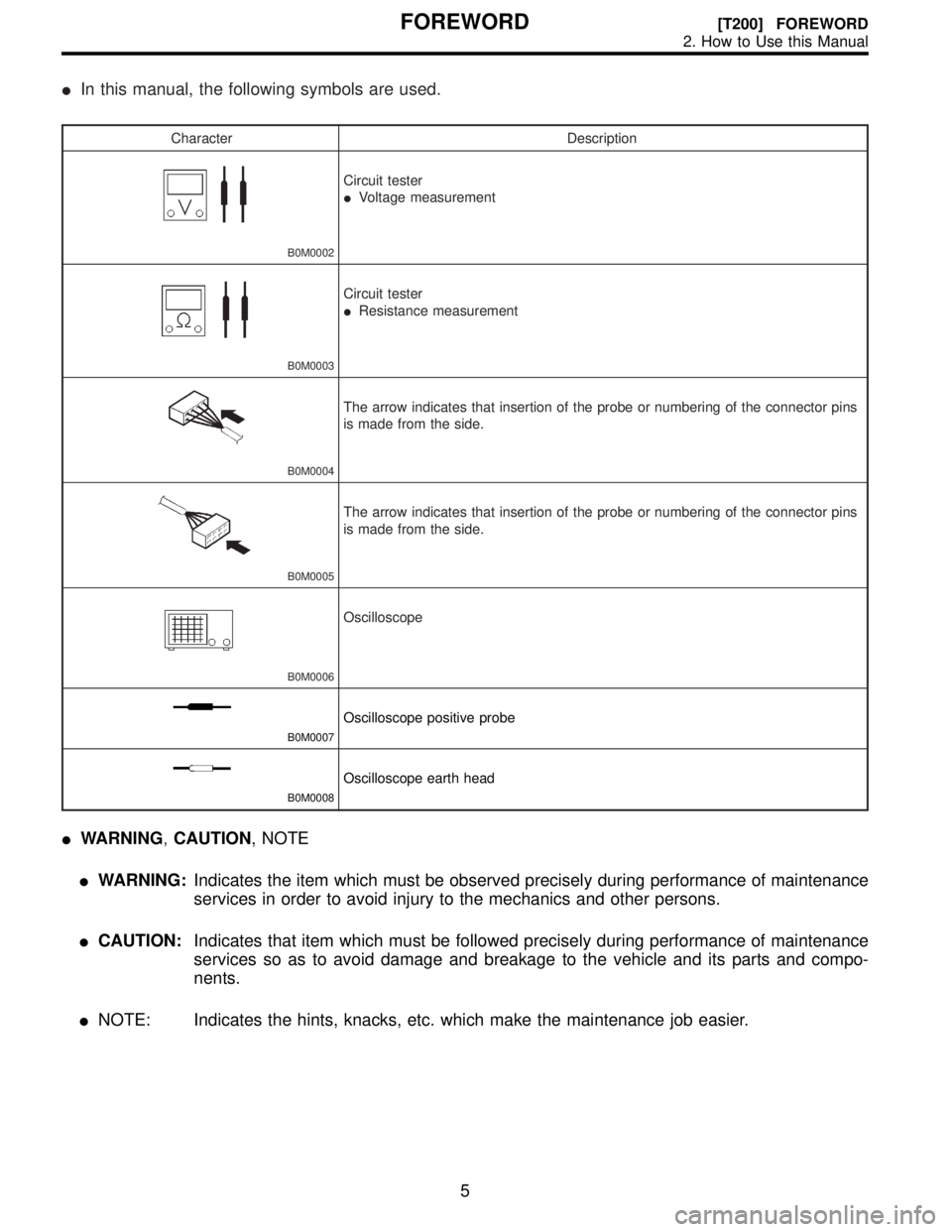

In this manual, the following symbols are used.
Character Description
B0M0002
Circuit tester
Voltage measurement
B0M0003
Circuit tester
Resistance measurement
B0M0004
The arrow indicates that insertion of the probe or numbering of the connector pins
is made from the side.
B0M0005
The arrow indicates that insertion of the probe or numbering of the connector pins
is made from the side.
B0M0006
Oscilloscope
B0M0007
Oscilloscope positive probe
B0M0008
Oscilloscope earth head
WARNING,CAUTION, NOTE
WARNING:Indicates the item which must be observed precisely during performance of maintenance
services in order to avoid injury to the mechanics and other persons.
CAUTION:Indicates that item which must be followed precisely during performance of maintenance
services so as to avoid damage and breakage to the vehicle and its parts and compo-
nents.
NOTE: Indicates the hints, knacks, etc. which make the maintenance job easier.
5
[T200] FOREWORDFOREWORD
2. How to Use this Manual
Page 3336 of 3342
B0M0009

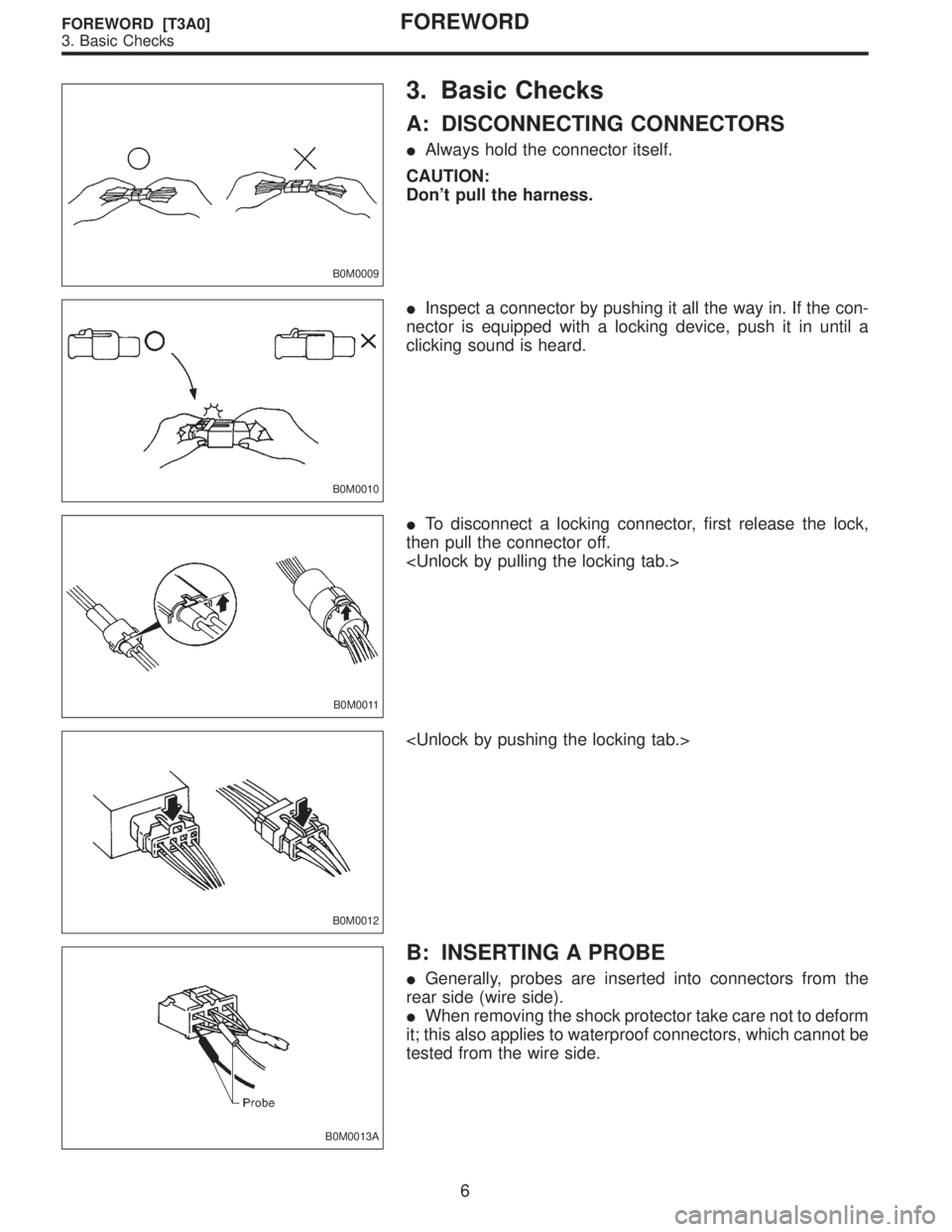

3. Basic Checks
A: DISCONNECTING CONNECTORS
Always hold the connector itself.
CAUTION:
Don’t pull the harness.
B0M0010
Inspect a connector by pushing it all the way in. If the con-
nector is equipped with a locking device, push it in until a
clicking sound is heard.
B0M0011
To disconnect a locking connector, first release the lock,
then pull the connector off.
B0M0012
B0M0013A
B: INSERTING A PROBE
Generally, probes are inserted into connectors from the
rear side (wire side).
When removing the shock protector take care not to deform
it; this also applies to waterproof connectors, which cannot be
tested from the wire side.
6
FOREWORD [T3A0]FOREWORD
3. Basic Checks
